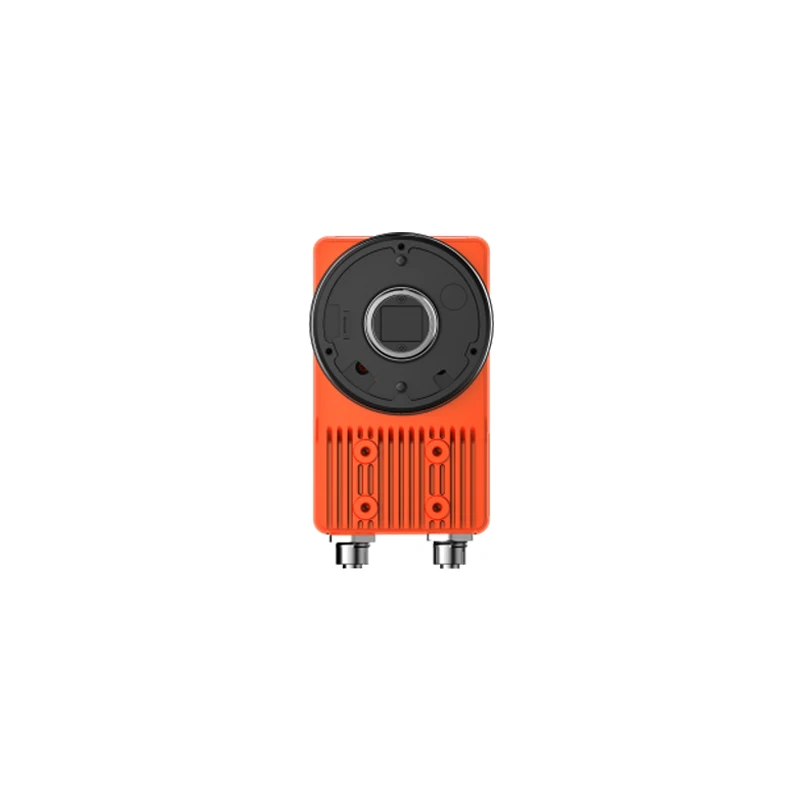

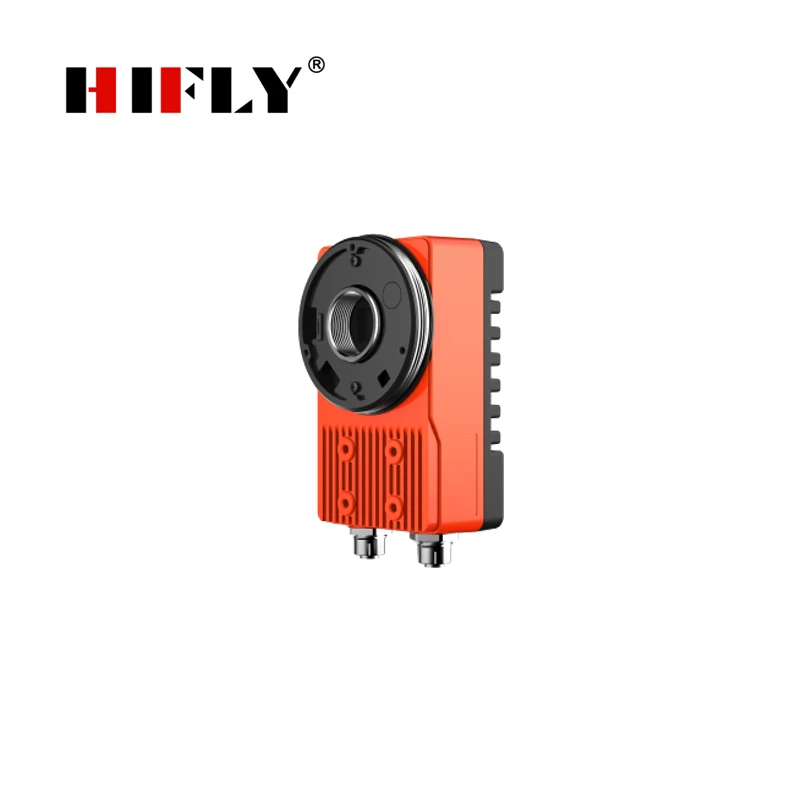

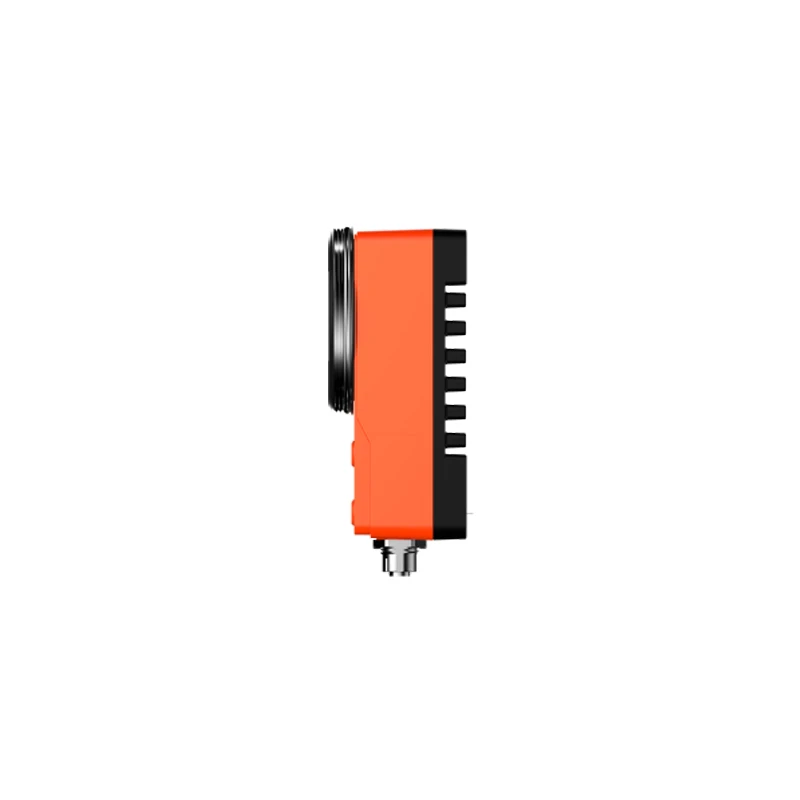

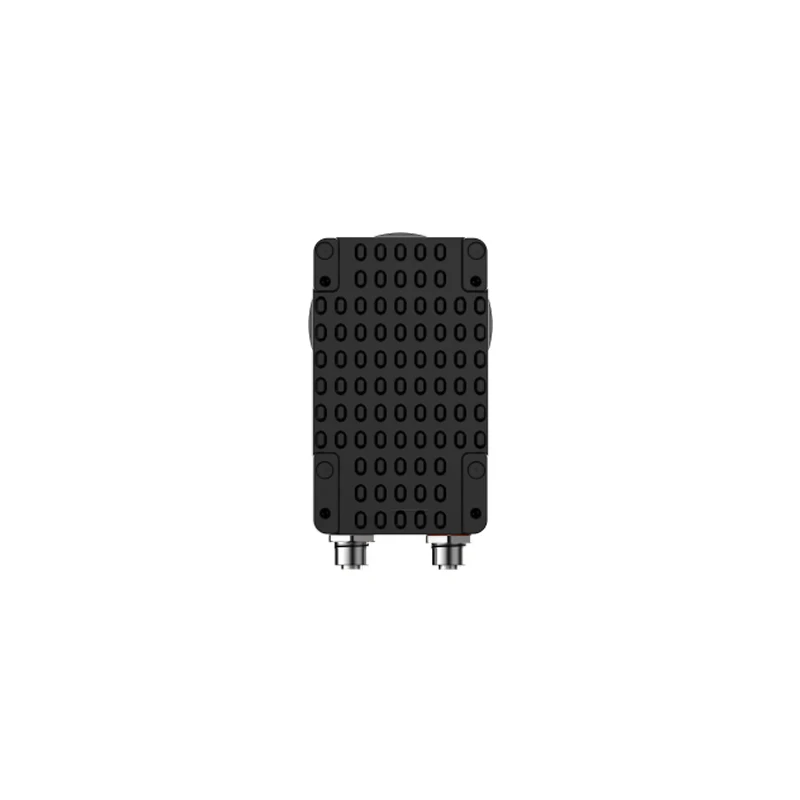

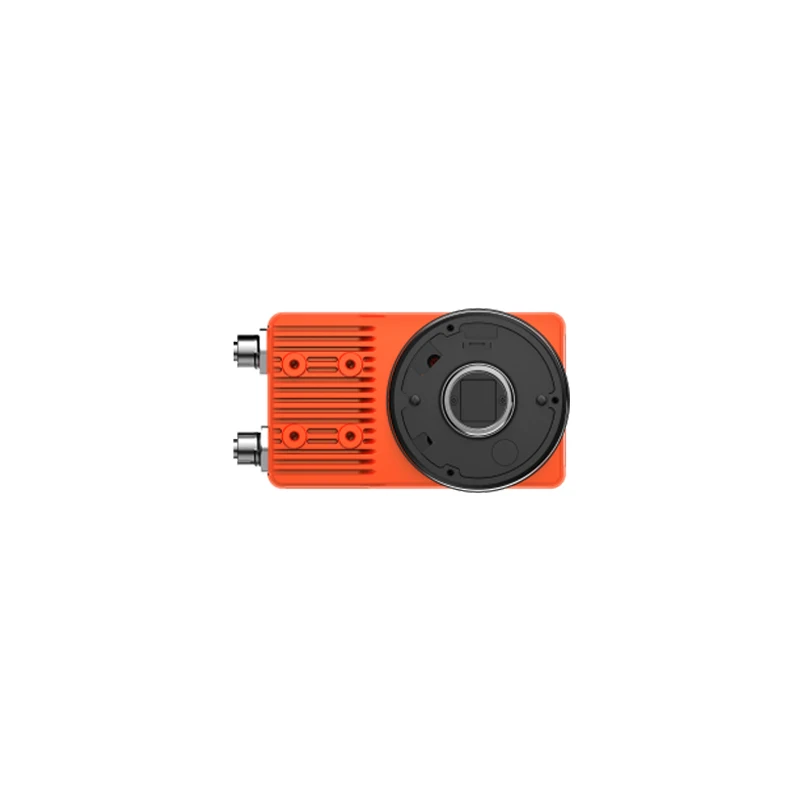

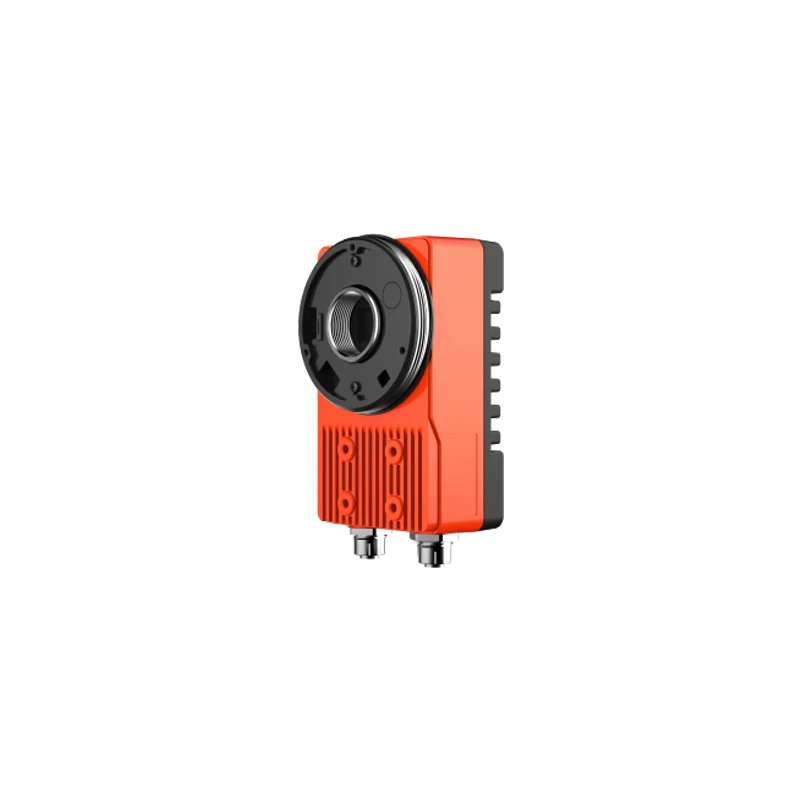

2021 усовершенствованная 20 МП смарт камера для считывания различных 1D/2D кодов (штрих коды, DM/QR)
- Category: Action & Sports Camera >>>
- Supplier: Shenzhen Hifly Technology Co. Limited
Share on (1600384572668):
Product Overview
Description
Product Description
About this item
HIFLY Smart Cameras/Readers combine powerful onboard processors and imaging sensors into an all-in-one vision system. Smart Camera digital I/O includes optoisolated digital inputs, optoisolated digital outputs, a RS232 serial port, and Gigabit Ethernet ports. Smart Cameras/Readers can also build in digital I/O and industrial communication options for dynamic, real-time communication and integration with other industrial automation equipment.
Features :
● CMOS serialized products with high-speed recognition capability and excellent imaging effects;
● Support software trigger/ hardware trigger/ free run mode etc.;
● Gigabit Ethernet interface, providing 1Gbps bandwidth;
● Abundant I/O interfaces: 1x RS232,1x Opto-isolated input, 3x Opto-isolated output;
● Industrial-grade M12 connector, IP67;
● Support DC 24V input, adapt to industrial voltage environment;
● Abundant code reading types，including CODE128/EAN/CODE39/CODE93/CODEBAR/ITF25/DM/QR etc.
Specifications
Item | Value |
Model | MV-RH7B00MG000E |
Resolution | 5440 x 3648 |
Maximum frame rate | 15fps |
Sensor type | 1"，CMOS |
Shutter type | Rolling |
Built-in Software | SVStudio |
Image size | 2.4 x 2.4μm |
Memory | 4G DDR4 |
Storage | 4G NAND |
Mono / Color | Mono |
Lens mount | C / M12 mount |
Trigger mode | Support software trigger/ hardware trigger/ free run mode etc. |
Certificate | CE，FCC，KC |
Types of Reading codes | 1D: CODE128/EAN/CODE39/CODE93/CODEBAR/ITF25, etc; 2D: DM/QR etc. |
Gain | X1-X6 |
Connector | industrial-grade M12 connectors |
Network Interface | Code-A, Gigabit Ethernet |
GPIO | 12-pin I/O interface, RS232 interface *1, Opto-isolated input *1, Opto-isolated output *3 |
Communication port | RS232, Ethernet |
Protocol | SDK, Serial, TCPServer, TCPClient, Profinet, Modbus TCP |
LED indicator | Power indicator, Network indicator, Trigger display indicator |
Power supply | Support DC 24V input, adapt to industrial voltage environment |
Power consumption | <8.0W@DC24V (build-in illumination not included) |
Dimensions | 117mm x 69mm x 43mm (not including lens mount and rear case connector) |
Net weight | ＜550g |
Gross weight | ＜800g |
Ingress protection | IP67 |
Shell material | Aluminum alloy |
Operating temperature | -20℃～+50℃ |
Working humidity | 20%～95%, non-condensing (when proper lens hood is installed correctly) |
Storage temperature | -30℃～+80℃ |
