Full Hydraulic petroleum equipment Automatic Swabbing Rig oil
- Category: Mining Machine Parts >>>
- Supplier: Qingdao BH&JH Electronics Co. Ltd.
Share on (1600301960955):
Product Overview
Description
Specification
Max swabbing depth（m） | 5000 |
Max hook load（kN） | 200 |
Rated hook load（kN） | 160 |
Max hook speed（m/s） | 0.5 |
Diameter of swabbing rod（mm） | 25-40 |
Hook speed adjustment range（m/s） | 0.1-0.5 |
Hook up and down travel（m） | 5（default）（Note: it can be set according to the process requirements） |
Diesel engine power（kW） | 103 |
Rotating speed range of diesel engine（r/min） | 800-2300 |
Working pressure of hydraulic system（Mpa） | 10/16 |
Reliability of hydraulic system | Dual backup hydraulic system |
Control mode | automatic working mode/manual control/ remote control |
Control system power supply（V） | 24(DC) |
Automatic swabbing mode display | Normal mode / counting mode / timing mode / Customization, with Work Diagram |
Remote monitoring and control | Y，4G，Mobile phone/Computer/Remote control |
Overall size long × wide × high（mm） | Transportation：5500x2100x2500 （without truck） |
Overall weight（t） | 7.5 |
Technical parameters of diesel engine:
Model WP4.1G140E301
Rated power 103KW
Rated rotation speed 2300r/min
High torque condition / speed range 520N.m/1600-1800 r/min
Idle speed 750±50 r/min
Displacement 4.088L
Compression ratio 17.5:1
Bore / stroke 105mm/118mm
Start mode DC24V
Starting motor power / voltage 4.5kw/v
Speed regulation mode Electronic control
Cooling mode Closed water cooling
Oil pan capacity 12.5L
Oil pump unit:
Park Lemke gear pump
Pump1 Displacement / pressure 80ml/20MPA
Pump1 Displacement / pressure 80ml/20MPA
Pump1 Displacement / pressure 40ml/20MPA
Pump1 Displacement / pressure 10ml/20MPA
Pump1~4 speed range 600-2500 (r/min)
Swabbing operation unit:
The swabbing unit includes hydraulic cylinder, inner sliding frame, sliding car, pulley block, outer sliding frame, wire rope and wire rope fixing block. The hydraulic oil drives the hydraulic cylinder to move up and down, and drives the rod and sucker rod on the inner carriage and sliding frame to move up and down.
Max thrust of sliding frame 250KN
Travel of sliding frame 2500mm
Diameter of swabbing rod 25-40mm
Control unit:
The control module mainly includes valve group, sensor, instrument, pipeline and electrical controller, which is responsible for the control function of swabbing operation unit and hydraulic outrigger.
Control system power supply DC24V
Automatic control mode PLC/Remote controller
Remote monitoring and control mode 4G/Wired remote control
Hydraulic outrigger
The hydraulic outrigger comprises hydraulic cylinders and an inner and outer telescopic outriggers. The hydraulic oil adjusts the working width and height of the swabbing machine by driving the inner and outer telescopic legs.
Front leg lifting stroke 1200mm
Rear leg lifting stroke 1200mm
Effective distance between left and right legs 2800mm
The unit support structure includes frame, hydraulic tank, fuel tank, battery pack and shield. The frame serves as the bridge between all modules on the swabbing machine.

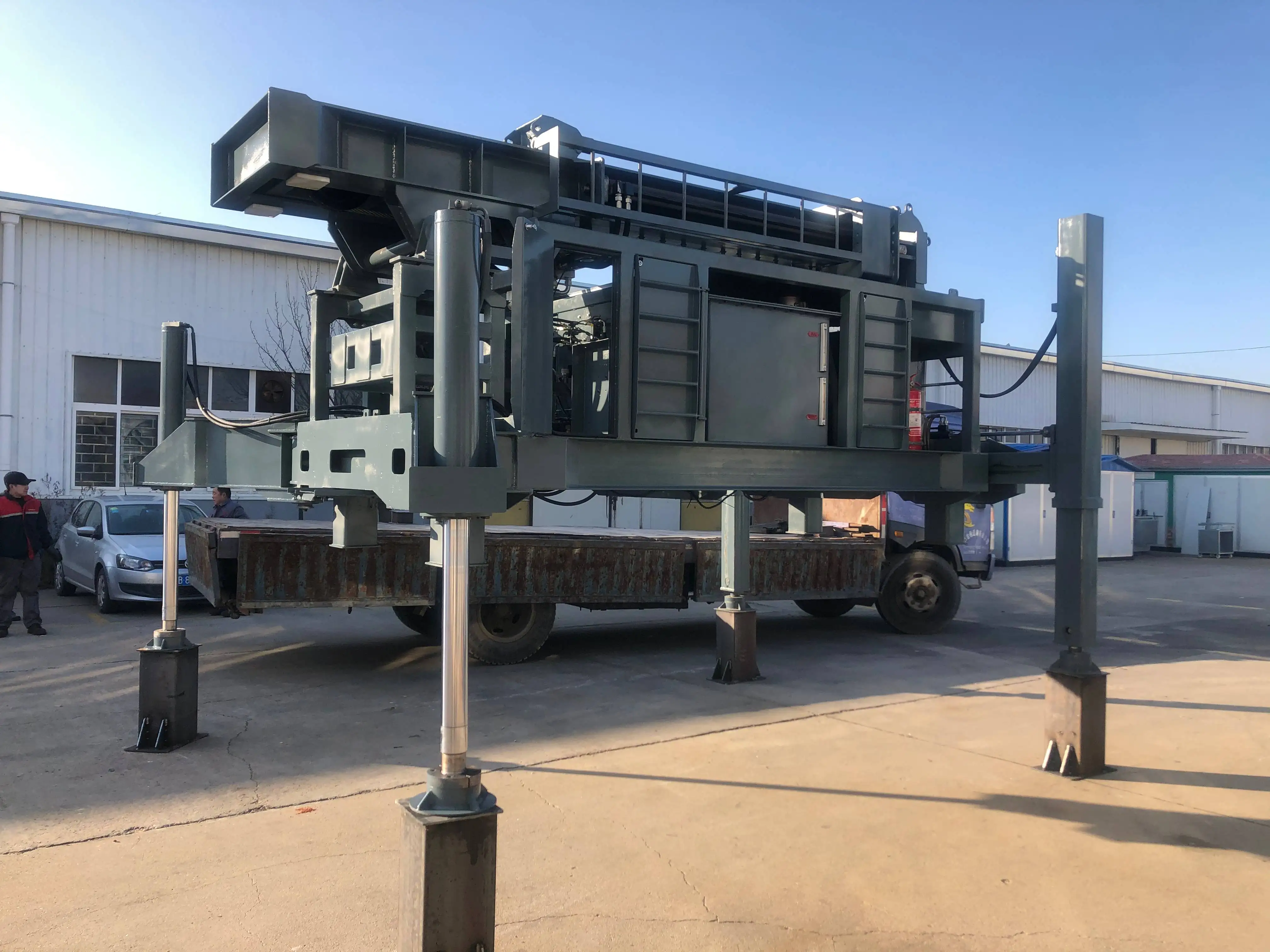

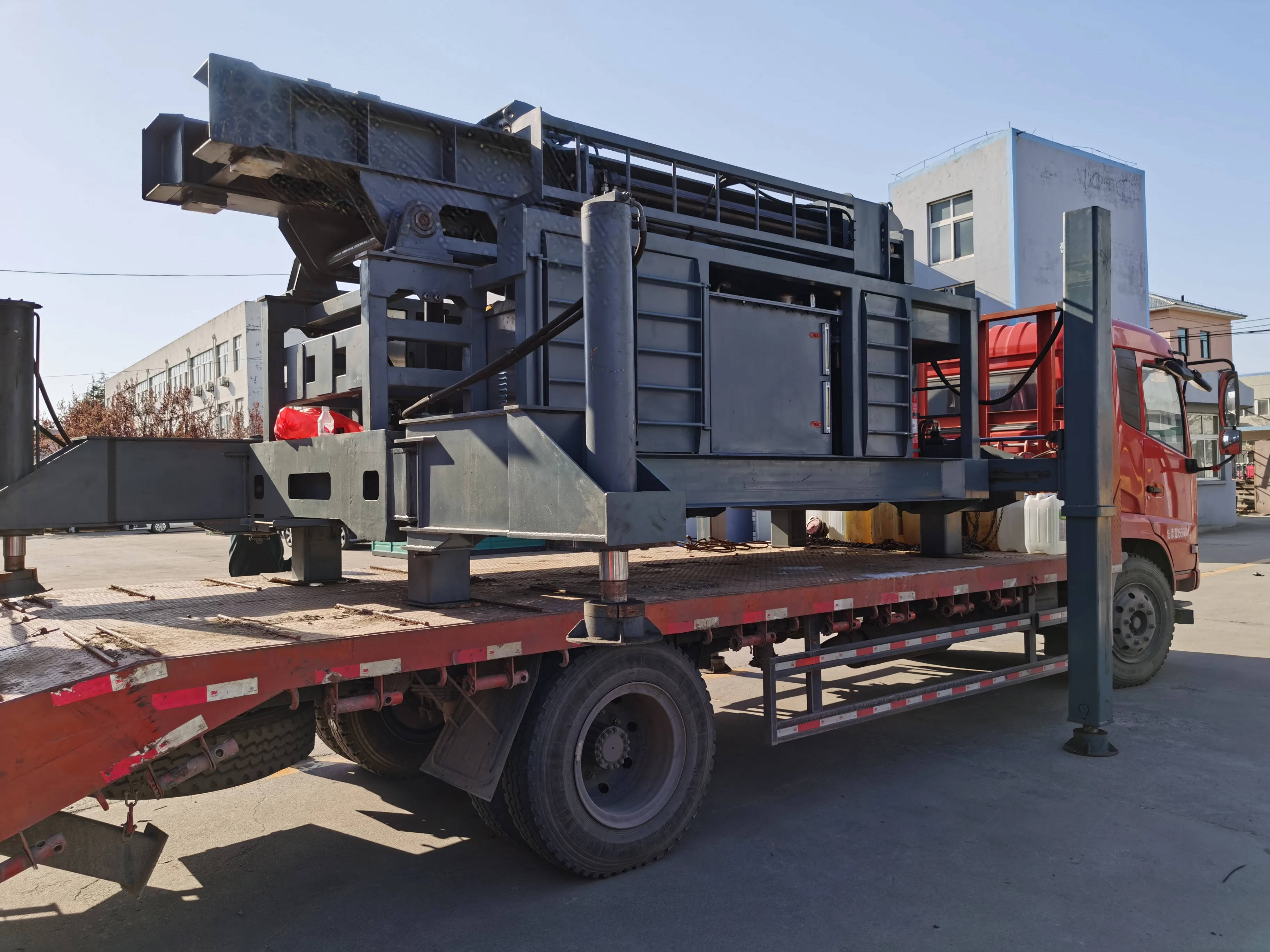

The unit support structure is skid mounted structure, which is convenient for transportation and storage. Combined with the function of hydraulic outrigger, it can automatically get on and off the truck. All kinds of troubles caused by truck crane, forklift, etc. and the increase of use cost are avoided.
Hydraulic oil 32#
Fuel tank capacity 200L
Battery voltage 24V
Shield Automatic open/close
Model WP4.1G140E301
Rated power 103KW
Rated rotation speed 2300r/min
High torque condition / speed range 520N.m/1600-1800 r/min
Idle speed 750±50 r/min
Displacement 4.088L
Compression ratio 17.5:1
Bore / stroke 105mm/118mm
Start mode DC24V
Starting motor power / voltage 4.5kw/v
Speed regulation mode Electronic control
Cooling mode Closed water cooling
Oil pan capacity 12.5L
Oil pump unit:
Park Lemke gear pump
Pump1 Displacement / pressure 80ml/20MPA
Pump1 Displacement / pressure 80ml/20MPA
Pump1 Displacement / pressure 40ml/20MPA
Pump1 Displacement / pressure 10ml/20MPA
Pump1~4 speed range 600-2500 (r/min)
Swabbing operation unit:
The swabbing unit includes hydraulic cylinder, inner sliding frame, sliding car, pulley block, outer sliding frame, wire rope and wire rope fixing block. The hydraulic oil drives the hydraulic cylinder to move up and down, and drives the rod and sucker rod on the inner carriage and sliding frame to move up and down.
Max thrust of sliding frame 250KN
Travel of sliding frame 2500mm
Diameter of swabbing rod 25-40mm
Control unit:
The control module mainly includes valve group, sensor, instrument, pipeline and electrical controller, which is responsible for the control function of swabbing operation unit and hydraulic outrigger.
Control system power supply DC24V
Automatic control mode PLC/Remote controller
Remote monitoring and control mode 4G/Wired remote control
Hydraulic outrigger
The hydraulic outrigger comprises hydraulic cylinders and an inner and outer telescopic outriggers. The hydraulic oil adjusts the working width and height of the swabbing machine by driving the inner and outer telescopic legs.
Front leg lifting stroke 1200mm
Rear leg lifting stroke 1200mm
Effective distance between left and right legs 2800mm
The unit support structure includes frame, hydraulic tank, fuel tank, battery pack and shield. The frame serves as the bridge between all modules on the swabbing machine.
The unit support structure is skid mounted structure, which is convenient for transportation and storage. Combined with the function of hydraulic outrigger, it can automatically get on and off the truck. All kinds of troubles caused by truck crane, forklift, etc. and the increase of use cost are avoided.
Hydraulic oil 32#
Fuel tank capacity 200L
Battery voltage 24V
Shield Automatic open/close
Product Description

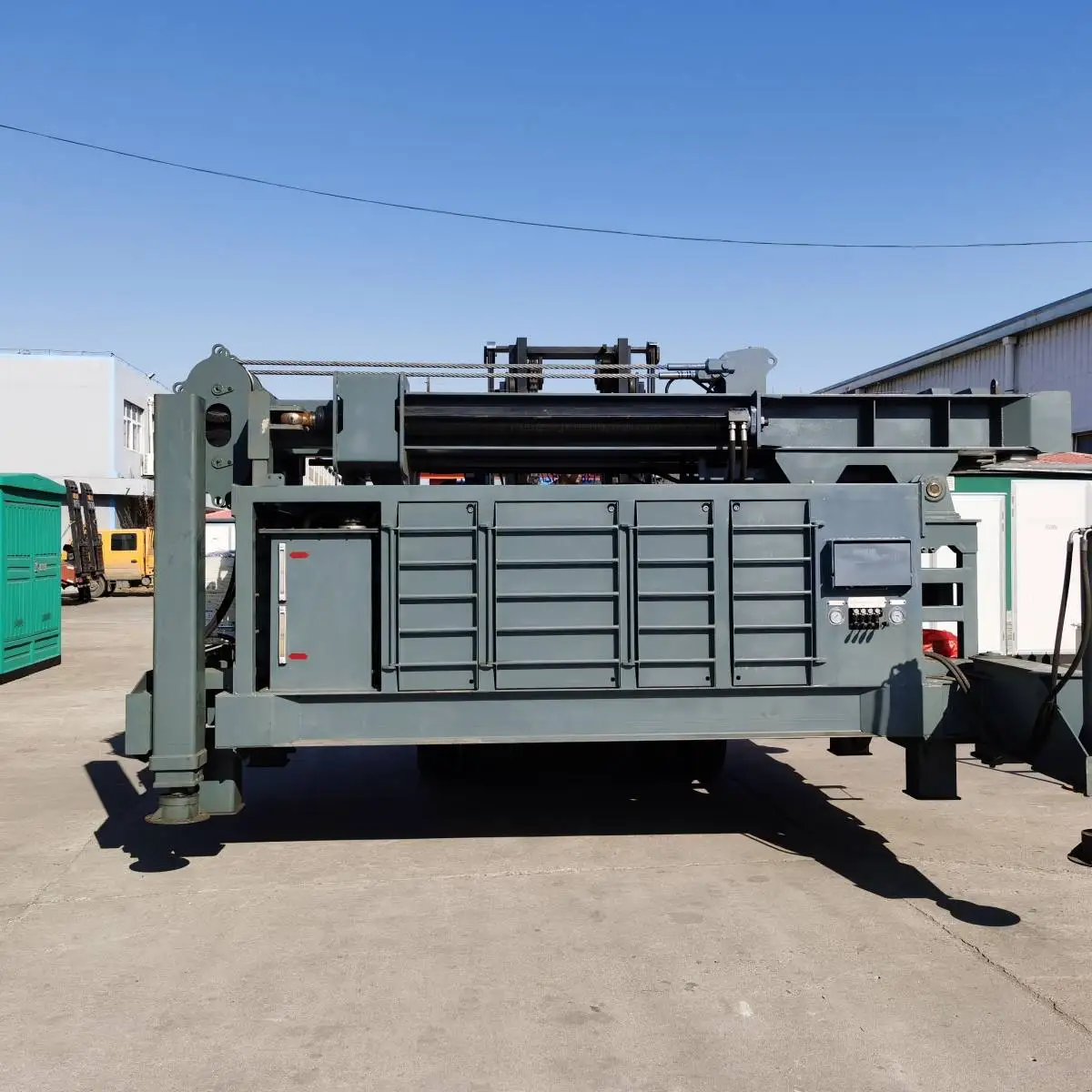

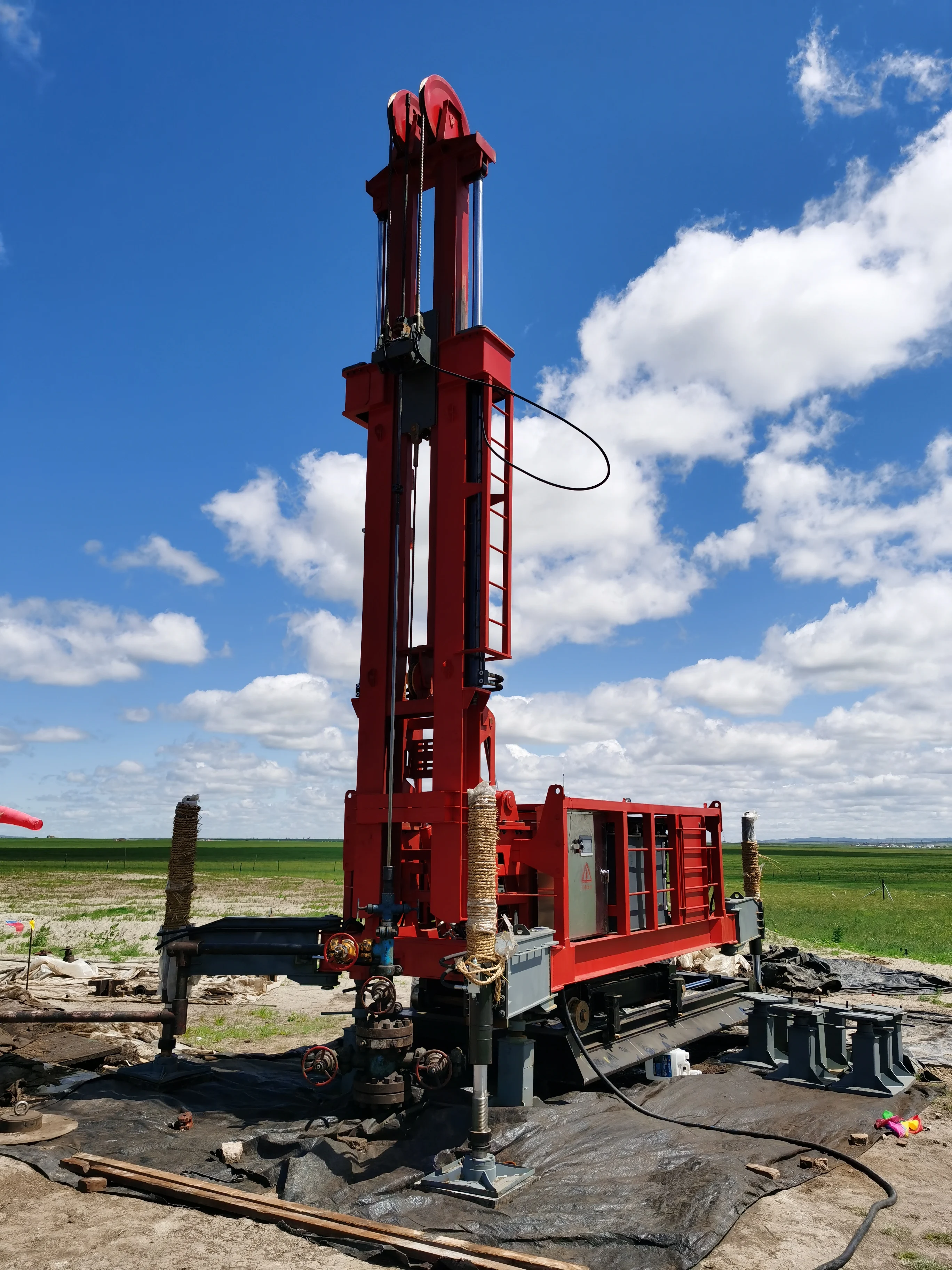

CX200Z Full hydraulic automatic swabbing machine.
Suitable for the automatic continuous pumping rod swabbing operation with well depth of 5000 meters.

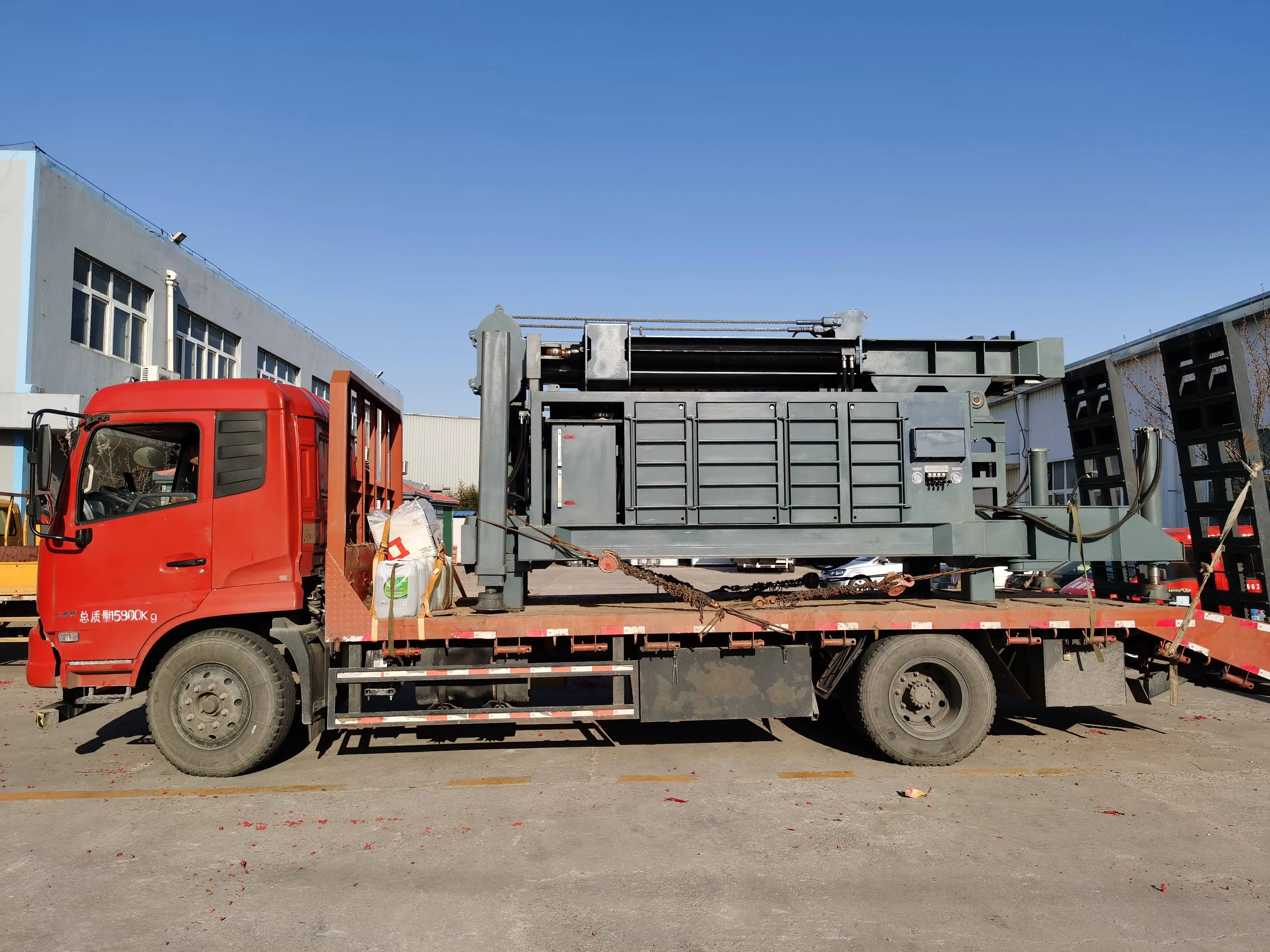

Remote control for loading and downloading truck.

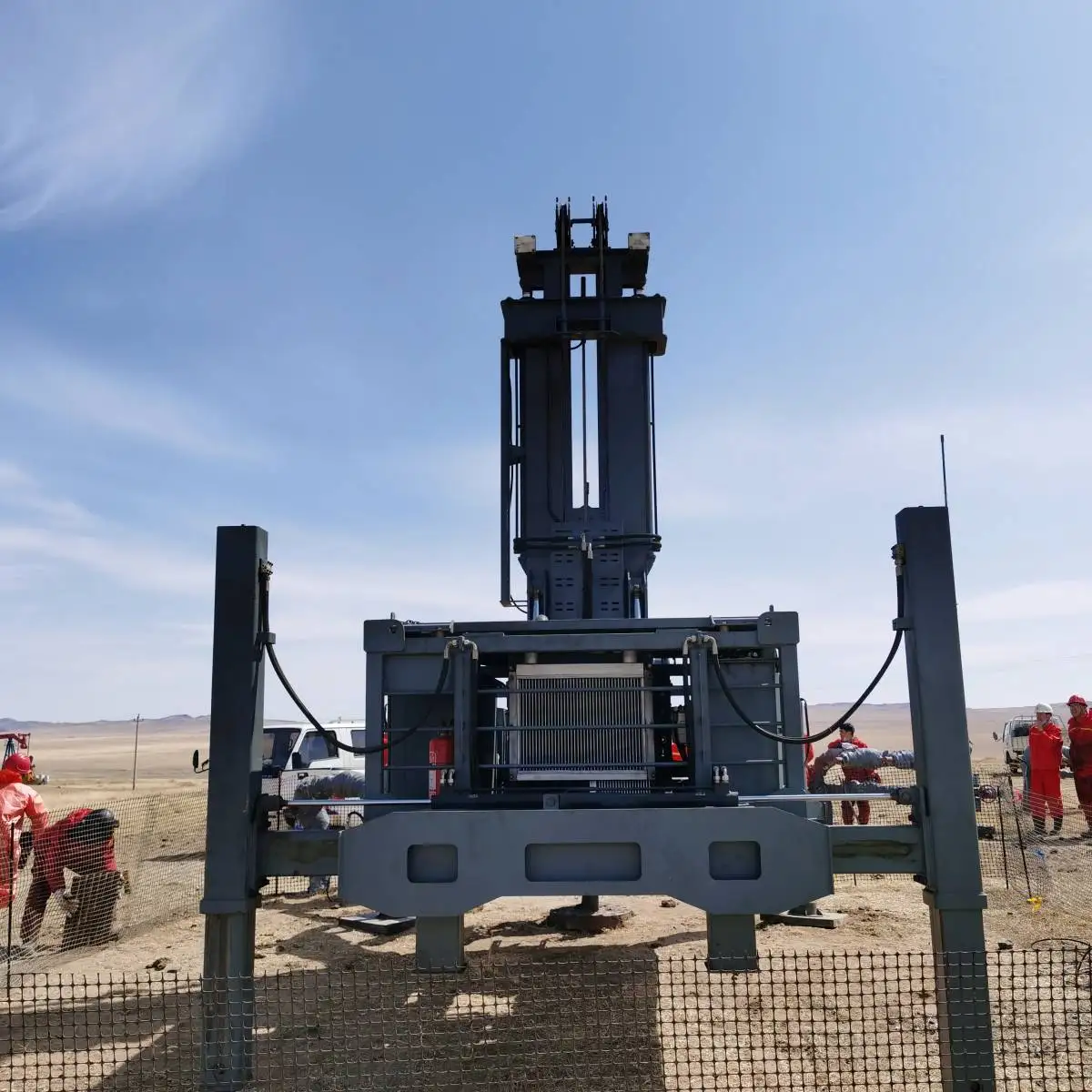

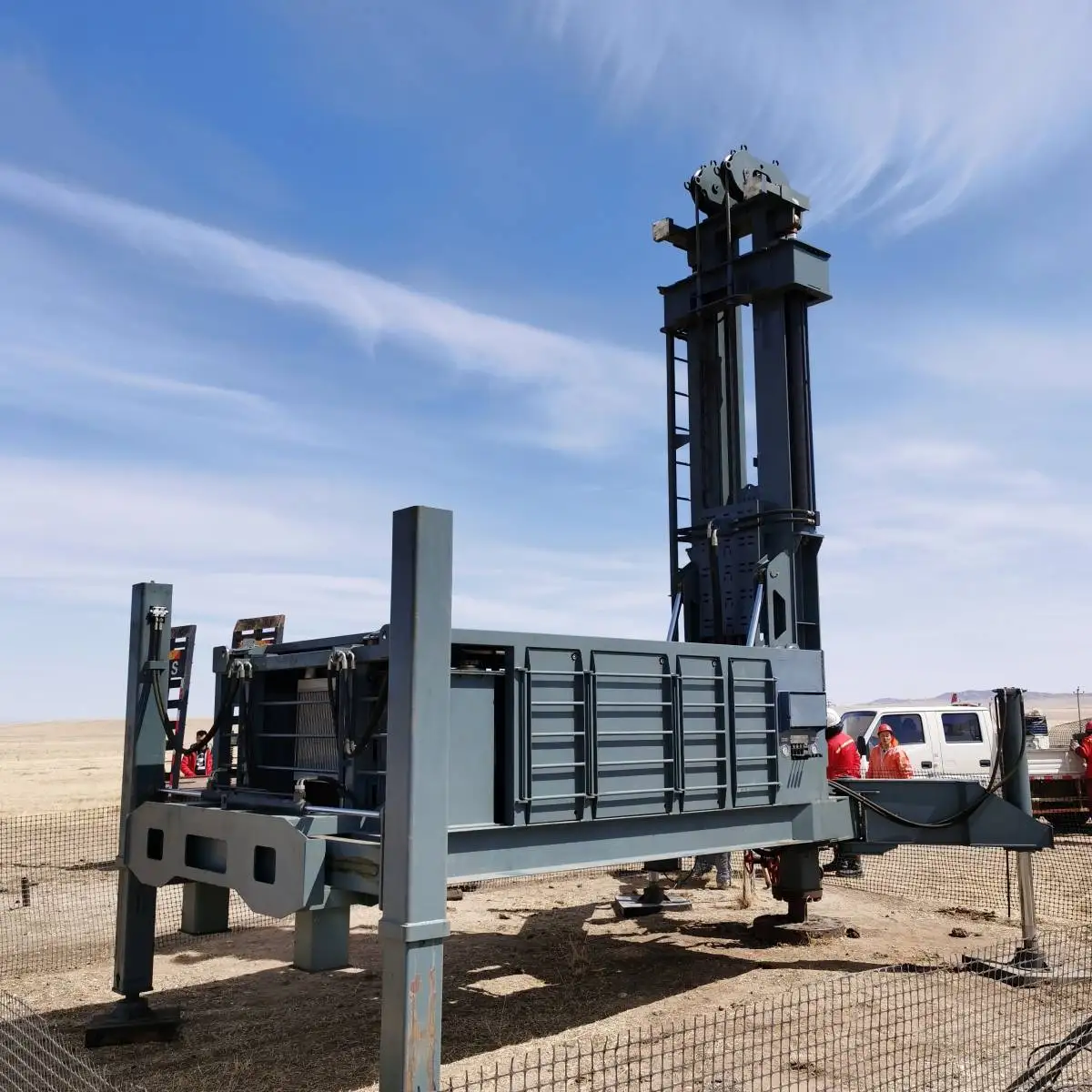

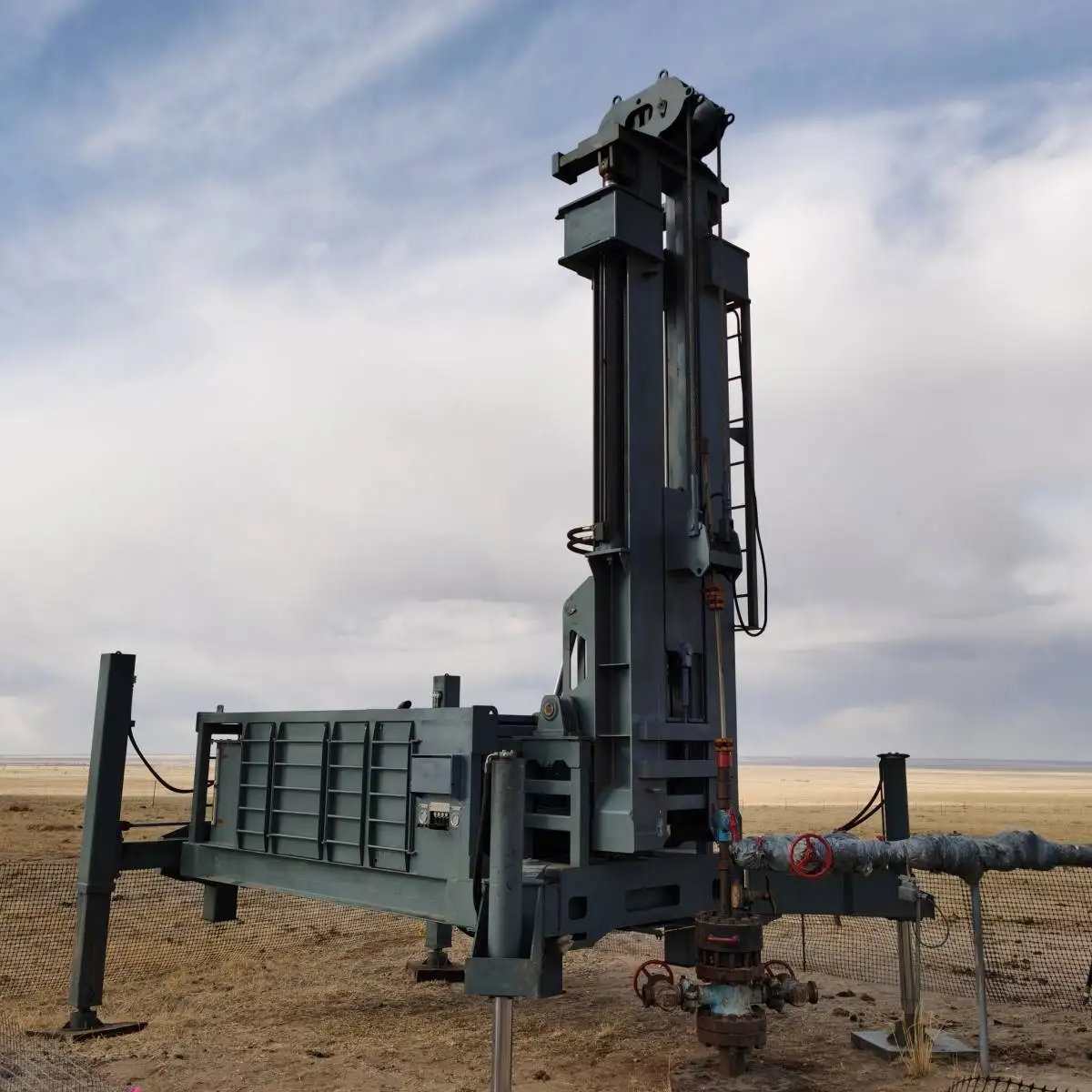

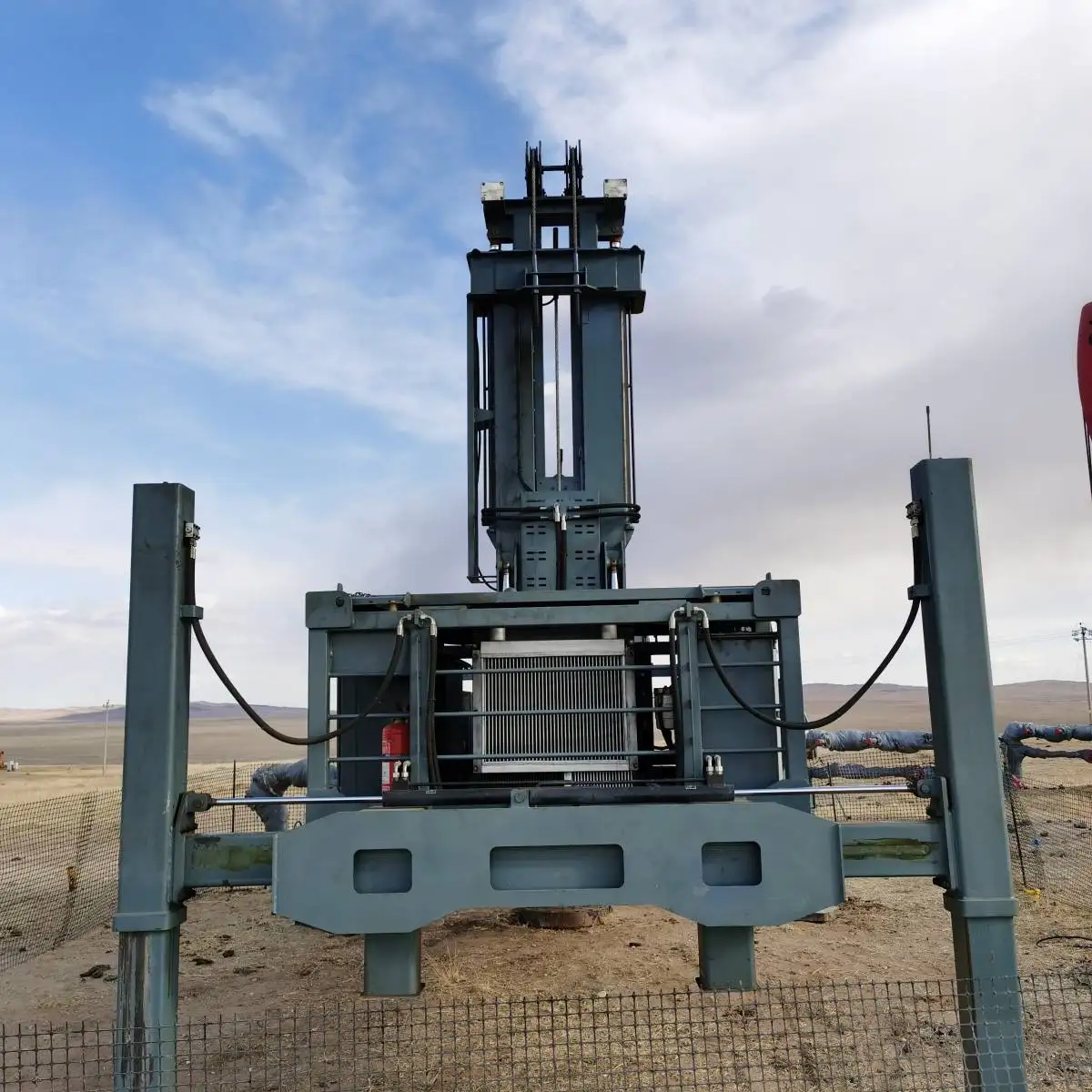

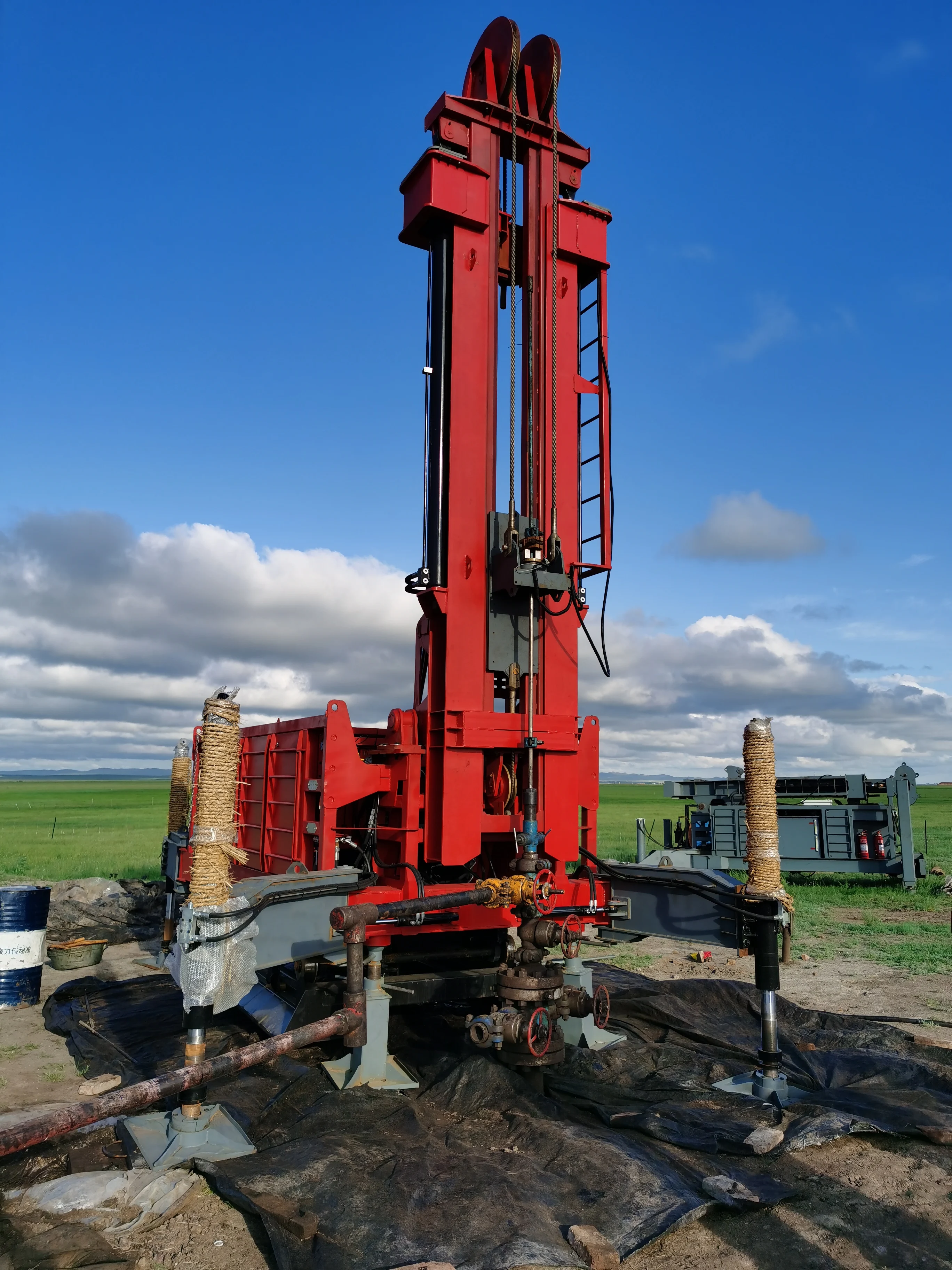

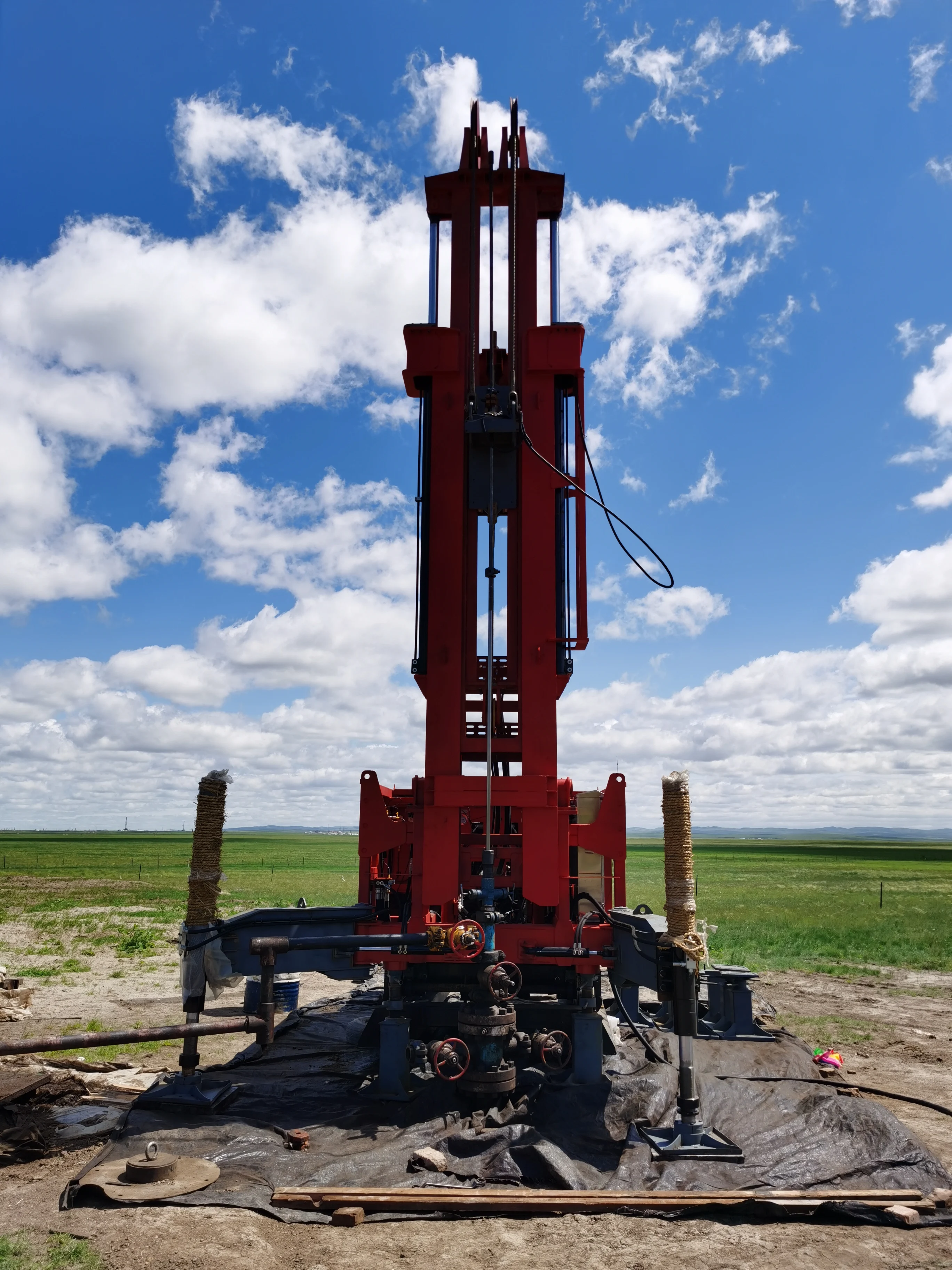

Remote control for movement in the well site and centering wellhead. No crane required.
Fully automatic operation.
4G remote monitoring and control.
The CX200Z full hydraulic automatic swabbing machine is special equipment for oil field well testing, drainage and exploration. The hook speed can be adjusted freely from 0.1 to 0.5m/s, the rated hook load is 160kN, and the maximum hook load is 200kN. It has automatic working mode, manual and remote control mode, and can be applied to the automatic continuous rod swabbing operation with a well depth of 5000m. The loading/downloading truck, movement in the well site and centering wellhead can be done by remote controller , with no crane required.
Suitable for the automatic continuous pumping rod swabbing operation with well depth of 5000 meters.
Remote control for loading and downloading truck.
Remote control for movement in the well site and centering wellhead. No crane required.
Fully automatic operation.
4G remote monitoring and control.
The CX200Z full hydraulic automatic swabbing machine is special equipment for oil field well testing, drainage and exploration. The hook speed can be adjusted freely from 0.1 to 0.5m/s, the rated hook load is 160kN, and the maximum hook load is 200kN. It has automatic working mode, manual and remote control mode, and can be applied to the automatic continuous rod swabbing operation with a well depth of 5000m. The loading/downloading truck, movement in the well site and centering wellhead can be done by remote controller , with no crane required.
Packing & Delivery
Company Profile
Founded in 2001, Qingdao BH&JH Electronics Co., Ltd. develops and produces a new generation of electric automatic operation console for drilling rigs, workover rigs and other petroleum operation equipment, and a comprehensive safety monitoring system with functions of anti-collision, weight indicator , leveling warning, wind speed measurement, oil pressure monitoring, engine monitoring, disc brake intelligent control and Internet of things, as well as the crown block warning anti-collision instrument, the crane wheel swabbing depth and weight indicating system, anti-rollover, wind speed measurement system, double display weight indicating system and other special intelligent and safety control equipment for operation vehicles. In recent years, the company's fully automatic swabbing machine and other equipment are also applied in the oilfields. And the company puts the R & D force into the workover automation, as well as the detection and maintenance of new energy battery and electric ve hicle equipment.
