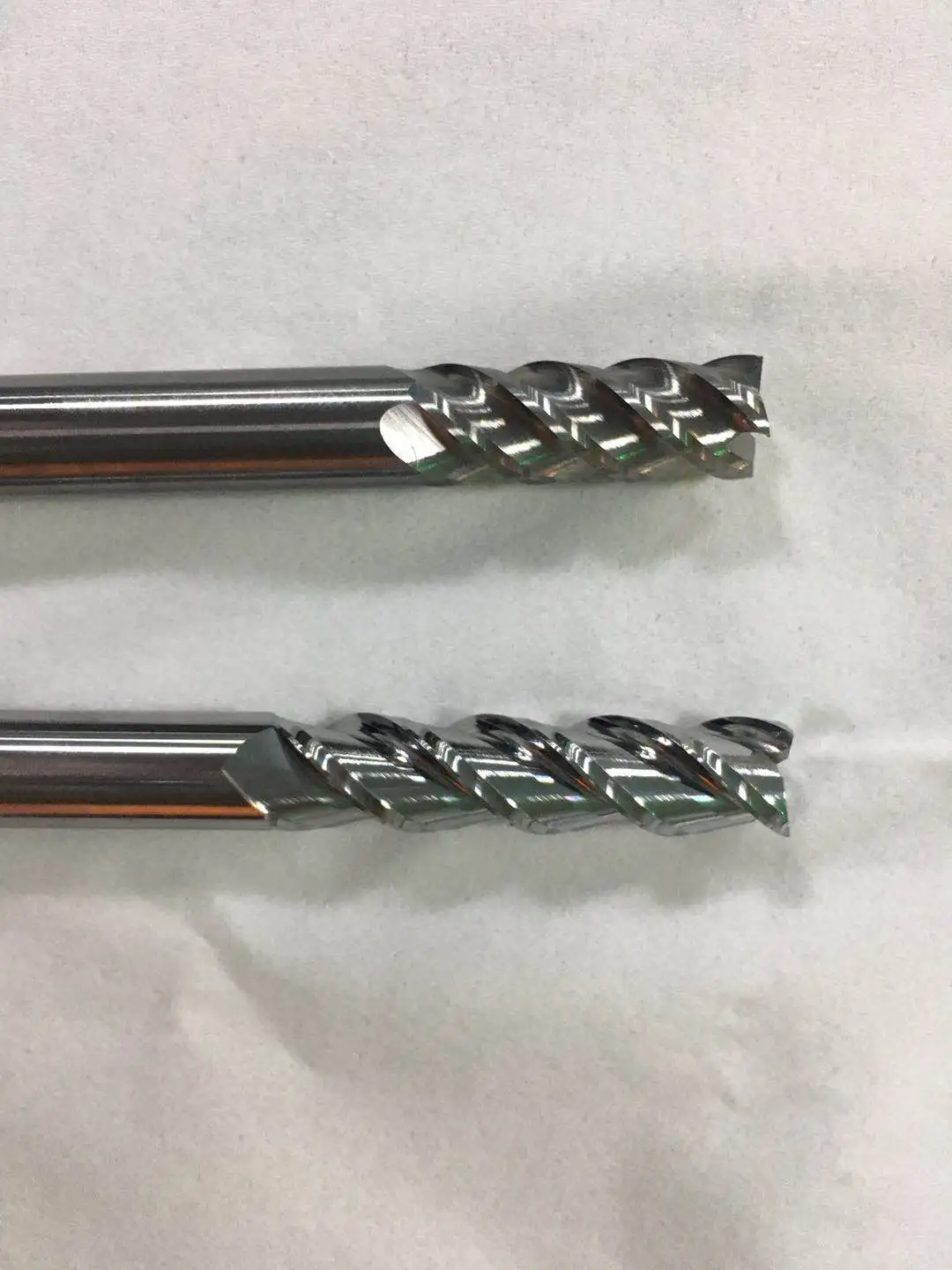

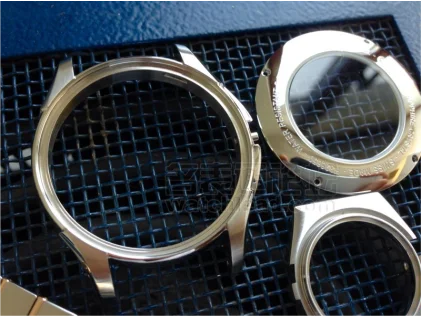

Welcome to Dongyuan GrindingDY-D drag finishing machine It is widely used for polishing the tools after cutting edge,passivating, rounding, coating, polishing the jewelry and ornaments etc. mirror polishing for watch shell and watch belt etc, grinding the medical instruments.This Machine is a drag-type grinding and polishing with a grinding power head and one/two/three grinding barrels(24pcs/32pcs/64pcs/96pcs/set),A set of quick release fixtures for workpieces,Grinding the polishing material in one/two/three barrels.it belongs to a dry-grinding surface treatment equipment and widely used in the surface grinding and polishing of various sanitary products through the combination of different chucks,abrasives and processes.The cutting edge of the tool is passivated,rounded and polished after coating.High precision grinding and polishing of jewelry,etc,Mirrors Polishing of case,strap,etc,and grinding of medical equipment.

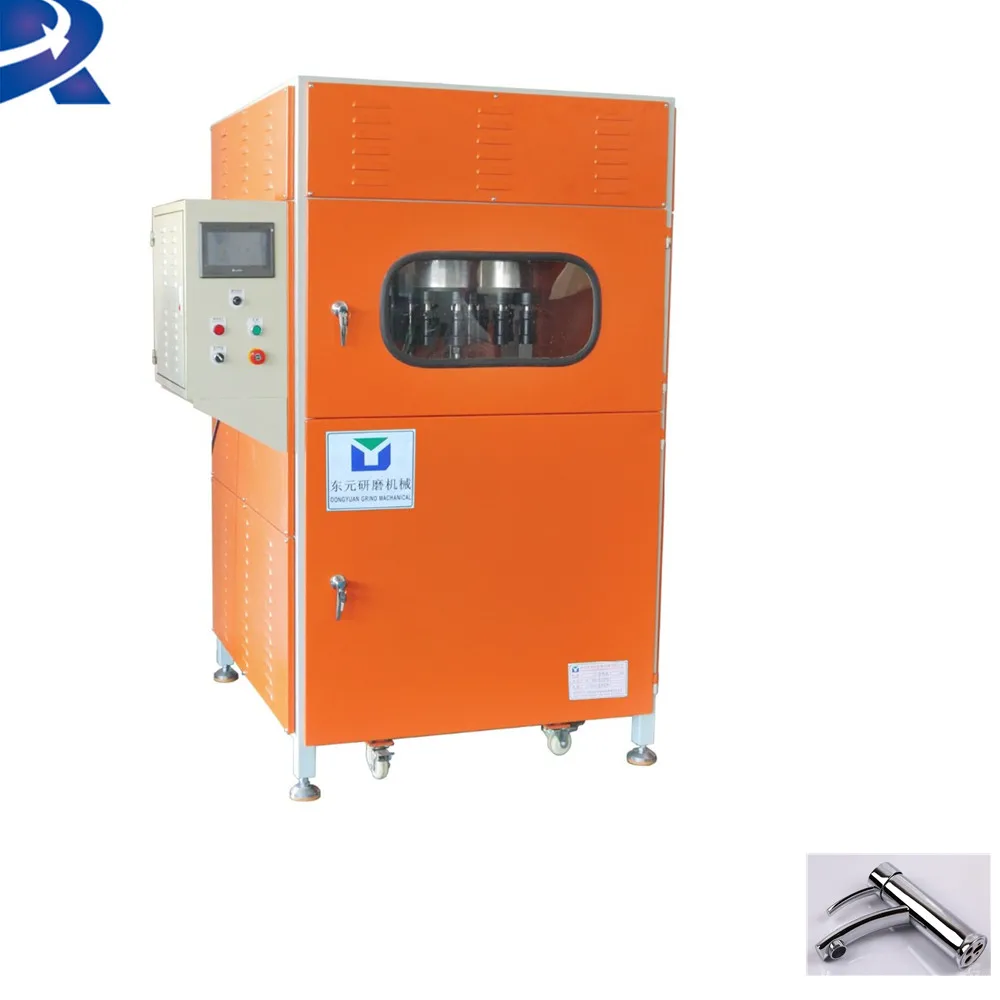

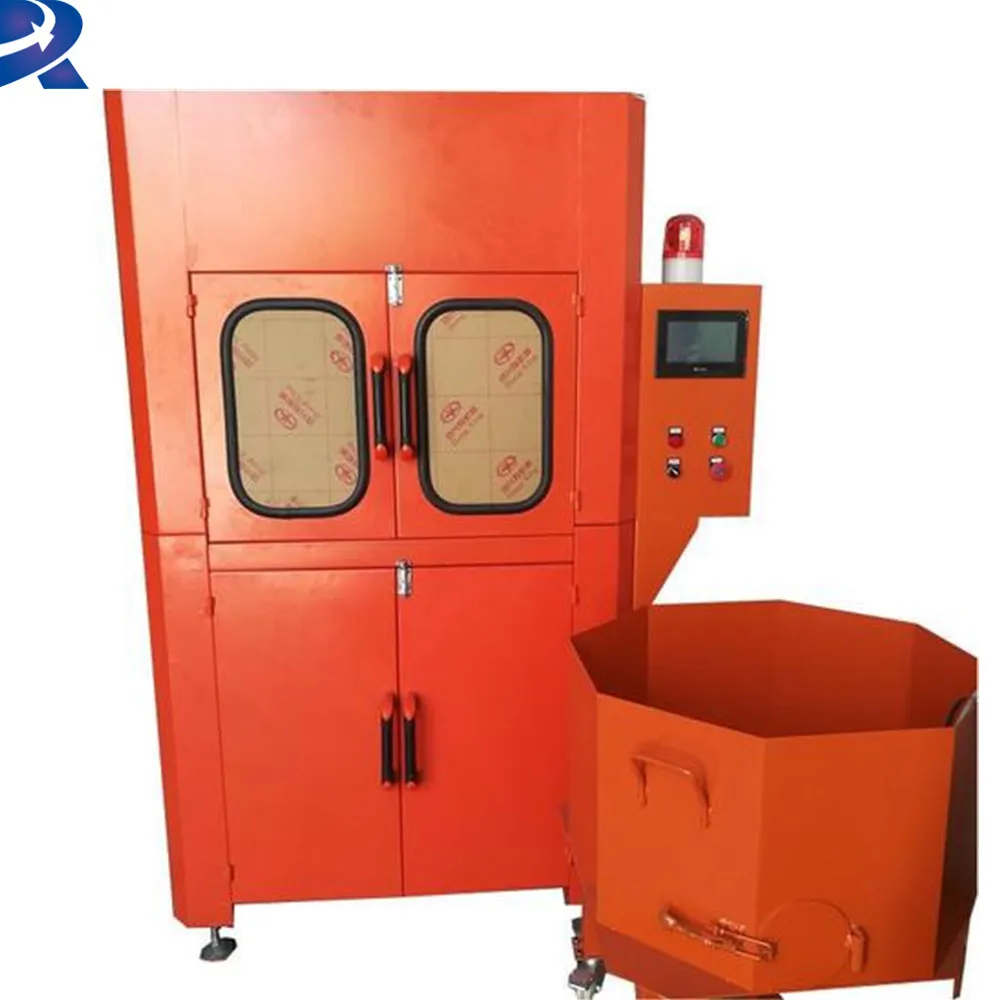

Automatic Polishing Machine for Faucet/door handle with Single Barrels
Features:
●Independent Chuck: assure independent rotating for each chuck, avoid collision between workpieces, increase production efficiency. ●High Automation Degree: can set working speed, revolution cycle and time freely through the central PLC control system.Each machine equips with 4 chucks, the max.product process quantity is 24pcs. it will stop automatically after finish the operation cycle,and the chuck will pull away the grinding barrel and back to the initial height
Structure: The machine is composed of rotating disk, basement, lifter for vessel, movable vessel, and electrical control box (Shown in outline drawing). 1. Rotating disk: it composed of 1 set one level and 4 sets two levels fixed disk and rotating disk. It has 6 teams clamps on the each two levels rotating disk. When one level rotating disk run by K series reducer motor drive, 4 sets two level rotating disk whirl around one level fixed gear ring. And 6 sets work part clamp on the two level rotating disk is high speed revolution around two level fixed gear ring, to get the high efficiency and excellent quality workpiece. The rotating disk is made of good quality steel material and equip with K series reducer motor, it is fixed to the top of machine basement.
2. Basement: it is welded by steel tube, it has rotating disk on the top and lifter for vessel on the bottom, and has two free open doors.
3.Lifter for vessel: it is compose of the special turbine lifter and 3 sets leader; the movable vessel can go up and down by automatically control button. 4.Movable vessel: it is welded of steel plate. The top is octagon vessel trough for media and have valve on the bottom of vessel trough for discharge the media. And it has 4 sets rotating wheel on the bottom to keep easy and quick change media trough. 5.Electrical control box: it is made of single and close steel box, and install to the left of basement. Operate the machine by buttons on the control panel. Working principles: The Drag Finishing Machine make the workpiece fixed to two level rotating disk on the top, but the media trough immovable, so the workpiece can be high speed rotation and revolution by rotating disk drive,so make workpiece and media cause the strong friction and let the workpiece finished and polished completely.
Specification:
Model
Power
Voltage
Machine Size
Clamp Load Capacity
DY-D84L
3.7KW+0.37KW
380V
1450*1300*2000MM
380V 3Phase

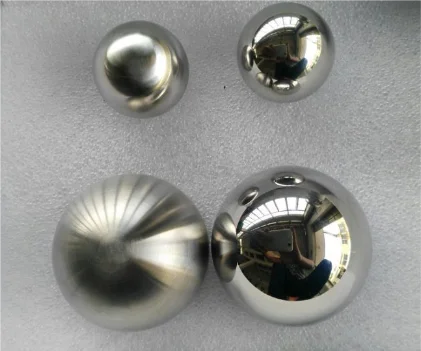

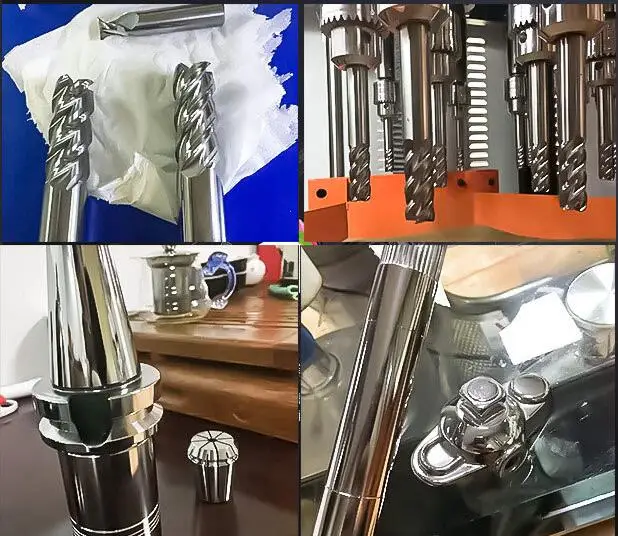

Application Show
Related Products
Customer Feedback
Packing & Delivery
Packaged in standard export wood case or according to customer's requirements
15 working days for sample order;
20-25 working days for bulk order.
Emergency order can be fulfilled in a week
Company Introduction
DongYuan Grinding Machinery Co., Ltd, located in Dongguan city of Guangdong province, is one professional manufacturer which specialized in developing and producing various grinding machines and grinding consumables. We have decades of experience in metal surface treatment technology, and maintain long-term good relations of cooperation with large well-known enterprises,such as HuWei,Oppo,BYD.
Our machine and media are widely used in Digital, mobile phone accessories, bicycles,Aliuminum die -castings, handtools, Zinc die-castings, furniture hardwares, apparel hardware accessories, case and package hardware fittings, electronic hardwares, various ornaments, jewelrys, powder metallurgy resins etc. Our products are also used for chamfering, deburring and polishing of stainlesssteel, iron, copper, zinc, aluminum, magnesium alloy material processed by pressing, casting and molding.
We are developing new products all the time,and hoping to establish long-term business relationship with our all customers.Sincerely looking for machines agent,welcome to contact!
