HLK LD303 24G Radar Sensor module with long distance monitor
- Category: Sensors >>>
- Supplier: Shenzhen Hi-Link Electronic Co. Ltd.
Share on (1600308548878):
Product Overview
Description
Product Description

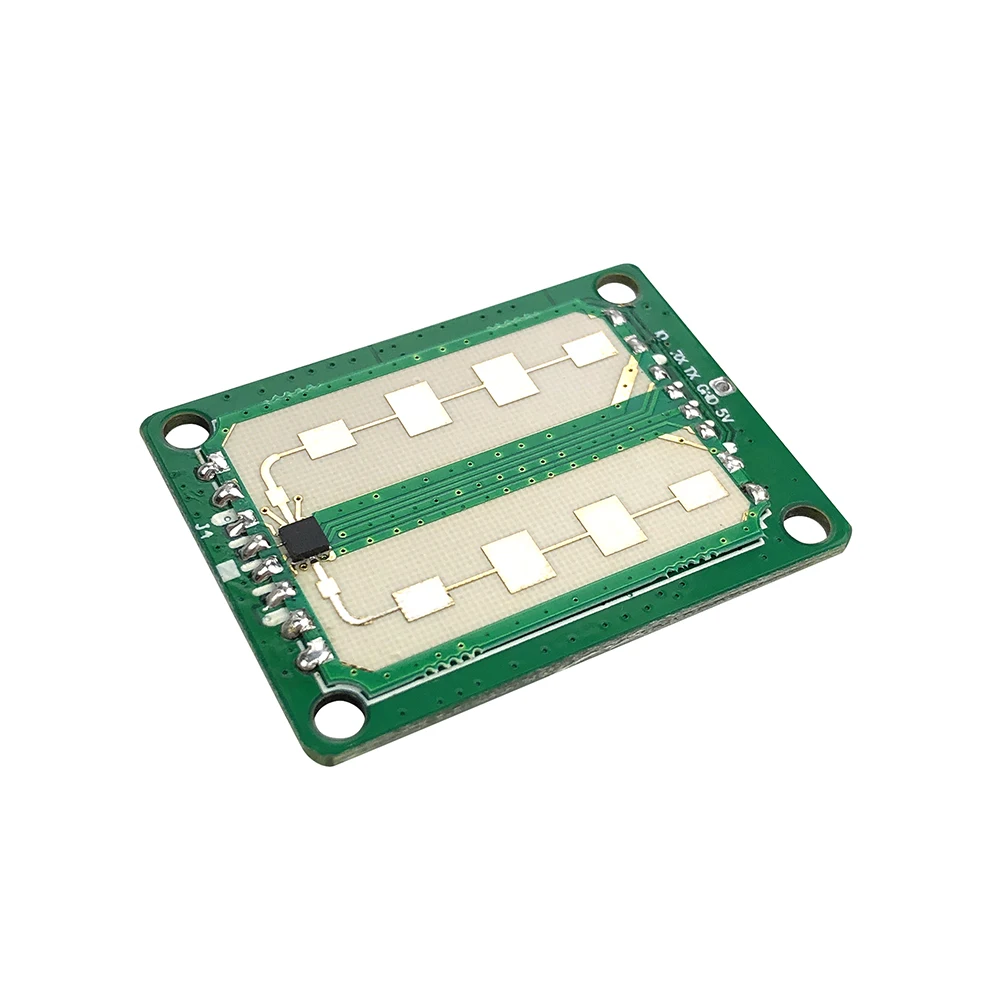

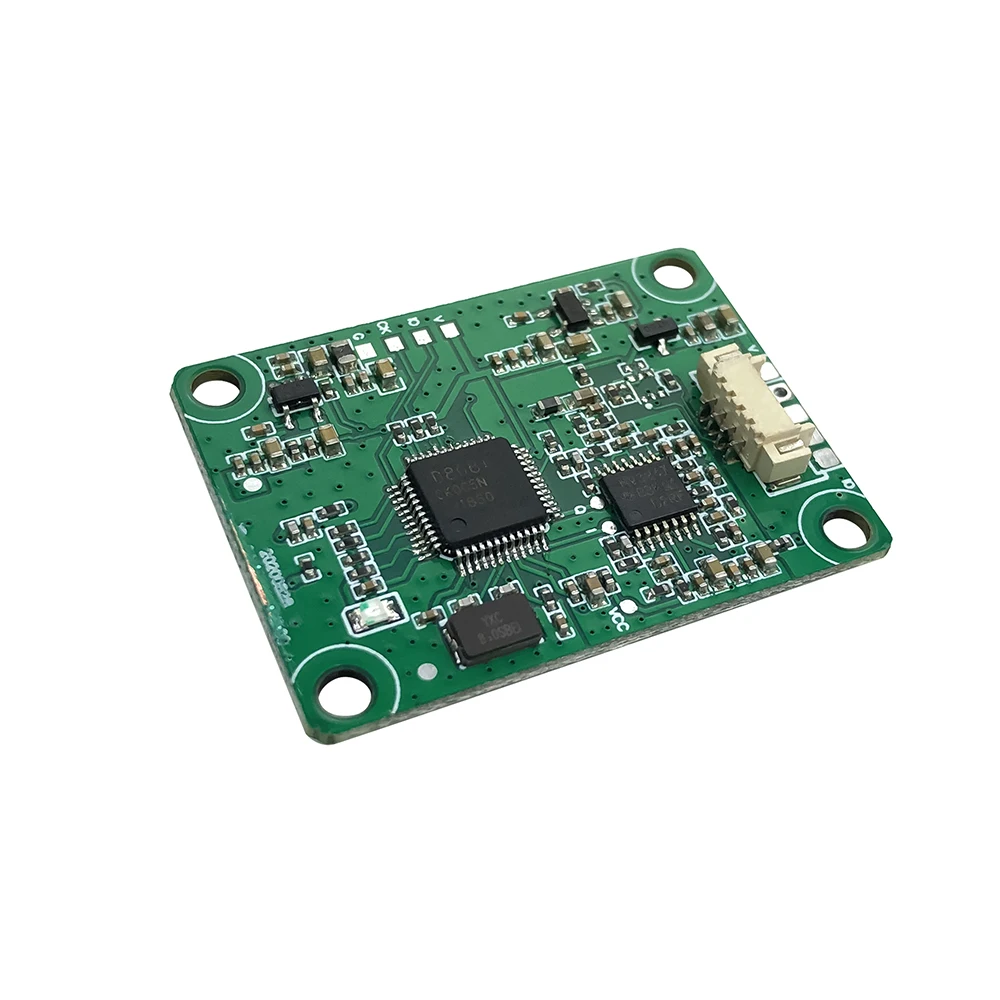

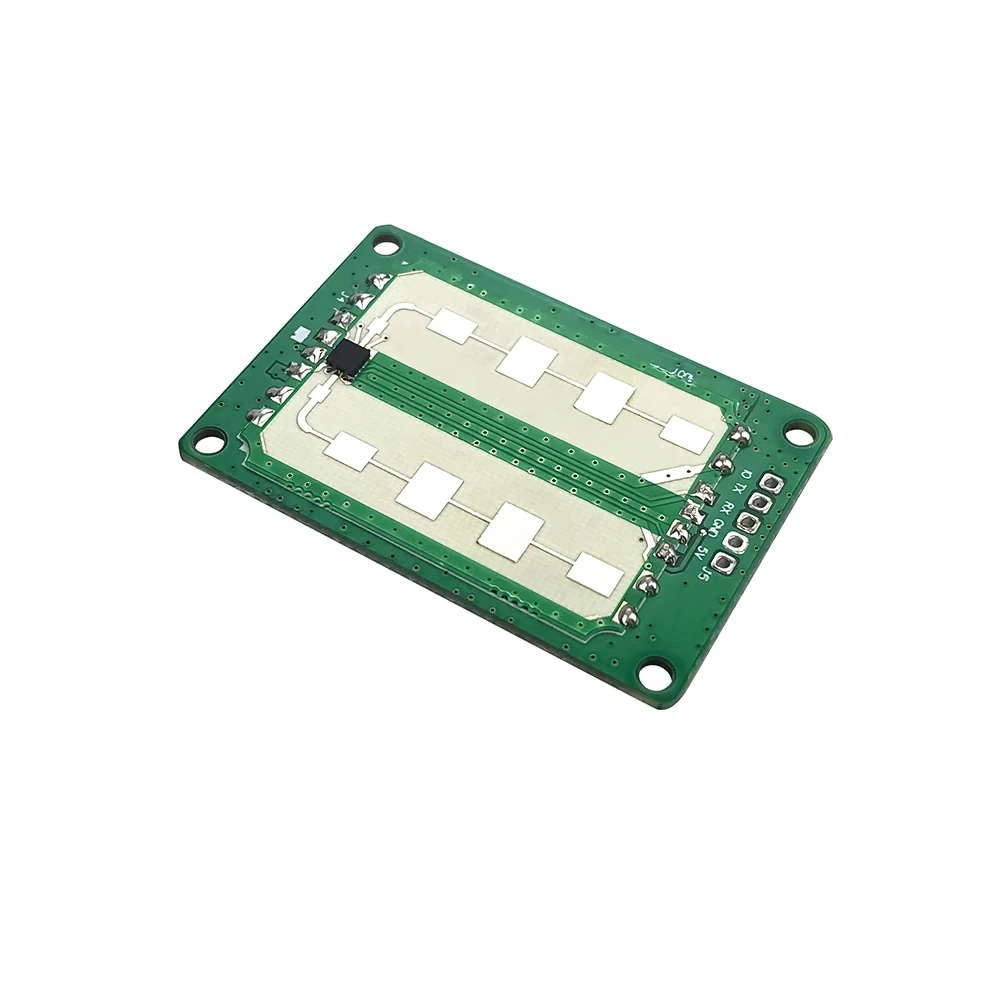

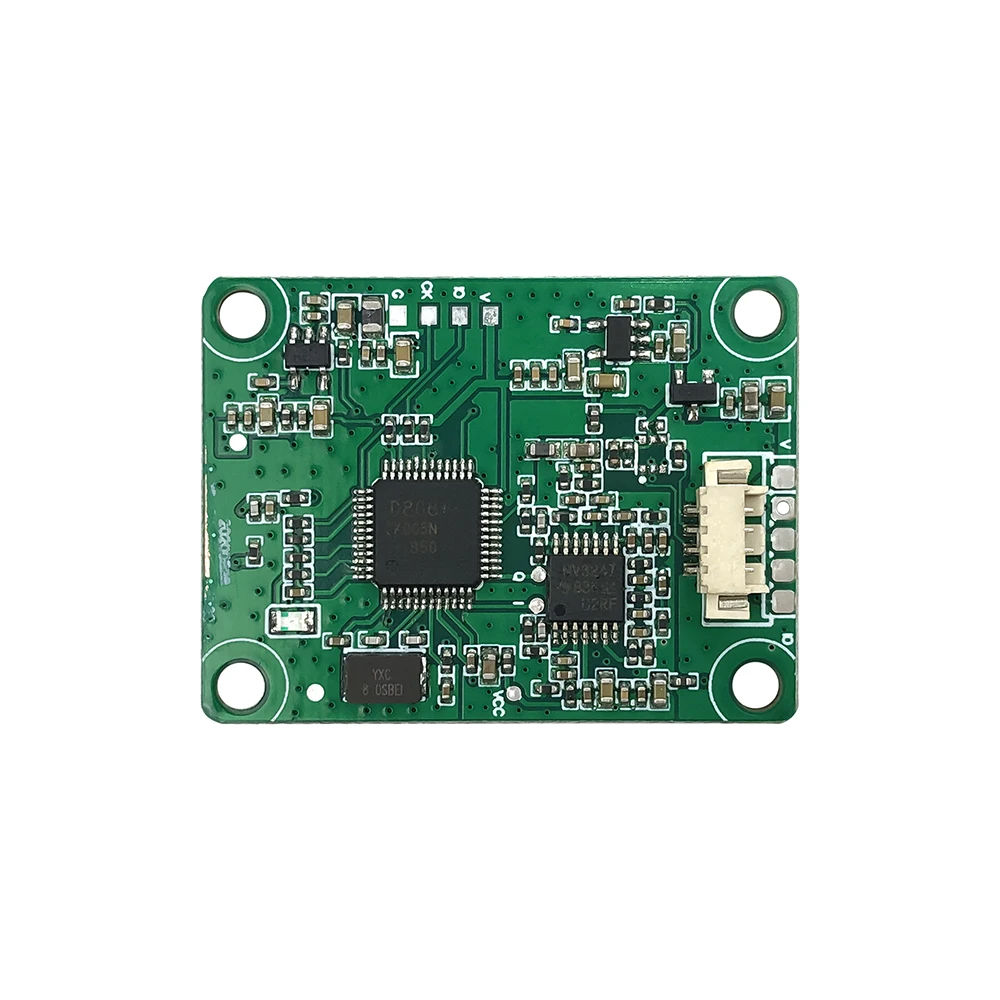

LD303-24G Radar Module
HLK-LD303-24G is an ultra-low power 24G radar sensor launched by Hilink Electronics. The module size is 39mm*29mm. The module fully integrates 24GHz microwave circuit, intermediate frequency amplifier circuit and signal processor. It has high integration and good production consistency. The peripheral is equipped with a small planar antenna to ensure the performance of the sensor while greatly reducing total measurement. The sensor can be used to detect the presence of human body or various scenes of moving target sensing, including smart home, Internet of Things, and smart lighting.
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | Hi-Link |
Model Number | HLK-LD303-24G |
Usage | Position Sensor |
Theory | Inductance Sensor |
Output | Switching Transducer |
Brand | Radar module |
Voltage - Supply | 5-12V |
Output Type | |
Current - Supply | 79mA |
Operating Temperature | -20~60C |
Packaging | |

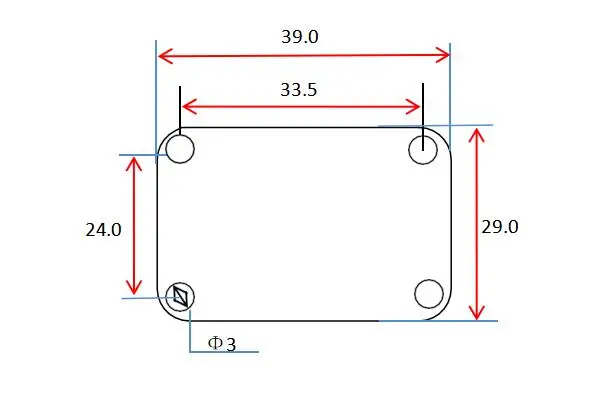

Size / Dimension | 39*29mm |
Sensing Range | 0.1-3.5m |
Response time | ≥60mS |
Transmit frequency | 24G |
Data format | 115200，8，n，1 |
Application
* Intelligent toilet, detecting people approaching different distances, assisting the toilet system to perform operations such as opening the lid, turning on the lights, flushing, and heating
* Inductive door, detect people within the set distance to realize automatic opening and closing of the door
* Automatic escalator, it works normally when detecting a person close to 1m, and enters a low power consumption state when no one is overtime, assisting the escalator to realize automatic induction
* Intelligent light control, to assist smart homes to achieve the effect of "lights on when people come, and lights off when people go"
Precautions
1. This module only detects relative moving targets in the detection area, and completely stationary targets are not detected. The output result is information such as the distance of the nearest target in relative motion in the detection area.
2. The module defaults to query mode (protocol 6). If you need to report continuously and automatically, just change the protocol to 7. (Use the host computer to modify or directly send the command BAAB00F600070055BB)
3. Refer to the diagram of the relationship between the angle and the farthest working distance in the appendix for the detection area
4. If the module is designed with a shell, the distance between the radar antenna surface and the shell surface is 6mm. The thickness of the shell is about 2~3mm. The shell material cannot use metal or metal-plated paint. It is recommended to use PC, plastic, steel, etc.
2. The module defaults to query mode (protocol 6). If you need to report continuously and automatically, just change the protocol to 7. (Use the host computer to modify or directly send the command BAAB00F600070055BB)
3. Refer to the diagram of the relationship between the angle and the farthest working distance in the appendix for the detection area
4. If the module is designed with a shell, the distance between the radar antenna surface and the shell surface is 6mm. The thickness of the shell is about 2~3mm. The shell material cannot use metal or metal-plated paint. It is recommended to use PC, plastic, steel, etc.
Packing & Delivery
PP bag and foam or tray inside, carton outside
