Автоматическая машина для наполнения корпусом аэрозоля из нержавеющей стали, машина для наполнения ароматических духов
- Category: Pharmaceutical Machinery >>>
- Supplier: Wuhan Jie Swisu Mechanical & Electrical Co. Ltd.
Share on (1600309250567):
Product Overview
Description
Products Description

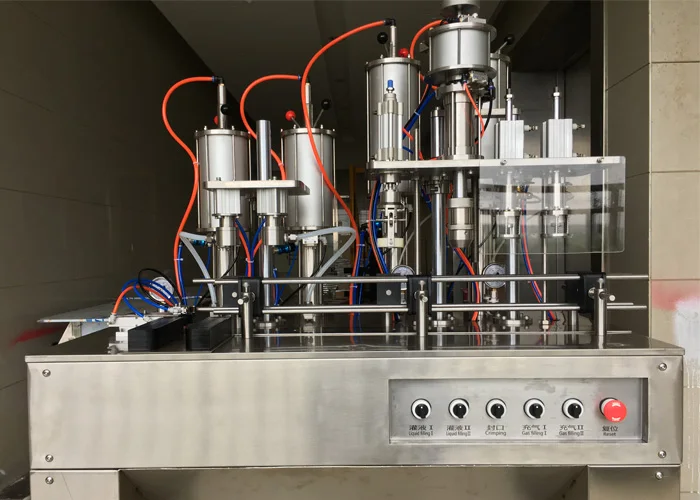

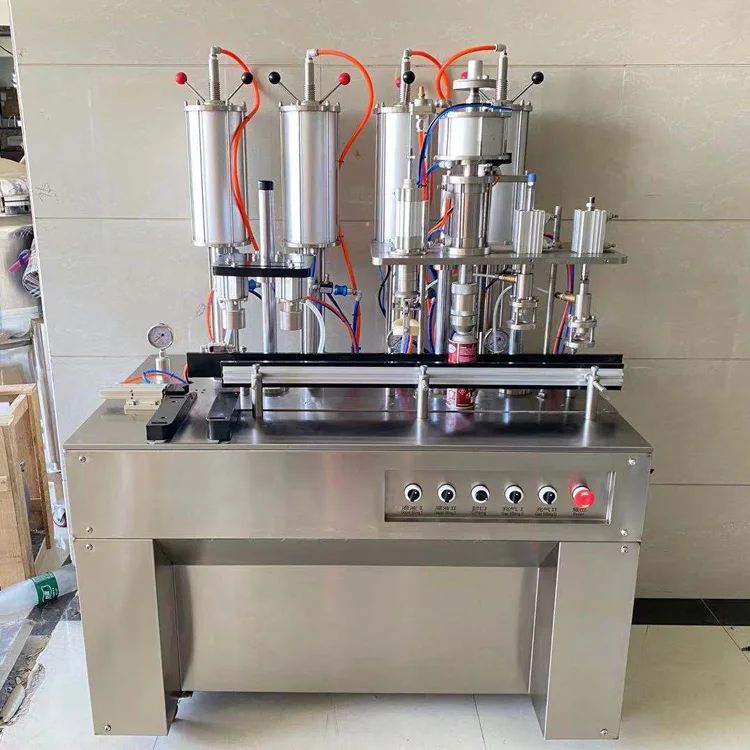

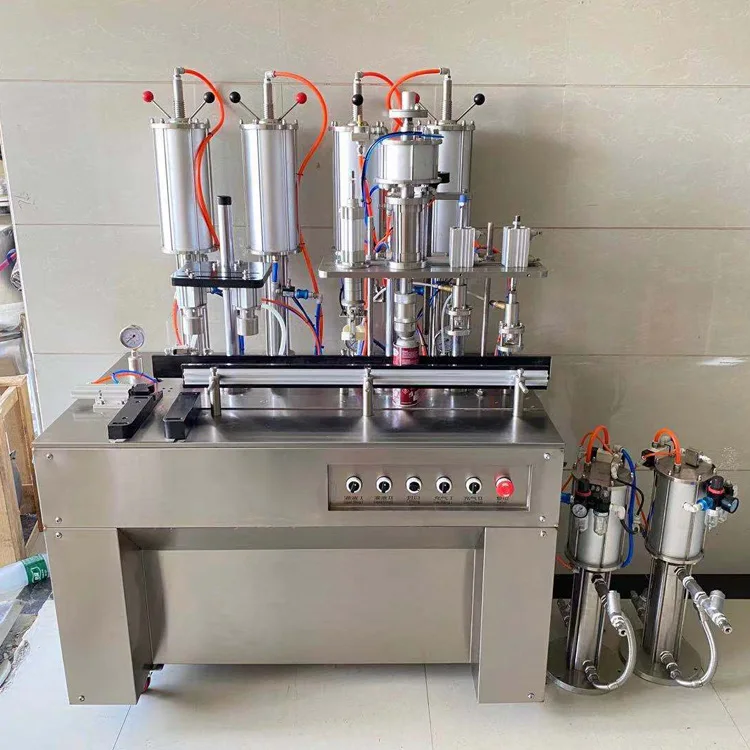

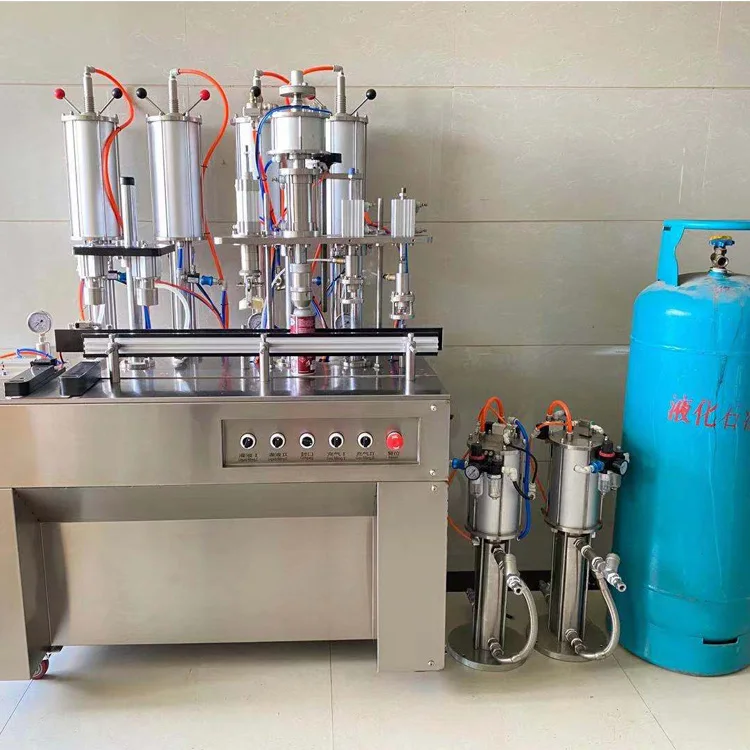

New Type Semi Auto
Aerosol Filling Machine
This aerosol filling machine model 1600CT is designed in one table with 2 liquid filling, valve fixing, crimping, and 2 gas filling
respectively. It can be applied to fill various regular aerosol products like pesticides, air freshener, body deodorant perfume,
spray paint, furniture wax, car dust remover, tire repair spray, lubricants, anti-rust adhesive aerosol, etc. It is anti-explosion
and safe for operating because of its complete pneumatic running system.
The acrylic safety protection shield can protect the operators from danger risk. Besides, the automatic pneumatic cans pushing mechanism relieves the operator much from hard work. The valve fixing mechanism can correct the valve so to ensure 100% good crimping. The mobile wheels feet makes it easy to move the machine.
respectively. It can be applied to fill various regular aerosol products like pesticides, air freshener, body deodorant perfume,
spray paint, furniture wax, car dust remover, tire repair spray, lubricants, anti-rust adhesive aerosol, etc. It is anti-explosion
and safe for operating because of its complete pneumatic running system.
The acrylic safety protection shield can protect the operators from danger risk. Besides, the automatic pneumatic cans pushing mechanism relieves the operator much from hard work. The valve fixing mechanism can correct the valve so to ensure 100% good crimping. The mobile wheels feet makes it easy to move the machine.
Machine Highlights:
The acrylic safety protection shield can protect the operators from danger risk.
The automatic pneumatic cans pushing mechanism relieves the operator much from hard work.
The valve fixing mechanism can correct the valve so to ensure 100% good crimping.
The mobile wheels feet make it easy to move the machine.
The machine is anti-explosion and safe for operating because of its complete pneumatic running system,
with reliable Taiwan "Airtac" pneumatic parts applied.
The acrylic safety protection shield can protect the operators from danger risk.
The automatic pneumatic cans pushing mechanism relieves the operator much from hard work.
The valve fixing mechanism can correct the valve so to ensure 100% good crimping.
The mobile wheels feet make it easy to move the machine.
The machine is anti-explosion and safe for operating because of its complete pneumatic running system,
with reliable Taiwan "Airtac" pneumatic parts applied.
Machine Parameter:
Production Capacity | 20 to 25 cans per minute |
Liquid Filling Volume | 20ml, 50ml, 100ml, 500ml, 750ml(optional) |
Gas Filling Volume | 20ml, 50ml, 100ml, 300ml, 500ml(optional) |
Liquid Filling Accuracy | ≤±1% |
Gas Filling Accuracy | ≤±1% |
Working Pressure | 0.65-1.0Mpa |
Max. Air Consumption | 0.9m3/min |
Applicable Aerosol Can Diameter | 35mm to 65 mm |
Applicable Aerosol Can Height | 80-350mm |
Applicable Valve Diameter | 25.4mm(1'') |
Demension | 1200*610*1800mm |
Weight | 380kg |
Machine application
It can be applied to fill various regular aerosol products like pesticides, air freshener, body deodorant perfume, spray paint,
furniture wax, car dust remover, tire repair spray, lubricants, anti-rust adhesive aerosol, ect.
furniture wax, car dust remover, tire repair spray, lubricants, anti-rust adhesive aerosol, ect.
House Care
Personal Care
Car Care

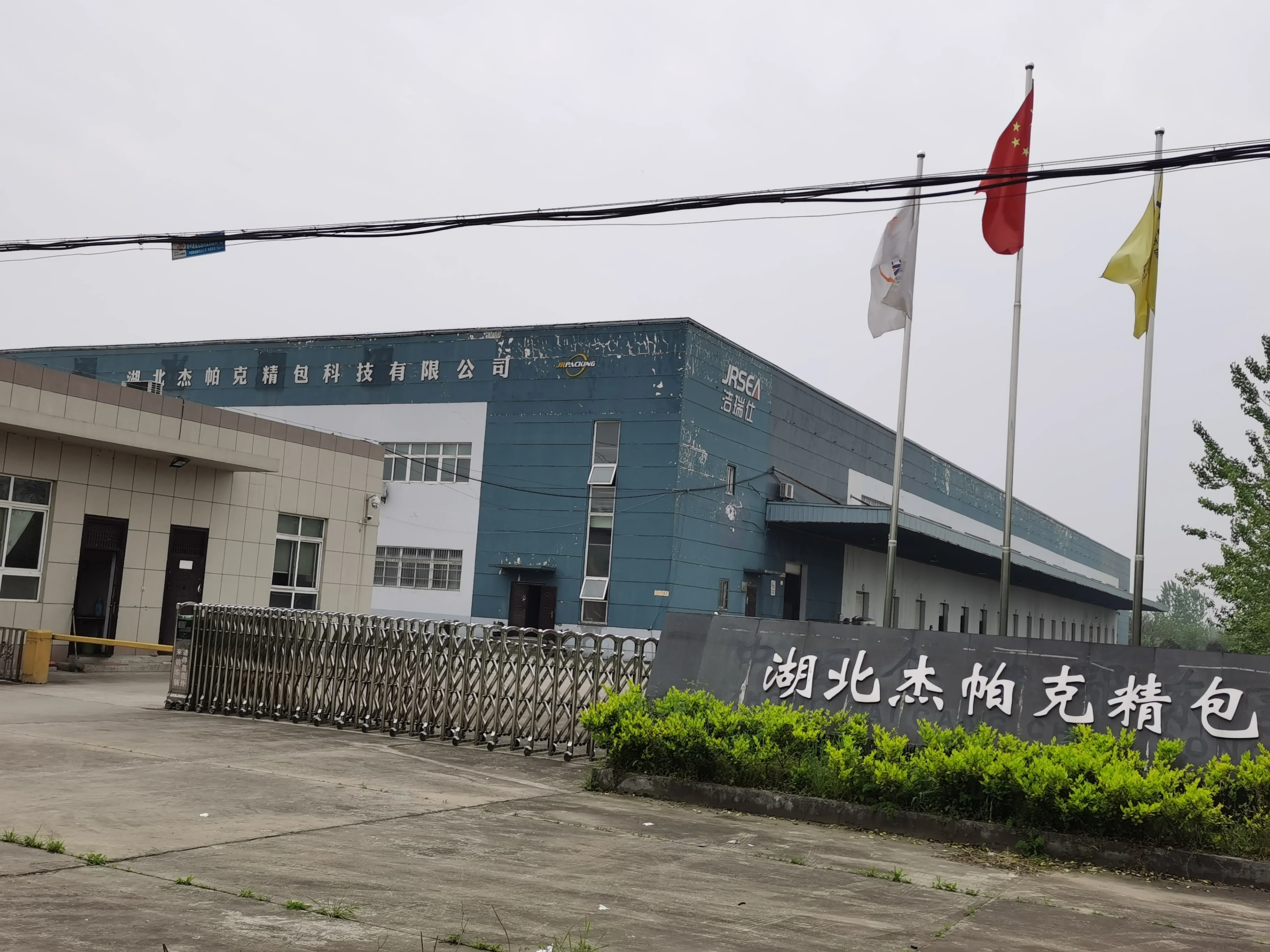

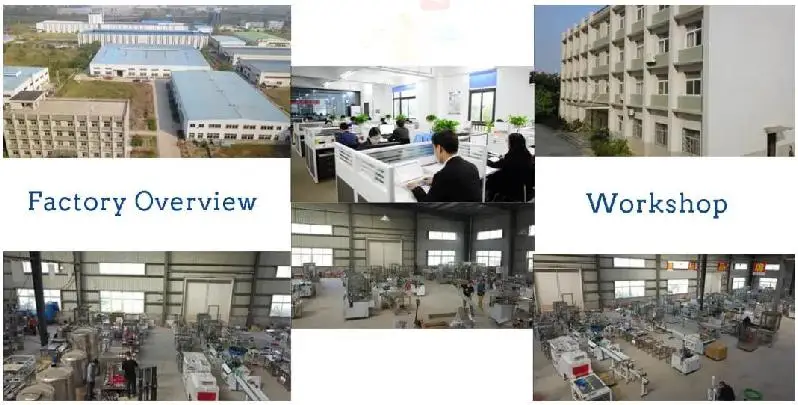

Company Overview
Wuhan Jie Swisu Mechanical & Electrical Co., Ltd.is specialized in designing and manufacturing Aerosol Filling Machine, Liquid Filling Machine and Paste Filling Machine, these filling machines are widely used in the pharmaceutical, chemical, foodstuff, agricultural chemical and cosmetic industries.
We offer solutions that match exactly the customers' needs during the various links of filling equipment. Relying on science and technology for development, and providing customers with high-tech product is our constant pursuit.We warmly welcome all friends to cooperate with us and create splendid future with us.
We offer solutions that match exactly the customers' needs during the various links of filling equipment. Relying on science and technology for development, and providing customers with high-tech product is our constant pursuit.We warmly welcome all friends to cooperate with us and create splendid future with us.
We have been in aerosol filling field for more than 20 years, many customers had beneficial from our professional service. With expending products line and increasing productivity by using our aerosol filling machines, all of our customers not only improved their annual sales volume, but also improved their brand effect in their sales marketing.
Our factory has passed the certification of ISO9001 and CE certification standard of EU. All of our products are salable in many countries and regions, such as Asia, Europe, America and Africa etc. Jie Swisu has earned abroad reputation with the immediate and perfect day and night after-service provided by senior engineers.
In the past two decades, we have devoted ourselves to research and development of aerosol filling machines. We did a lot of improvements of design and production. There are 8 patents for AEROSOL FILLING MACHINE. All of the aerosol filling machines areoperated by pneumatic, no electricity, safe for operators.
Our factory has passed the certification of ISO9001 and CE certification standard of EU. All of our products are salable in many countries and regions, such as Asia, Europe, America and Africa etc. Jie Swisu has earned abroad reputation with the immediate and perfect day and night after-service provided by senior engineers.
In the past two decades, we have devoted ourselves to research and development of aerosol filling machines. We did a lot of improvements of design and production. There are 8 patents for AEROSOL FILLING MACHINE. All of the aerosol filling machines areoperated by pneumatic, no electricity, safe for operators.

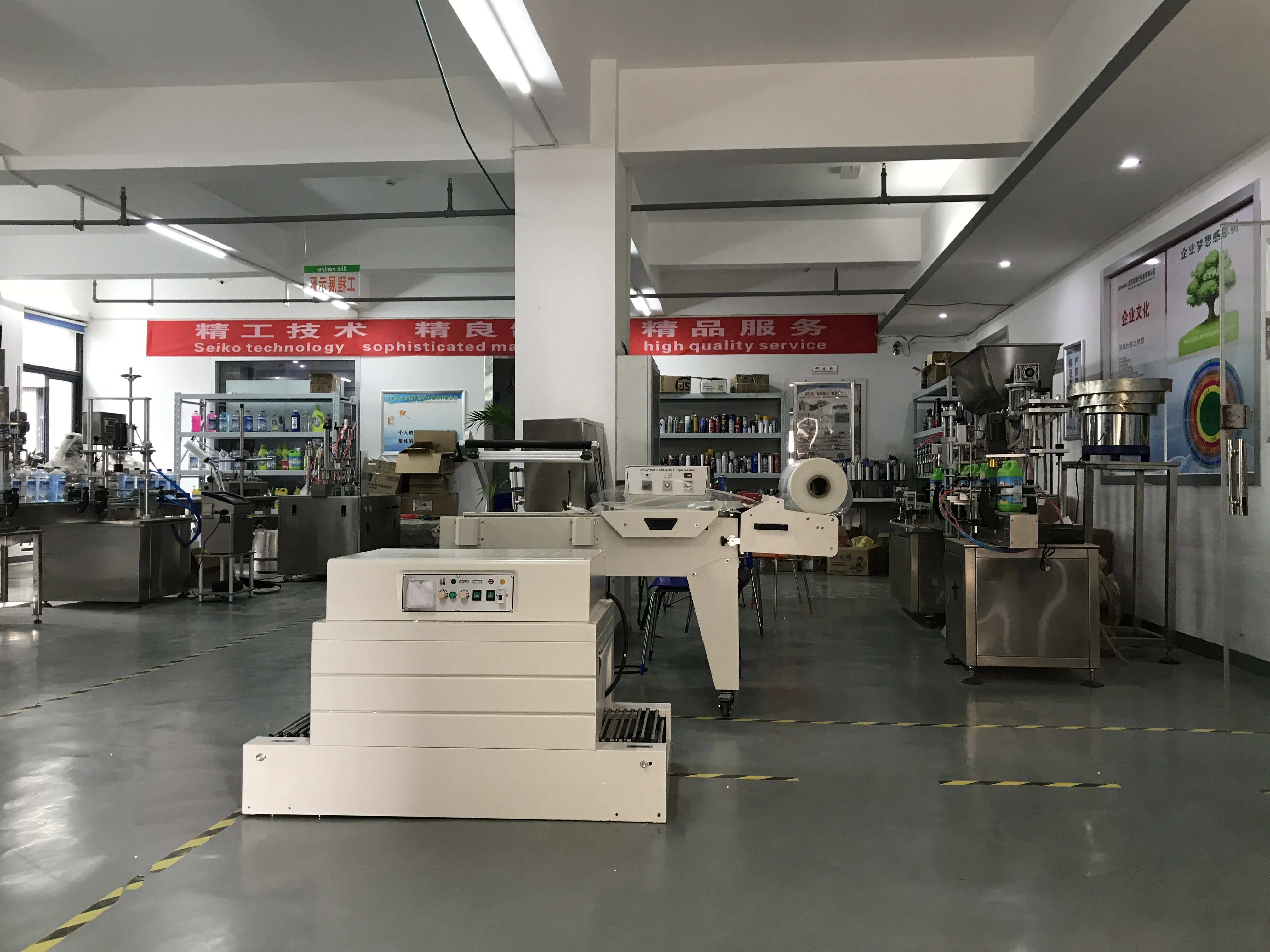

Customers come to our factory for
Related products
technology guidance.
Manual water bath leakage tester
Check whether the crimping of the can is successful,
Valve remover
To remove valve, reuse cans
LPG deodorization filter
To remove smelly odor of propellant gas and filter gas.
Certifications
Our service
1. Quality guarantee: The machine is made of stainless s304 material with new design. The quality, specification and function all meet the demand of contract. We guarantee one year to replace all main parts for free.
2. Training: Our company offer technical training to customer. The content of training concerns structure and maintenance of equipment and operation of equipment. Training is arranged in the form of on-line video. Qualified technician will guide and establish training course. After training, the technician of buyer could master the operation and maintenance of the machine, they could also master the adjusting the process and treating different failures.
2. Training: Our company offer technical training to customer. The content of training concerns structure and maintenance of equipment and operation of equipment. Training is arranged in the form of on-line video. Qualified technician will guide and establish training course. After training, the technician of buyer could master the operation and maintenance of the machine, they could also master the adjusting the process and treating different failures.
Why choose us?
1. We are the top 3 suppliers in the Chinese aerosol filling machinery industry;
2. We have rich experience in exporting to more than 30 countries around the world, including European countries and the USA.
3. We are confident our price is competitive in your offers;
4. We are not only an aerosol filling machine manufacturer but also a solution provider on a turnkey project. We've assisted many clients to set up plants successfully, so we can give you more professional suggestion;
5. Our workers for machine assembling at least have 3-5 years' experience in the relevant field when interviewing into our company, we believe it is the premise to keep good performance machine;
6. We can give you a quick response when you have questions, this is also one of the reasons many clients choose to cooperate with us;
7. We have a strong team for after-sales service, and the service way is diversified, such as call, video, door-to-door, or even your engineer come to the company to get training or study.
1. We are the top 3 suppliers in the Chinese aerosol filling machinery industry;
2. We have rich experience in exporting to more than 30 countries around the world, including European countries and the USA.
3. We are confident our price is competitive in your offers;
4. We are not only an aerosol filling machine manufacturer but also a solution provider on a turnkey project. We've assisted many clients to set up plants successfully, so we can give you more professional suggestion;
5. Our workers for machine assembling at least have 3-5 years' experience in the relevant field when interviewing into our company, we believe it is the premise to keep good performance machine;
6. We can give you a quick response when you have questions, this is also one of the reasons many clients choose to cooperate with us;
7. We have a strong team for after-sales service, and the service way is diversified, such as call, video, door-to-door, or even your engineer come to the company to get training or study.
Contact Us
We are the professional aerosol machine manufacturer, we will provide professional service.
We have fully automatic / semi automatic aerosol filling machines, bag on valve aerosol filling machines, air/oxygen filling machine, PU foam aerosol filling machine,butane/refrigerant gas filling machine etc. feel free to contact us for further discussion and thanks!
Enjoy and contact us for further information!
Whatsapp & WeChat: +8613627135460
Check our website
www.jrpacking.com
