Clean room GMP air shower
US $1580-$5300
Intelligent voice air shower rooms for factory workshops enterprises
- Category: Air Shower >>>
- Supplier: Guangdong Jinyi Purification Technology Limited
Share on (1600309698673):
Product Overview
Description
Product Description

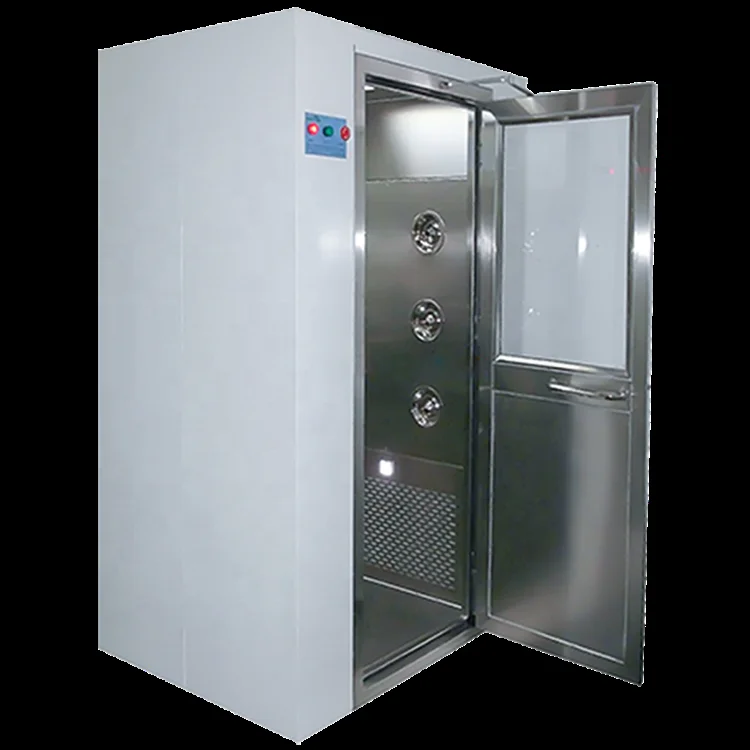

Intelligent voice air shower room for factory workshops enterprises

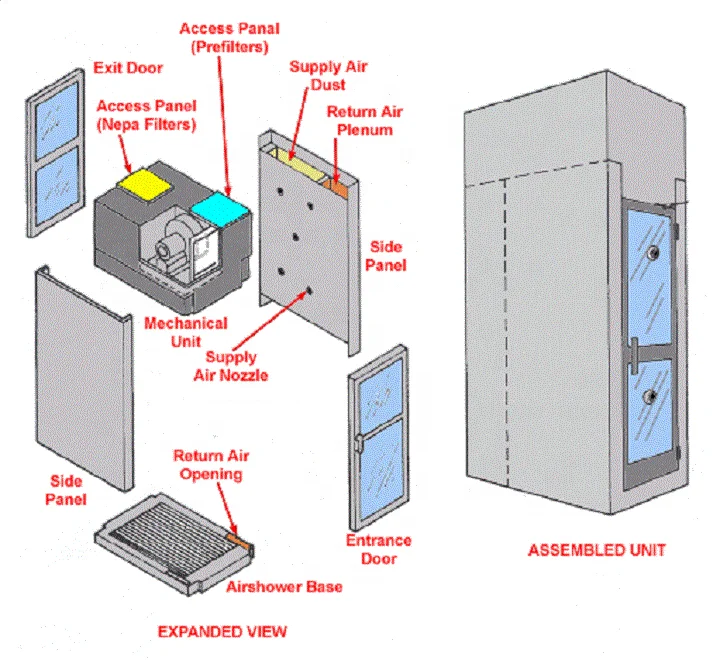

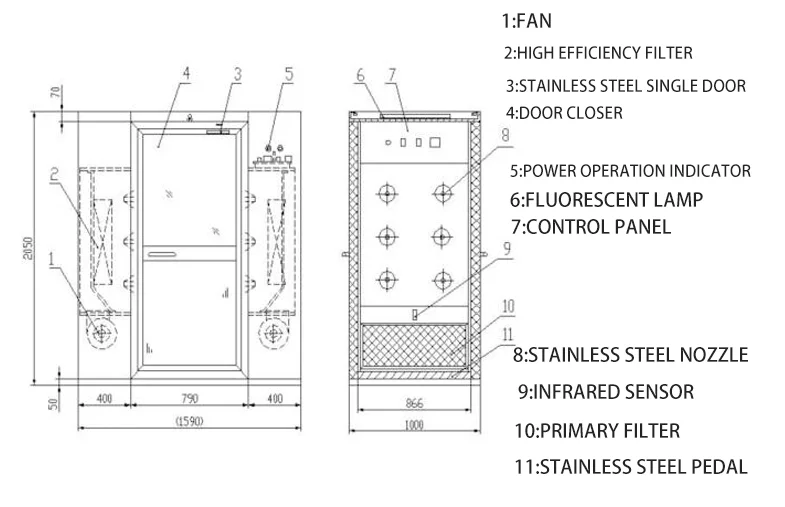

Air shower consists of cabinet, stainless steel door (cold steel), pre-filter, HEPA filter, pan, plenum chamber, nozzle,
interlocking control panel, operation panel, sensing equipment, etc.
Cold steel is used for the air shower's cabinet, and stainless steel is used for the bottom. As to different customer's
requirement, air showers with different materials or sizes can be designed and supplied.

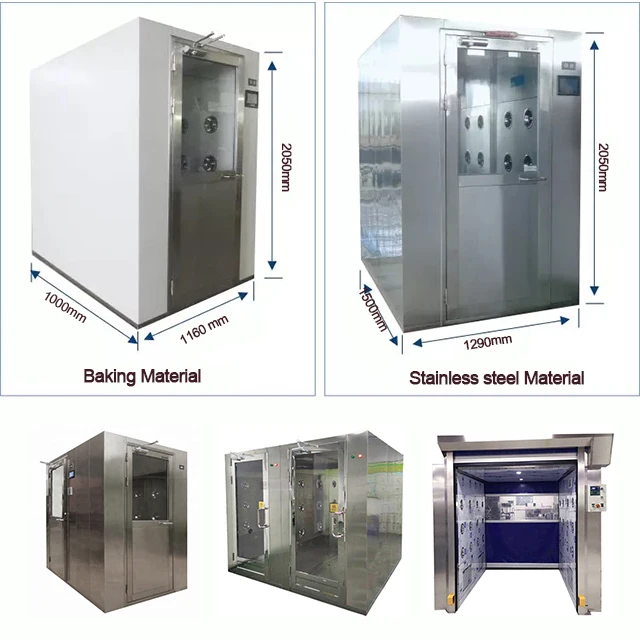

Model | JY-AR-1160 | JY-AR-1500 | JY-AR-2000 | JY-AR-2500 | |||

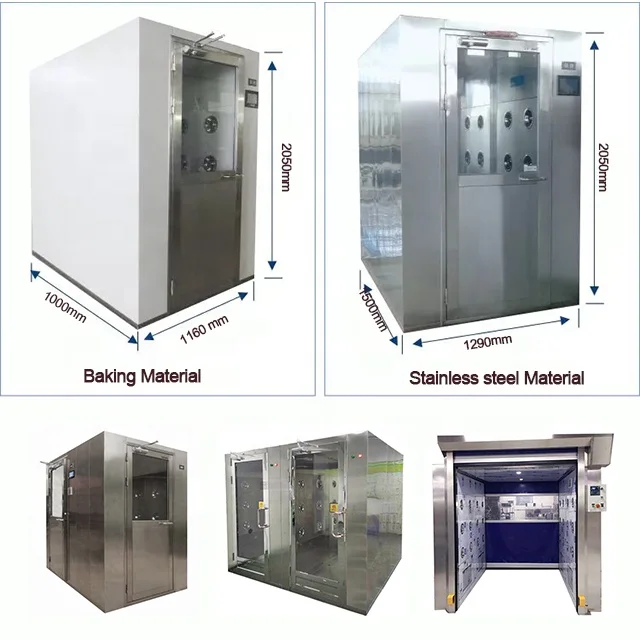

External size | 1160*1000*2050 | 1290*1500*2050 | 1390*2000*2050 | 1390*2500*2050 | |||
internal size | 790*1000*1950 | 790*1500*1950 | 790*2000*1950 | 800*2500*1950 | |||
power supply | AC,1PH,220V 50/60HZ or AC, 3PH, 380V, 50/60HZ | ||||||
consumed power | 1100w | 1500w | 2200w | 2500W | |||
No of nozzles | 12pcs | 18pcs | 24pcs | 48pcs | |||
air speed | 20-25m/s | ||||||
air shower time | 0-99s adjustable, standard is 10s | ||||||
HEPA FILTER | H13 or H14, 99.99%@0.3um or 99.995%@0.3um | ||||||
material | SUS304, SUS201, baking finished optional | ||||||
NO. of person capacity | 1-2 | 2-3 | 3-4 | 4-6 | |||
Remark | specification can be customized according to customer's requirement | ||||||
Product name | Stainless steel air shower |
Product model | Single blow / double blow |
Product material | Stainless steel plate / cold rolled steel plate |
Power Supply | AC, three-phase, 380V / 50Hz |
weight | 400~700kg |
Product characteristics | Large air volume, two speed, high pressure, infrared sensor, stainless steel single door. |
Detailed images

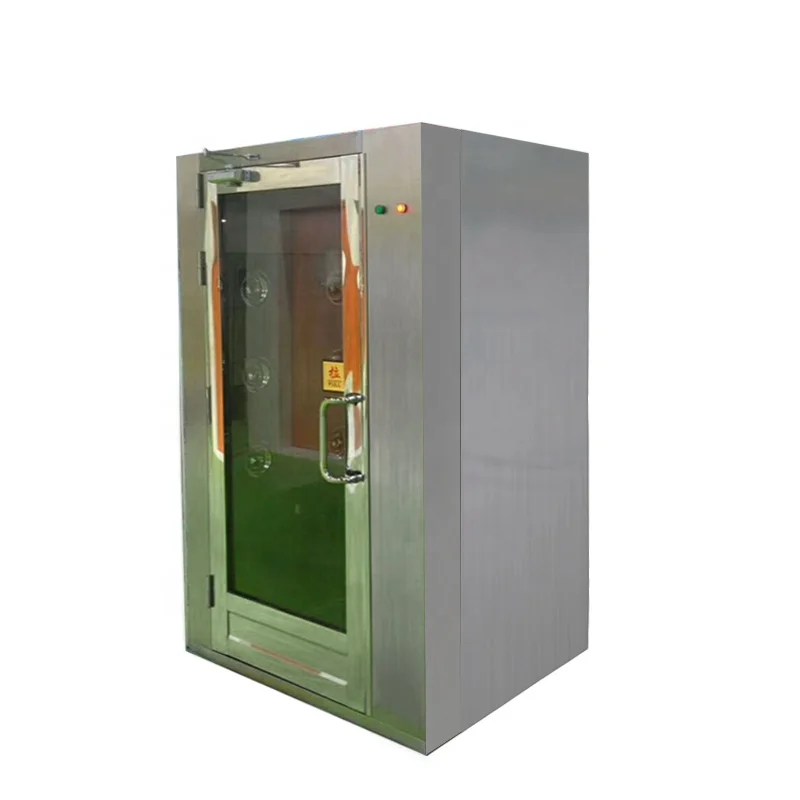

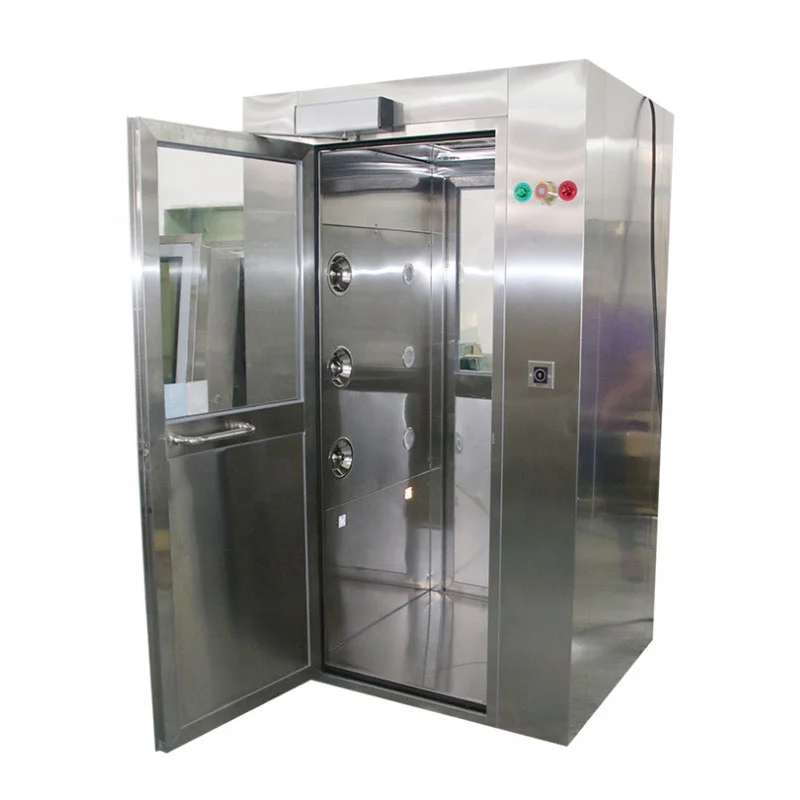

High quality stainless steel
The air shower room is made of stainless steel, smooth, smooth and wear-resistant

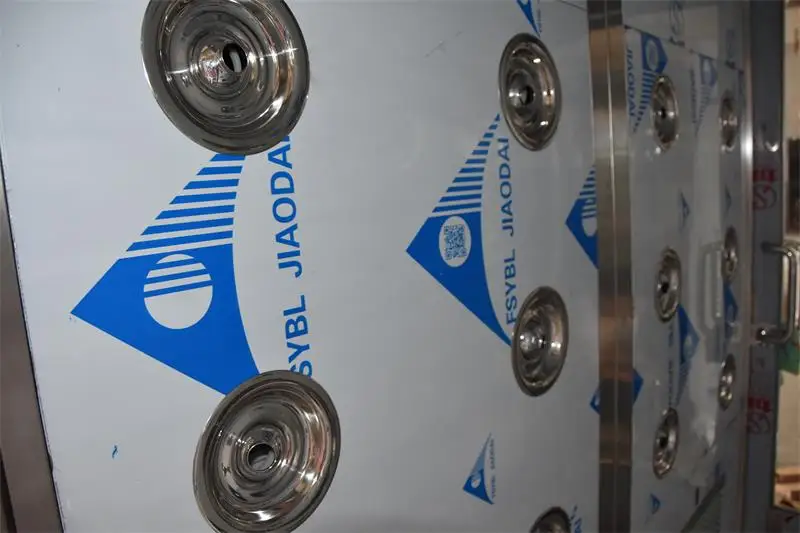

360 ° stainless steel nozzle, fully wind drenched, reducing bacteria dust pollution in clean room

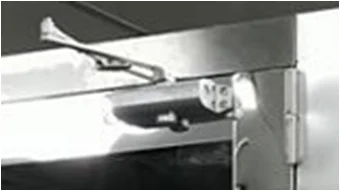

The door lock is made of stainless steel, smooth and wear-resistant, with quality assurance
