320mm Welding electrode / welding rod with bottom price
US $0.89-$1.09
welding electrode e 6013 / welding electrodes mt12
- Category: Welding Rods >>>
- Supplier: Hebei Safa International Trading Co. Ltd.
Share on (1600310018167):
Product Overview
Description
Product Description

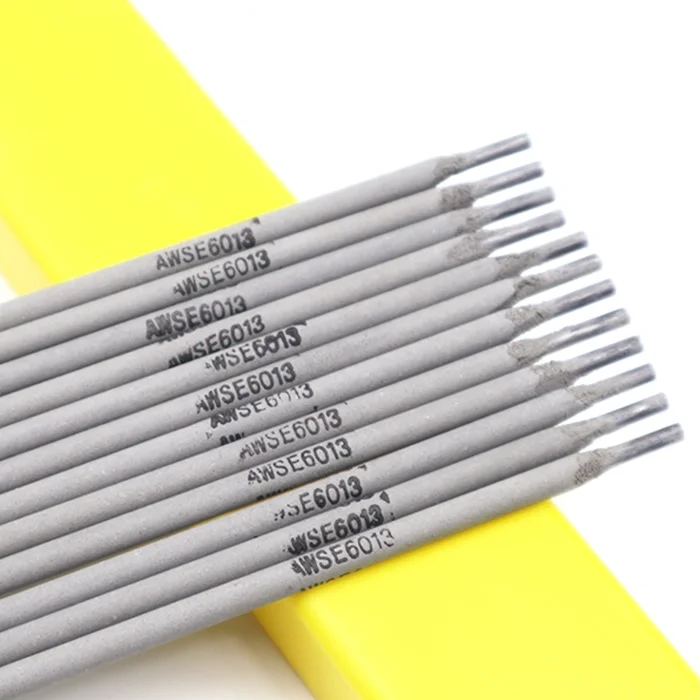

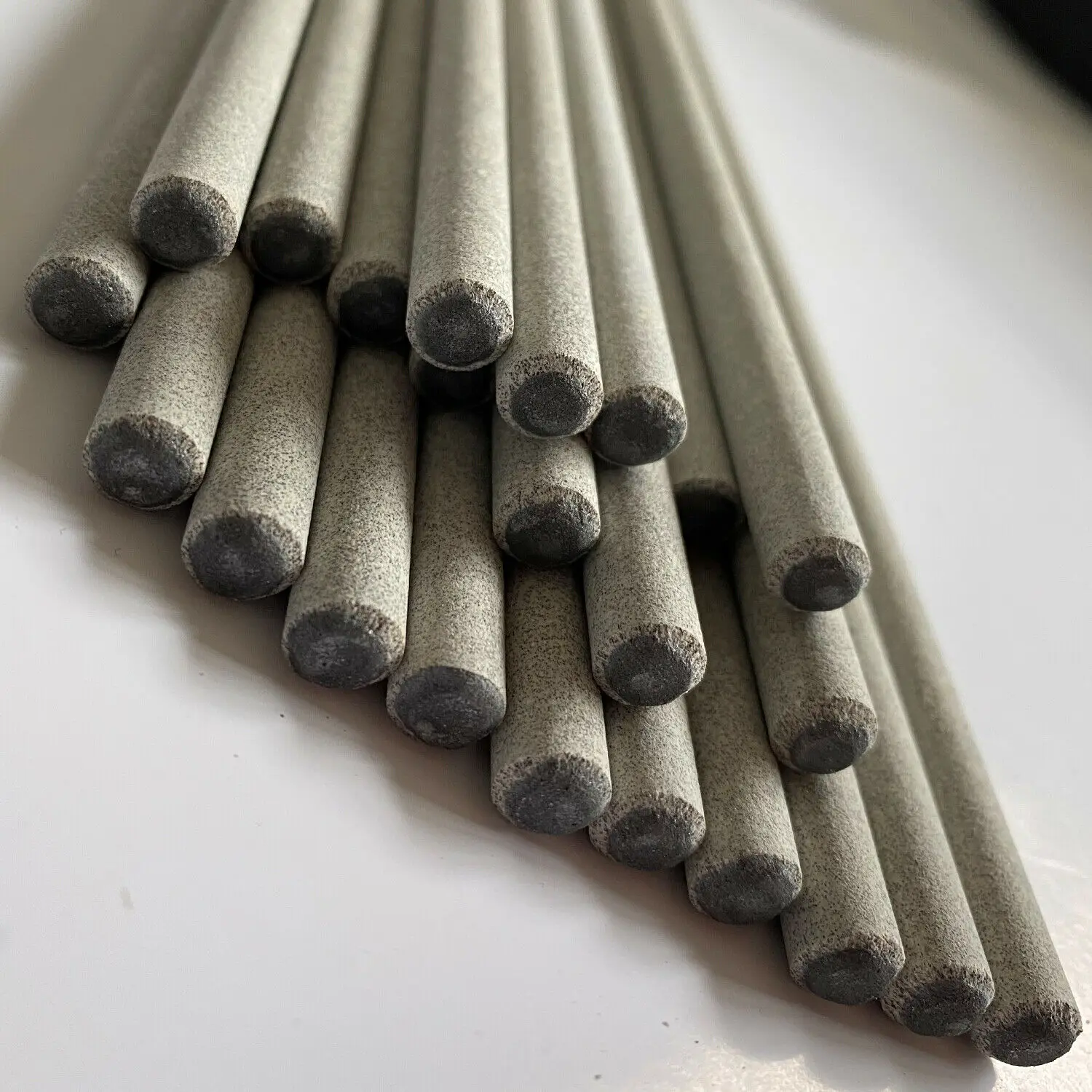

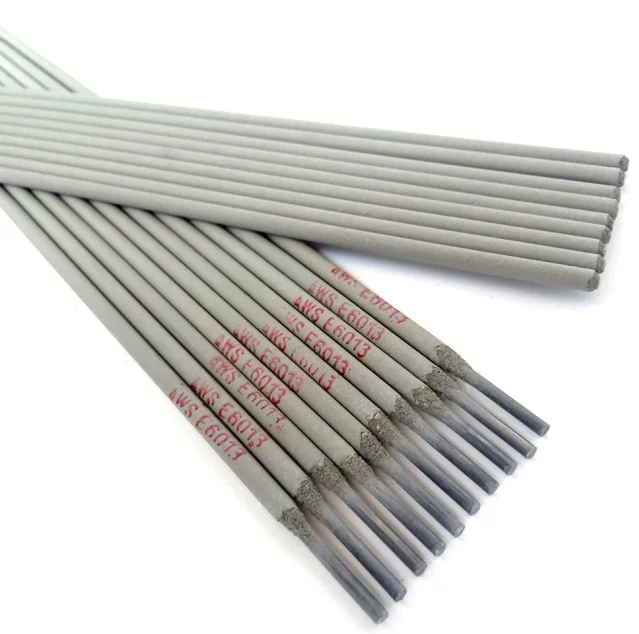

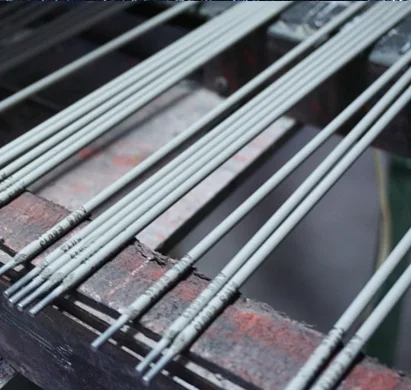

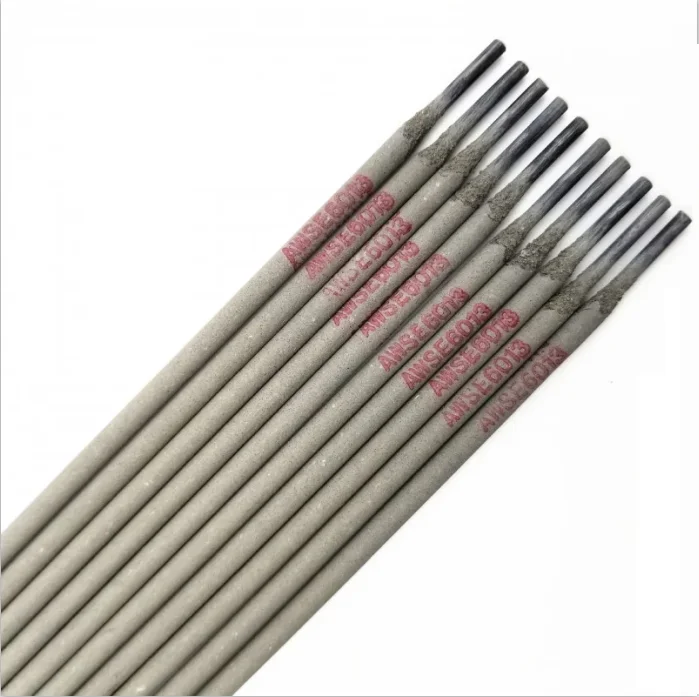

E6013 Welding Electrode
* All position welding, general purpose rod for shallow penetration or in poor fit up conditions
* Excellent wetting action, yielding smooth and flat beads with steady arc with either AC or DC
* Low spatter and excellent slag removal, virtually self cleaning in vertical down fillets
* Use on all types of mild steel where ease of operation and good appearance is required in all positions, ideal for vertical down welding
Specification
DEPOSIT COMPOSITION(Quality Score): % | ||||||||||||||||||
items | C | Mn | Si | S | P | Ni | Cr | Mo | V | |||||||||
Requirements | ≤0.10 | 0.32-0.55 | ≤0.30 | ≤0.030 | ≤0.035 | ≤0.30 | ≤0.20 | ≤0.30 | ≤0.08 | |||||||||
Typical Results | 0.080 | 0.370 | 0.190 | 0.020 | 0.030 | 0.280 | 0.036 | 0.005 | 0.004 | |||||||||
MECHANICAL PROPERTIES: | ||||||||
Items | Tensile Strength Rm/MPa | Yield Strength Rel/Rp0.2 MPa | Elongation A/% | Charpy V-Notch KV2(J)0℃ | ||||
Requirements | 440-560 | ≥355 | ≥22 | ≥47 | ||||
Typical Results | 500 | 430 | 27 | 80 | ||||
X-ray Radiographic Inspection: ⅡDegree | ||||||||
REFERENCE CURRENT: (AC, DC) | ||||||||||
Electrode Diameter(mm) | φ2.0 | φ2.5 | φ3.2 | φ4.0 | φ5.0 | |||||
Welding Current (A) | 40~70 | 50~90 | 90~130 | 130~210 | 170~230 | |||||
Attention:
In general, don't need to bake before welding electrode. When the electrode be affected with damp,it should be subject to use 150-170℃ for 0.5-1hour.
In general, don't need to bake before welding electrode. When the electrode be affected with damp,it should be subject to use 150-170℃ for 0.5-1hour.
HOT SALE ELECTRODES

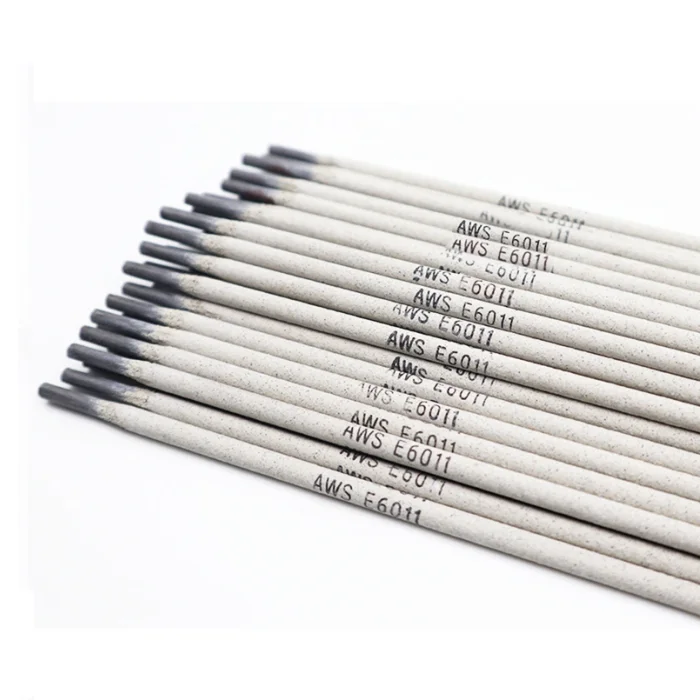

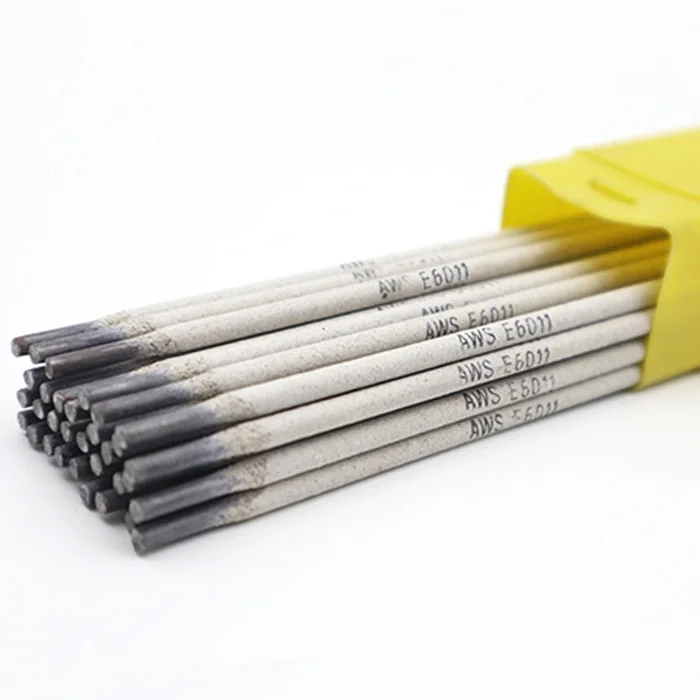

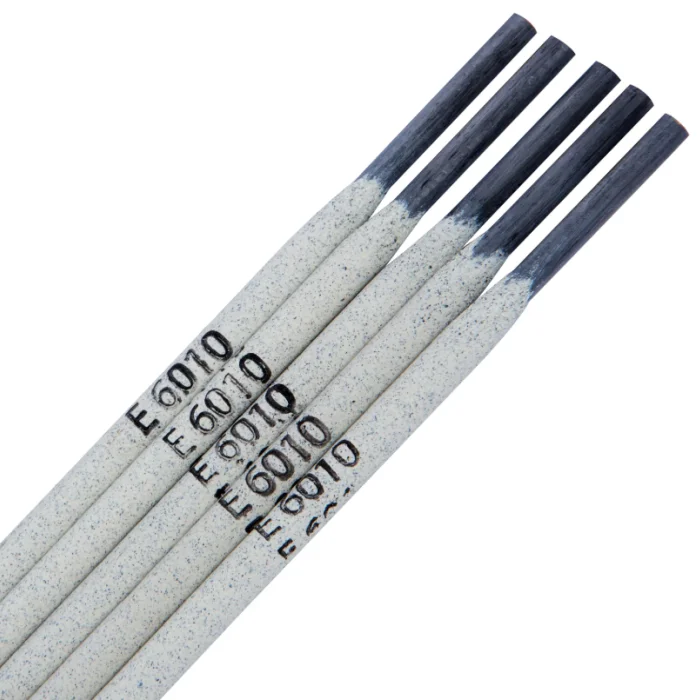

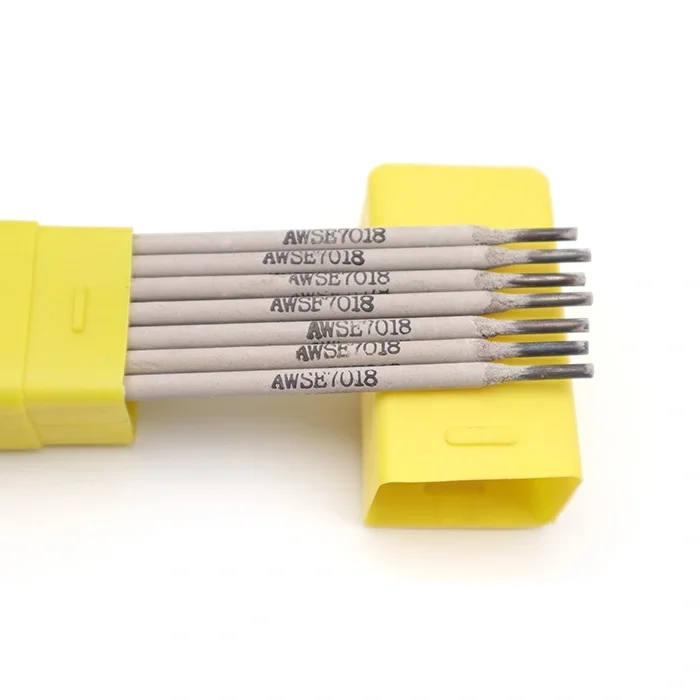

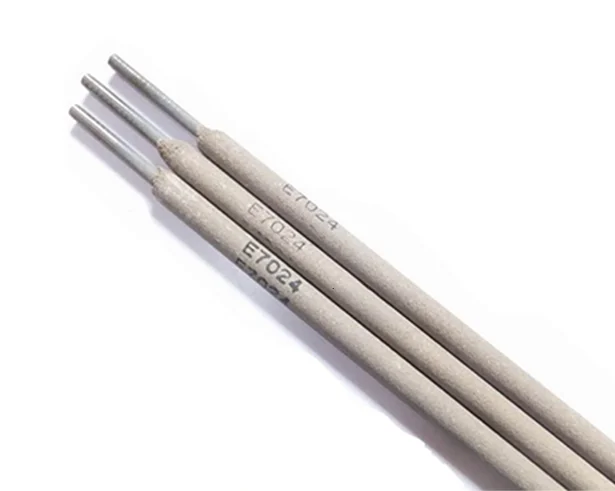

E6010, E6011, E6012, E6013, E7018, and E7024

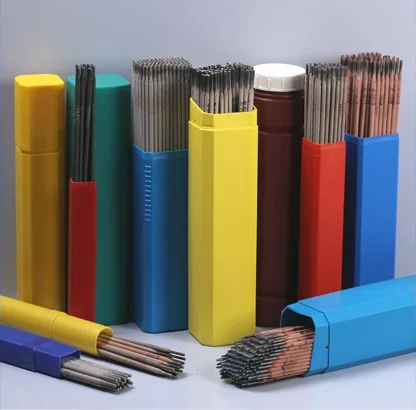

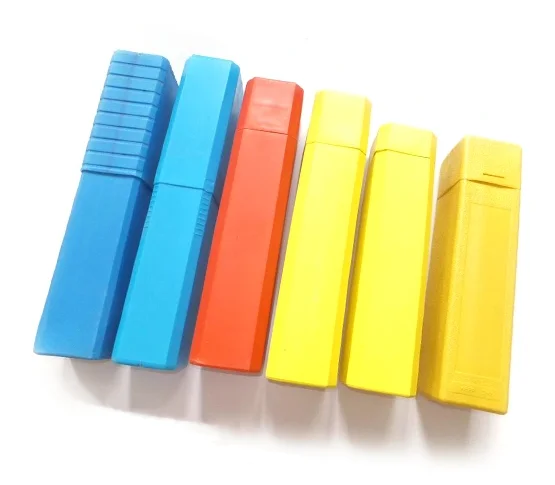

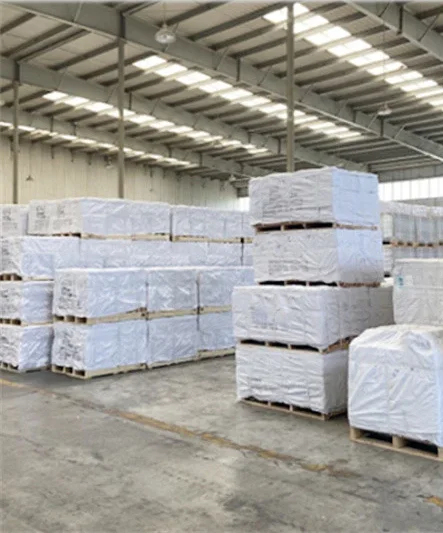

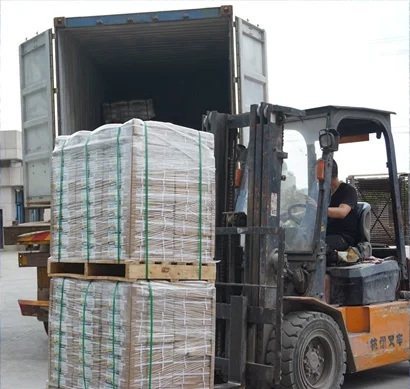

Packing & Delivery
Size: 2.5mm*300mm
Package: 5.0 kg/box, 4 boxes/ carton=20kgSize: 3.2mm*350mm
Package: 5.0 kg/box, 4 boxes/ carton=20kg
Size: 4.0mm*400mm
Package:5.0 kg/box, 4 boxes/ carton=20kg
1000kgs (50cartons)/pallet

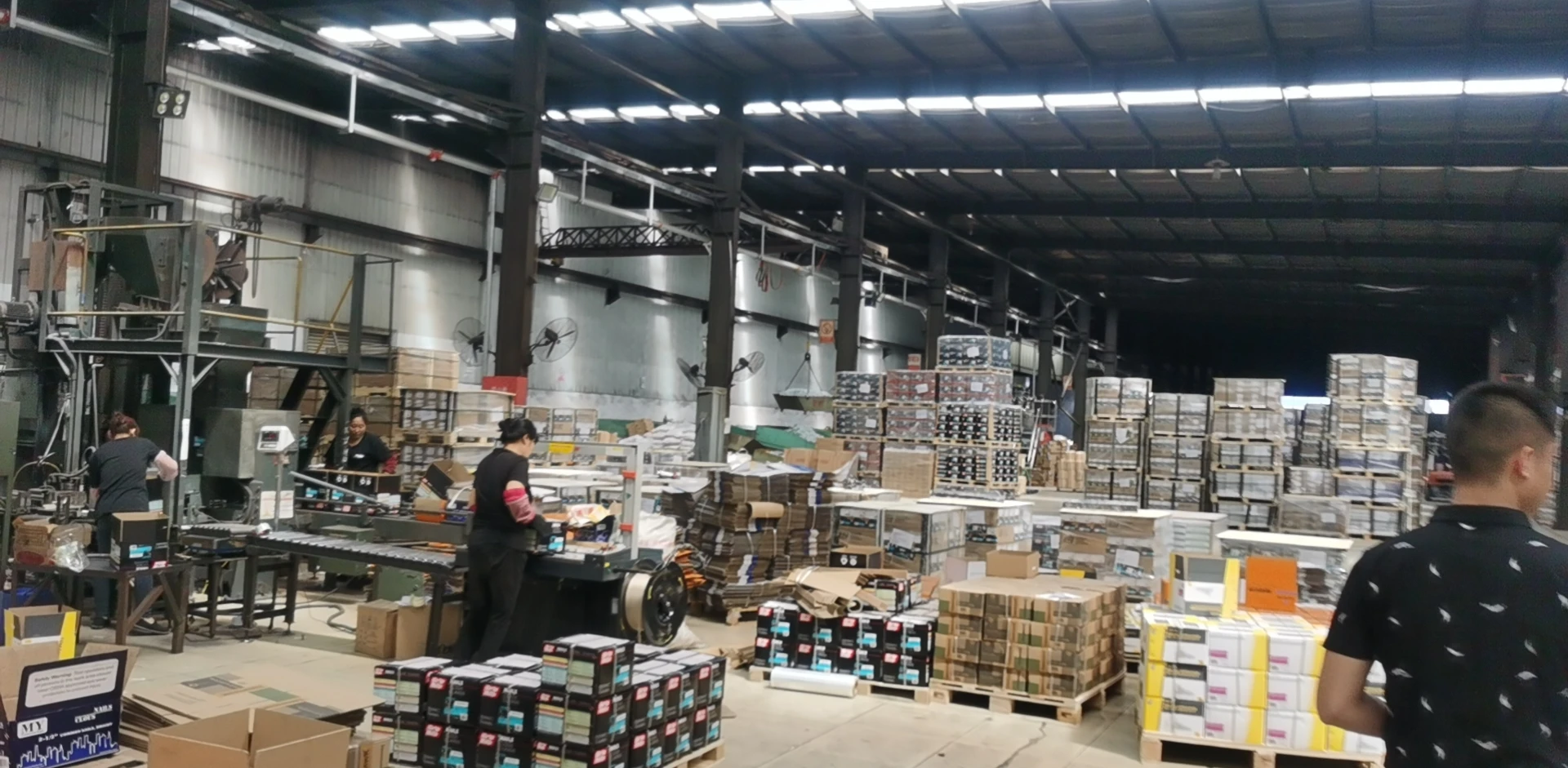

Company Profile
FAQ
1. What's the MOQ?
A: For first cooperation, we accept trial orders. Usually 5 Ton. it depends
2. Can you send samples to us?
A: Yes, we can provide to you for free, but you need to pay the freight charge.
3. What's the delivery time for production?
A: If we have stock , we can delivery in 5 days ; if we need produce new, it will be take about 20-45days!
4. What is the shipping port?
A: We ship the goods via Tianjin port.
5. Can we use our own brand design packing box?
A: For sure, if you have design, please send to us, or we can design suitable packing box for you after receiving the deposit.
A: For first cooperation, we accept trial orders. Usually 5 Ton. it depends
2. Can you send samples to us?
A: Yes, we can provide to you for free, but you need to pay the freight charge.
3. What's the delivery time for production?
A: If we have stock , we can delivery in 5 days ; if we need produce new, it will be take about 20-45days!
4. What is the shipping port?
A: We ship the goods via Tianjin port.
5. Can we use our own brand design packing box?
A: For sure, if you have design, please send to us, or we can design suitable packing box for you after receiving the deposit.
