Henan 12T/H dry mixing mortar plant for sale
US $45600-$56800

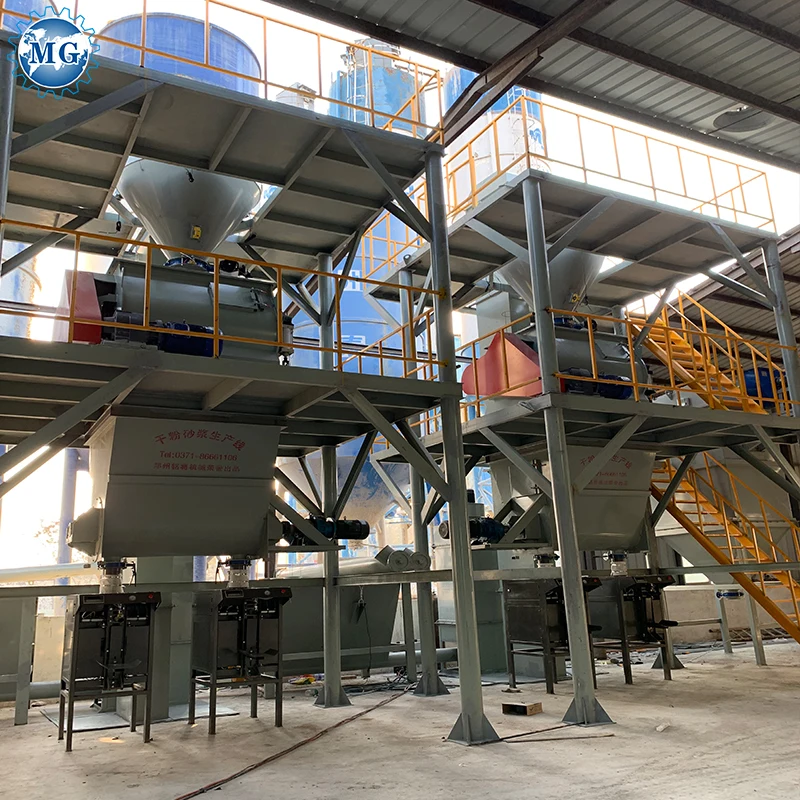

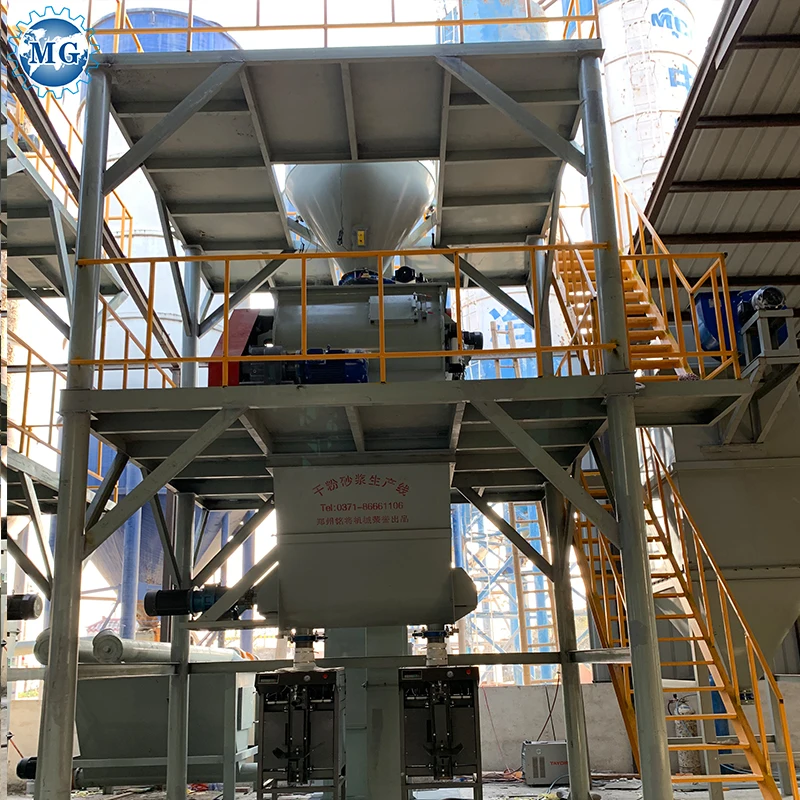

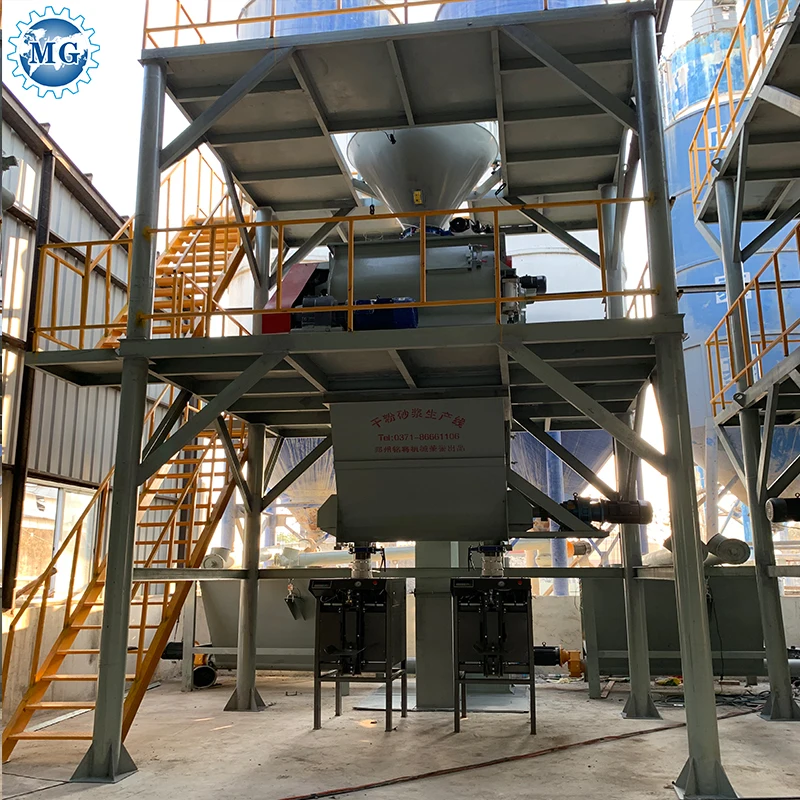

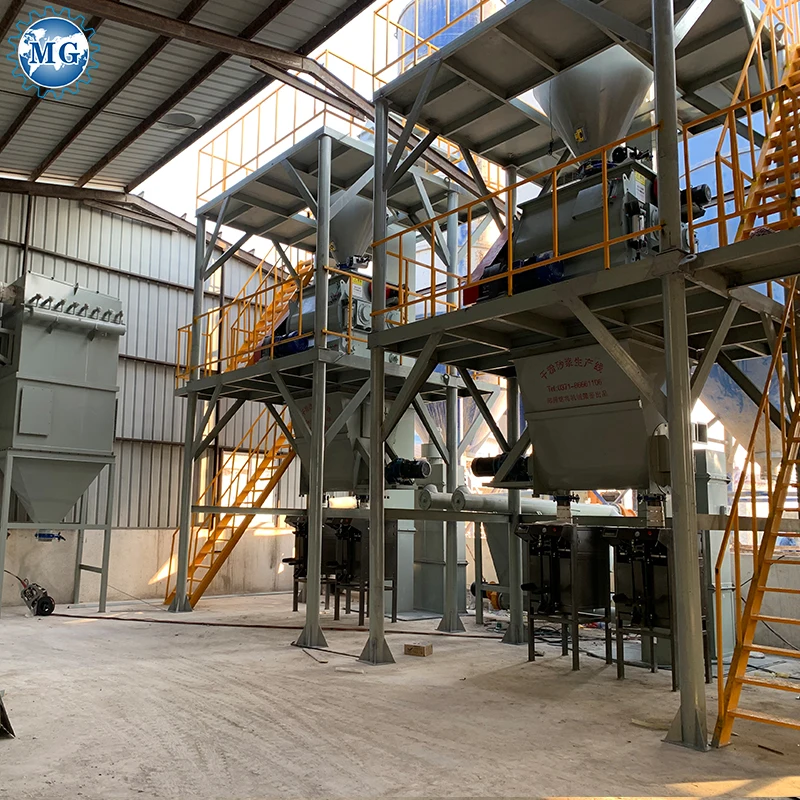

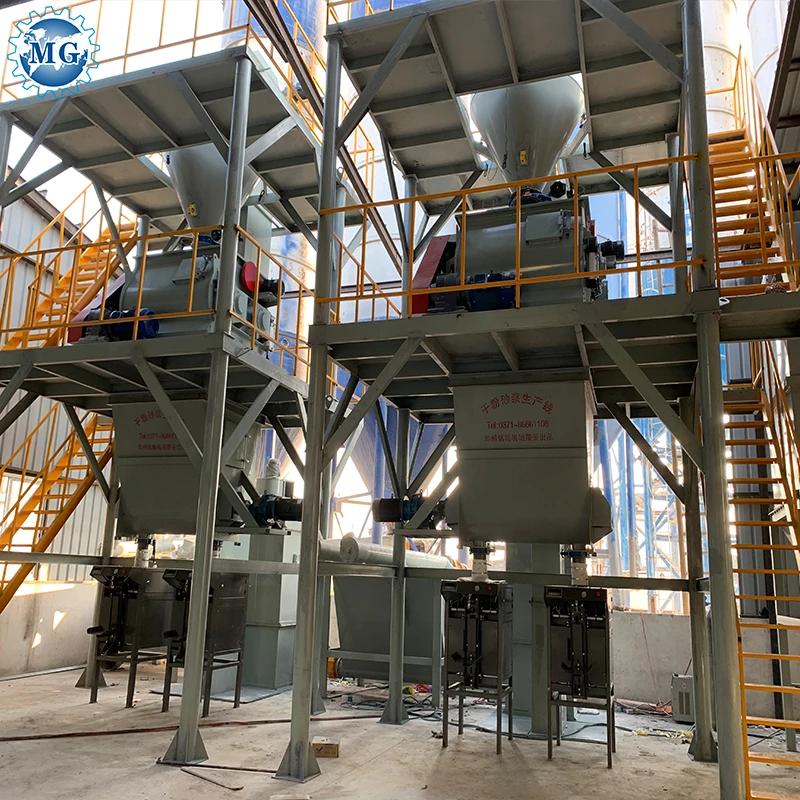

Automatic Feeding 30T/H Dry Mortar Production Line Wall Putty Making Machine
- Category: Dry Mortar Machines >>>
- Supplier: Zhengzhou MG Industrial Co. Ltd.
Share on (1600310350177):
Product Overview
Description
Product Description

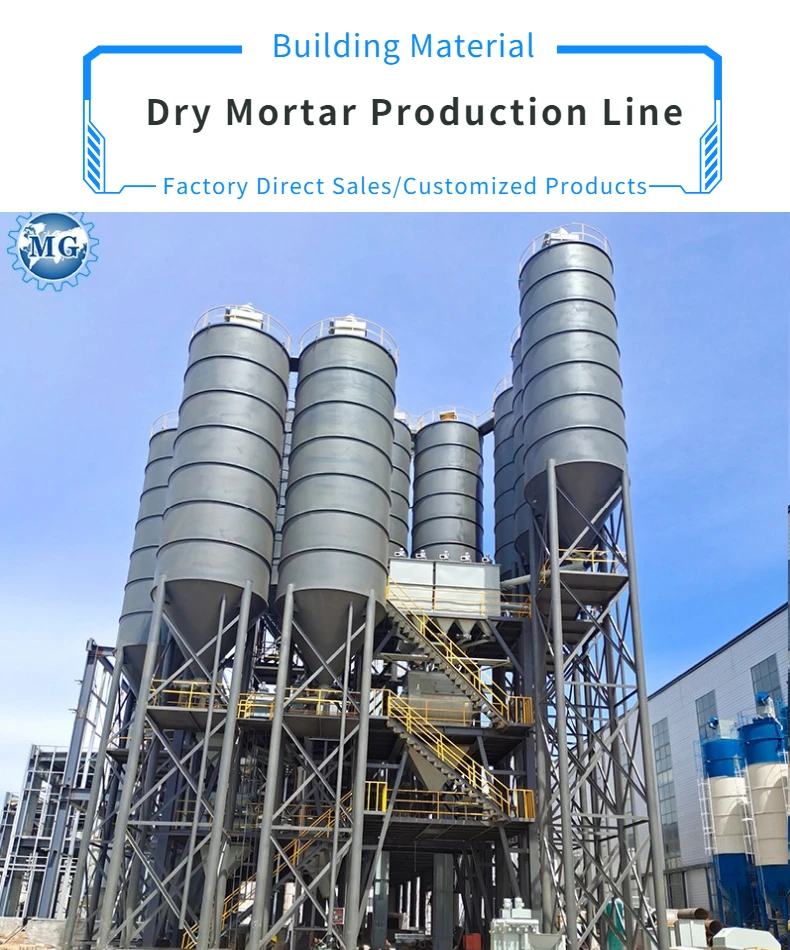

MG series dry mortar plant is based on the latest design concept in Europe, this production adopts the advanced computer auto-control system, whose production capacity can reach 30-100 thousand tons per year depend on the system configuration. The production line consists of storage system, metering and batching system, conveying system, mixing system, air compressor system , packaging system, and dedusting system, etc.
Mixer for continuous mixing. The finished product in conformity with mixing accuracy requirements can be sent to the finished products bin shortly after mixed. Moreover, there is design with automatic rationing and packaging machine at the bottom of finished products bin, allowing for synchronous auto-packaging operation. Featured with easy and convenient operation, high efficiency, it can both obviously reduce labor intensity and effectively reduce dust pollution.
1. It features magnificent appearance, good quality, high productivity and accurate mortar proportioning.
2. The dry mortar production line uses a centralized control system, making the equipment easy to operate.
3. According to the layout type, it can be classified into tower type, self tower type and series type. Its up to the customers workshop area. The needed area is 500~5000m2.
4. We can provide one-stop service from design to installation according to our customers' specific requirement.
Technical Parameters of MG Dry Mortar Production Line:
Model | Out put | Occupied area | Equipment height | Manpower | Batching and packaging |
Simple type | 3-4t/h | 20m2 | 3-4m | 2-3 Person | Manual batching Automatic packaging |
Semi-automatic type | 6-8t/h | 50-60m2 | 6-8m | 3-4 Person | Manual batching Automatic packaging |
Full automatic type | 8-30t/h | 60-100m2 | 8-13m | 3-4 Person | Automatic batching Automatic packaging |
The tile adhesive making machine can produce the following dry mortars: Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc. Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc. Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.

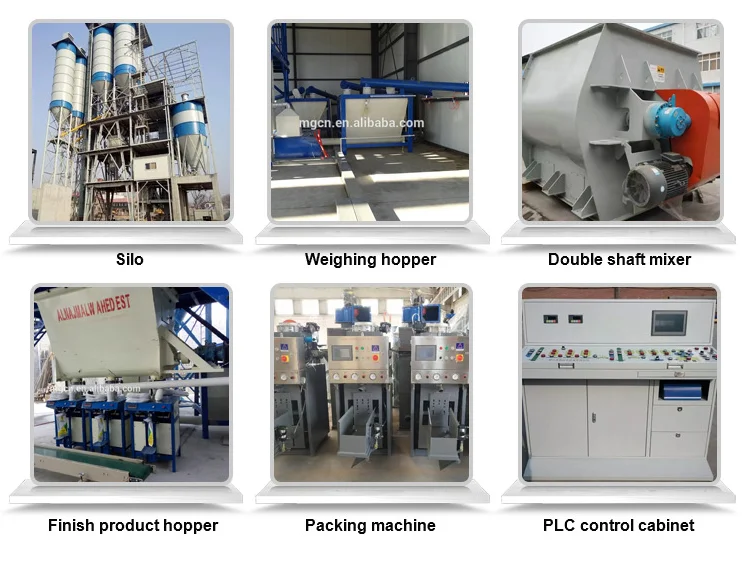

Machine Configuration
Full Automatic Dry Mortar Production Line | ||
Screw Converyor | 3kw CE Mortor | |
Twin Shaft Mixer (Equip Fly Cutting System for Fiber) | 18.5kw Mixer Mortar | |
4kw Fly-Cutter Mortor | ||
2m³ Capacity | ||
Finish Product Hopper | 1m³ Capacity | |
Screw Conveyoe | 3kw CE Mortor Power | |
Storage Silo | 2m³ Capacity | |
Packing Machine | Automatic Valve Type | |
Air Compressor | 4kw | |
Control Cabinet | 1 set | |

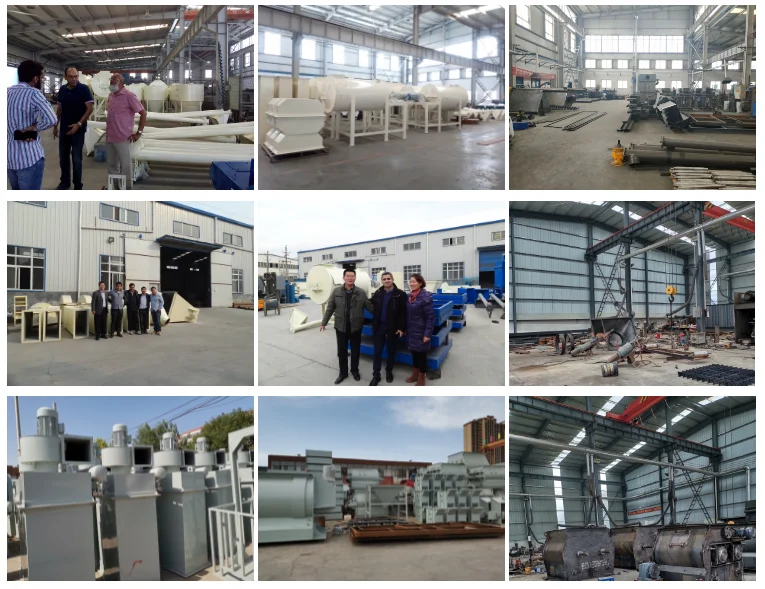

Workshop and Factory
Customers Visit Our Company
Certificates

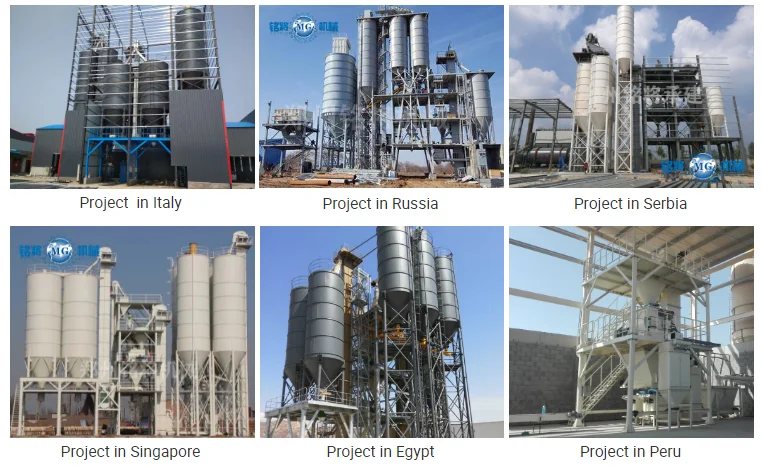

Successful Project
Our Company
Zhengzhou MG industrial Co., Ltd, was verified by ISO9001 quality control system, awarded as Henan first-class science and technology enterprise by government. We were Henan observe quality and credibility enterprise union governing unit in 2012.
The main products of the company include dry mortar plant, thermal insulation mortar production line, sand dryer, power blending machine, impulse dust collector, automatic packing machine, and others.
According to the actual situation of each customer (investment costs, plant conditions, material characteristics, product formula, etc.), the company can tailor a reasonable practical and efficient equipment solution for customers.
MG will be willing to work with you to seek common development and create brilliance.

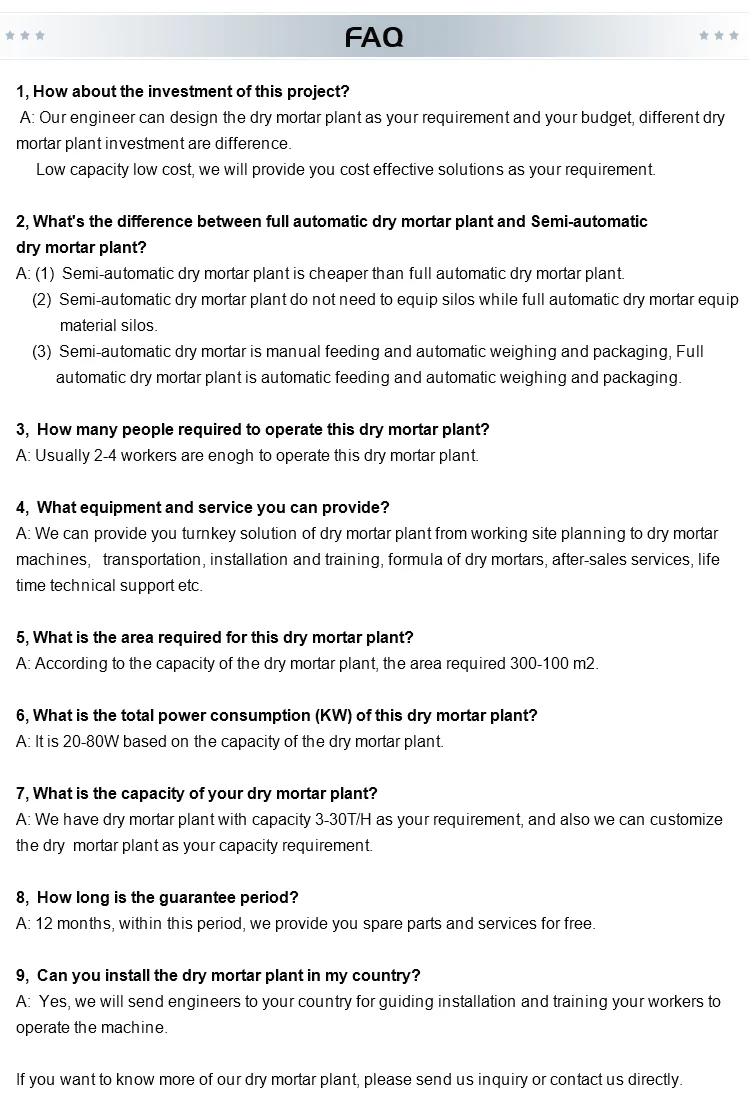

FAQ
