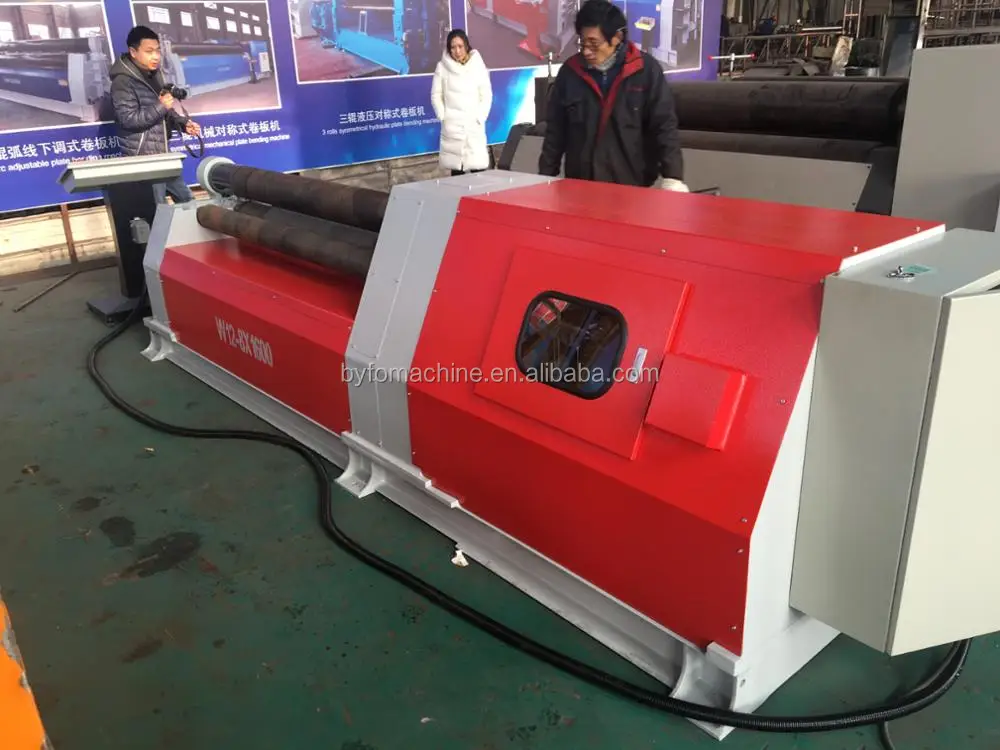

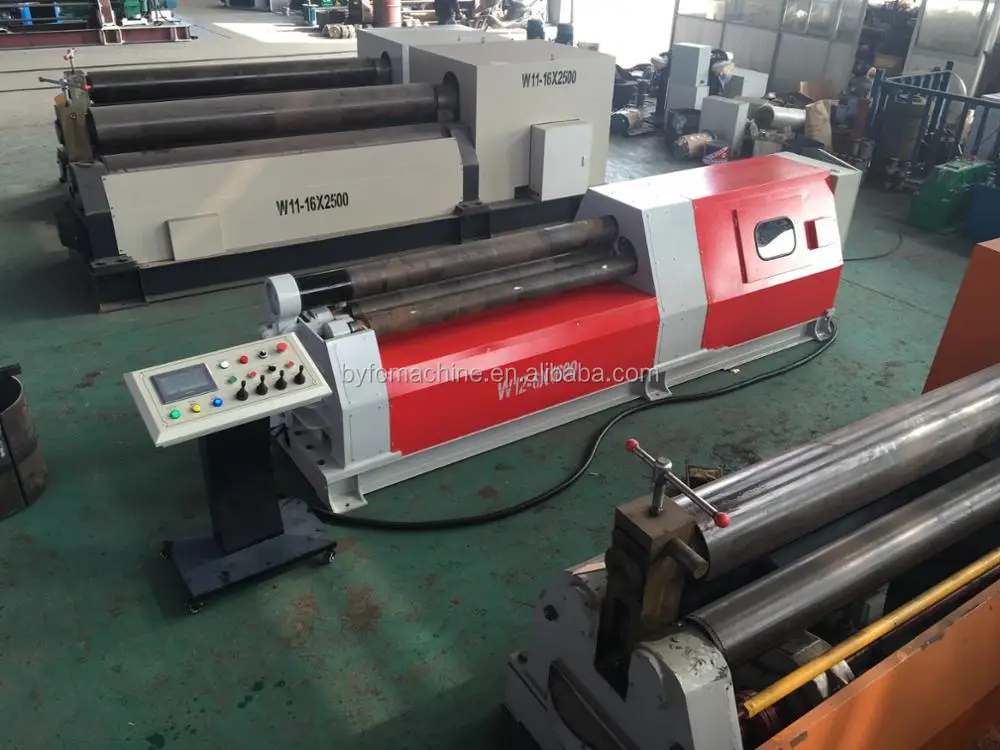

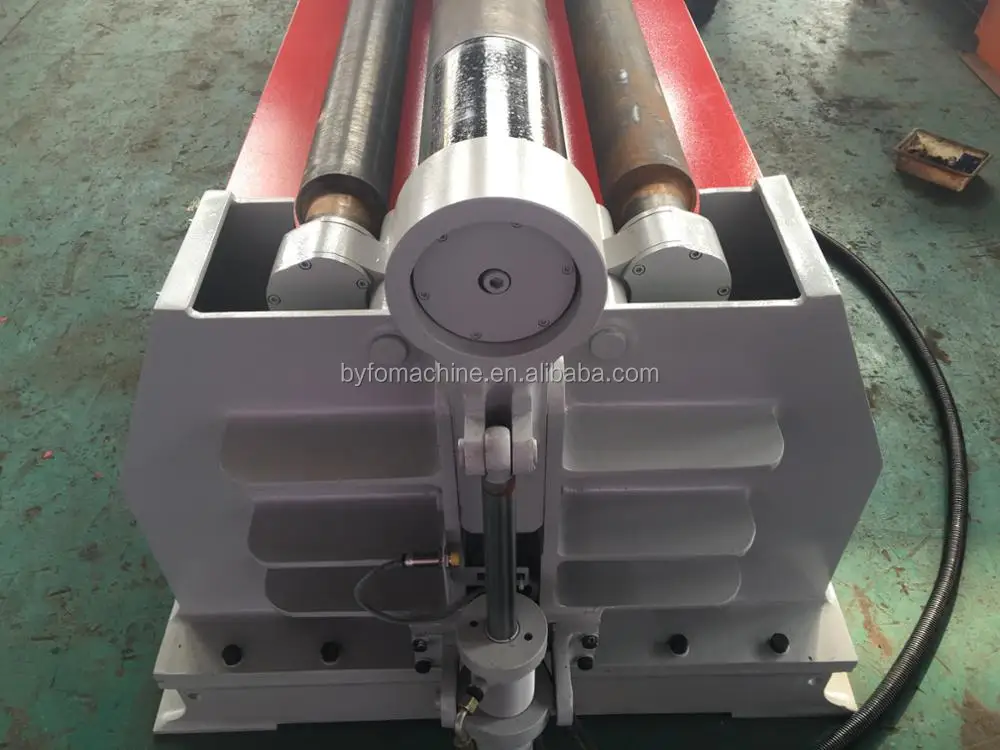

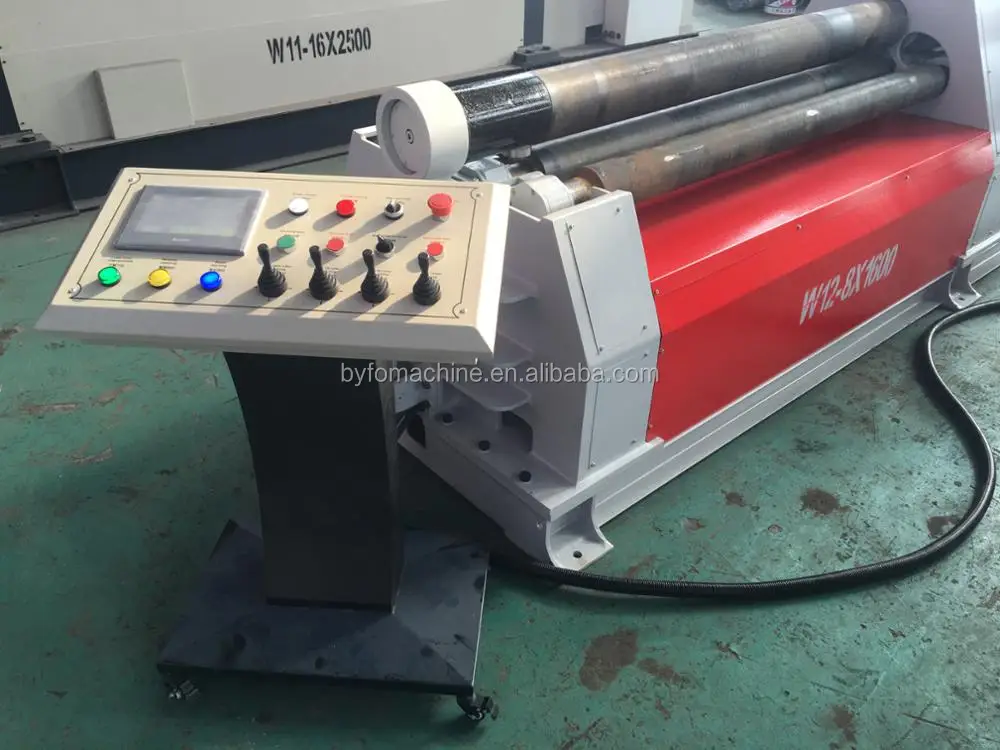

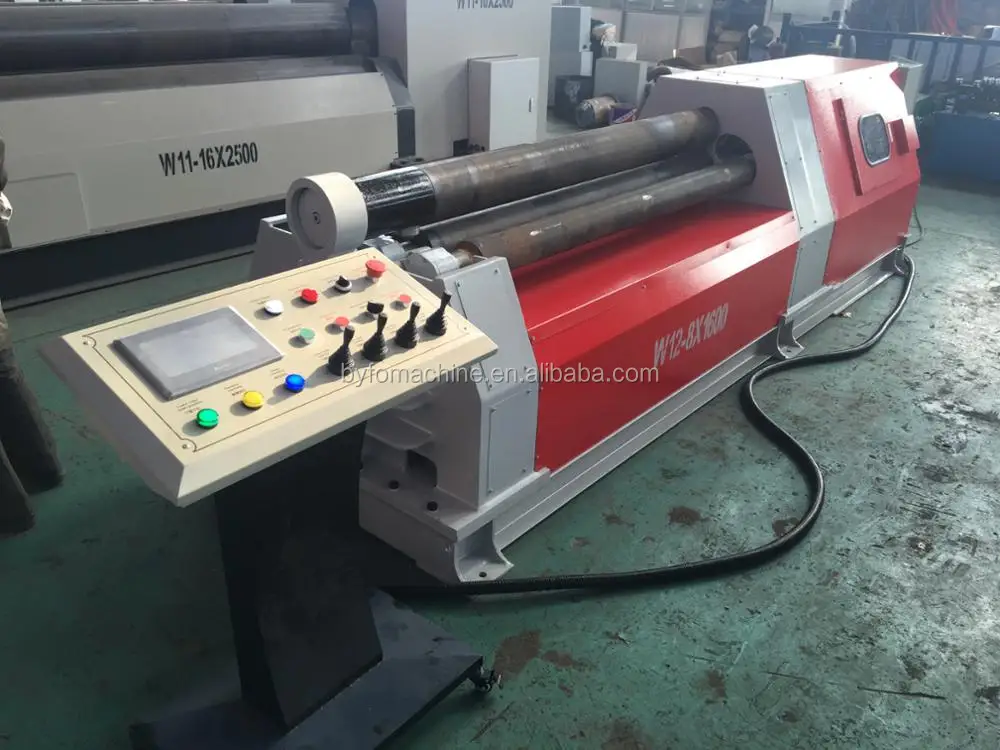

W12 6x2000 hydraulic iron plate 4 rollers bending machine

Product Overview

Description

 W12 6x2000 hydraulic iron plate 4 rollers bending machine

Main Features:

1. Totally European design,streamlined looking,frames of our machines are fabricated, welded steel (ST-52). Roll shafts, materials and bearings used in production are European quality. Also the torque limit of the machines is very high. CNC playback and CNC graphic control systems are available as optional accessory.


2. The main structure of the equipment includes upper roller, lower roller and horizontal movement mechanism, supporting mechanism,main drive mechanism,downturn system, left and right machine frame, chassis and balance mechanism, hydraulic and electrical control systems.


3. The model MH has both the upper and the lower roll powered with hydraulic motor and planetary gear box.


4. High precision pre-bending, freely setup the width of plate. Upper roller presses the plate end for pre-bending.


5. Upper roller likes drum with collaboration of carrier roller permit continual bending of any thickness of plate.


6. Safe work, fixed two down roller, upper roller does horizontal and vertical movement, and the plate don’t move during upper roller moving.


7. Unitary structure, convenient to move the whole machine as machine has a hardy under pan. No need to anchor bolt.


8. Different use has different control way, like top numerical control and below numerical control.


9. Through exclusive technology, Krrass can develop cones as easily as competitive machines can develop cylinders. And it eliminates scarring on the surface of shell or roll and also eliminates, in most cases, the need for grinding the lamination (bullnosing) on the minor diameter edge.

PLC Touch display CNC control system:

1. Special bending aircraft, numerical control.


2. HMI (human machine interface), intelligent operation.


3. Self-compensating, single operate, high efficiency, safe and convenient.


4. Many models for choice, economic numerical control model, TC computerized numerical control.

3.Major parts of the manufacturing process :

1. Working rollers: cast steel ingot (chemical composition analysis): check performance-forging roughcast — forging annealing-UT flaw — roughing (mechanical tests)-heat treatment (hardening and tempering) — UT flaw — semi finishing — finishing — MT.


2. Large forgings: cylinder body, gear, gear shaft forging roughcast — surface inspection – roughing — UT flaw — UT flaw detector heat treatment — finishing semi—finishing — MT.


3. Welding structure: racks, chassis, wheel box


4. Plate into the factory (chemical composition analysis, mechanical properties test) — pretreatment — for sheet metal cutting-welding-seam UT or RT flaw — annealing treatment — roughing-finishing— vibration destressing—hot blasting —finishing

4.Configuration of Hydraulic Plate Rolling machine is follows:

1. Main power:Siemens Electrical made in Germany


2. Main electronic elements: Schneider made in France;


3. Axletree:Double-row self-aligning bearing from Germany


4. Main motor: Siemens Electrical made in Germany


5. Programmable logic controller PLC:OMRON products from Japan


6. Hydraulic system: Bosch – Rexroth made in Germany


7. Oill pump: Sunny from USA ;


8. Work Roller:Material of work roller with 42CrMo Alloy steel.


9. Digital display system:Touch Screen for Delta


10. Transducer:OMRON,Made in Japan


11. Automatic lubrication system:Sino-Japanese joint,which has block alarm



How about your machine quality? We are worry about the quality.

RE:Byfo company  is a mature brand in CHINA,through our 19 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

Whether the machine price can be more discount?

RE:1.BYFO always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.

RE:2. we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
