Peacefair PZEM-019A 5V 12V 10A Round LCD Display Ammeter Digital DC Volt Amp meter DC Panel Meter
Product Type | PZEM-019A 10A |
Current Range | 0-10A |
Work Voltage | DC5-12V |
Display format | ＜10A display format such as：9.99A ≥10A display format such as：10.0A |
Accuracy | ±1% |
Weight | 118g |
Direction for use
1. Backlight control
The backlight can be turned on or off by short press the key
The backlight can be turned on or off by short press the key
2. Error adjustment
Step 1: long press the key (about 3 seconds) until the screen digit flashes, and then release the key;
Step 2: Digital flicker means entering error adjustment state, and the digit cycle flickers in sequence: low digit position -
middle digit position - high digit position - decimal point. The flicker represents the current adjustable digit, short press the
key to adjust the value (Digital 0-9 cycle, decimal point shift);
Step 3: long press the key (about 3 seconds) after the adjustment, the screen display PASS and return to the normal display
interface, means the adjustment is successful.
Step 1: long press the key (about 3 seconds) until the screen digit flashes, and then release the key;
Step 2: Digital flicker means entering error adjustment state, and the digit cycle flickers in sequence: low digit position -
middle digit position - high digit position - decimal point. The flicker represents the current adjustable digit, short press the
key to adjust the value (Digital 0-9 cycle, decimal point shift);
Step 3: long press the key (about 3 seconds) after the adjustment, the screen display PASS and return to the normal display
interface, means the adjustment is successful.
- Application Scenario
High and low power distribution cabinet,
Home appliance test,
Photovoltaic system,
LED system,
Exhibition stand,
Assembly line test,
Automotive electronics,etc
Size Information
Detailed Images

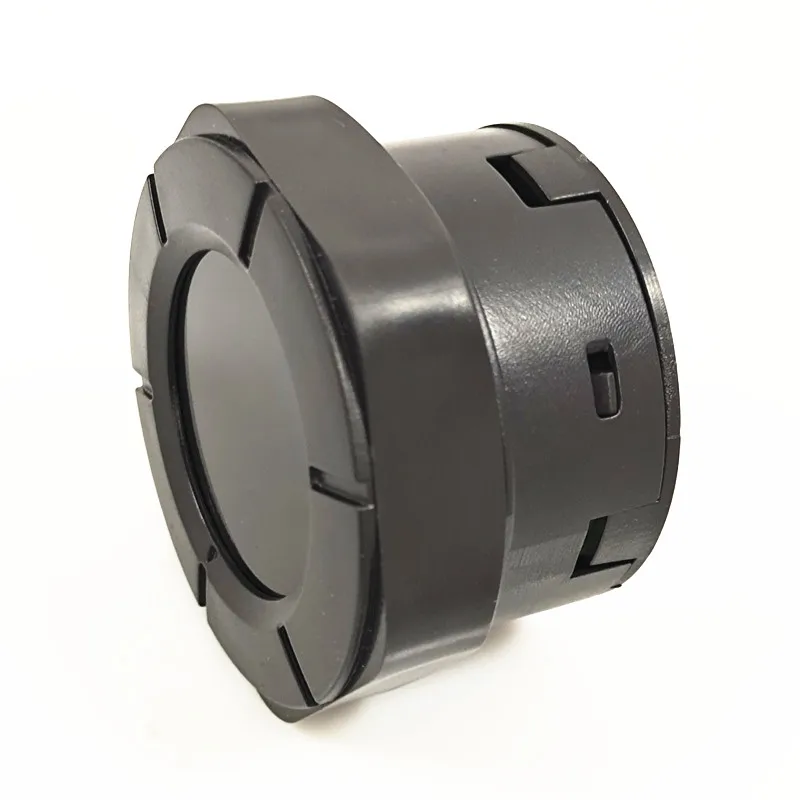

NUT MOUNTING
Easy and Convenient to set tightly

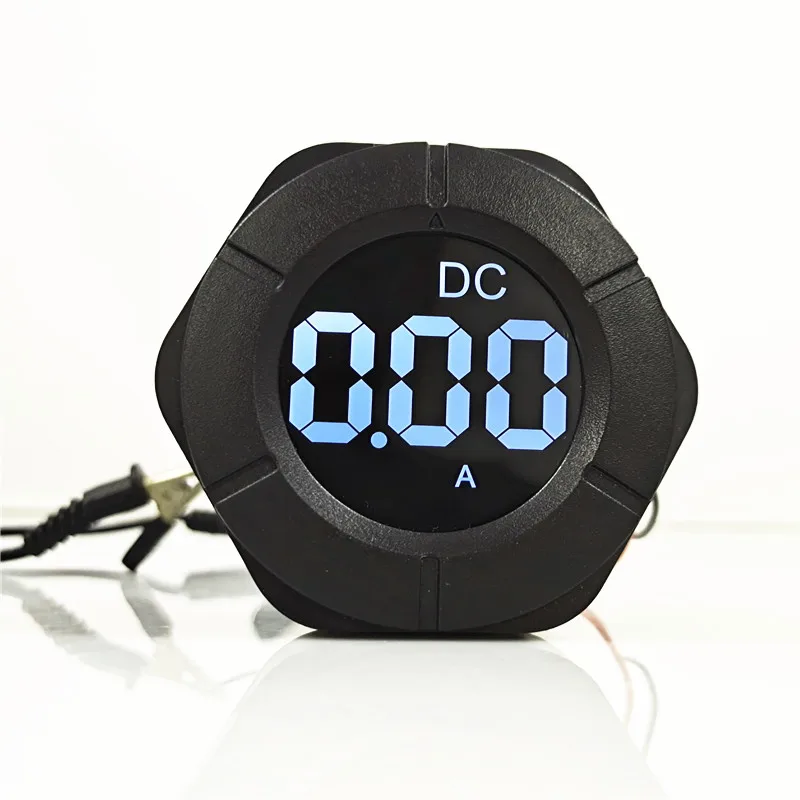

Round High-End VA LCD
White letter, black background,High Contrast Clear Display,Large Font
Strong Anti-interference

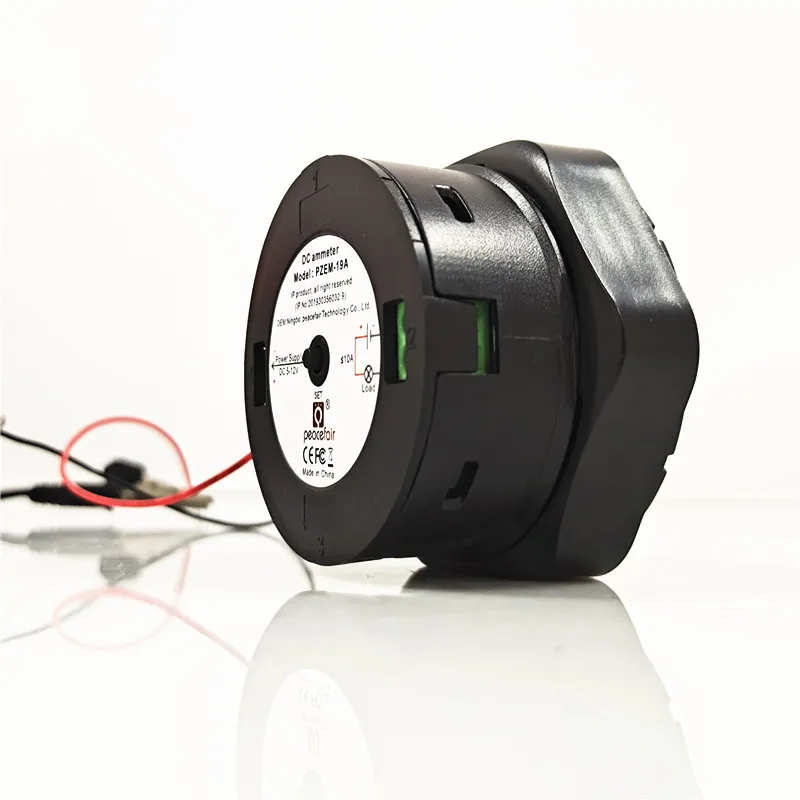

Independent installation of strong and weak current circuit board
No Screw Elastic Connection
Press Tightly,not hurt LCD
