20x26x16mm High quality drawn cup needle roller bearing HK2016 needle bearing HK2016 HK2016 2RS bearing
- Category: >>>
- Supplier: Jinan Kelunte Bearing Co. Ltd
Share on (1600312765601):
Product Overview
Description

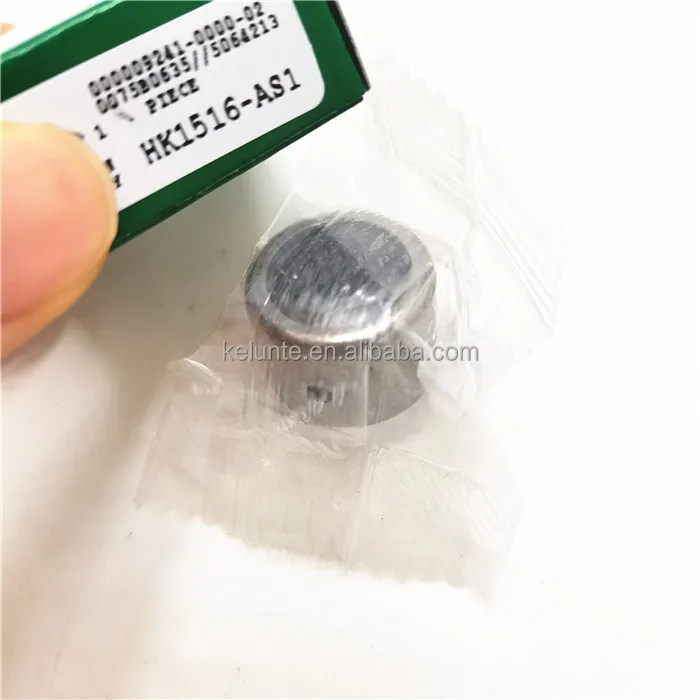

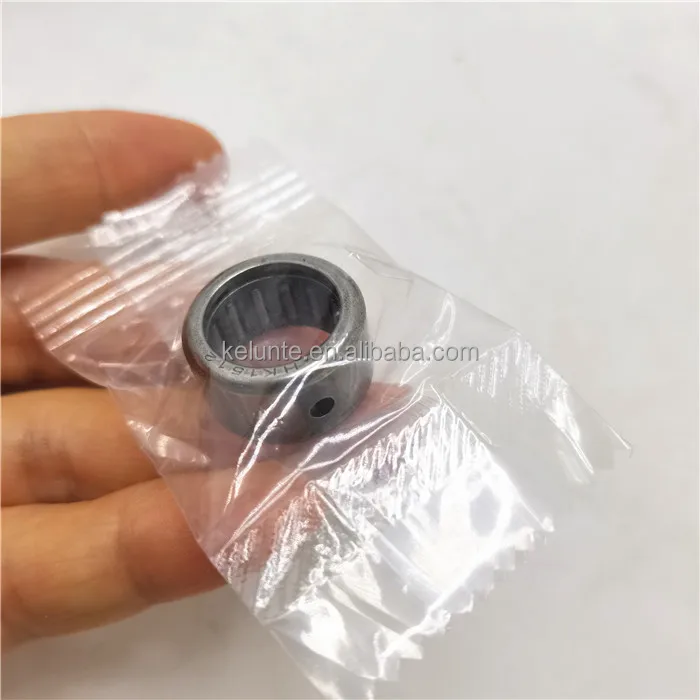

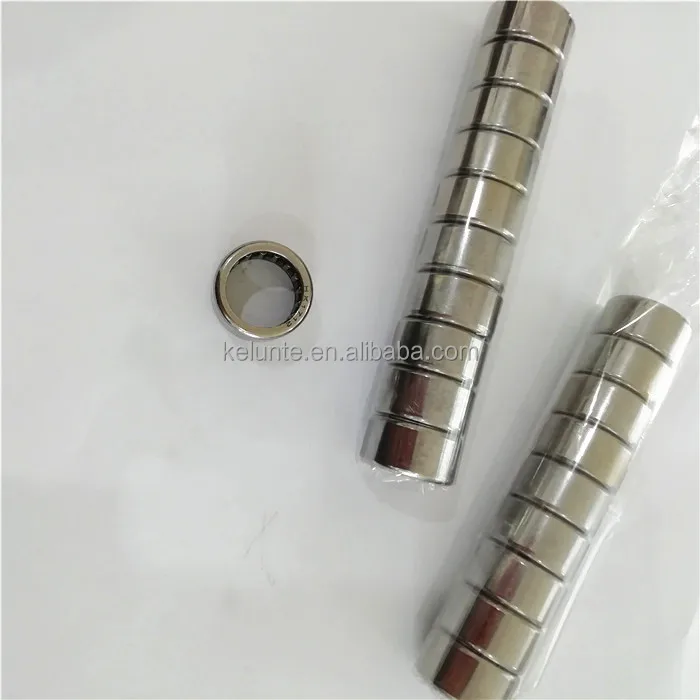

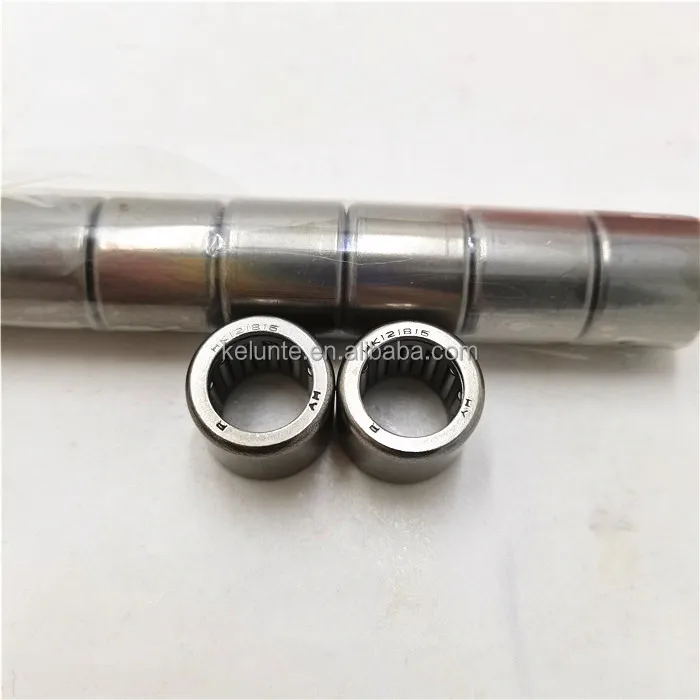

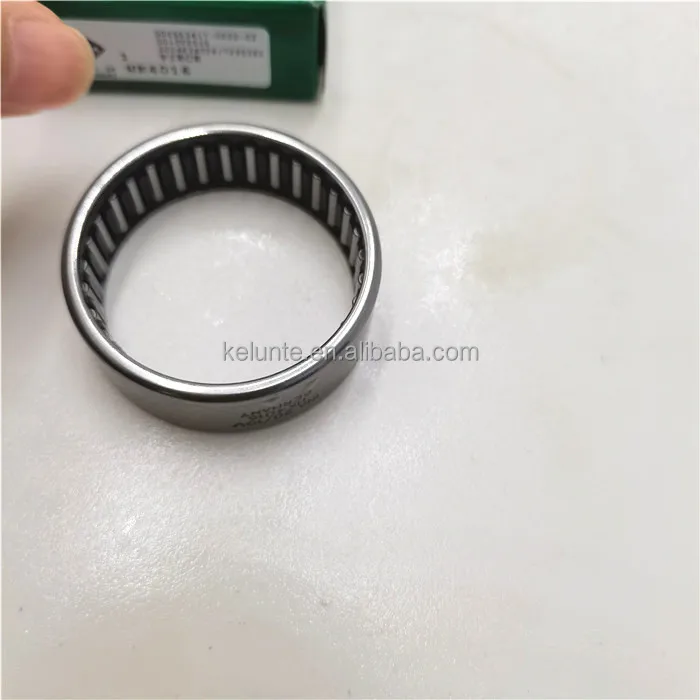

20x26x16mm High quality drawn cup needle roller bearing HK2016 needle bearing HK2016 HK2016-2RS bearing
PRODUCT DESCRIPTION

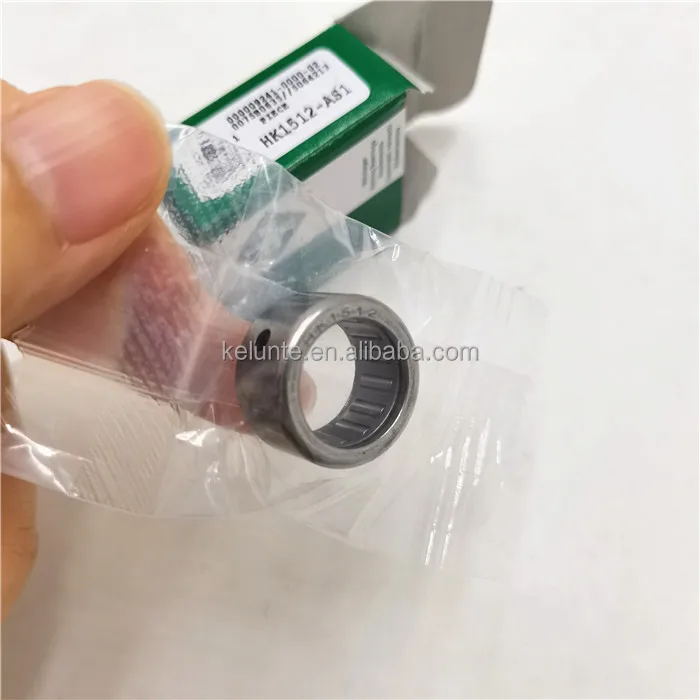

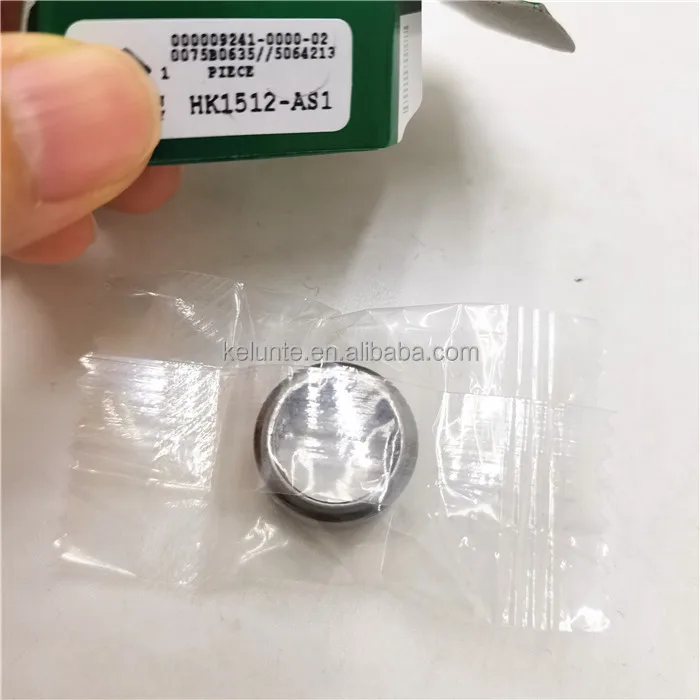

Drawn cup needle roller bearings with open ends and with closed ends are complete units comprising thin-walled, drawn cup outer rings and needle roller and cage assemblies.
Drawn cup needle roller bearings are also available in a full complement design.
Drawn cup needle roller bearings require a hardened and ground bearing raceway on the shaft. If the shaft cannot be used as a raceway, they can be combined with inner rings.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Bearing NO. | HK2016 bearing |
2 | Inner diameter | 20mm |
3 | Outer diameter | 26mm |
4 | Width | 16mm |
5 | Weight | 0.019kg |
6 | Basic dynamic load rating | 12.3KN |
7 | Basic static load rating | 20.4KN |
8 | Reference speed | 12000 r/min |
9 | Limiting speed | 14000 r/min |
10 | Inner ring LR IR series | LR 1720x16.5,IR 17x20x16.5 |
FEATURES
* Low cross section
In applications where less space is available, drawn cup needle roller bearings enable downsizing.
* High load carrying capacity and stiffness
Owing to their large number of rollers, drawn cup needle roller bearings have a high load carrying capacity and stiffness.
* Good running properties
In applications where less space is available, drawn cup needle roller bearings enable downsizing.
* High load carrying capacity and stiffness
Owing to their large number of rollers, drawn cup needle roller bearings have a high load carrying capacity and stiffness.
* Good running properties
COMPANY NAME

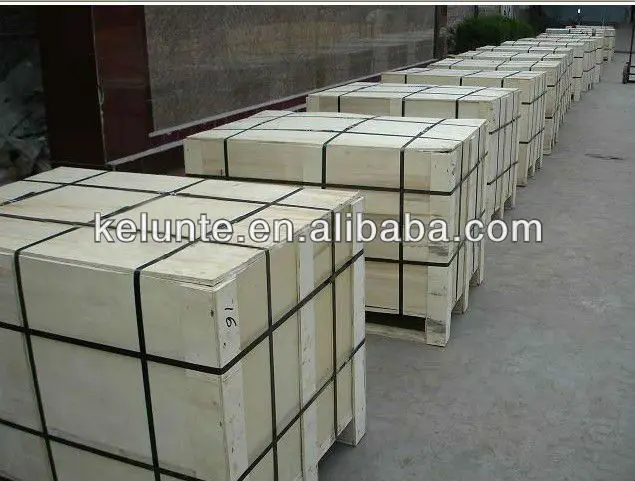

PACKING &SHIPPING
