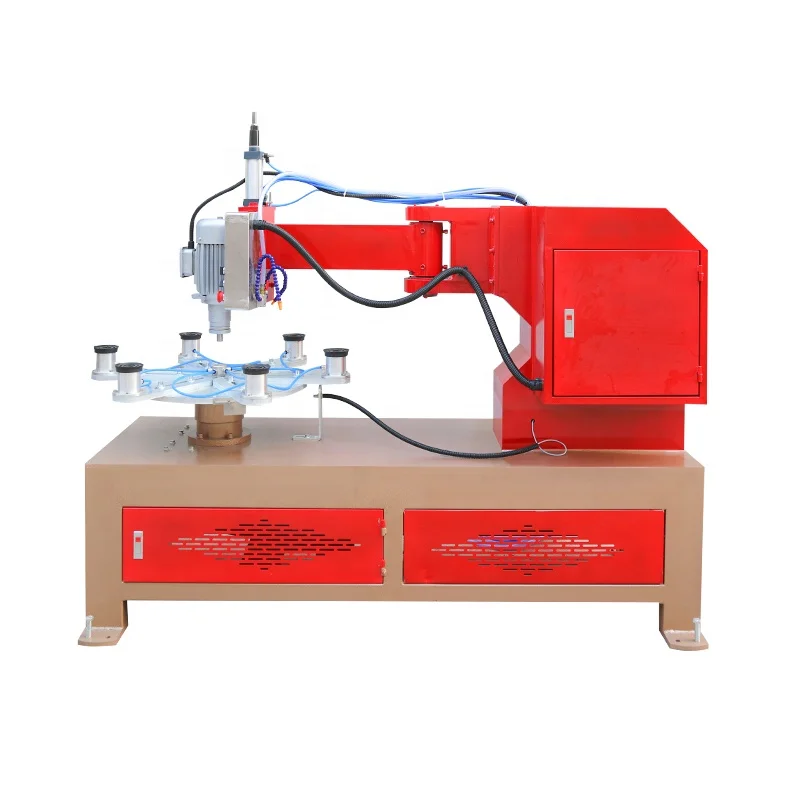

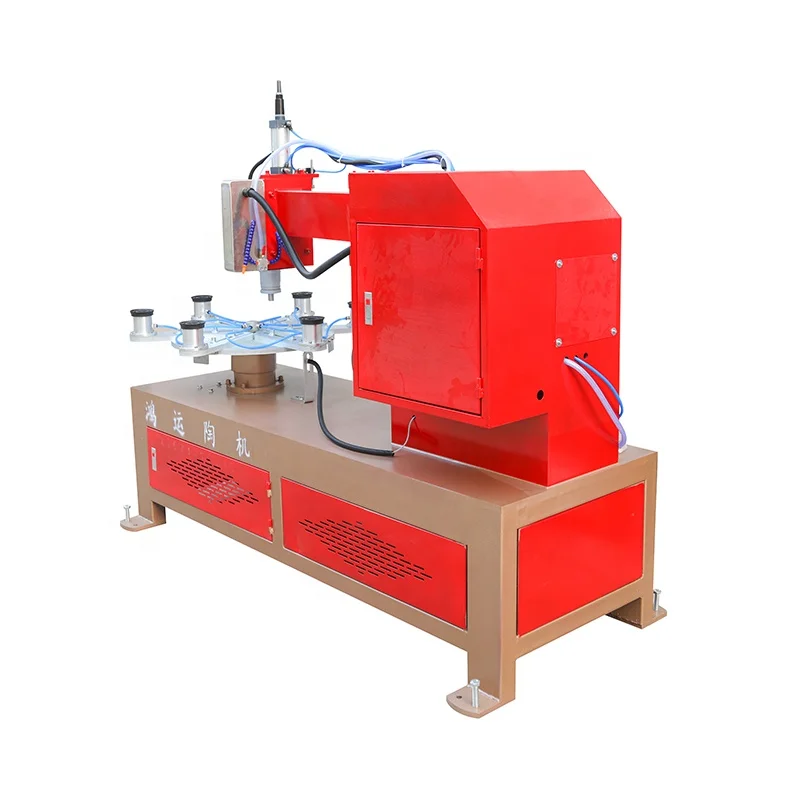

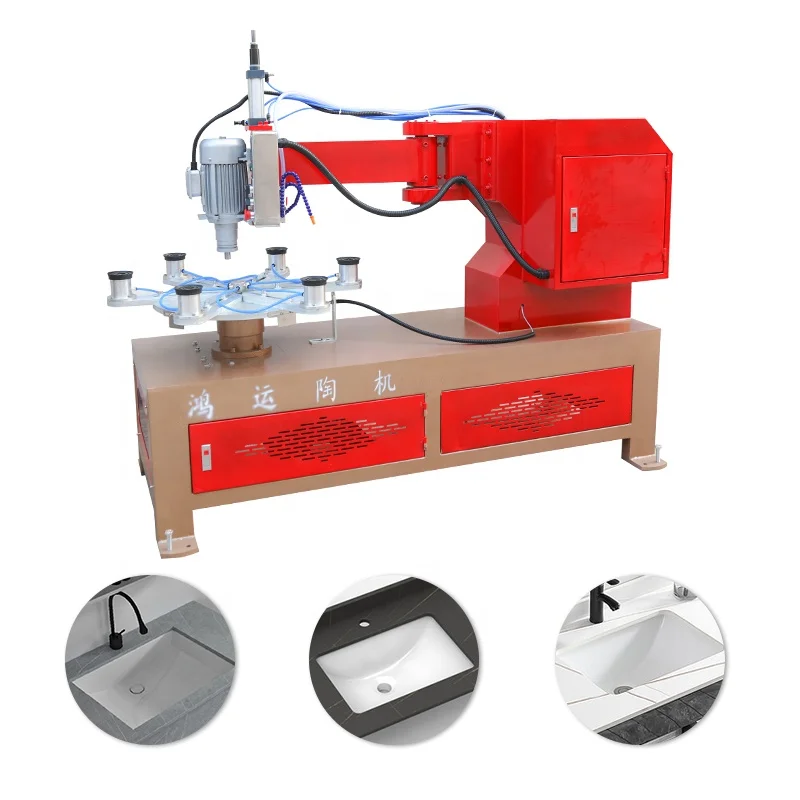

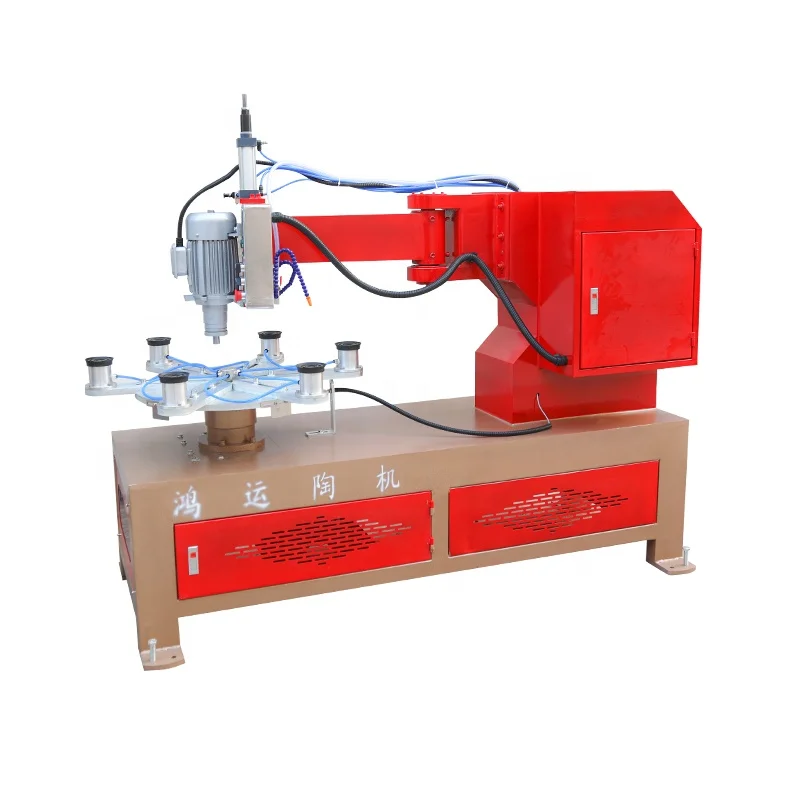

Integrated basin high quality surface electric dustless servo control edge floor grinder polisher polishing machine
- Category: >>>
- Supplier: Foshan Nanhai Hongyun Ceramic Machinery Co. Ltd.
Share on (1600315873697):
Product Overview
Description
Products Description
Product introduction:
The porcelain slab basin hole polishing machine is used for grinding the edge of basin hole. The machine adopts a high-power special motor for porcelain machinery.The mechanical structure is simple and easy to operate.You can learn to do the entire process operation in ten minutes.The edging process of square basins and round basins can be completed quickly.This machine simplifies the processing process,even the basic workers can quickly complete the operation. The function of this equipment is stable, energy saving and environmental protection, cost-effective.
Features :

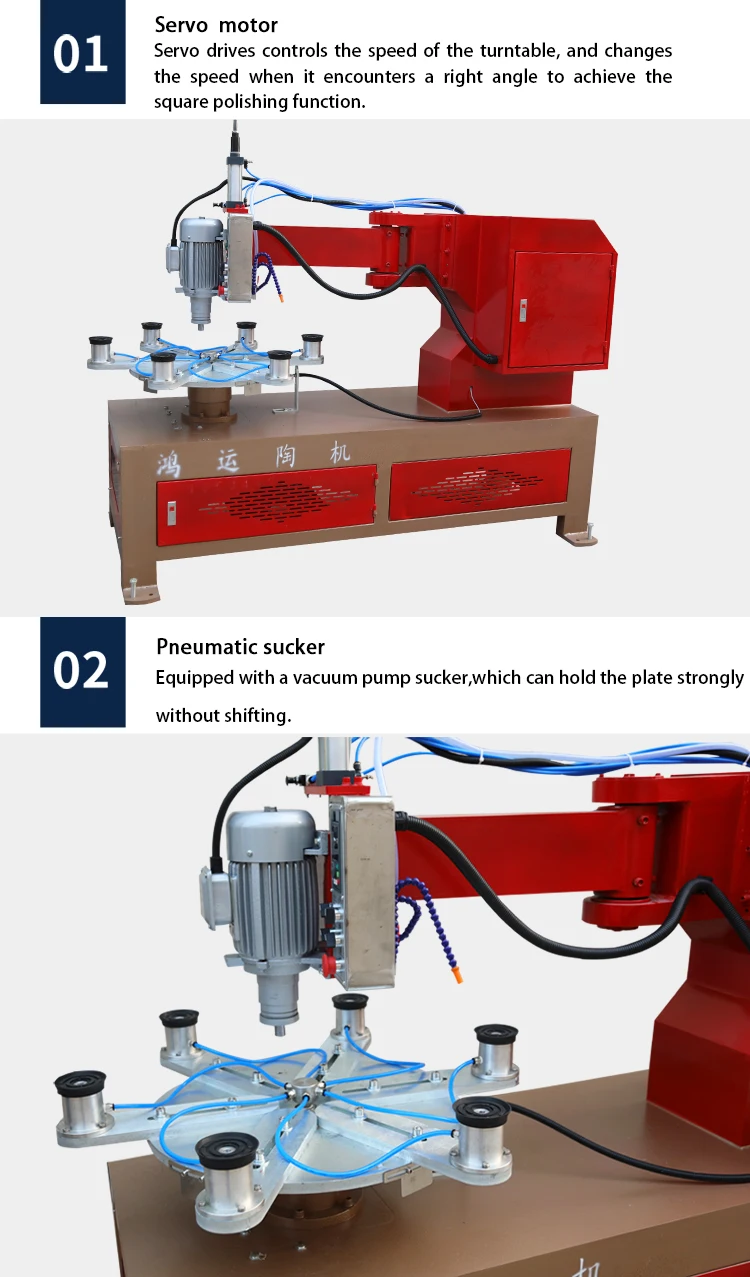

1.Turntable adopts servo drives: Servo drives controls the speed of the turntable, and changes the speed when it encounters a right angle to achieve the square polishing function;

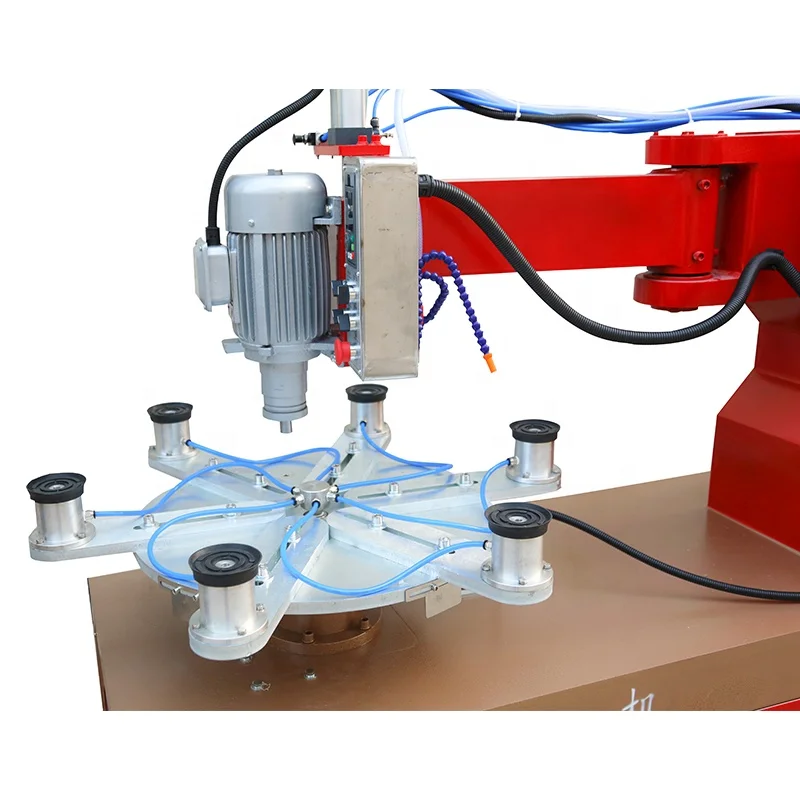

2. Adopts pneumatic sucker to fix the plate:equipped with a vacuum pump sucker,which can hold the plate strongly without shifting;

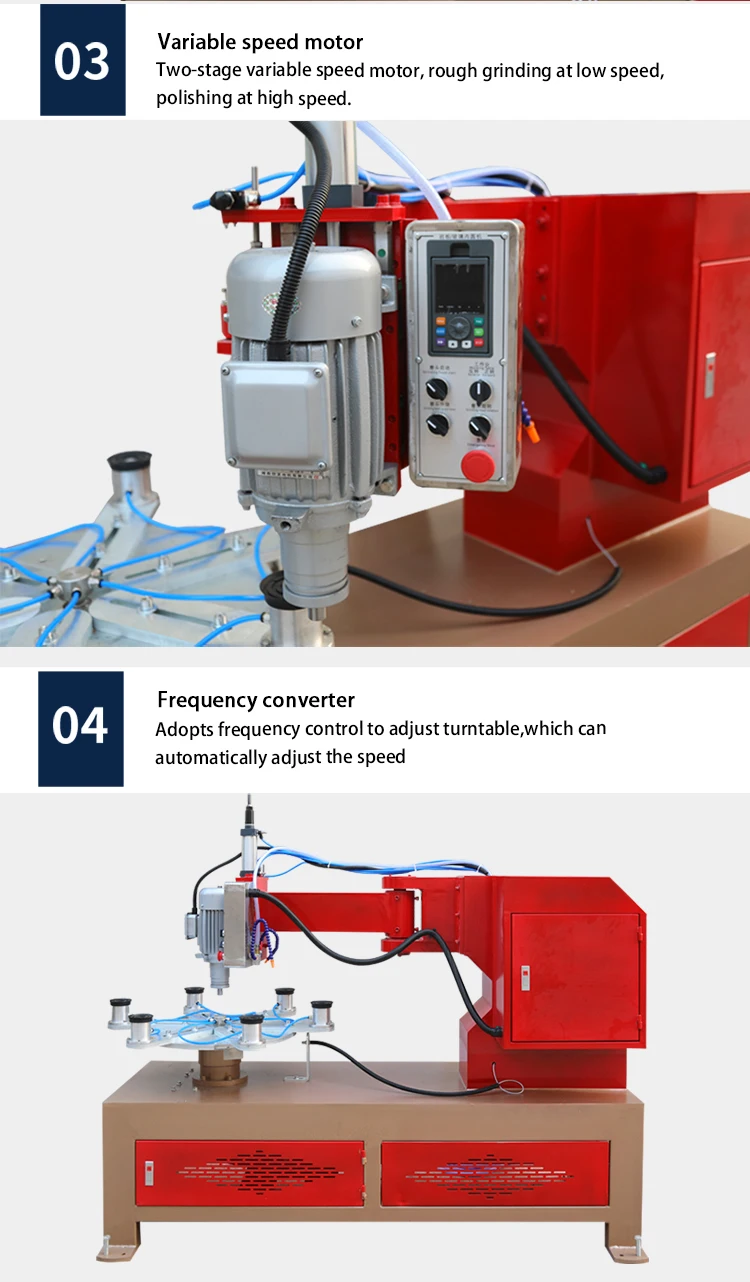

3.Two-stage variable speed motor, rough grinding at low speed, polishing at high speed;
4.Adopts frequency control to adjust turntable,which can automatically adjust the speed;

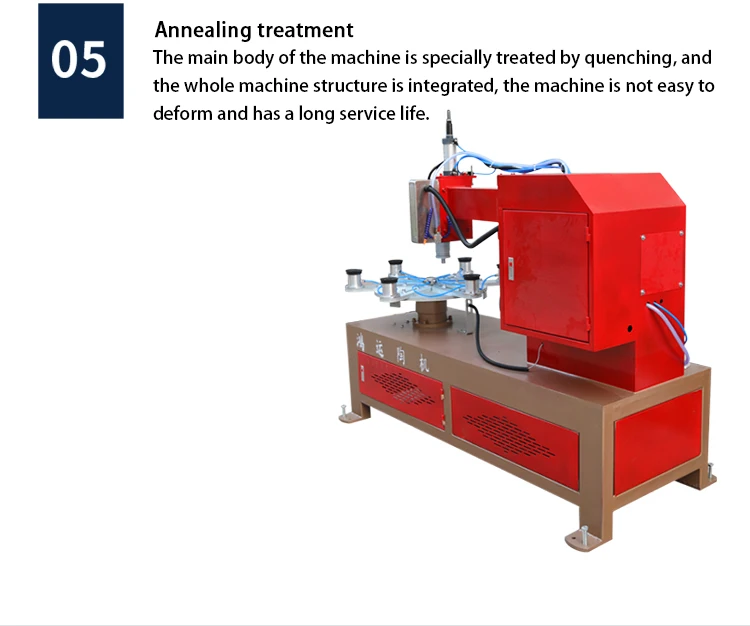

5.Annealing treatment of the main structure: The main body of the machine is specially treated by quenching, and the whole machine structure is integrated, the machine is not easy to deform and has a long service life.
SPECIFICATIONS FOR PORCELAIN SLAB BASIN HOLE POLISHING MACHINE | ||||||
Model | hy-0280 | Inner hole processing size | 200-800mm | |||
Diameter of polishing wheel | 50mm | Machinable thickness | 600mm | |||
Motor power | 2.7kw | Power supply | 380V/50HZ | |||
Size setting method | CNC system | Plate fixing method | Pneumatic sucker | |||
Processing speed | 6-8min/piece | Weight | 1000kg | |||
Size | 1300*1050*1700mm | |||||
Details Images

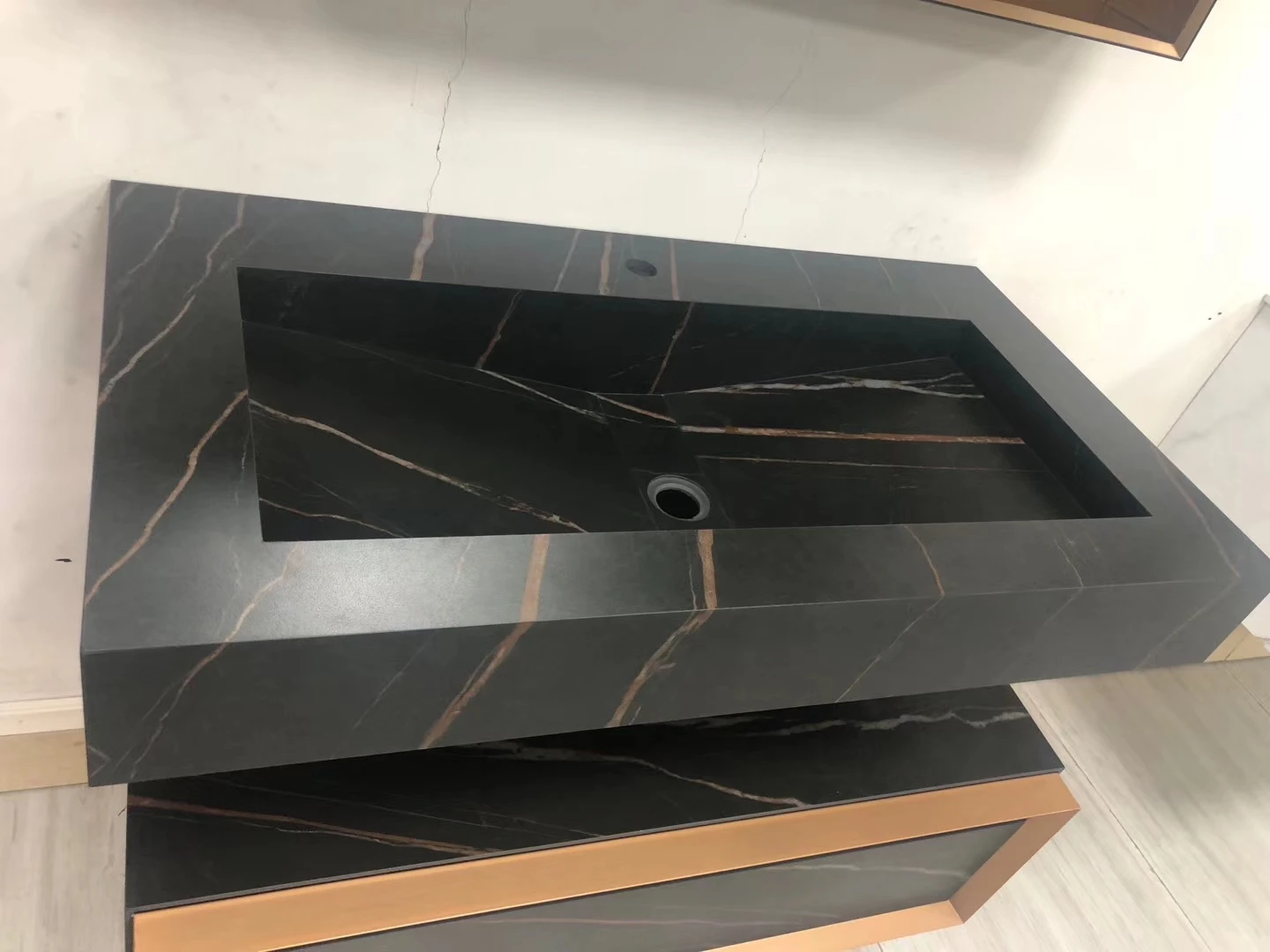

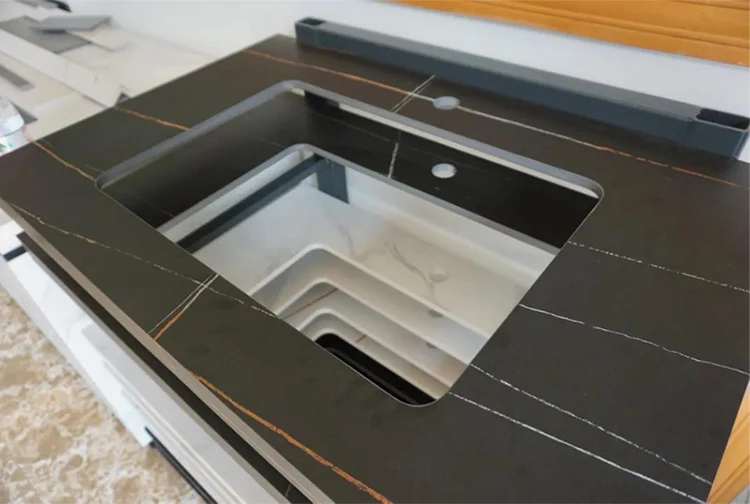

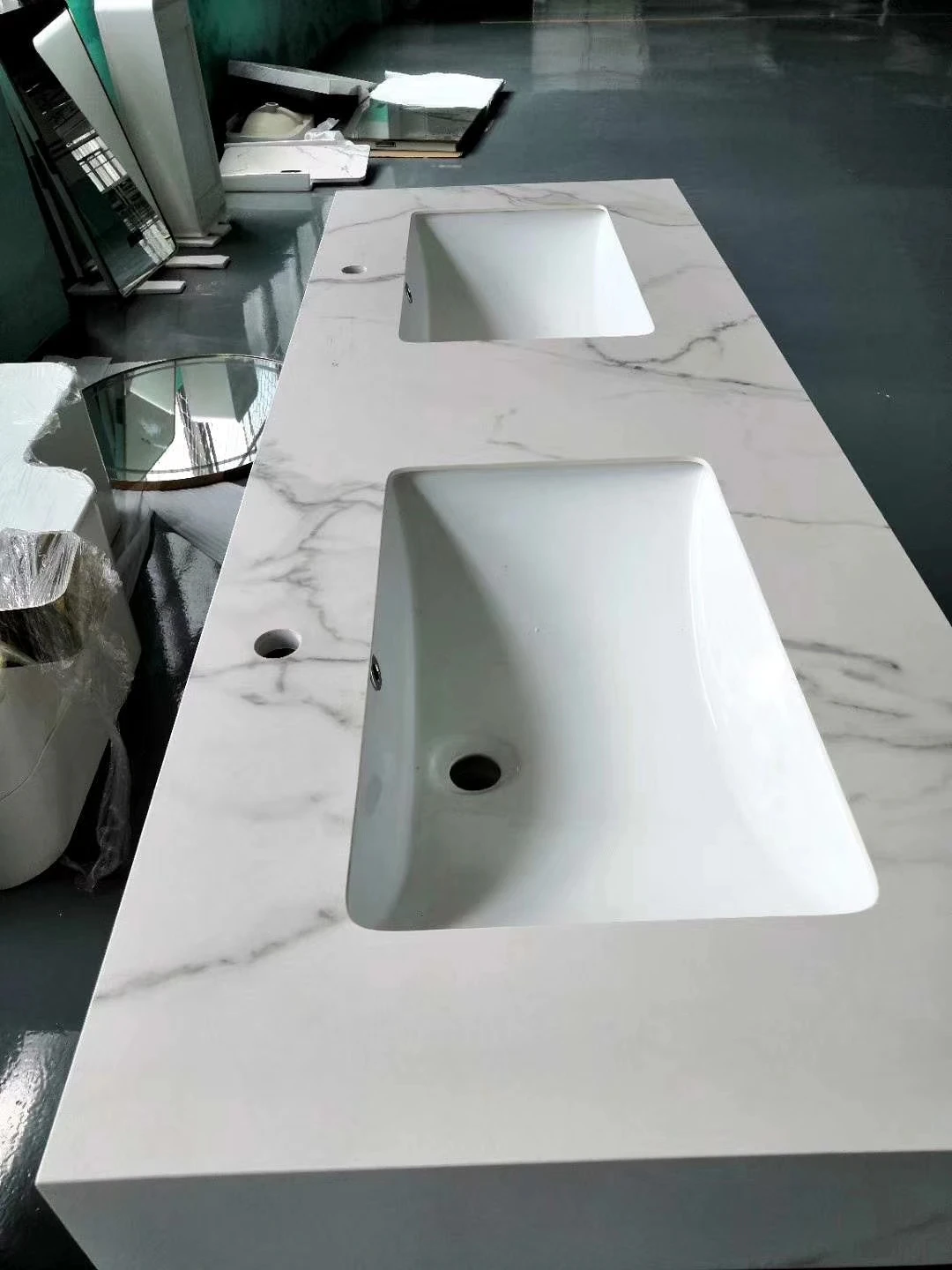

Applications
