Suncenter gas air compressor with max 50 Mpa pressure
US $2000-$15000

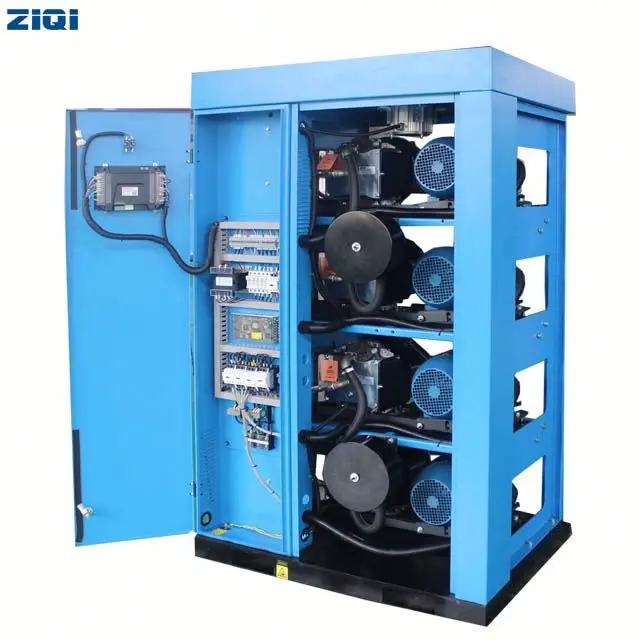

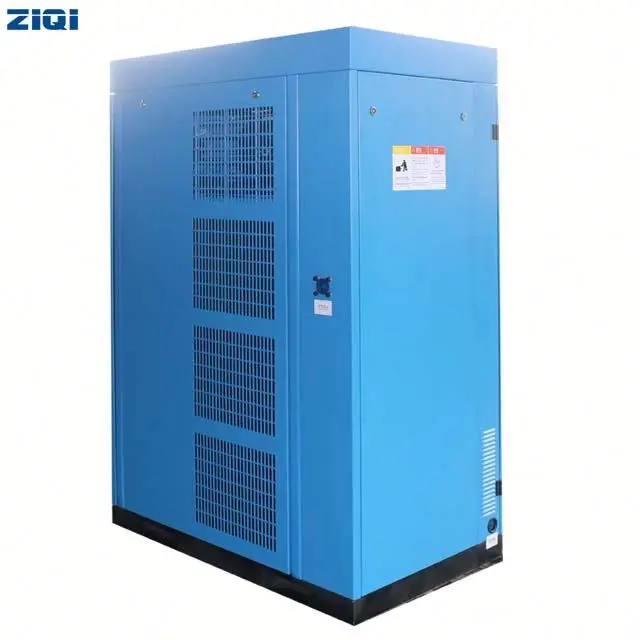

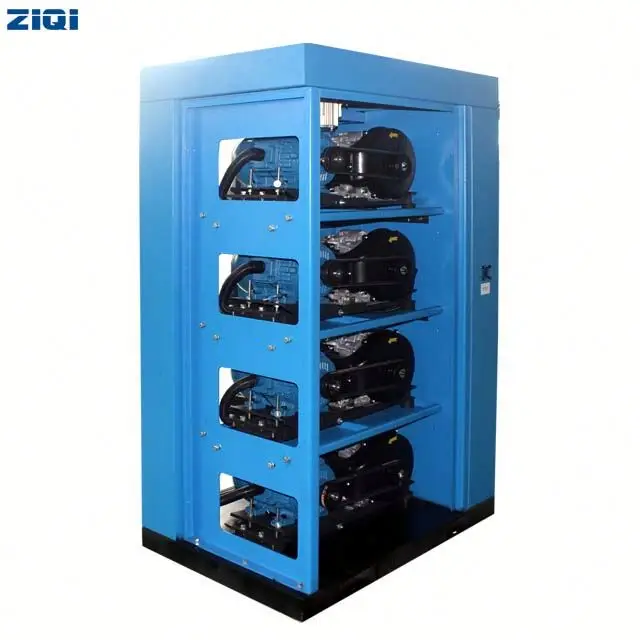

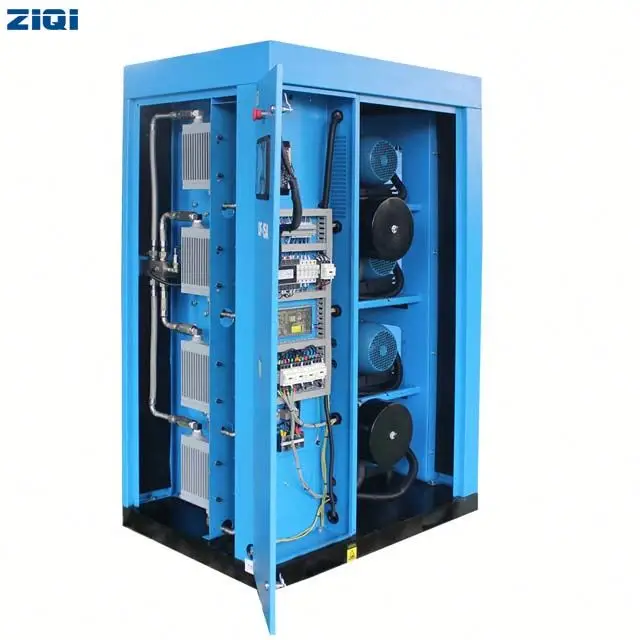

145psi small price air scroll compressor for factory
- Category: General Industrial Equipment >>>
- Supplier: ZiQi,Compressor,(Shanghai),Co.,Ltd.
Share on:
Product Overview
Description
PRODUCT INTRODUCTION

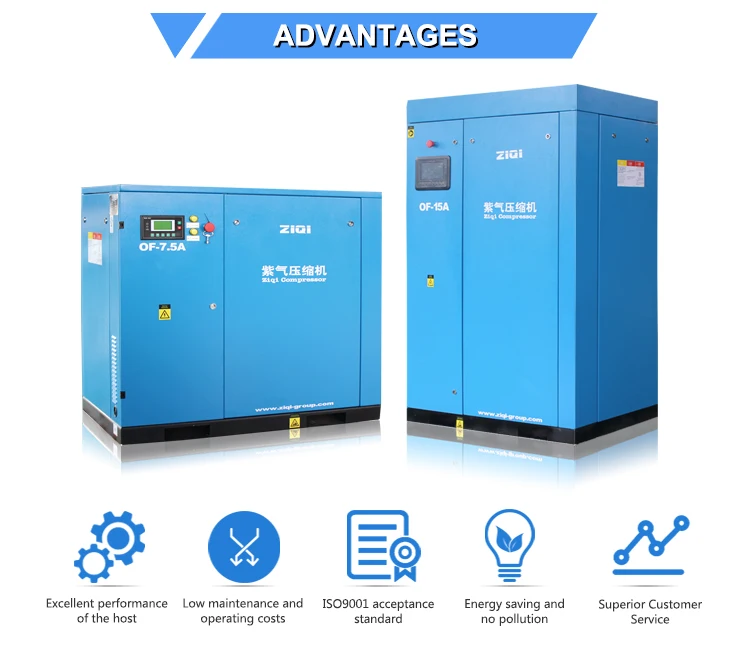

OUR ADVANTAGES

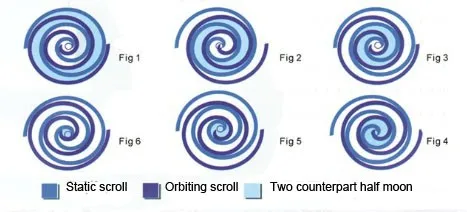

Oil - free Scroll Air Compressor Definition
Air is drawn in through an inlet on the outside of the solid vortex. The air enclosed
in the compressed space is reduced by the compression movement of the compression chamber, facing the center of the compression. The compressed space is minimized at the center, and the compressed air is squeezed out from the center of the exhaust. (Inspiratory → compression → exhaust) the movement is repeated.
in the compressed space is reduced by the compression movement of the compression chamber, facing the center of the compression. The compressed space is minimized at the center, and the compressed air is squeezed out from the center of the exhaust. (Inspiratory → compression → exhaust) the movement is repeated.

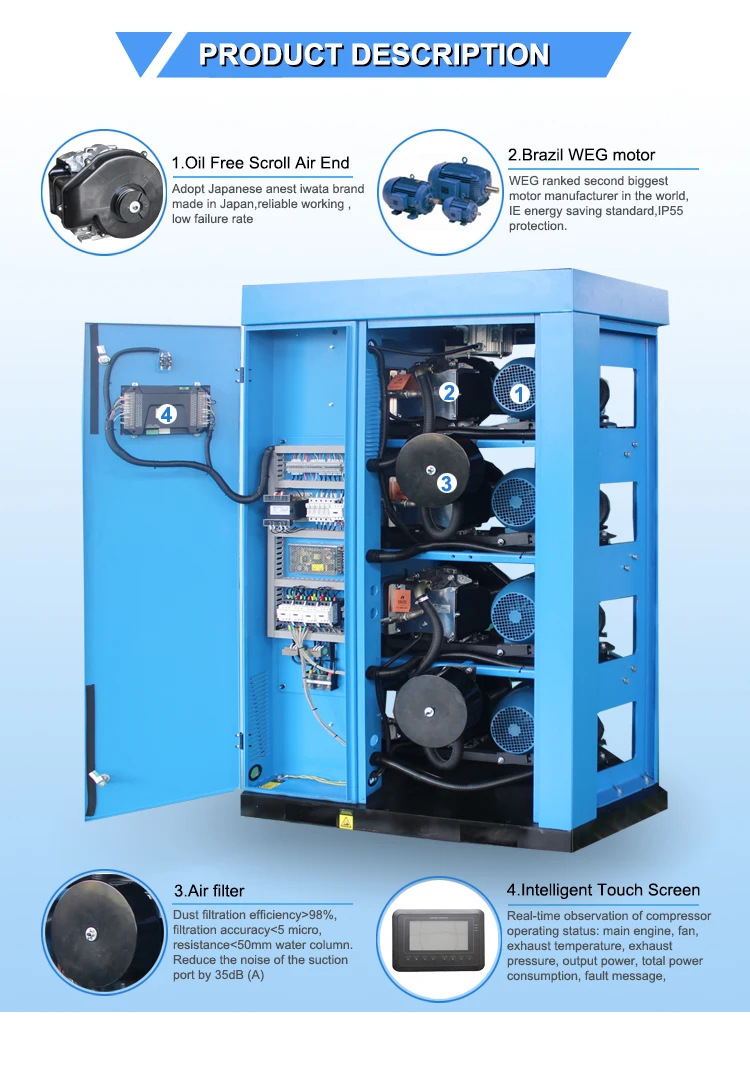

ZIQI Oil -Free Scroll Air Compressor Advantages:
1.Adopt Japanese Anest Iwata Oil Free Scroll Air End,the air end made in Japan,original quality;
2.Adopt Brazil WEG three phase asynchronous motor,IP55 protection,class F insulation;
3.Novel structure, precision,with a small size, low noise,light weight, small vibration,low energy consumption, long
life,continuous smooth gastransmission,reliable operation,clean air and so on;
life,continuous smooth gastransmission,reliable operation,clean air and so on;
4.Applicable to high temperature environment of the fan Integrated design Patented design Simple and beautiful
PRODUCT SPECIFICATIONS
Model | Air pressure | Air flowing | Motor power | Dimension | Weight | ||||||
mpa | bar | psi | L/min | hp | kw | L(mm)*W(mm)*H(mm) | kgs | ||||
OF-2.2A | 0.8 | 8 | 116 | 240 | 3 | 2.2 | 540mm*680mm*920mm | 135 | |||
1 | 10 | 145 | 205 | ||||||||
OF-3.7A | 0.8 | 8 | 116 | 405 | 5 | 3.7 | 540mm*680mm*920mm | 151 | |||
1 | 10 | 145 | 350 | ||||||||
OF-7.5A | 0.8 | 8 | 116 | 820 | 10 | 7.5 | 1100mm*740mm*1680mm | 395 | |||
1 | 10 | 145 | 700 | ||||||||
OF-11A | 0.8 | 8 | 116 | 1230 | 15 | 11 | 1100mm*740mm*1680mm | 465 | |||
1 | 10 | 145 | 1060 | ||||||||

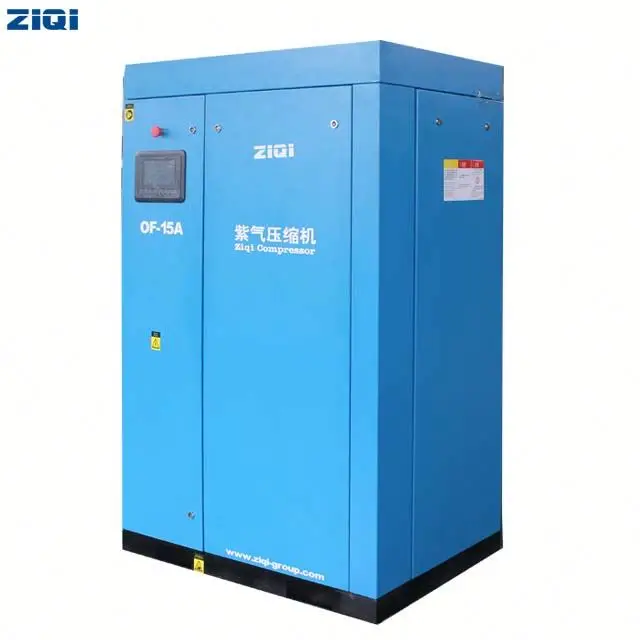

OF-15A | 0.8 | 8 | 116 | 1645 | 20 | 15 | 1100mm*740mm*1680mm | 550 | |||
1 | 10 | 145 | 1415 | ||||||||
OF-22A | 0.8 | 8 | 116 | 2540 | 30 | 22 | 1100mm*1140mm*1680mm | 915 | |||
1 | 10 | 145 | 2080 | ||||||||
OF-30A | 0.8 | 8 | 116 | 3400 | 40 | 30 | 1100mm*1140mm*1680mm | 1065 | |||
1 | 10 | 145 | 2800 | ||||||||
PRODUCTION FLOW
COMPANY PROFILE
CERTIFICATIONS
FAQ
Are you manufacturer?
ZIQI: Yes,we are professional air compressor manufacturer over 10 years and our factory located in Shanghai.
How long is your air compressor warranty?
ZIQI: For 1 year.
Do you provide After- sales service parts?
ZIQI: Of course, We could provide easy- consumable spares.
How long could your air compressor be used?
ZIQI: Generally, more than 10 years.
How about your price?
ZIQI: Based on high quality, Our price is very competitive in this market all over the world.
How about your customer service?
ZIQI: For email, we could reply our customers' emails within 2 hours.
Do you support OEM?
ZIQI: YES, and we also provide multiple models to select.
ZIQI: Yes,we are professional air compressor manufacturer over 10 years and our factory located in Shanghai.
How long is your air compressor warranty?
ZIQI: For 1 year.
Do you provide After- sales service parts?
ZIQI: Of course, We could provide easy- consumable spares.
How long could your air compressor be used?
ZIQI: Generally, more than 10 years.
How about your price?
ZIQI: Based on high quality, Our price is very competitive in this market all over the world.
How about your customer service?
ZIQI: For email, we could reply our customers' emails within 2 hours.
Do you support OEM?
ZIQI: YES, and we also provide multiple models to select.
How to get quicker quotation?
When you send us inquiry, please confirm below information at the same time:
* What is the air displacement (m3/min,cfm/min)?
* What is the air pressure (mpa,bar,psi)?
* What is the voltage in your factory (v/p/Hz)?
* It is ok if you need air tank, air dryer and filters.
This information is helpful for us to check suitable equipment solution and quotation quickly.
* What is the air displacement (m3/min,cfm/min)?
* What is the air pressure (mpa,bar,psi)?
* What is the voltage in your factory (v/p/Hz)?
* It is ok if you need air tank, air dryer and filters.
This information is helpful for us to check suitable equipment solution and quotation quickly.
