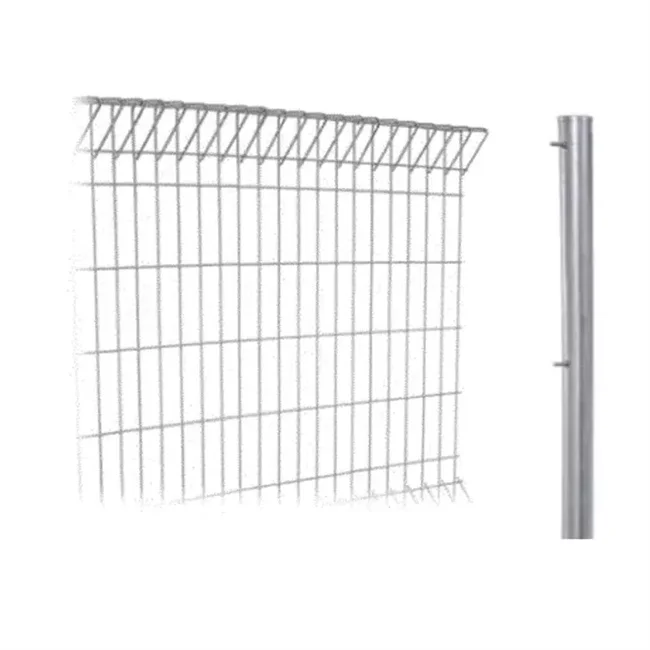

Hot dipped galvanized and PVC coated Roll Top & Bottom Fence welded mesh fence for airport

Product Overview

Description







Roll top fence has a unique and user-friendly closed and rolled beam section at the top and bottom edge of each panel with no sharp or raw edges, usually made from heavy 5 mm wires, which results in maximum rigidity and better safety.  Roll Top fence is also called BRC fence, the panel is extremely rigid and with good see through visibility. This system is ideal where safety is paramount, creating an ideal for Parks and Recreational fencing, Playground fencing and School fencing.



Specification Of  BRC Fence & Roll Top Fence
Mesh Opening	Wire Diameter	Height of Fence	Width of Fence	Post Type
50x200mm 50x100mm 50x150mm 75x100mm 75x200mm	4/4.5/5/6mm	0.9-2.4m	1.5-3.0m	Round Post	Square Post(SHS)	Rectangular Post(RHS)
				48ODx1.5/2.0mm 60ODx1.5/2.0mm	50x50x1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm	40x60x1.5/2.0mm 40x80x1.5/2.0mm 60x80x1.5/2.0mm 80x100x1.5/2.0mm



XUANQING WIRE MESH  is one of the leading providers of secure fencing in China since 2014. We are the top manufacturer welded security fences that vary from anti-climb fence to roll-top fencing in Malaysia and has penetrated into the domestic as well as international market.

Roll Top Fence also is known as BRC fence, which has a unique and user-friendly closed and rolled beam section at the top and bottom edge. Having no sharp protruding edges, that made from bulky 5 mm wires, giving it maximum rigidity and better safety.

The Main Features of Roll Top Fence Malaysia:

• High Durability


• High Deterrent


• Anti-Rust & Anti-Corrosion


• Quick & Easy Installation


• Cost-Effective Solution


• Excellent Through Vision


• Customisation Options


• Aesthetic Appearance

We manufacture welded security fence that is mechanically sturdy which feature superior durability, performance, anti-corrosion and yet meeting all the visual purposes.

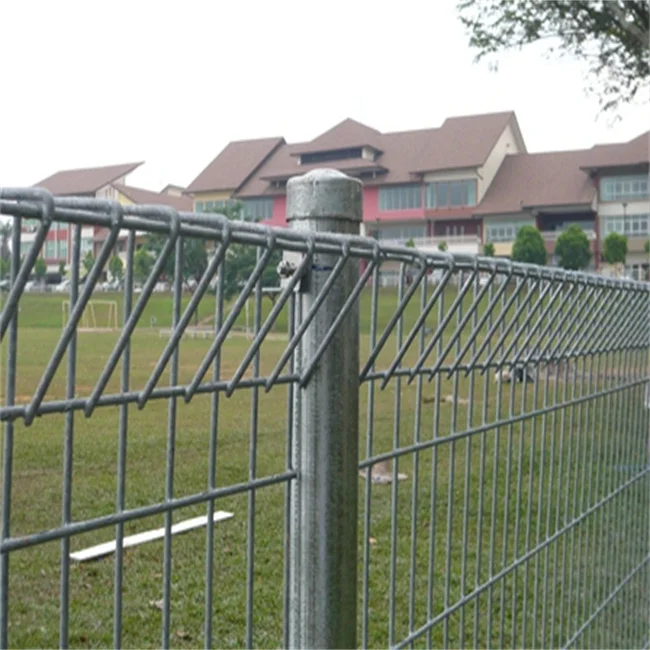

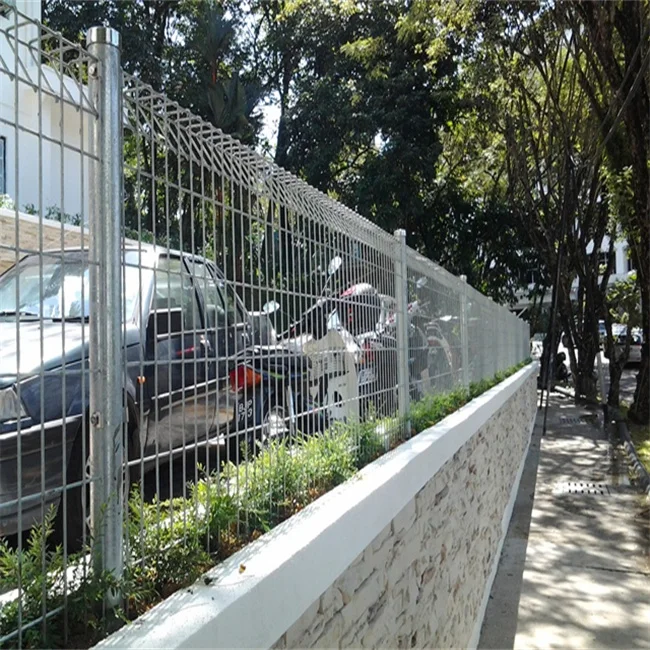

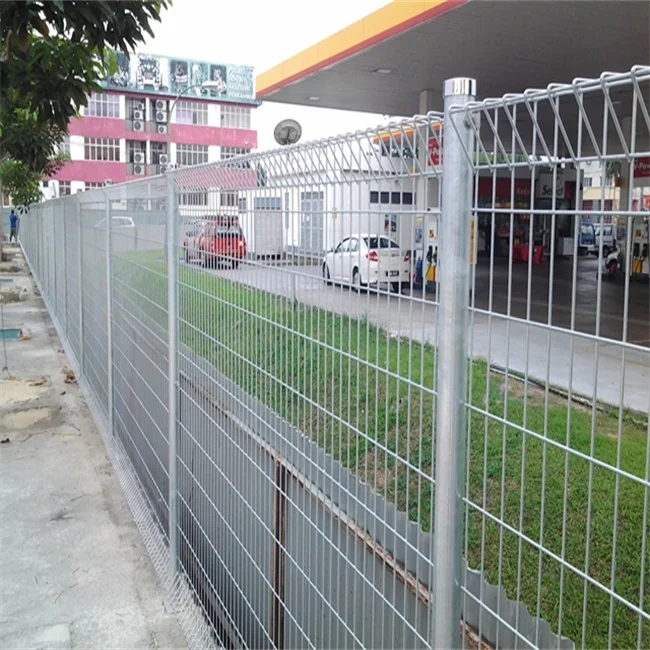

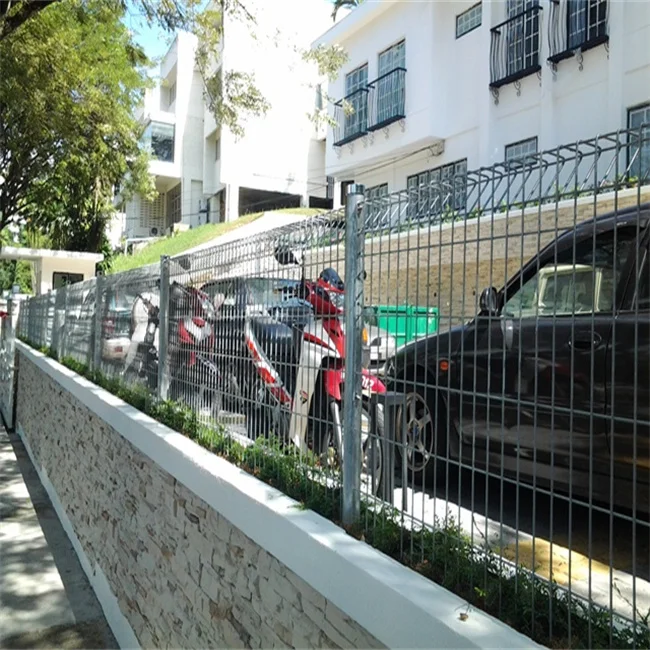

The unique rolled beam section at the top and at the bottom of the fence has no sharp or raw edges making it more user-friendly. The roll-top fence has been widely used in public and private properties areas such as school, playground, car park, and pedestrian zone. The mesh system of the fence provides excellent visibility which making it widely prevalent among the communities.

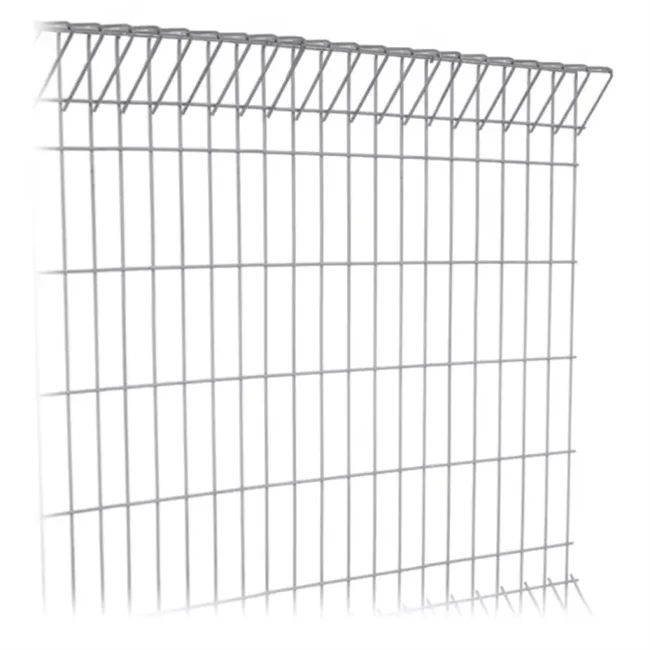

Panels

The roll-top fence panels typically are made from 150 x 50 mm welded mesh by using a 5.0 mm heavy-duty wire to obtain a peak level of strength and rigidity. Standard fence width is 2.4m, and standard fence height is 1.5m, 1.8m, 2.1m, other heights are available upon the request.

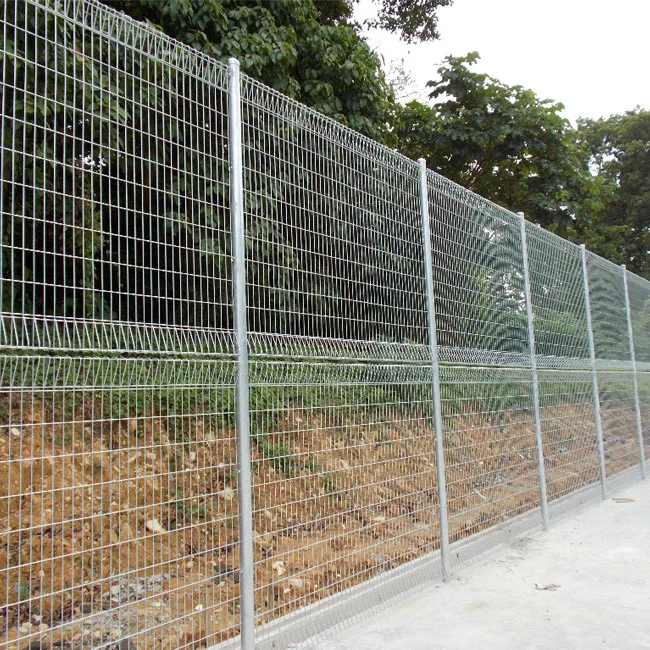

The height of the fences has usually been made into either 1.2 m or 2.4 m to achieve an ideal range of height. The panels are designed so they could be adding another extra 1.2 m stages. Thus, one or more panels are fitted above the bottom panel with the rolled beam sections are being clipped securely together

Post

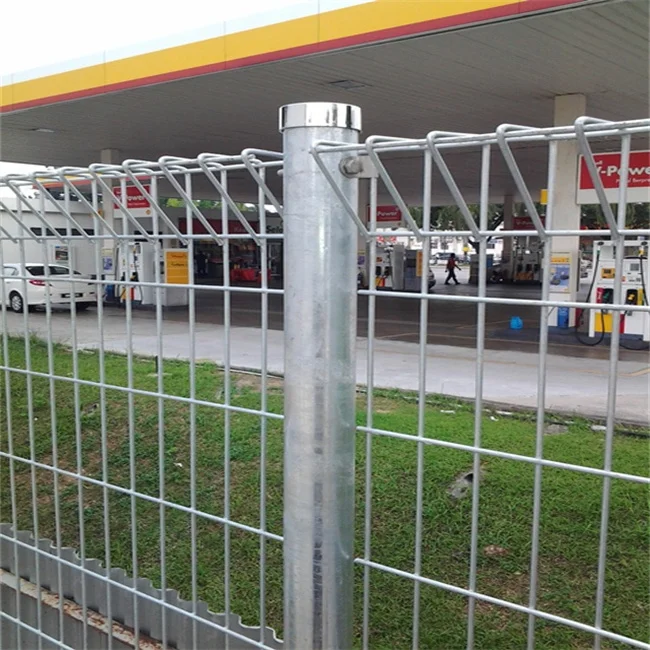

The post for roll top fence panels are manufactured from the hot-dip galvanised 60mm diameter x 1.9 mm or 65 x 65 mm square hollow steel section from stock to suit the fence heights from 1.2 m to 2.4 m.

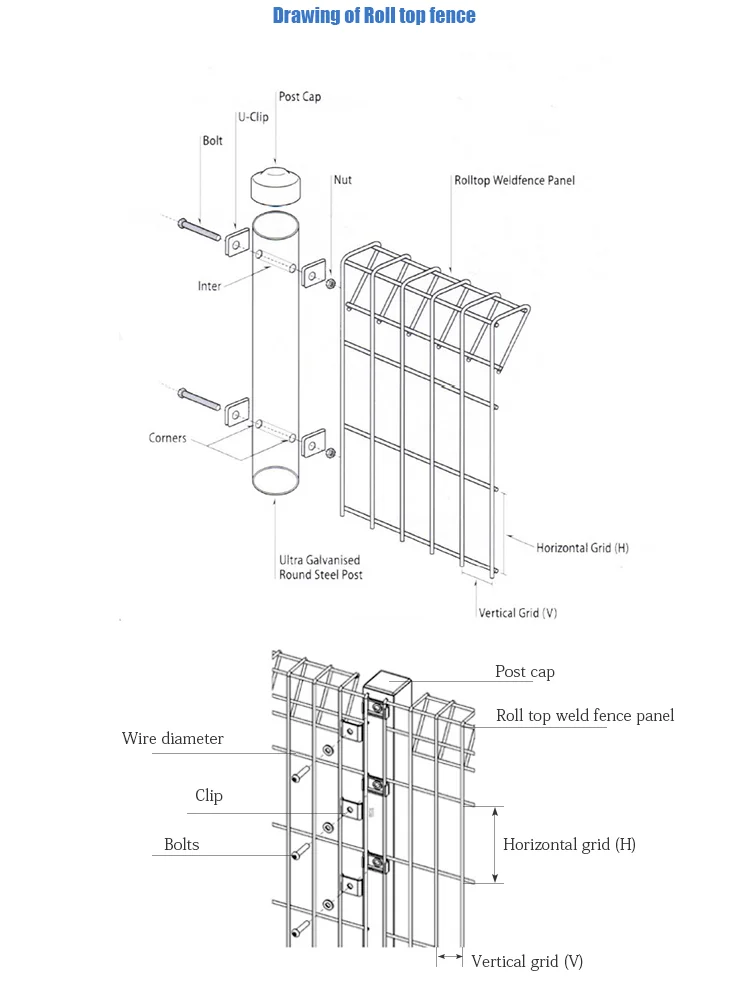

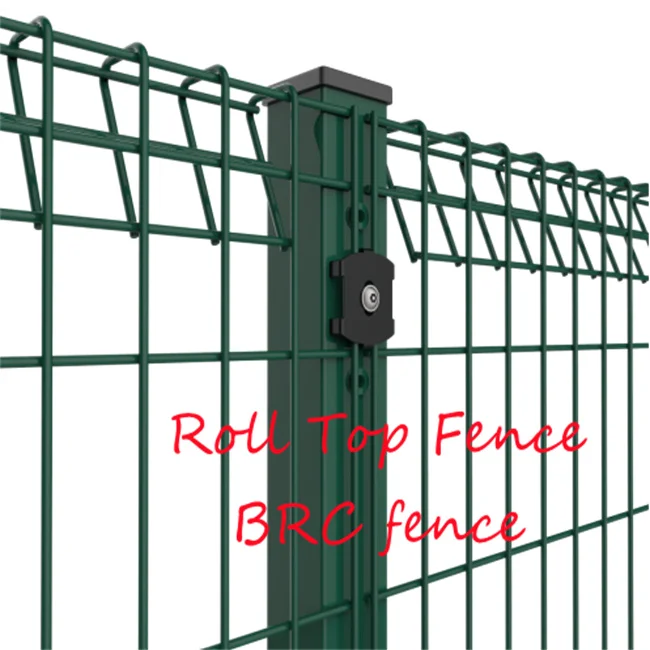

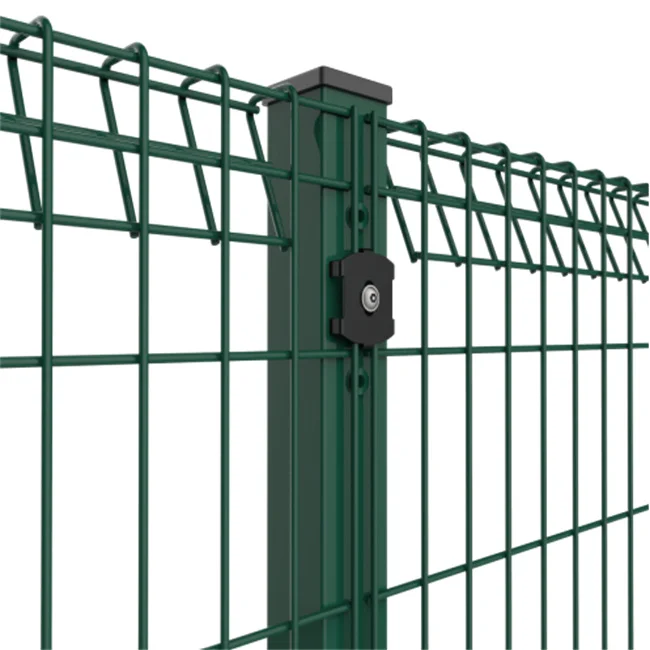

The panels also are secured to the posts with stainless steel clips and 8.0mm stainless steel fixings screwed into the threaded that inserted in the post.
