Introduction of stone cage net:
The gabion mesh is made of high-corrosion, high-strength, and ductile low-carbon steel wire or the above steel wire covered with PVC using mechanical weaving. The box-shaped structure made of this mesh is the gabion cage. The diameter of the low carbon steel wire used varies according to the engineering design requirements. Generally between 2.0-4.0mm, the tensile strength of the steel wire of the gabion mesh is not less than 38kg/m2, the weight of the metal coating is generally higher than 245g/m2, and the diameter of the edge line of the gabion mesh is generally larger than the diameter of the mesh wire. The length of the twisted part of the double wire shall not be less than 50mm. In order to ensure that the metal coating and PVC coating of the twisted part of the steel wire are not damaged.


Product Features


The gabion mesh is made of low carbon steel wire with high corrosion resistance, high strength and ductility or steel wire above
PVC coating by mechanical weaving. The box structure made of the mesh is gabion cage. Good landscape and protection effect. The
combination of engineering measures and vegetation measures adopted in the ecological gabion cage technology can effectively
prevent water and soil loss, with a long service life. The ecological gabion cage technology has a service life of decades, and
generally does not need maintenance.


Specification


Aperture
60*80mm, 80*100mm, 80*120mm, 100*120mm, 120*150mm, 90*110mm
Wire diameter
gabion mesh is divided into three wire diameters - mesh wire, edge wire, tied wire
Steel wire tension
not less than 38kg/m2 380N/mm
Surface treatment
Electro-galvanizing: the amount of zinc applied is 10g/m2. Poor corrosion resistance
Hot dip galvanizing: the amount of zinc applied can reach 300g/m2. Strong corrosion resistance
Zinc-aluminum alloy: This is divided into two materials, zinc-5% aluminum-mixed rare earth alloy steel wire, zinc-10% aluminum
mixed rare earth alloy steel wire. Super anti-corrosion
PVC plastic wrapping: The thickness of the plastic wrapping is generally 1.0mm thick, for example: 2.7mm is 3.7mm after wrapping.
Strong corrosion resistance

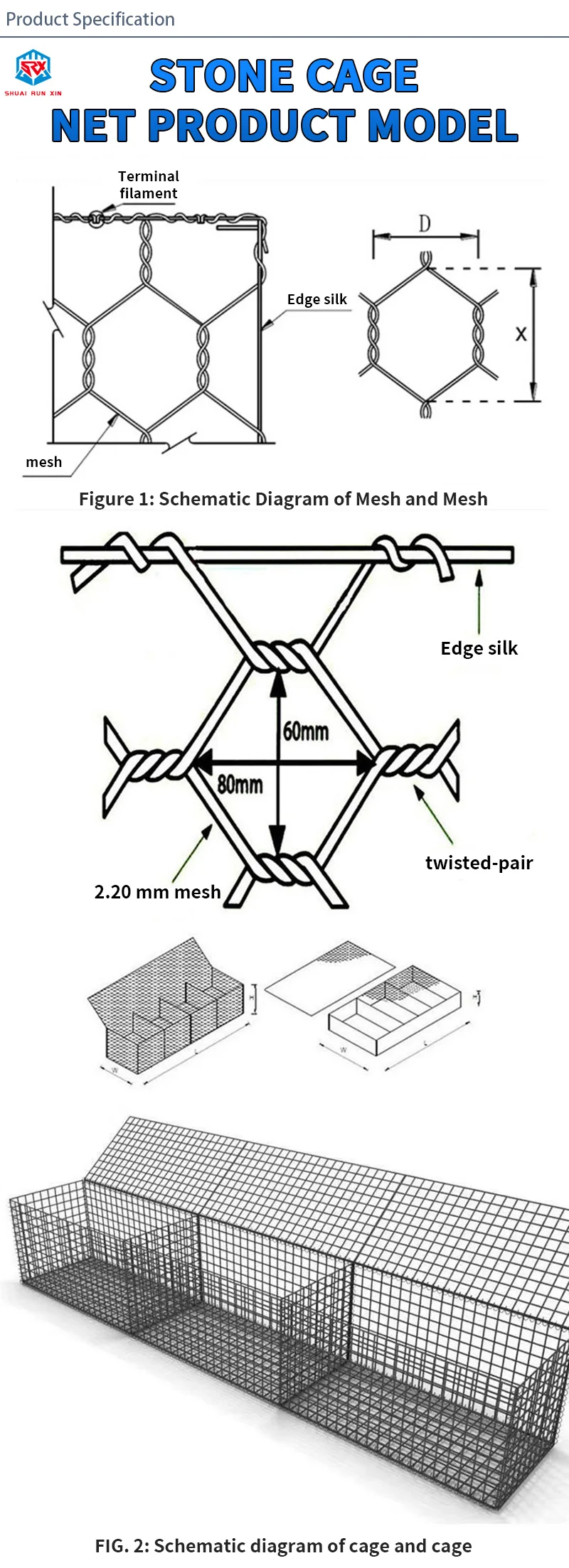

Product Detail Drawing

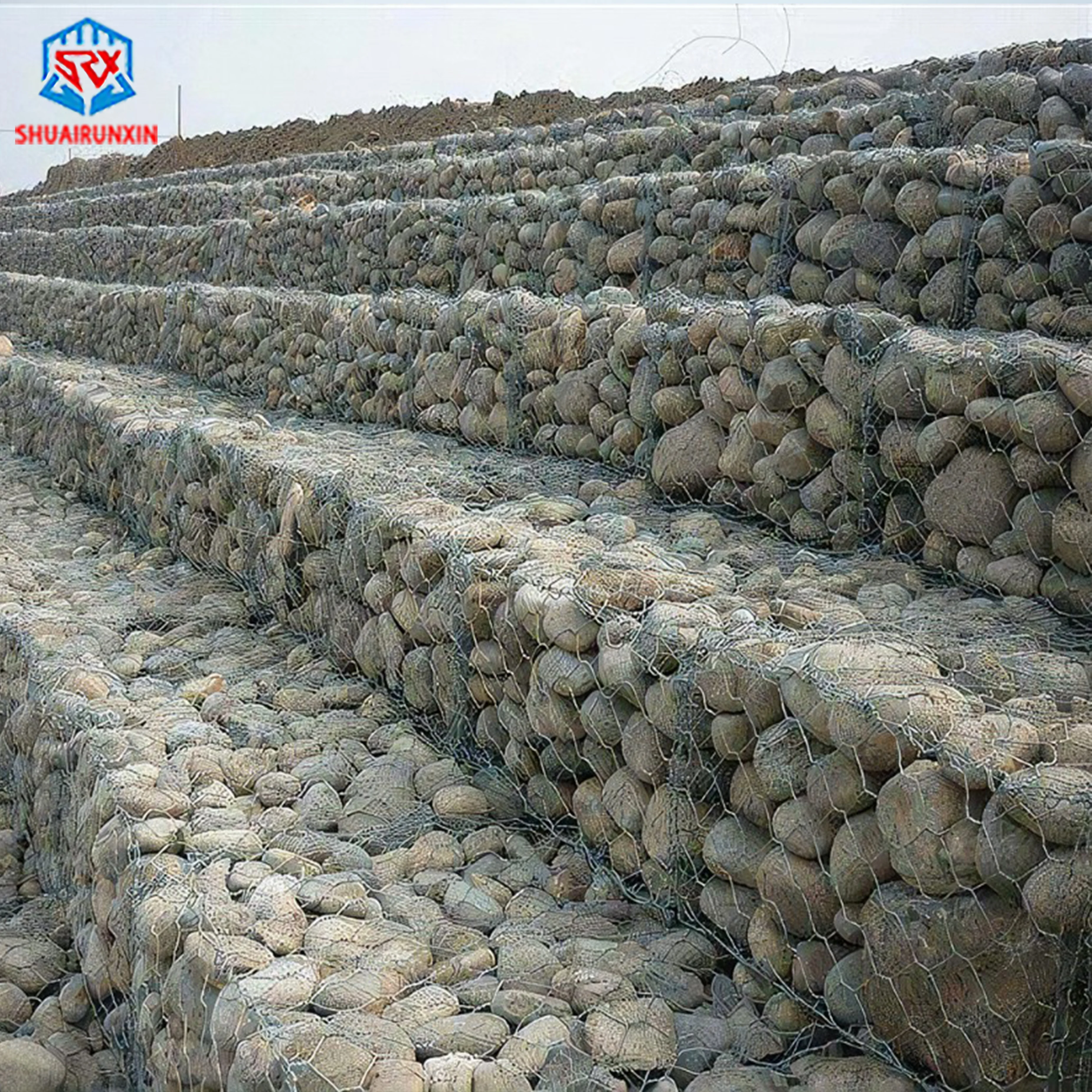

Product Application




Company Profile




FAQ


Q: Are you a factory/manufacturer or a trader?
A. We are direct factories with production lines and workers. Everything is flexible and there is no need to worry about extra fees for middlemen or traders.

Q: What countries do you export to?
A: Our products are mainly exported to Australia, Canada, the United Kingdom, the United States, Germany, Thailand, Korea and so on.

Q:Can I get free samples?
A: If samples are available, yes, they can be free. If it is not available, you need to customize it.

Q:What is your minimum order quantity?
A: Actually, there is no minimum quantity for our products. But we usually recommend a quantity at an acceptable price.

Q: What kind of payment methods do you accept?
A: Usually we use T/T, LC, Western Union, PayPal,Escrow and Money Gram.
