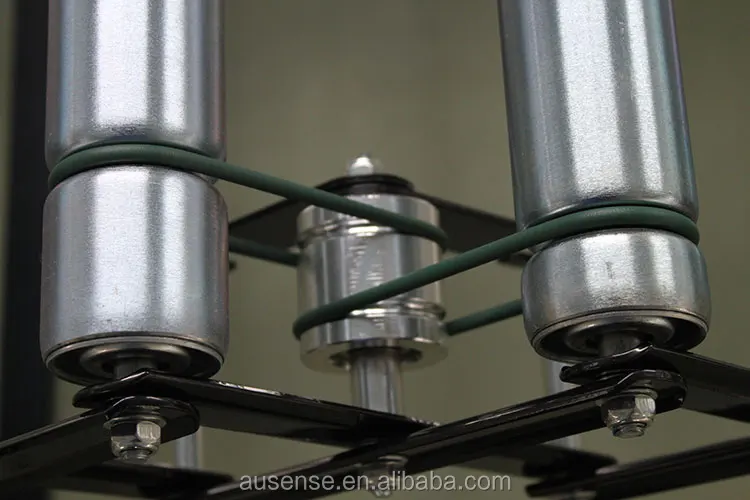

Steel Expandable Flexible Roller Motorized Conveyor, Material Handling Capacity: 100 200 kg
- Category: Conveyors >>>
- Supplier: Qingdao Ausense Packing Equipment Co. Ltd.
Share on (1600316559451):
Product Overview
Description
Products Description

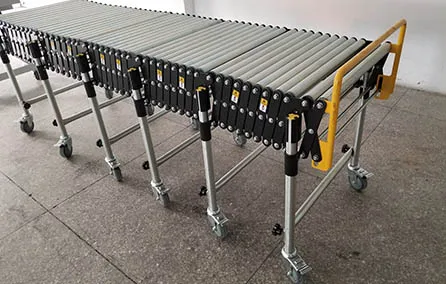

There are four types conveyors available - single roller flexible conveyor, double rollers flexible conveyor, skate wheel flexible conveyor and motorized roller flexible conveyor.
Product Paramenters
Flexible single steel roller conveyor | ||||||||
Length : | 2000-48000mm 2500-6000mm | |||||||
Width : | 400/500/600/700mm /1000mm | |||||||
Height : | 620-990mm | |||||||
Loading Capaity : | 20-300kg/M | |||||||

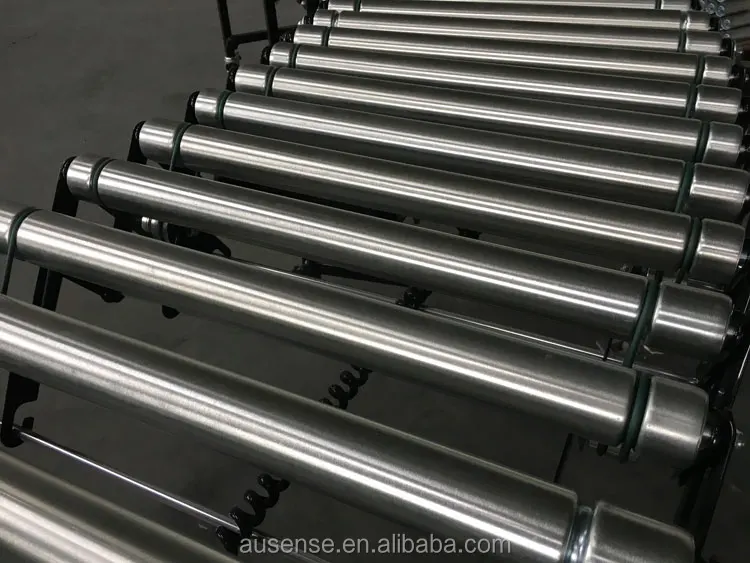

Roller : | 50mm,76mm,89mm | |||||||
Flexible double PVC roller conveyor(Customized size available) | ||||||||
Length : | 2000-48000mm 2500-6000mm | |||||||
Width : | 400/500/600/700mm /1000mm | |||||||
Height : | 620-990mm | |||||||
Loading Capaity : | 20-300kg/M | |||||||
Roller : | 50mm,76mm,89mm | |||||||

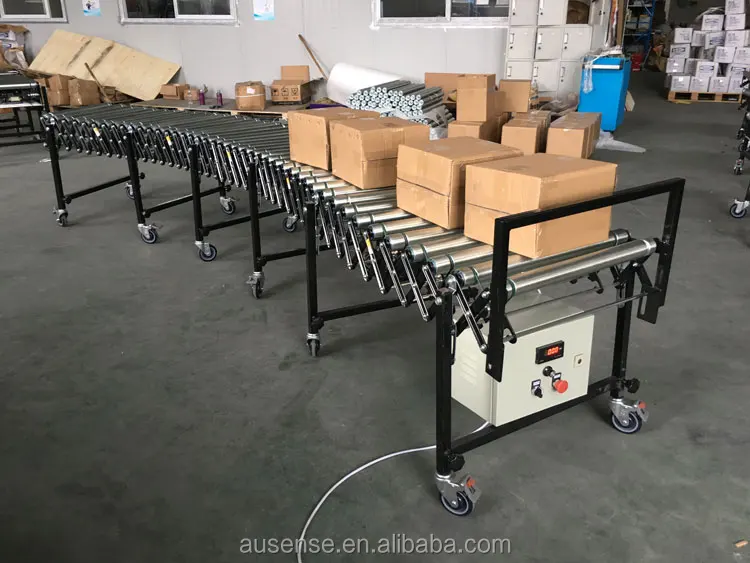

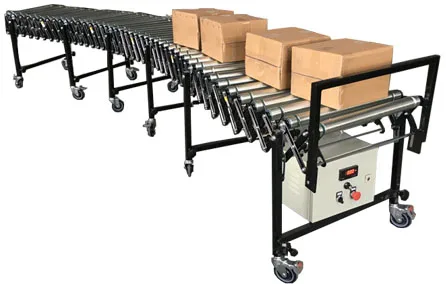

Automatic power flexible steel roller conveyor(Customized size available) | ||||||||
Length : | 2000-48000mm 2500-6000mm | |||||||
Width : | 400/500/600/700mm /1000mm | |||||||
Height : | 620-990mm | |||||||
Loading Capaity : | 20-300kg/M | |||||||
Roller : | 50mm,76mm,89mm | |||||||
Flexible skate wheel conveyor（Customized size available） | ||||||||
Length : | 2000-48000mm 2500-6000mm | |||||||
Width : | 400/500/600/700mm /1000mm | |||||||
Height : | 620-990mm | |||||||
Loading Capaity : | 50Kg/M | |||||||
Roller : | 50mm,76mm,89mm | |||||||
Product Advantages

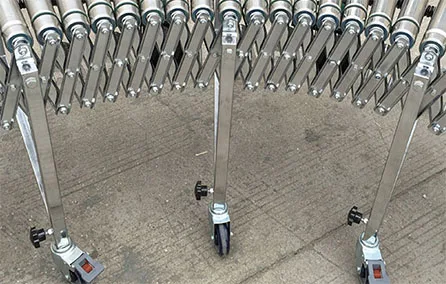

Support Legs
The height of support legs is adjustable by turning each black handle, and can form an inclined conveying surface. Even floor
isn’t even, flexible expandable conveyor can stand stably and handle packages smoothly. Thus it can keep the packaging flow
smoothly and reduce the labor strength of operators.
isn’t even, flexible expandable conveyor can stand stably and handle packages smoothly. Thus it can keep the packaging flow
smoothly and reduce the labor strength of operators.

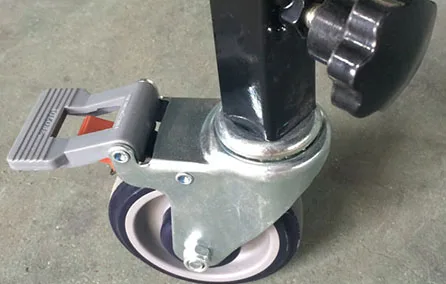

Castors
We use heavy-duty swivel castors which diameter is 150mm, and flexible expandable conveyor castors brake are provided on each
side, which makes it stand firmly when handling packages.
side, which makes it stand firmly when handling packages.

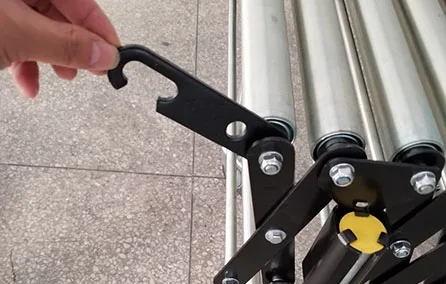

Joint Hooks
In order to extend conveying length, multiple flexible expandable conveyors can be connected together by using the joint hooks so as to reach a longer length of conveyance.

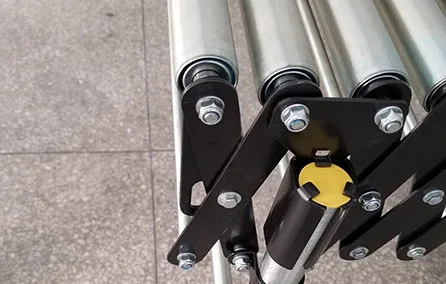

Corner Block
Corner block is punched into shape at one time. And it is simple in structure and good-looking in appearance.

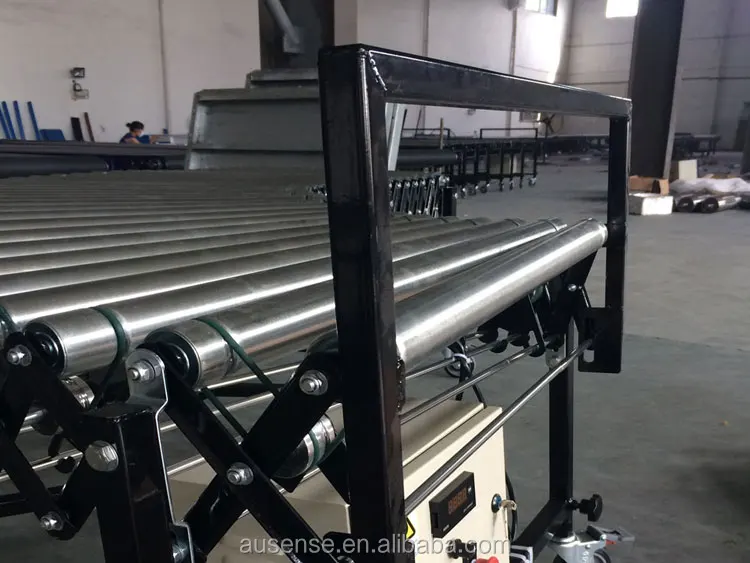

Package Stop
There is a package stop on one side of the conveyor to prevent packages falling down due to sliding to the end. In addition, this
package stop can serve as a handle, when you push/ pull the conveyor.
package stop can serve as a handle, when you push/ pull the conveyor.
Side Plates
Side plates are steel structure. Shoulder screws are used to assemble side plates.

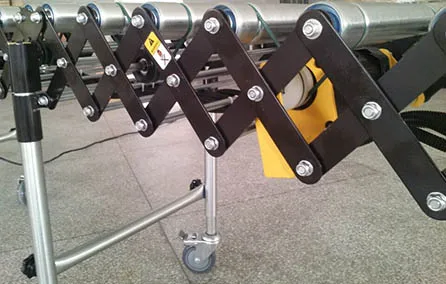

Flexible Length
Expansion ratios is 3:1, you can expand the length as you need.
Load Capacity
When complete expanding, the load capacity per unit (between each support leg) can not be more than 100 kg (in the state of no
impact load).
impact load).

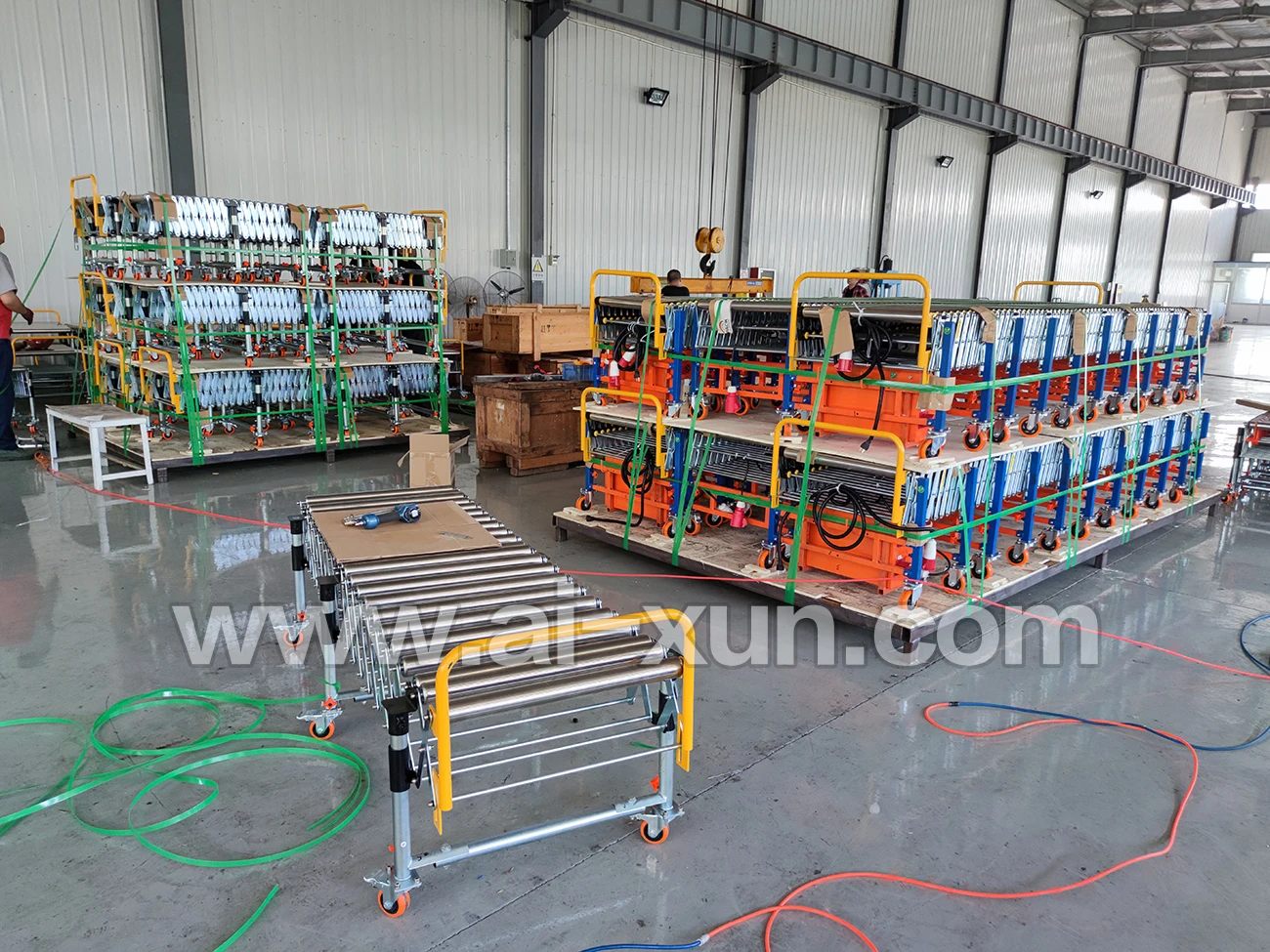

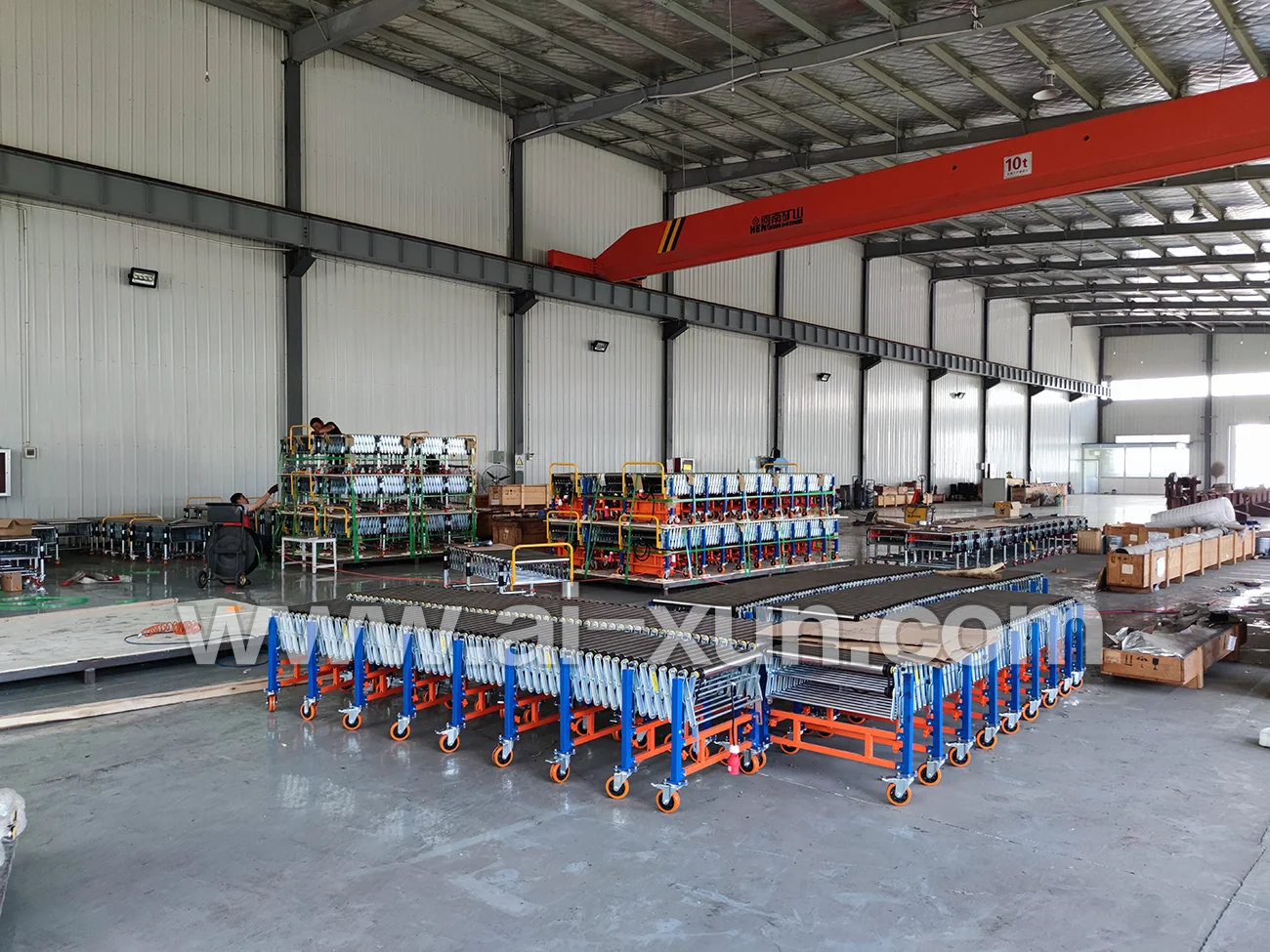

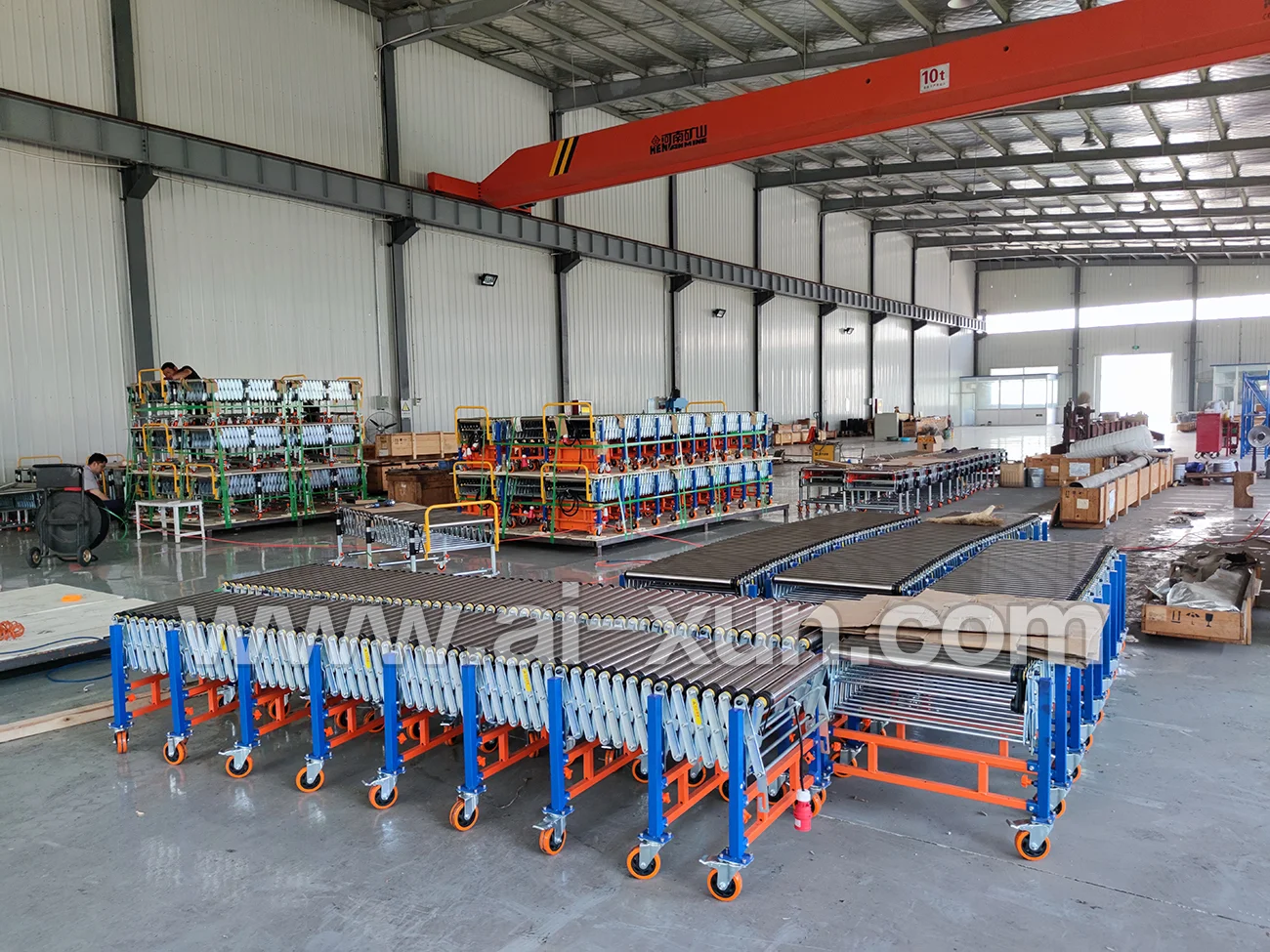

Exhibition
More Related Products

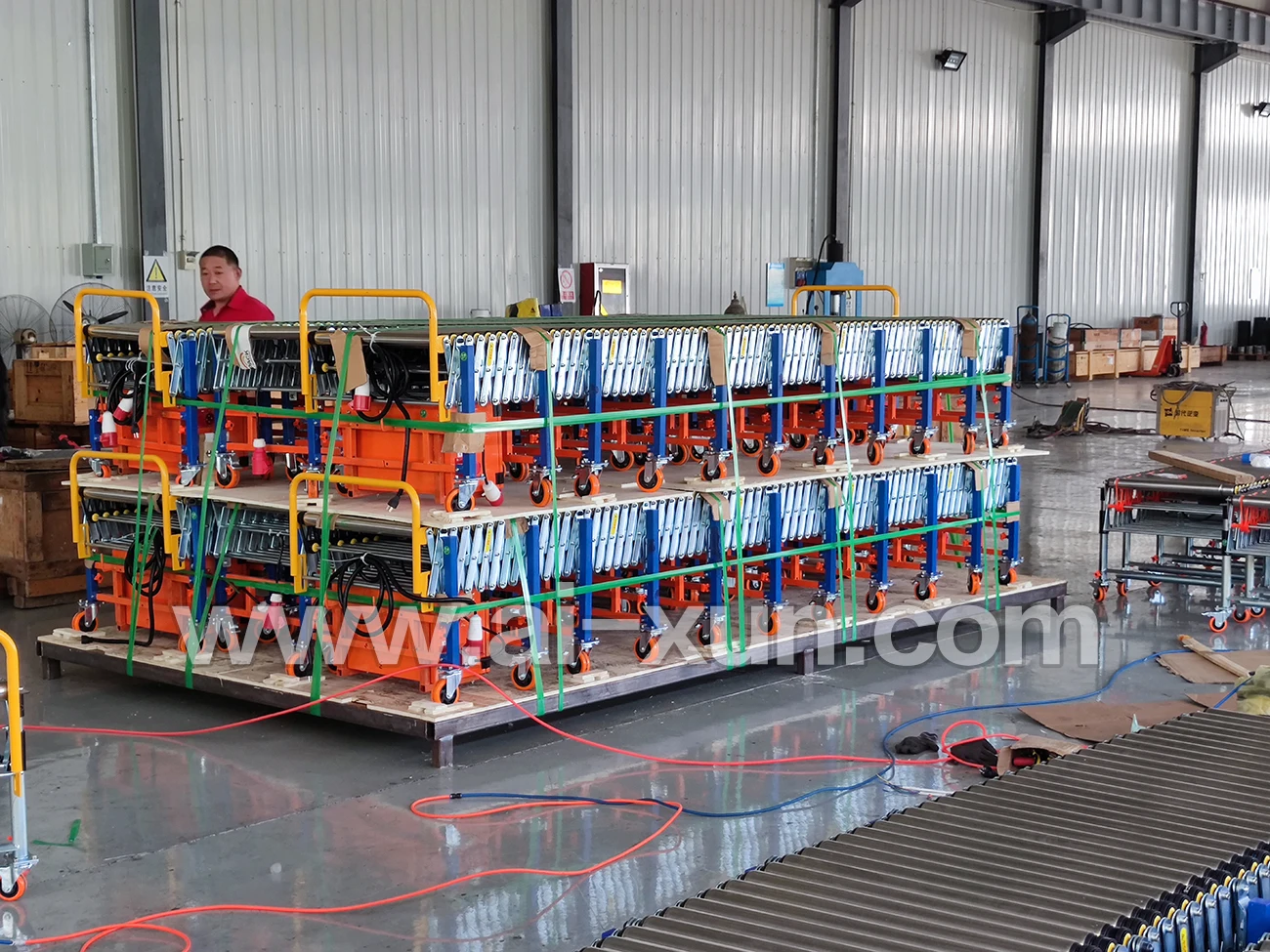

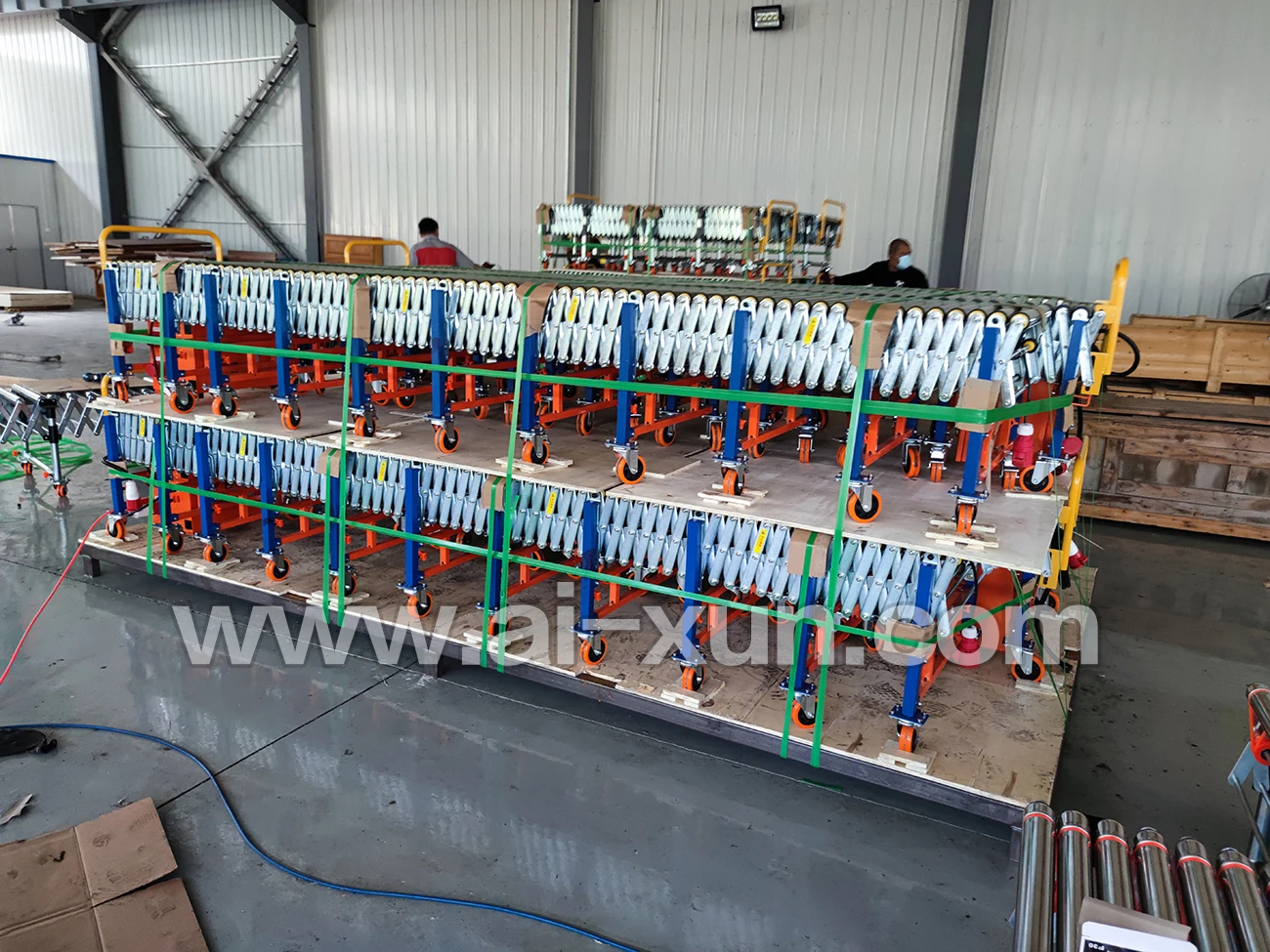

Packaging & Shipping
Automatic electrical power expandable roller ,skate wheel ,gravity flexible conveyor system standard sea packaging
Company Profile
Qingdao Ausense packing machinery has been established in 2008 which focus on the planning ,R&D and manufacturing of automatic packaging production line .We have very good carton erector ,carton sealer ,strapping machine ,shrink wrapping machine ,pallet wrapping machine and conveyor system .
