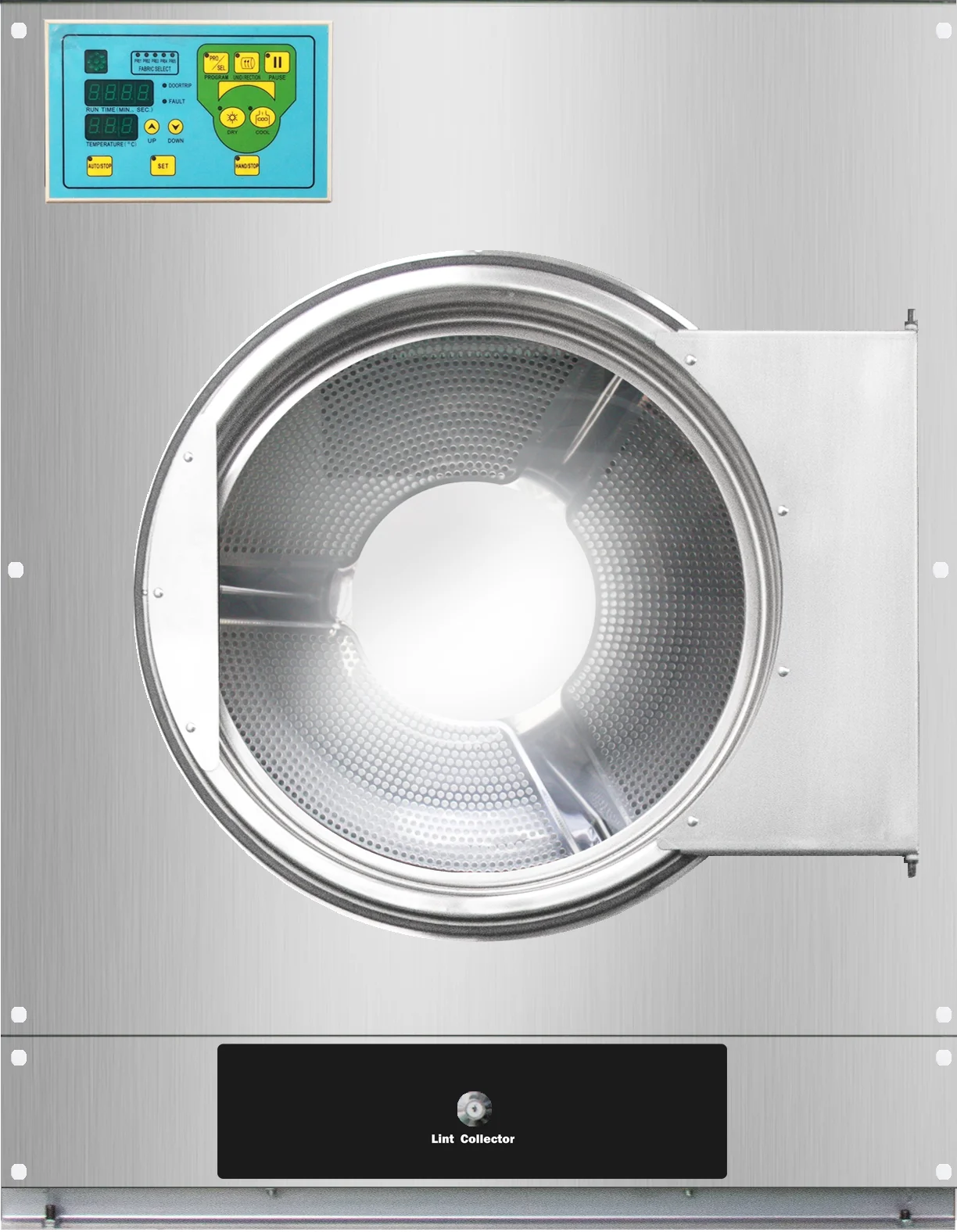

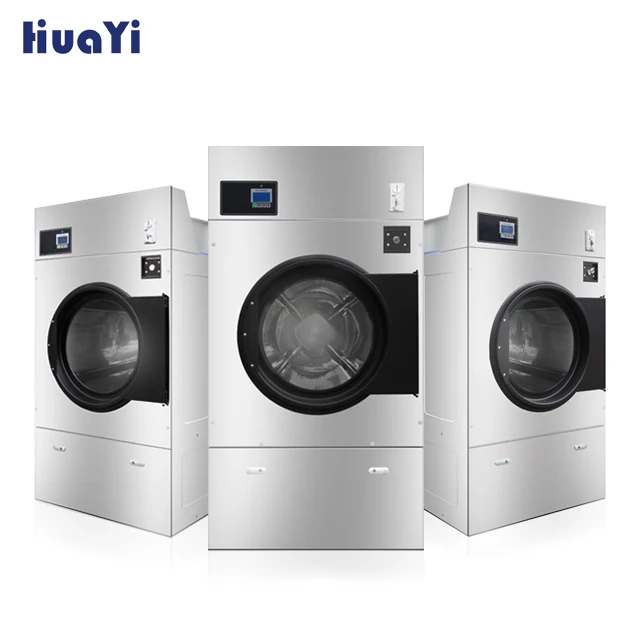

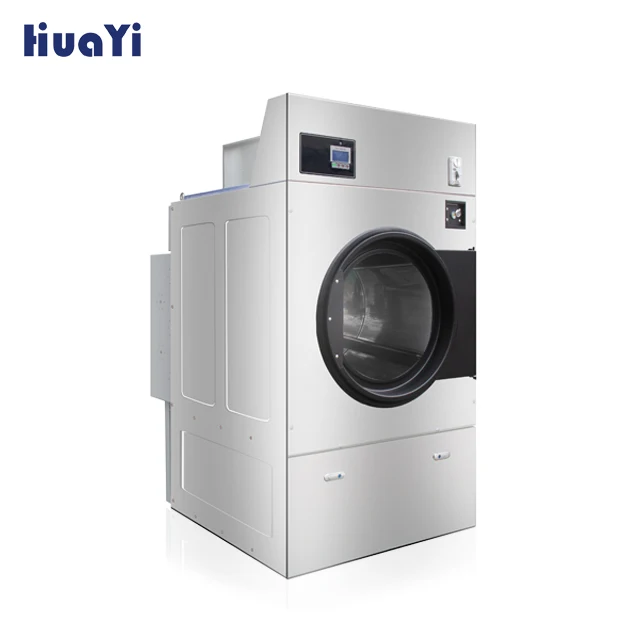

Сушилка с паровым подогревом 15 кг полностью автоматическая для промышленного использования
- Category: Drum Drying Equipment >>>
- Supplier: Shanghai Huayi Washing Machinery Co. Ltd.
Share on (1600316844722):
Product Overview
Description
Product Overview
15KG Tumble Dryer
1. Fast drying performance
2. Micro processor control.temperature control and over-temperature protection device installed.
3. Durable stainless steel drum ,prevent the fabric from pollution,anti-corrosion.
4. Concentrated airflow pattern and sealed cylinder rims ensure maximum air utilization and energy savings,improve drying
efficiency.
5. Heat-exchanger adopt steel finned pipe , having a higher thermal efficiency.
6. Advanced structure,fewer moving parts mean fewer maintenance problems and less wear.
7. Heating: electrical, steam, electrical and steam, coal.
8. Easy accessibility to the vital parts, easy service, quick replacement of the belt.
9. 4.Large door, easy loading and unloading, opens 180°, option:left or right opening.
2. Micro processor control.temperature control and over-temperature protection device installed.
3. Durable stainless steel drum ,prevent the fabric from pollution,anti-corrosion.
4. Concentrated airflow pattern and sealed cylinder rims ensure maximum air utilization and energy savings,improve drying
efficiency.
5. Heat-exchanger adopt steel finned pipe , having a higher thermal efficiency.
6. Advanced structure,fewer moving parts mean fewer maintenance problems and less wear.
7. Heating: electrical, steam, electrical and steam, coal.
8. Easy accessibility to the vital parts, easy service, quick replacement of the belt.
9. 4.Large door, easy loading and unloading, opens 180°, option:left or right opening.
FEATURES AT A GLANCE
1 Steam heating
2 Electric heating
3 Gas heating
2 Electric heating
3 Gas heating
Right elevation
Left elevation

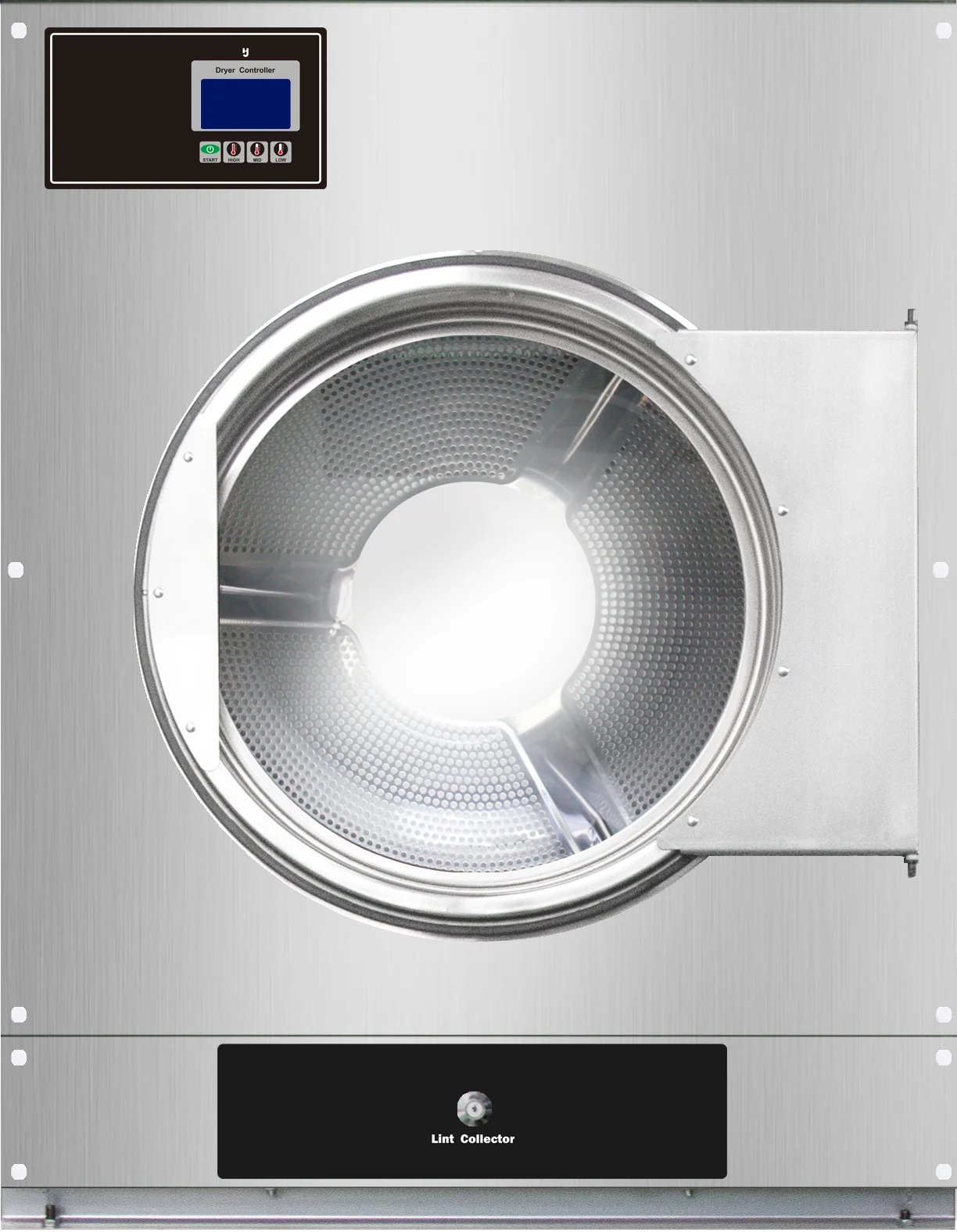

Front elevation
PRODUCT SPECIFICATIONS
No | Item | Unit | HG-15 | HG-20 |
1 | Capacity | kg | 15 | 20 |
2 | Drum Diameter | mm | 750 | 830 |
3 | Depth | mm | 645 | 685 |
4 | Rotation | r/min | 55 | 55 |
5 | Motor Power | kw | 0.12 | 0.15 |
6 | Electric heater capacity | kw | 7.5 | 7.5 |
7 | VFD capacity | kw | 0.55 | 0.55 |
8 | L | mm | 880 | 920 |
9 | W | mm | 1080 | 1150 |
10 | H | mm | 1230 | 1290 |
11 | Net Weight | kg | 200 | 225 |
