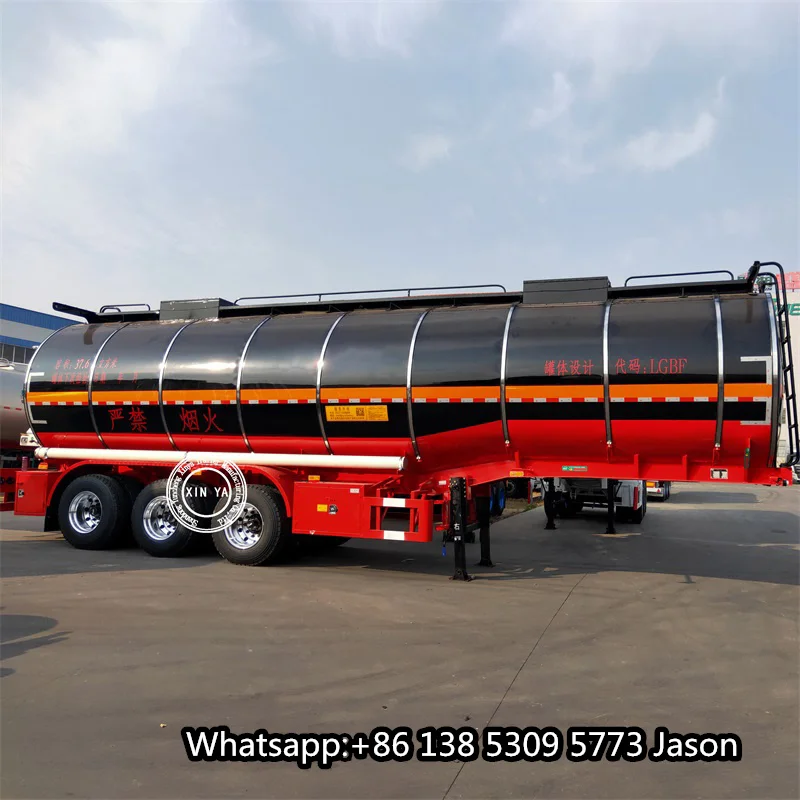

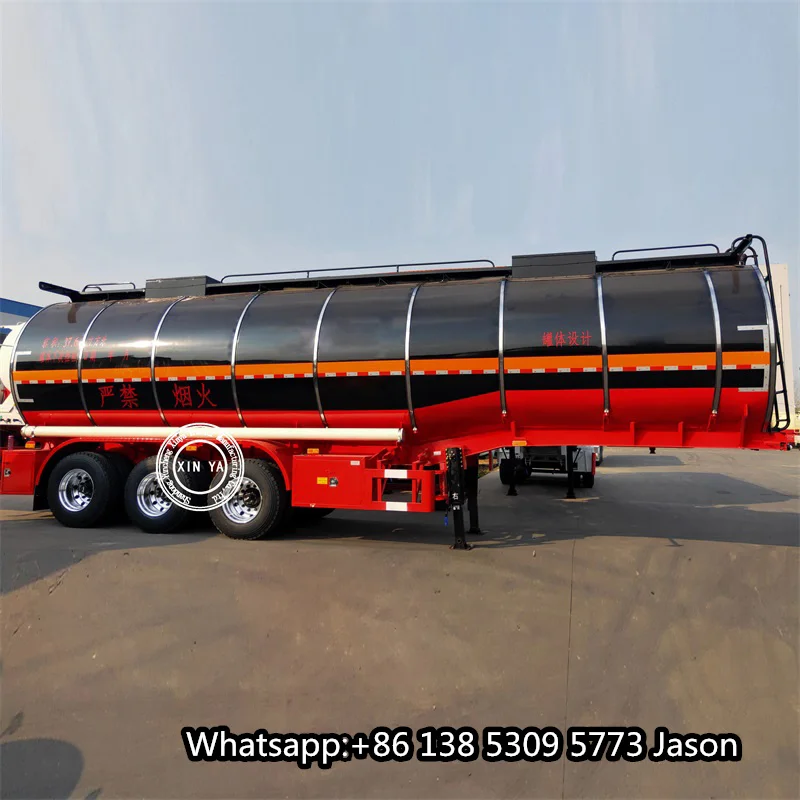

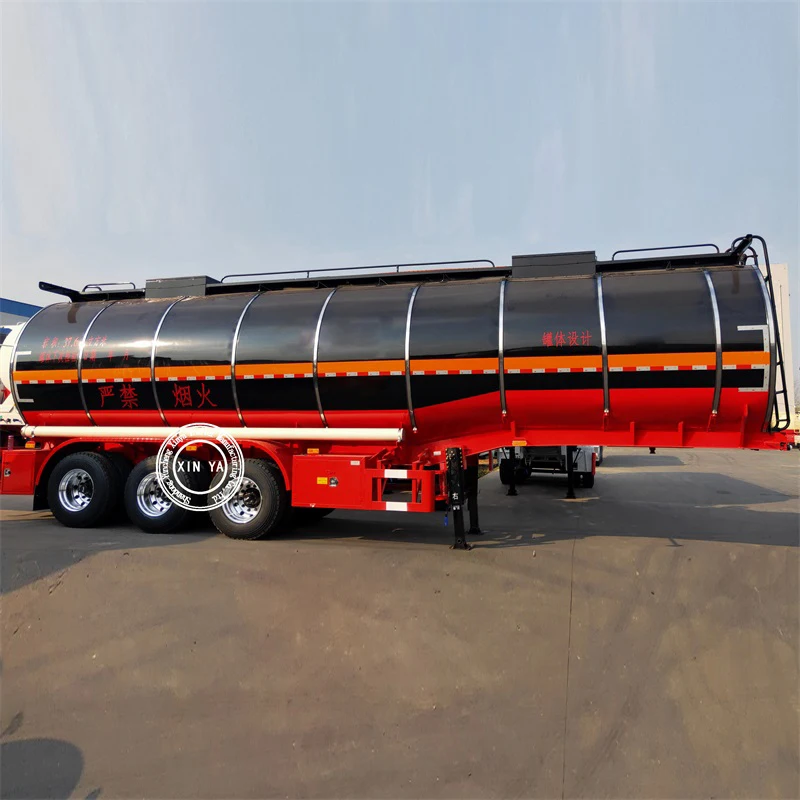

3 axles insulation liquid asphalt bitumen wax heated transport tank semi trailer for sale
- Category: >>>
- Supplier: Shandong Yuncheng Xinya Trailer Manufacturing Co. Ltd.
Share on (1600317654732):
Product Overview
Description

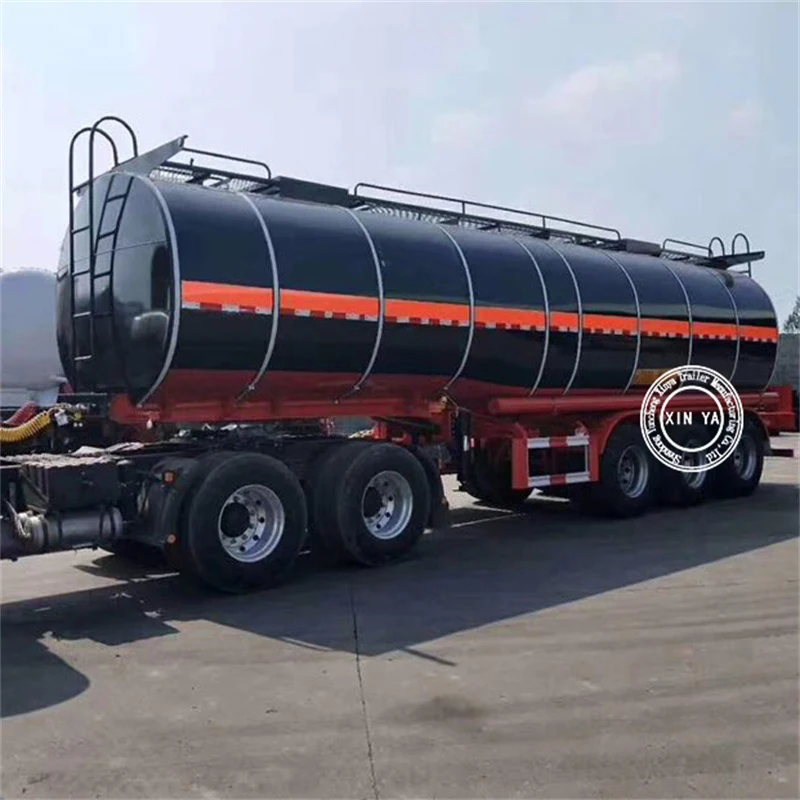

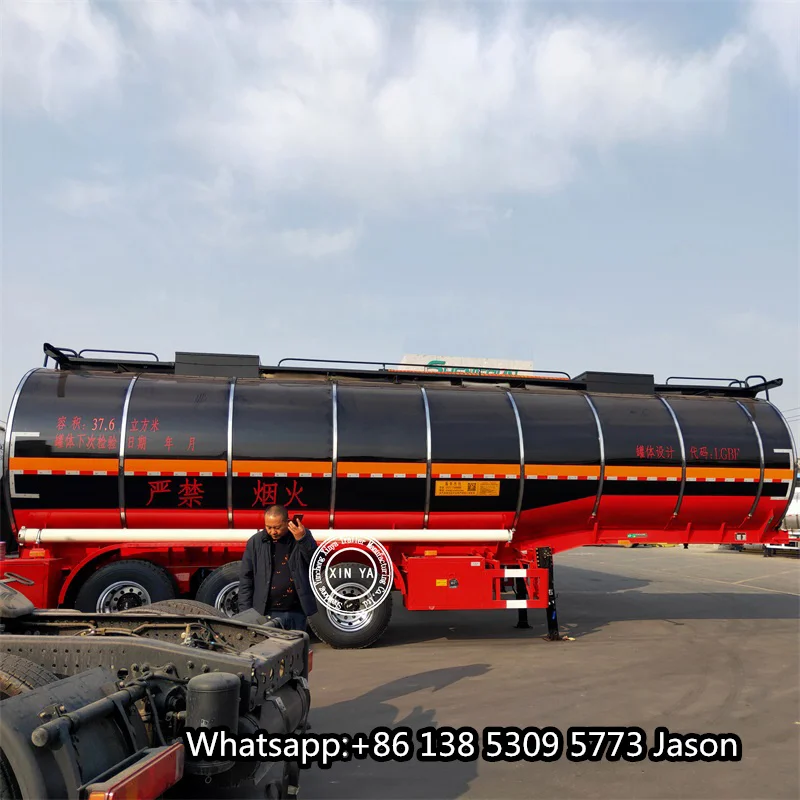

3 axles insulation liquid asphalt bitumen wax heated transport tank semi trailer for sale
Products Description
Advantages:
1.ADR standard.
2.10 year Long service life.
3. Lower design, much safer.
4. Elliptical section barrel design, volume larger.
5. T shape main beam and anti-fracture chassis, much stronger.
1.ADR standard.
2.10 year Long service life.
3. Lower design, much safer.
4. Elliptical section barrel design, volume larger.
5. T shape main beam and anti-fracture chassis, much stronger.
Product Paramenters
3 Axles 36-38cbm Storage Tank Bitumen Tanker for Sale
Item Name | Asphalt Tanker Trailer | |
Model Number | SKW9403GYYA/SKW9406GYYA/SKW9407GYYA/SKW9408GYYA/ SKW9400GRY/SKW9401GRY | |
Tank body | ||
Shape | Round or Square (Optional) | |
Dimension | 9500-13000*2500*3900mm (Exact size depends on the final design) | |
Tare Weight | About 8000kgs-12800kgs | |
Capacity | 32,000-60,000 liters | |
Tank body material | 5mm or 6mm/Q235 Carbon steel plate/ Aluminum alloy 5083 ,5182,5454 / Stainless steel | |
Dished End | 6mm or 7mm/Q235 Carbon steel plate/ Aluminum alloy 5083 ,5182,5454 / Stainless steel | |
Manhole Cover | Carbon steel/ aluminum/ stainless steel manhole cover, diameter 500mm,1-9 pieces | |
Bottom Valve | Aluminum / Stainless steel | |
Discharging Valve | Diameter 3" or 4" or 6" | |
Compartments | Optional | |
Discharging hose | Rubber tube, 2 pieces, 6 m each | |
Chassis | ||
Main beams | Steel Q345B or Aluminum Alloy | |
Axle | 13T/16T, FUWA/BPW /SHENGRUN brand | |
Kingpin | 2" or 3.5" brand optional | |
Suspension | Mechanical suspension/Air suspension | |
Leaf spring | 90mm (W) * 13mm (T)* 10 layer or 100mm *12mm *12 layer | |
Braking system | RE 6 relay valve, spring brake chamber, 2 pcs 45 L air tanks | |
Tire | 12.00R22.5/315/80R22.5/11.00R20/12.00R20 brand optional | |
Rim | 9.00*22.5/8.0-20/8.5-20 | |
ABS | Optional | |
Fire extinguiser | 2 pieces | |
Spare tire carrier | 2 pieces | |
Safety guard | Standard | |
Tool box | One pieces standard | |
Lights | LED, 24V | |
Painting | Complete chassis sand blasting to clean rust, 1 coat of anti-corrosion primer, 2 coats of final painting | |
Shipping terms | By 40" HQ container or bulk vessel or RORO ship | |

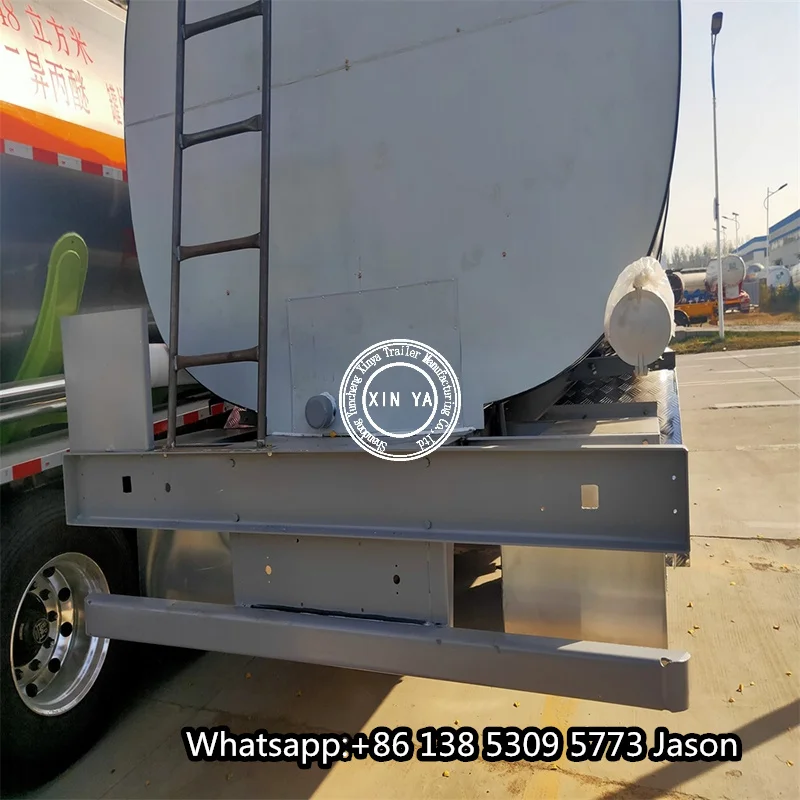

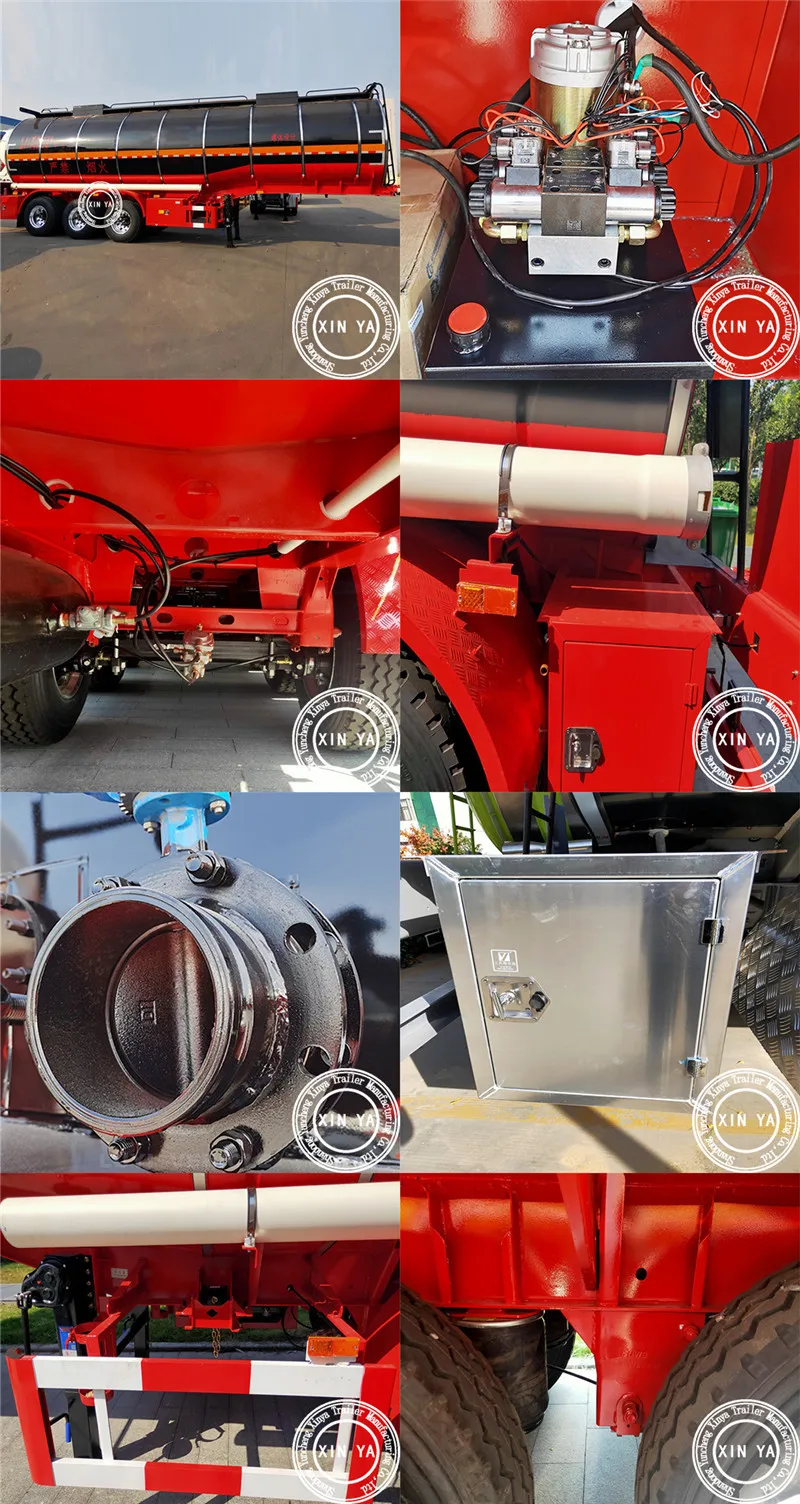

Details Images
Features:
1. Material:
Internal steel plate;
External steel plate;
Between sandwiched 50mm aluminum silicate heat preservation materials;
2. Heat preservation is done outside tank body.
3. Heating way: heating transfer oil and imported diesel burner with electronic ignition.
4. Asphalt spreading: by nozzles and pump. Dump function optional.
5. Fabricated anti-vibration suspension.
6. Pneumatic control safety bottom valve, Corrosion resistant valve.
1. Material:
Internal steel plate;
External steel plate;
Between sandwiched 50mm aluminum silicate heat preservation materials;
2. Heat preservation is done outside tank body.
3. Heating way: heating transfer oil and imported diesel burner with electronic ignition.
4. Asphalt spreading: by nozzles and pump. Dump function optional.
5. Fabricated anti-vibration suspension.
6. Pneumatic control safety bottom valve, Corrosion resistant valve.

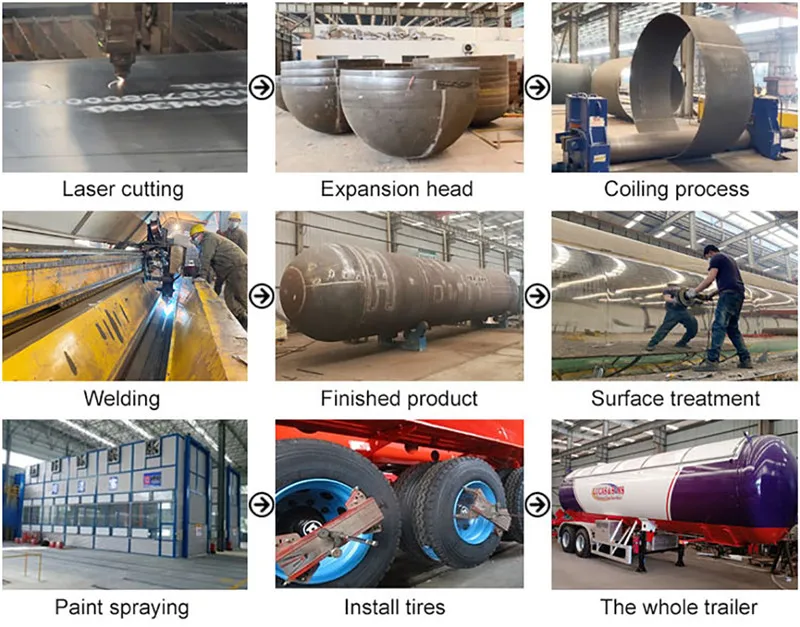

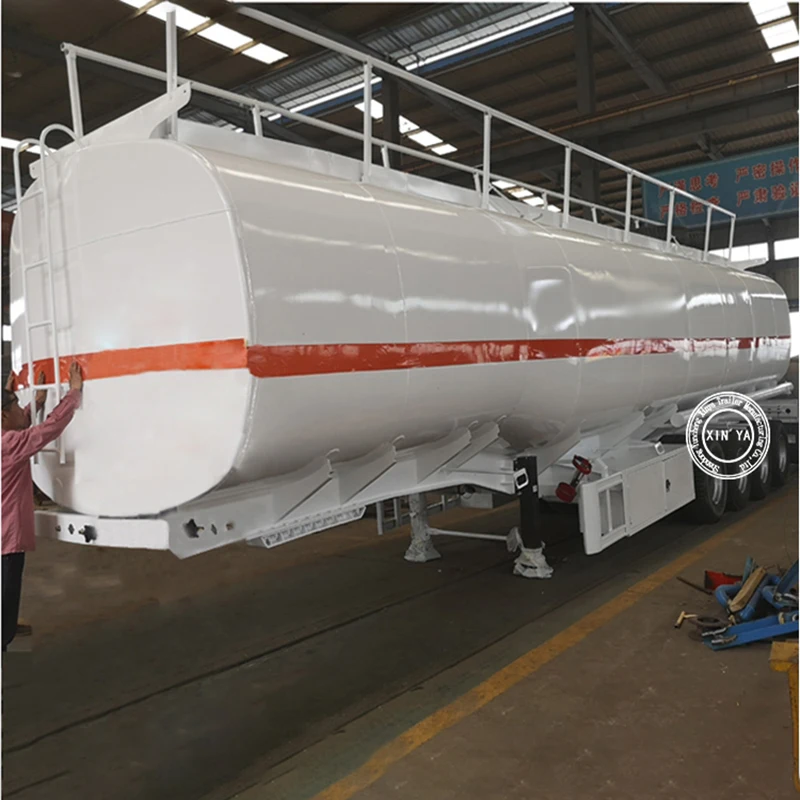

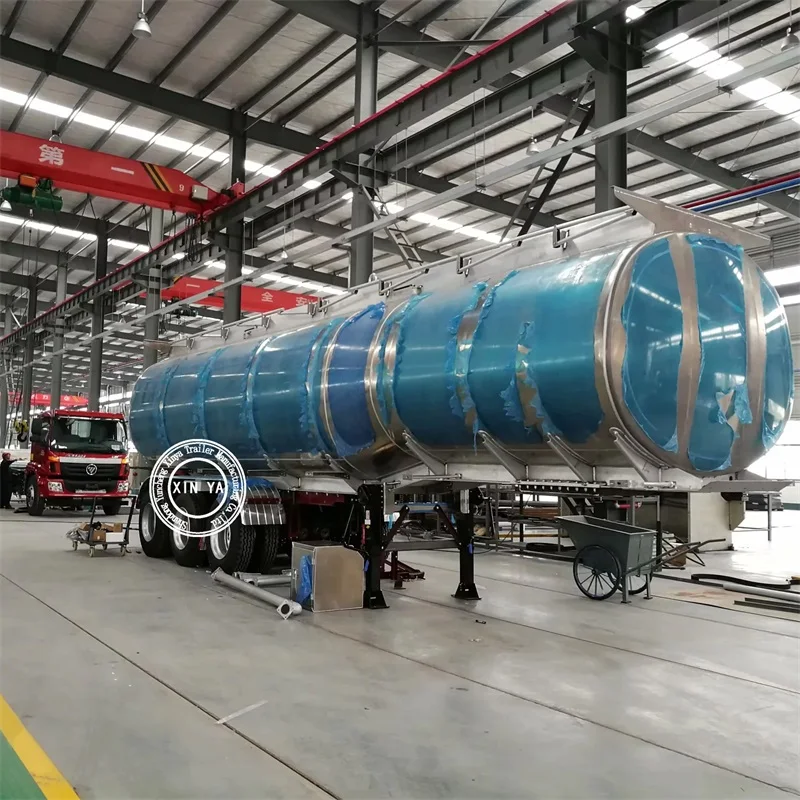

Tank Production Process:
Strict production management, longer service life!!!
Recommend Products
Wide variety of products One-stop service.
Wide variety of products One-stop service.
Wide variety of products One-stop service.

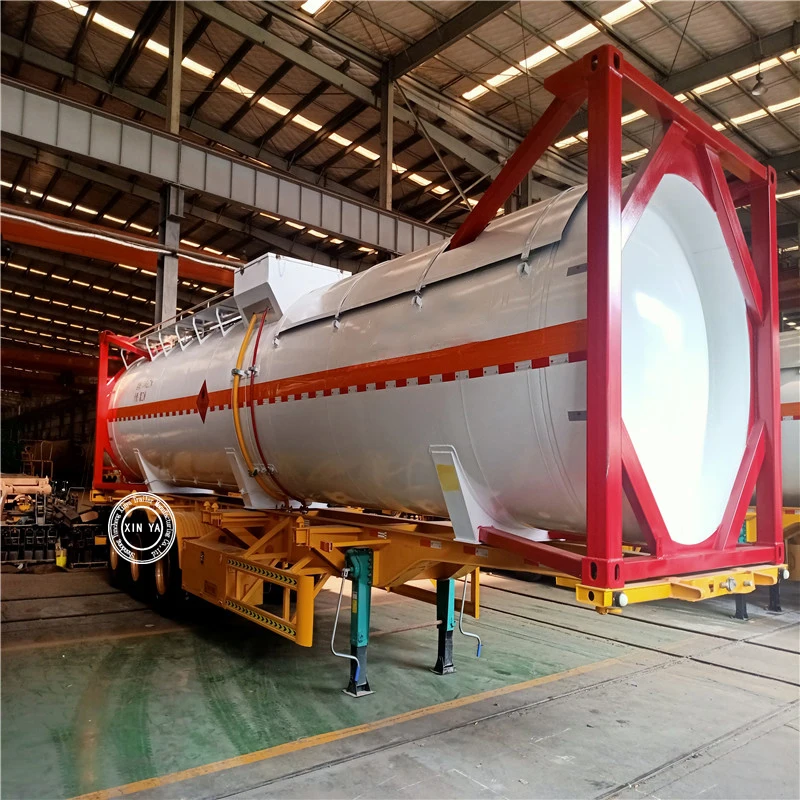

Gas & Chemical Tank Trailer Stainless Tank Trailer
Wide variety of products One-stop service.
Company Profile
XINYA TRUCK TRAILER FACTORY
1. XINYA have been in truck trailer field for more than 20 years.2. Our products are famous in aftermarket.
3. We've export to Europe, South America, South Africa and Southeast Asia;
4. We've passed ISO9001:2000 & BV & SGS & CCC certificates;
5. We've set up unified technical departments and testing standards;
1. XINYA have multiple production lines, able produce multiple types truck trailers and spare parts;
2. XINYA IS THE SOLE COATING FACTORY IN TRUCK TRAILER FIELD IN CHINA!!!
Plenty trucks and trailers for your choice !!!
Production Lines
Plenty trucks and trailers for your choice !!!
Production Lines
XINYA GROUP VIP tips:
1. We've invested in trailer parts (axle, suspension, fifth wheel, kingpin, landing gear, twist lock etc) ;2. We've invested in Truck field for 5 years plus;
3. We've take part in international exhibitions;
Customer Photos
Factory Price !!!
Customization Available!!!
Customers Visiting & Contracting
Welcome Visit XINYA GROUP!!!
FAQ & Contact
1. Q: Does your company has your own factory?
A: Yes, we are factory, with long history and famous reputation in Shandong, China.
2. Q: Could you special design and produce for me?
A: Definitely! We have all kinds of professional engineers to meet your various needs.
3. Q: What's your payment term?
A: We accpet both T/T and L/C.
T/T: 30% before production, 70% before leaving factory.
L/C: 100% irrevocable Credit of Letter.
More details for these trucks, please feel free to contact us!!!
A: Yes, we are factory, with long history and famous reputation in Shandong, China.
2. Q: Could you special design and produce for me?
A: Definitely! We have all kinds of professional engineers to meet your various needs.
3. Q: What's your payment term?
A: We accpet both T/T and L/C.
T/T: 30% before production, 70% before leaving factory.
L/C: 100% irrevocable Credit of Letter.
More details for these trucks, please feel free to contact us!!!
