With mixer function price small mortar cement machine truck mounted
- Category: >>>
- Supplier: Changyuan Nongjian Machinery Equipment Co. Ltd
Share on (1600318633733):
Product Overview
Description
Products Description
Title goes here.
Over the long-term, a concrete pump from Nongjian will prove a profitable investment as the outlay for servicing and energy costs yield a positive overall balance with regard to life cycle costs.

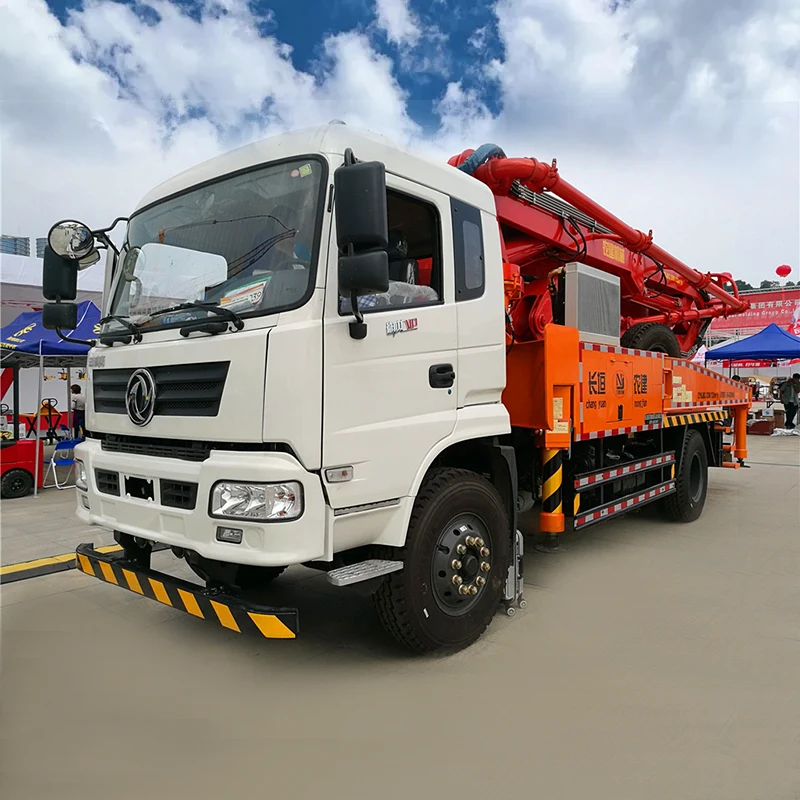

Concrete pump is a machine used for transferring liquid concrete by pumping. It is known as a boom concrete pump because it uses a remote-controlled articulating robotic arm to place concrete accurately. Boom pumps are used on most of the larger construction projects as they are capable of pumping at very high volumes and because of the labour saving nature of the placing boom. They are a revolutionary alternative to line-concrete pumps. HNTBC25- 28-50(4*2) 25m pump truck configuration | ||||
Chassis | Chassis | Dongfeng | ||
Emission Standards | CHINA V | |||
Engine | Yuchai | |||
Engine power/speed | 147kw/2000rpm | |||
Wheelbase | 4700mm | |||
Maximum travel speed | 80km/h | |||
Vehicle approach/away angle | 21°/11.5° | |||
Boom system | Maximum vertical height of boom | 25.5m | ||
Boom horizontal cloth radius | 21.7m | |||
boom length of each section (1-4) | 6600/5200/5100/4800mm | |||
Rotation angle of each boom | 90/180/240/180 | |||
Boom control mode | Load-sensitive proportional control | |||
Boom folding method | M type (four-section boom) | |||
Front leg spanning distance | 5350mm | |||
Back leg span distance | 3300mm | |||
Longitudinal distance between front and rear legs (MM) | 6100mm | |||
Size & weight | Total dimension（L*W*H） | 9600*2300*3300mm | ||
Total weight | 17000kg | |||
Pumping system | Theoretical pumping times (times/min) | 18~26 | ||
Maximum feeding height | 1450mm | |||
Hopper volume | 650L | |||
Theoretical concrete displacement | 35m³/h | |||
With mixer function price small mortar grout cement machine truck mounted
To learn more model, explore more below
Model | vertical distance | Output | Power/speed |
30m | ≧25m³/h | 177Kw/2300RPM | |
30m | ≧35m³/h | 177Kw/2300RPM | |
33m | ≧30m³h | 177/199Kw/2300RPM | |
38m | ≧30m³/h | 199Kw/2300RPM | |
42m | ≧25 m³/h | 227kw/2300PRM |
Reasons For Choosing NONGJIAN
There are many reasons for choosing a NONGJIAN truck mounted concrete pump
* When purchasing from Nongjian, you are guaranteed high-performance products for the most exacting requirements.
* With utmost importance attached to quality, we only install components supplied by renowned manufacturers.
* Extensive test series and field testing, as well as material inspections ensure long life-expectancy of the concrete pumps.

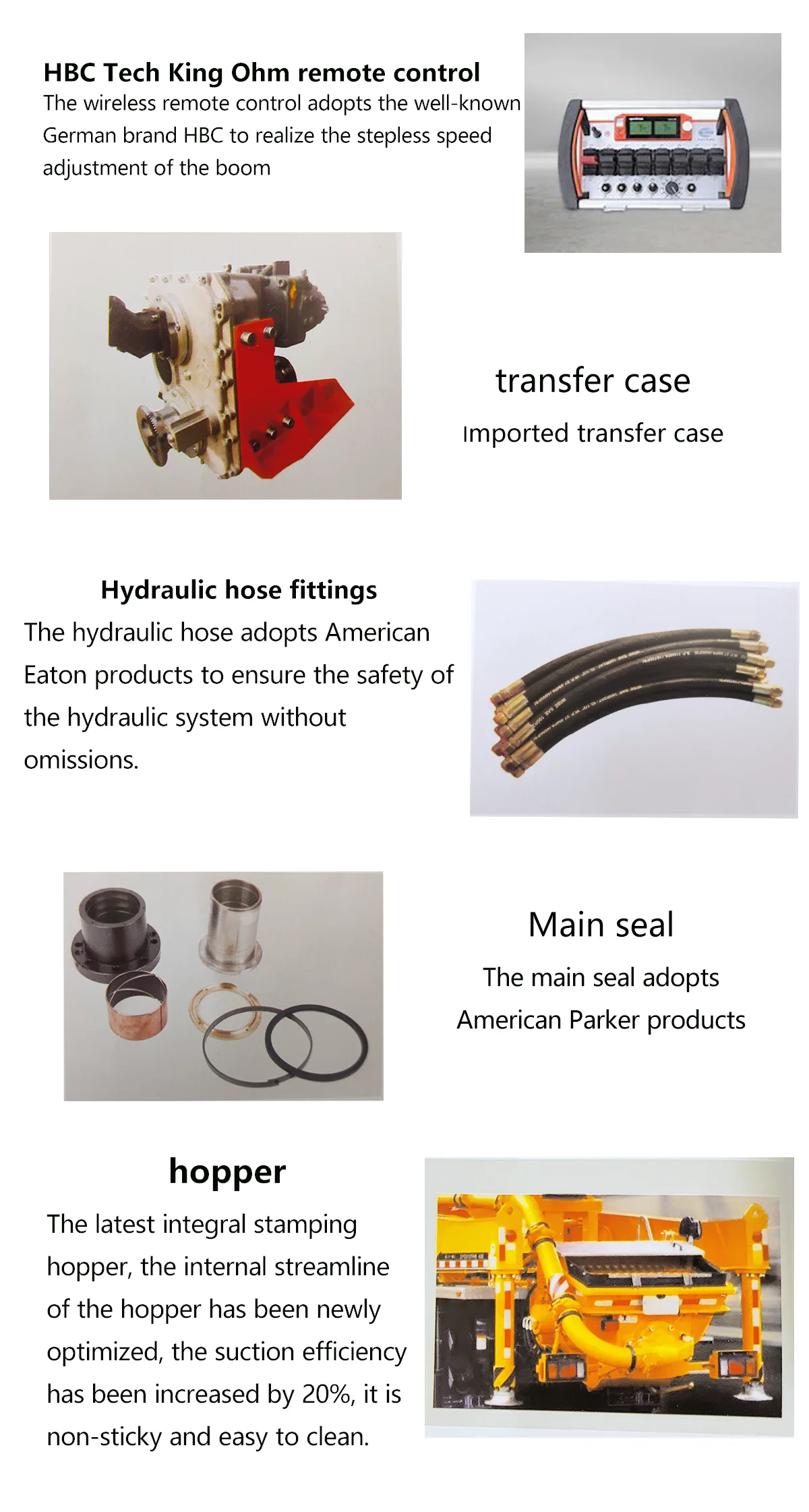

* The innovative pump units, hydraulic system and state-of-the-art control ensures cost-effective operation of the concrete pump. Numerous technical details simplify servicing: For example, easier and
quicker replacement of wear parts.
quicker replacement of wear parts.
Company Profile
If you have any query we remain at your disposal.
Who We Are：
Founded in 2007, Nongjian is located in the "Hometown of Crane in China" Changyuan City. We designs, manufactures and sell a complete range of machines for transport, and placing of concrete. With fixed assets of 60 million yuan, we covers an area of 240 acres and has a construction area of 40,000 square meters. We have large standardized workshops, pump truck production lines and an annual output of 500 sets pump trucks.
What we do:
In the past one decades, we have expanded our business to a wide range of concrete machinery, including of Truck-mounted Concrete Pump, truck Mixer Pump, Trailer Pump, Line Pump, Placing Boom and etc. Our pumps range from 30m to 63m of boom length.
Working on the Future:
In recent years, we focus on scientific research and continuously adopts new technology and strict testing methods to achieve the highest levels of efficiency and performance. Now our products are sold well in various cities and country abroad such as Philippines, Singapore, Indonesia, Kyrgyzstan and etc. unanimous praise from customers. Nongjian is a forward-looking company that was born in a time of change and now looks for any opportunity in those changes that will lead the way to the future.
Founded in 2007, Nongjian is located in the "Hometown of Crane in China" Changyuan City. We designs, manufactures and sell a complete range of machines for transport, and placing of concrete. With fixed assets of 60 million yuan, we covers an area of 240 acres and has a construction area of 40,000 square meters. We have large standardized workshops, pump truck production lines and an annual output of 500 sets pump trucks.
What we do:
In the past one decades, we have expanded our business to a wide range of concrete machinery, including of Truck-mounted Concrete Pump, truck Mixer Pump, Trailer Pump, Line Pump, Placing Boom and etc. Our pumps range from 30m to 63m of boom length.
Working on the Future:
In recent years, we focus on scientific research and continuously adopts new technology and strict testing methods to achieve the highest levels of efficiency and performance. Now our products are sold well in various cities and country abroad such as Philippines, Singapore, Indonesia, Kyrgyzstan and etc. unanimous praise from customers. Nongjian is a forward-looking company that was born in a time of change and now looks for any opportunity in those changes that will lead the way to the future.
Click to explore more
Exhibition
Bauma Shanghai
Beijing Construction Machinery Exhibition
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory. We designs, manufactures and sell a complete range of machines for transport, and placing of concrete.
Q2:How long is the warranty period ?
A:We offer 12 months warranty for the machine (main body) from the date of installation finished.
Q3: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q4: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.
Q5: How long and high is the pump distance?
A: We can provide 2 floors to 12 floors. Please let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.
Q6: How to guarantee customers get the goods smoothly after they pay?
A: We joined the trade assurance. You can place the order by trade assurance, and the deposit will given to Alibaba.
A: We are factory. We designs, manufactures and sell a complete range of machines for transport, and placing of concrete.
Q2:How long is the warranty period ?
A:We offer 12 months warranty for the machine (main body) from the date of installation finished.
Q3: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q4: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.
Q5: How long and high is the pump distance?
A: We can provide 2 floors to 12 floors. Please let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.
Q6: How to guarantee customers get the goods smoothly after they pay?
A: We joined the trade assurance. You can place the order by trade assurance, and the deposit will given to Alibaba.
