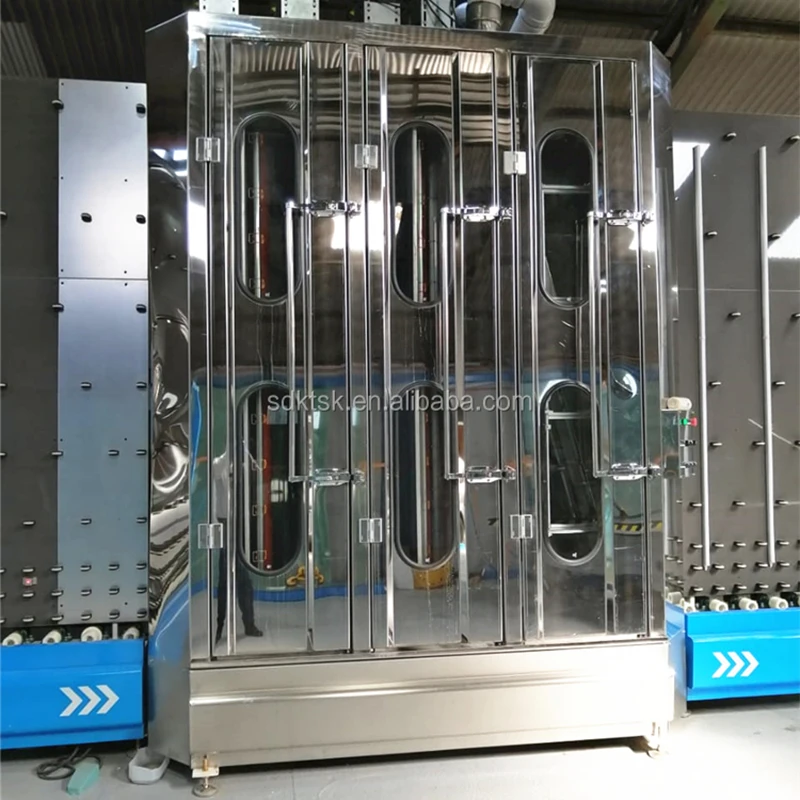

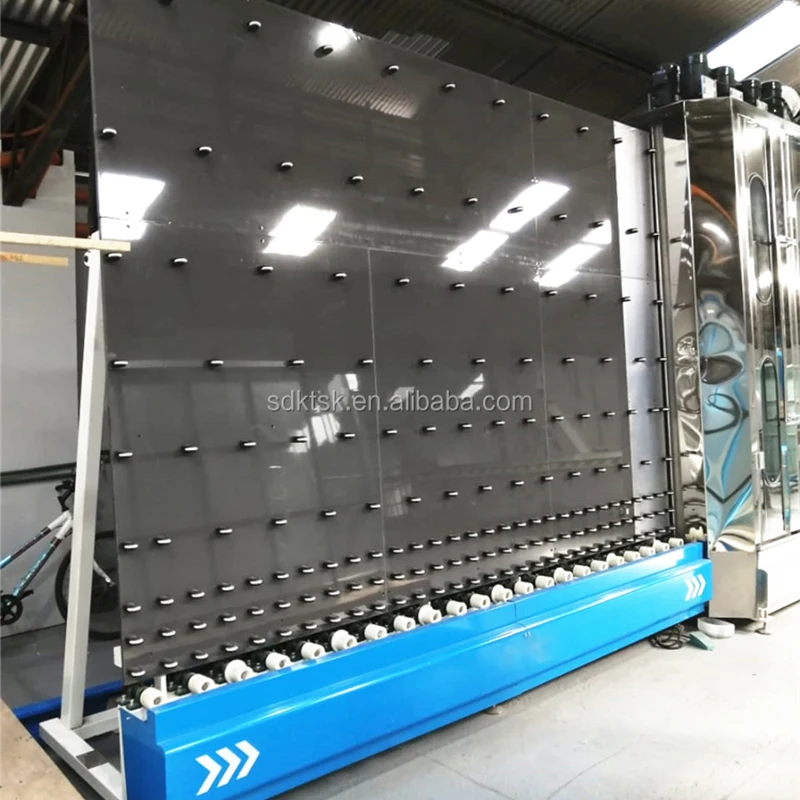

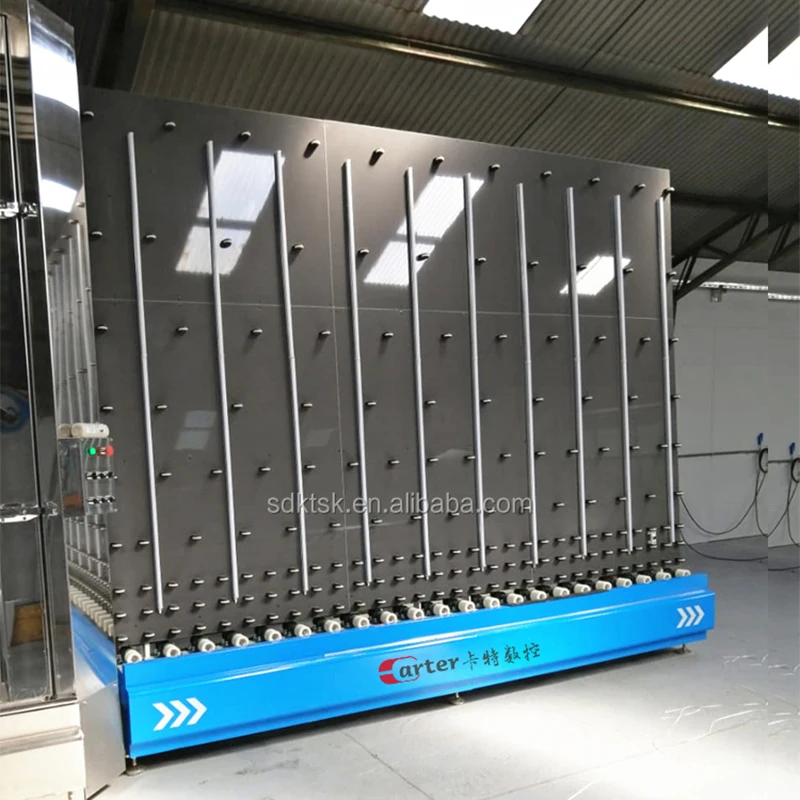

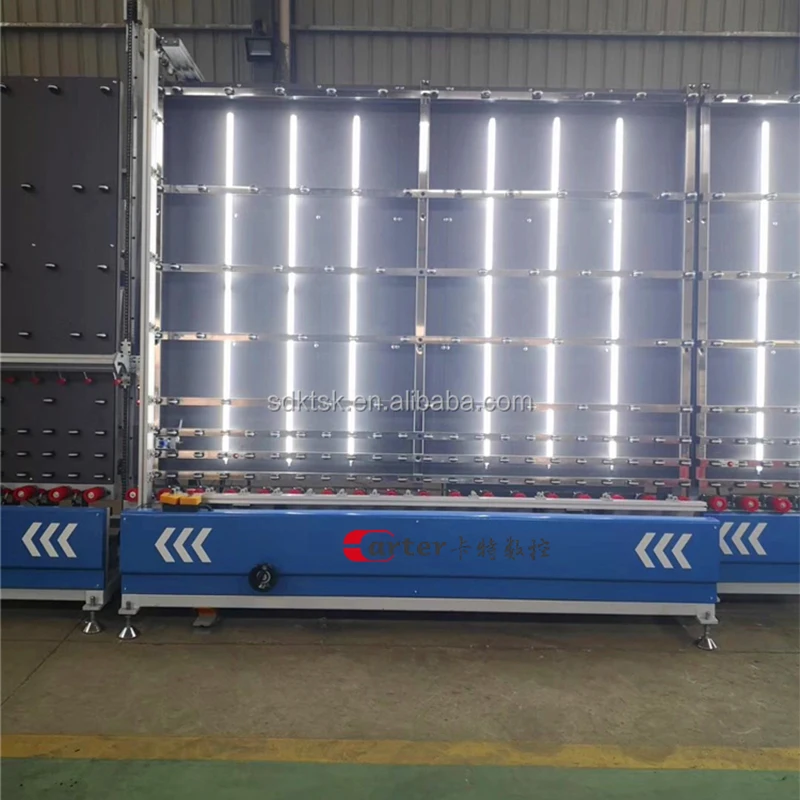

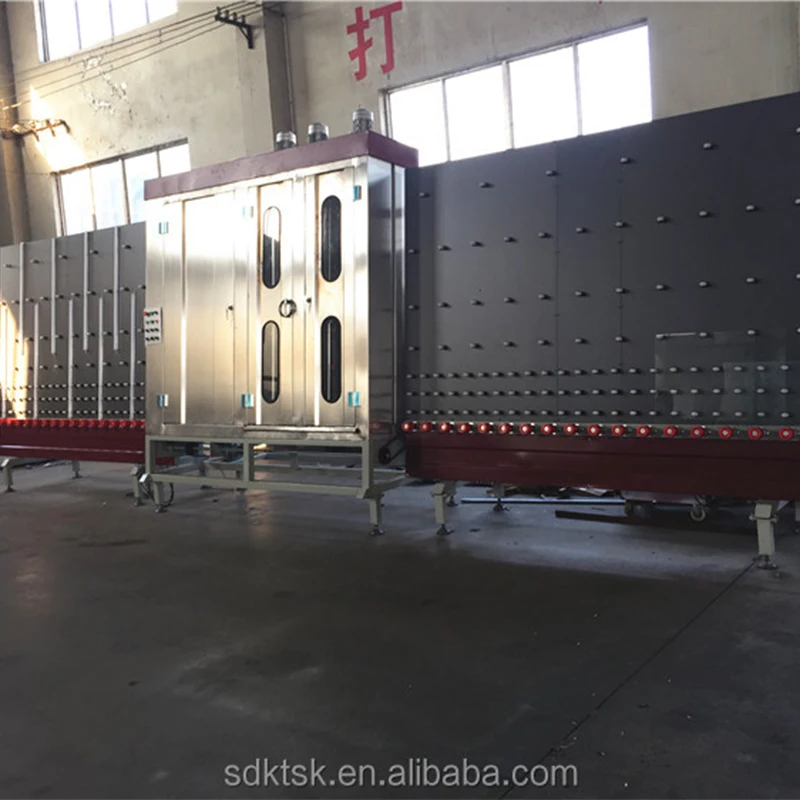

Vertical Automatic Flat Double Glass Washer And Dryer

Product Overview

Description

Feature:

1. Automatically distinguish the coating side of coat glass and Low-E glass

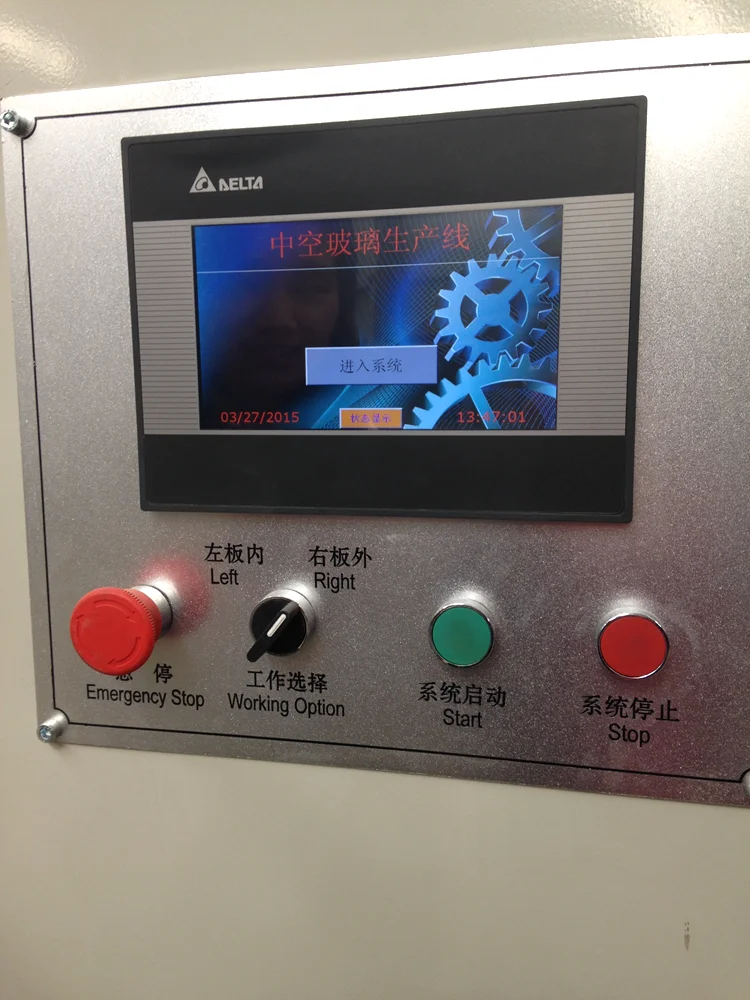

2. PLC control system with touch screen operation.

3. Dynamic display for machine work and fault condition.

4. HW2500 inside assembly lines can produce standard double layers insulating glass and three layers insulating glasses (optional).

5. Designed for curtain wall glass (HW2500), double layer insulating glass and three layers insulating glasses.

6. Insulating glass pressing design adopts gear and rack synchronous device driven by hydraulic station.

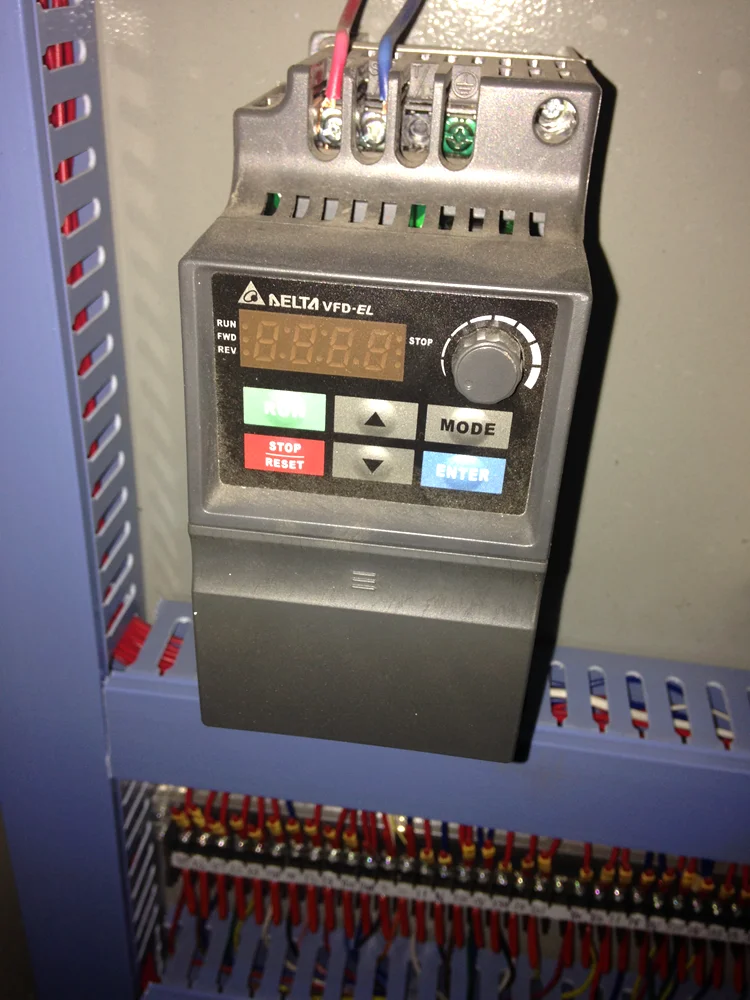

7. Frequency control designed for glass transmission.

8. 800-1000 units insulating glasses every single shift 8 hours(double layer insulating glass size 1M)

9. Panel pressing can be operable, maximum opening size: 500mm

Model	HW1800
Input Voltage	380V  50Hz  3P
Input Power	18KW
Work  speed	0-45m/min
Max. glass size	2500*3000mm
Min. glass size	400mm*450mm
Single Glass thickness	3-15mm
MAX. Double Glass thickness	12-50mm
Glass washing speed	0-9m/min
Air pressure	0.8m3/min(1 mpa)
Overall Dimension	12000×1800×3350mm
Weight	3900kg

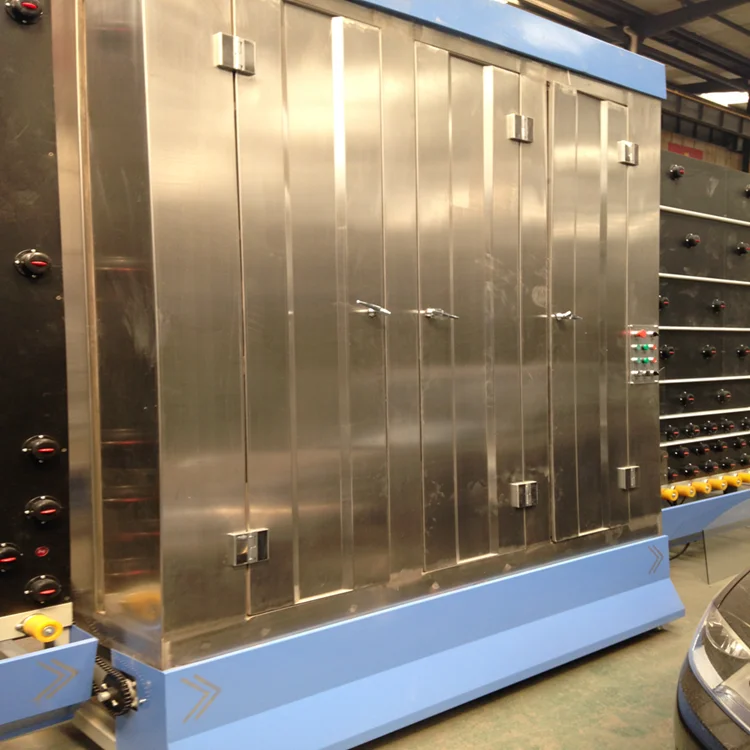

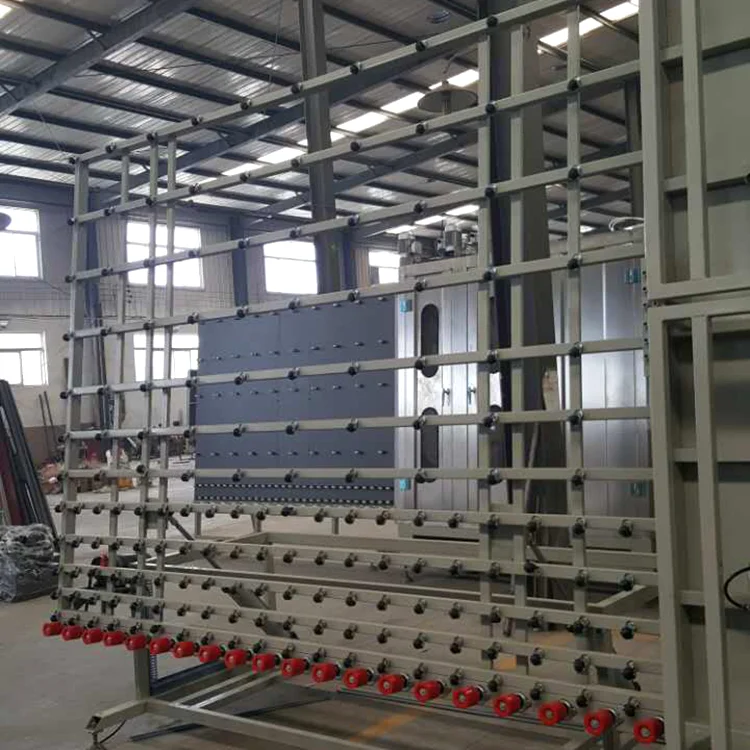

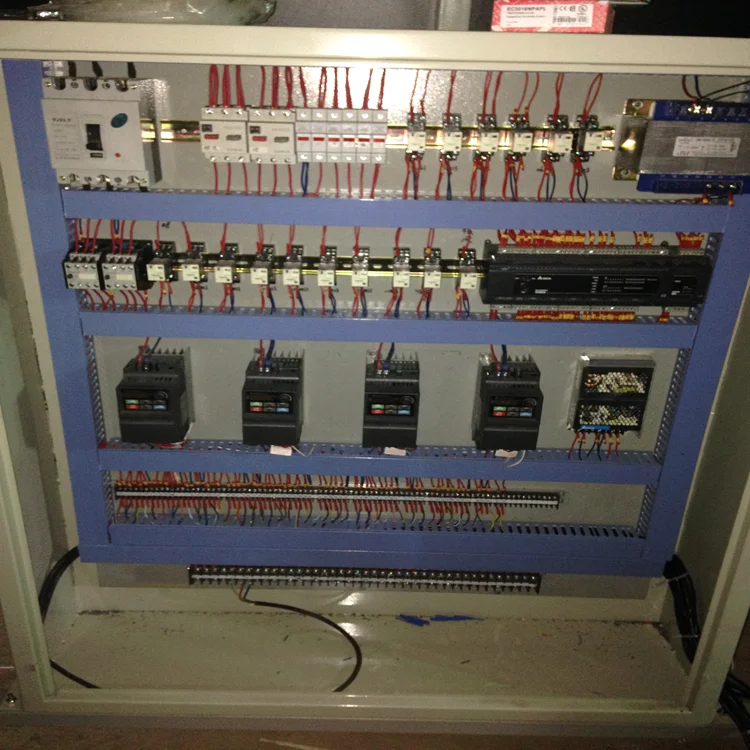

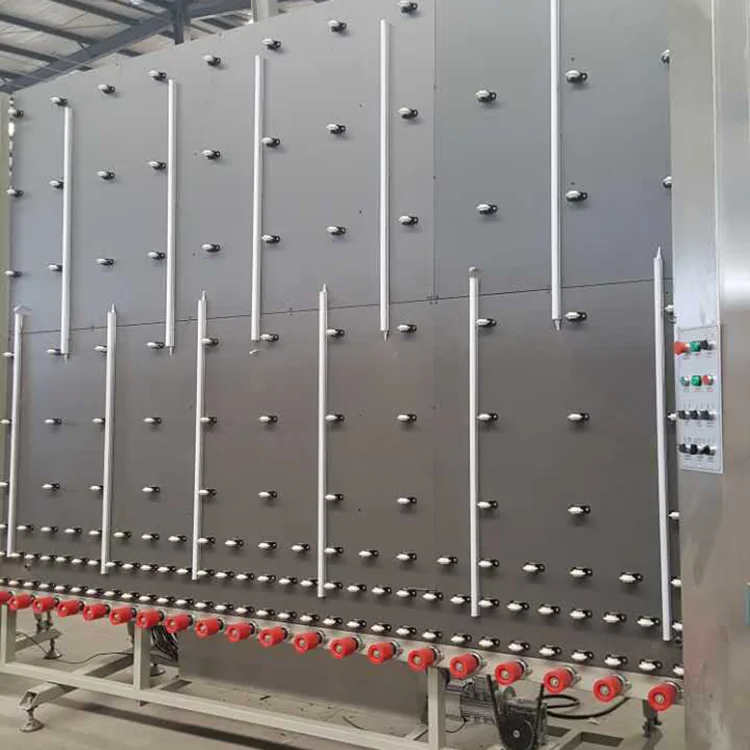

Machine details:

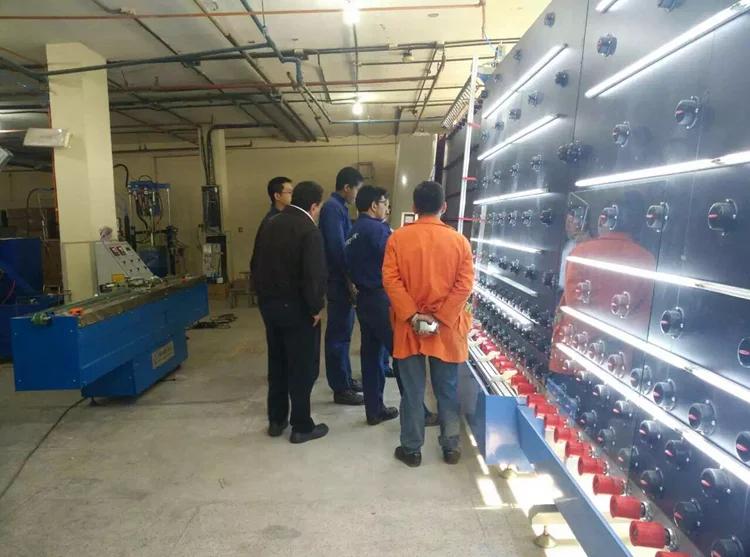

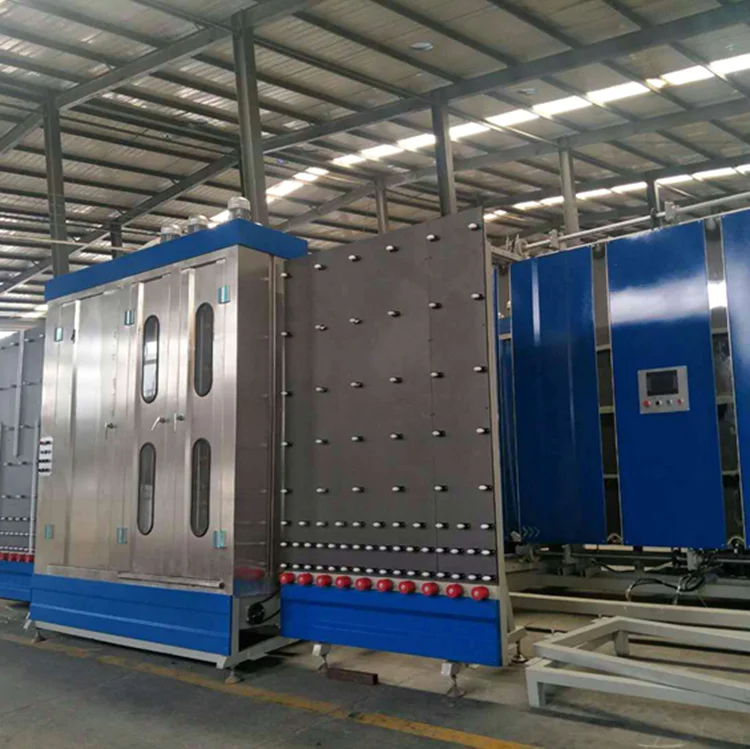

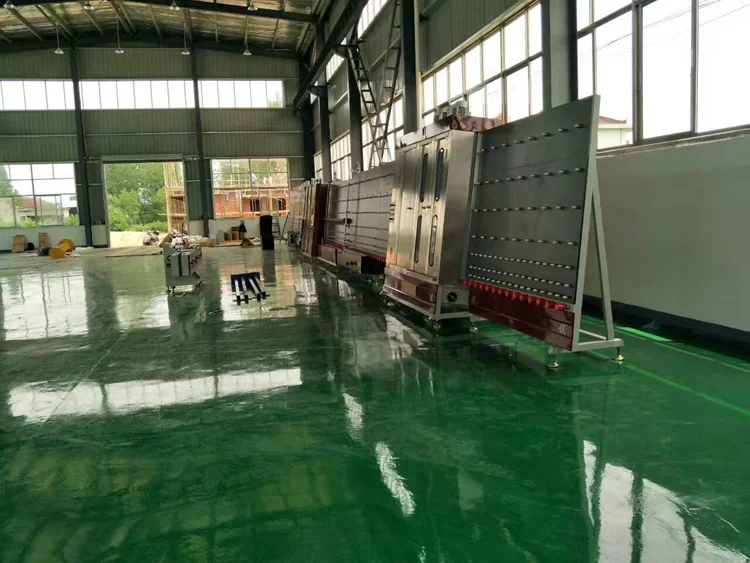

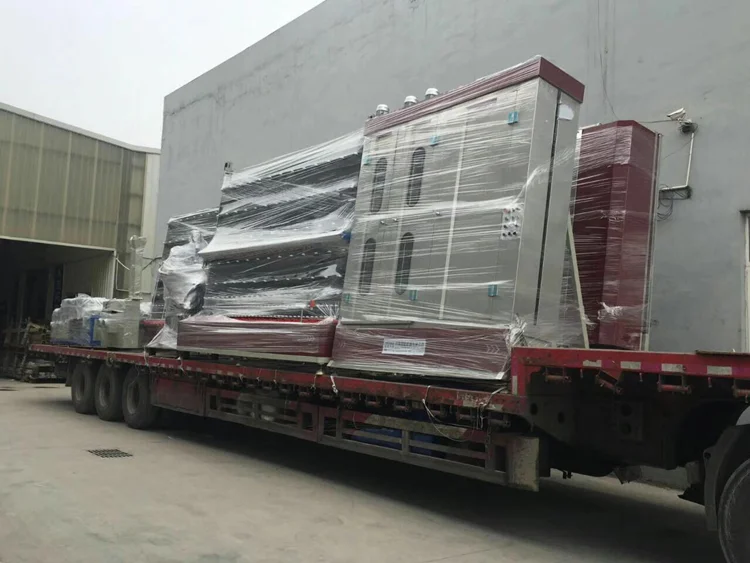

Customer factory show:



Our campany:
