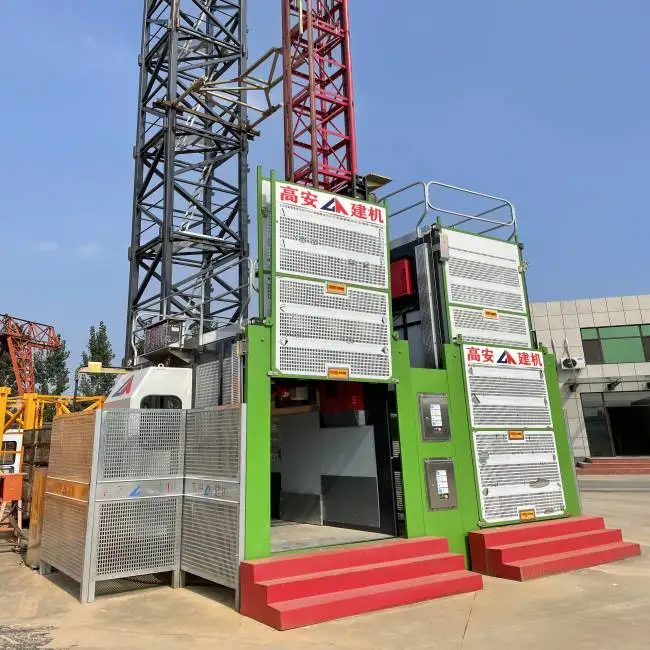

SC200/200 series construction elevator
SC series construction elevator is a new generation of construction elevator products designed and launched by Shandong Gao 'an Construction Machinery Co., LTD. It has advanced technical performance, safe and reliable use, convenient maintenance and other remarkable characteristics. It is the most ideal vertical transportation equipment for modern building construction.The lifting weight is from 1000kg to 2000kg, and the running speed is from 26m/min to 33m/min. After the installation of inverter control, stepless speed regulation can be realized from 0 to 60m/min to meet the needs of different users.


Features and Configuration


The characteristics of

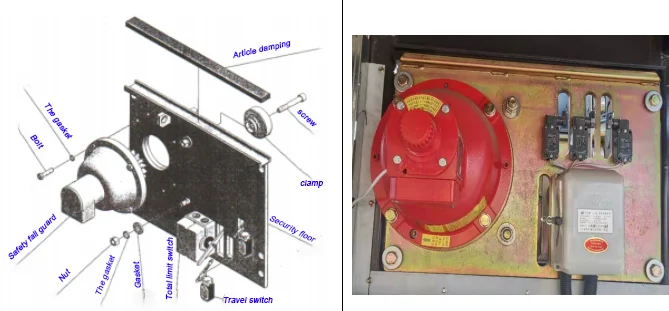

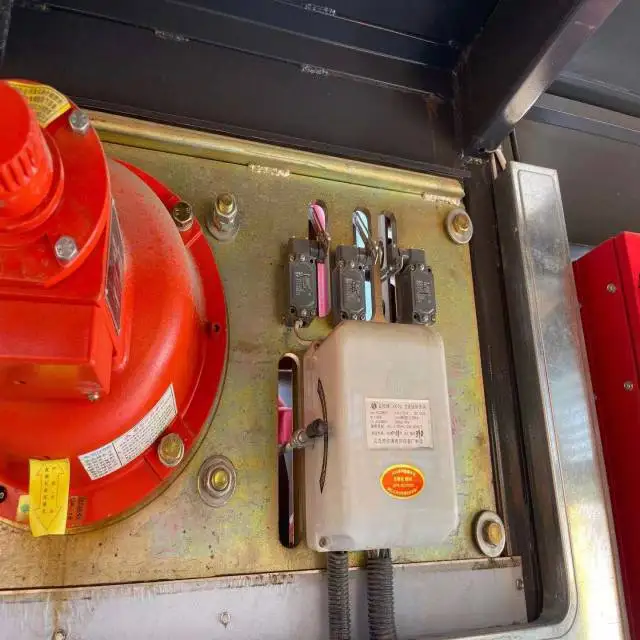

1. Safety protection device is complete and reliable. With national patent technology of anti-fall safety device, make the reliability of this machine in the first of similar products.
2. Combined design, through different collocation, can be combined out of different speed, different weight of the elevator
specifications. The standard, practicability and universality of the products are greatly improved.
3. Smooth operation and comfortable ride. Because the machine will drive unit above the top of the cage, so that the cage headroom increases; At the same time, it also makes the transmission more stable, the mechanical vibration is smaller, and brings a comfortable and spacious environment to the construction operators.
4. Overweight protection, more effective to ensure the use of equipment safety.


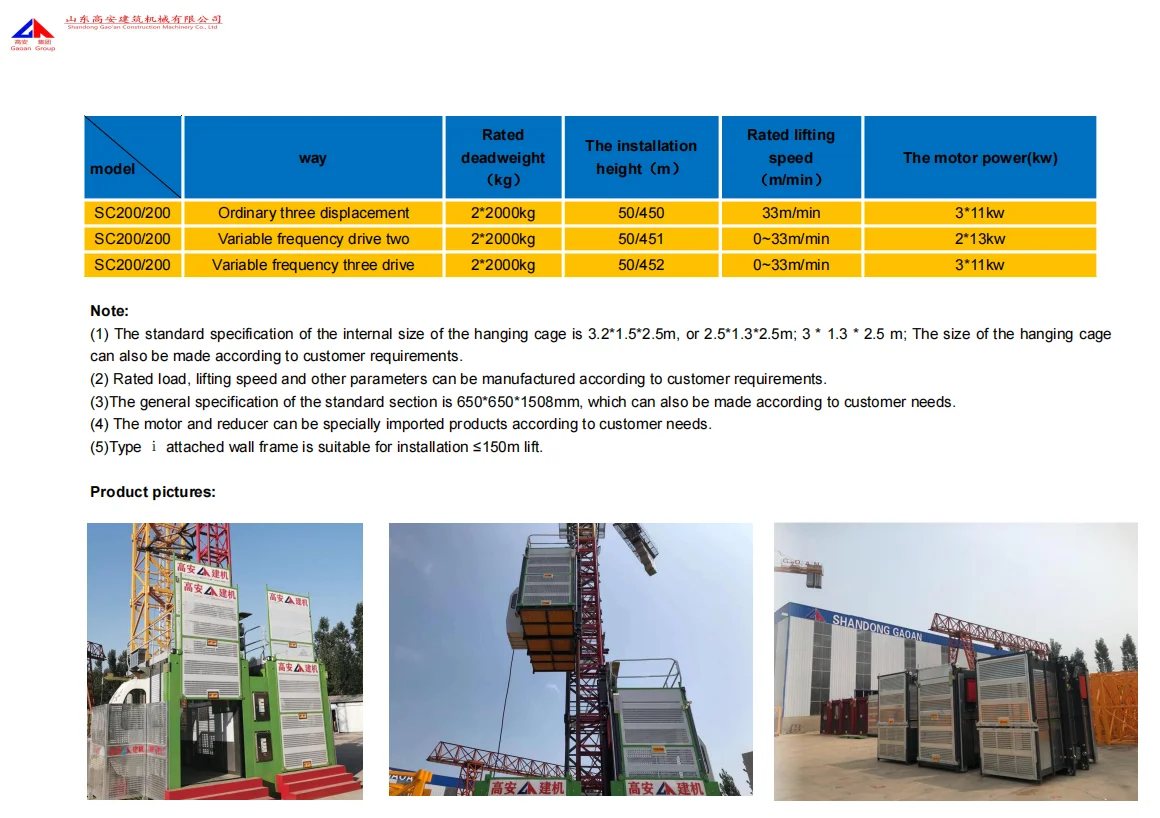

Series of parameters






PRODUCT SPECIFICATIONS


1
Rated Load
kg
2 x 2000
Double cage
2
Install/disassemble Reted load
kg
2 x 1000
Double cage
3
Lifting Speed
m/min
0-63
Reducer Ratio 1:16
4
Max. Height
m
200
5
Cage Dimension(LXW)
m x m
3x1.5/3.2x1.5
6
Distance Between Foundation And Cage Bottom
m
0.46
7
Distance between Anchor
m
≤9
8
Free End Height
m
≤7.5
9
Power Supply
V
380V±5%
10
Motor Power
kw
2x3x15
JC=25%
11
Rated Current
A
2x3x32.2
12
Inverter Power
kw
55
13
Safety Device Model
SAJ50-1.4


Introduction to working mechanism


Drive system

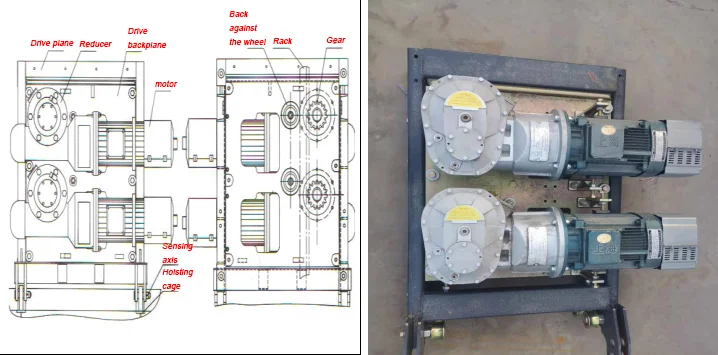

Drive system: by power frame and drive unit composition. The lower end of the power frame is aligned with the top of the hanging cage, and two pairs of rollers are attached to the two columns for guiding. The upper end of the power frame and the rail frame have two pairs of rollers to ride the column. The chassis is equipped with two/three drive units.The drive unit is composed of motor, electromagnetic brake, elastic coupling, reducer and transmission gear, etc.


Guide frame

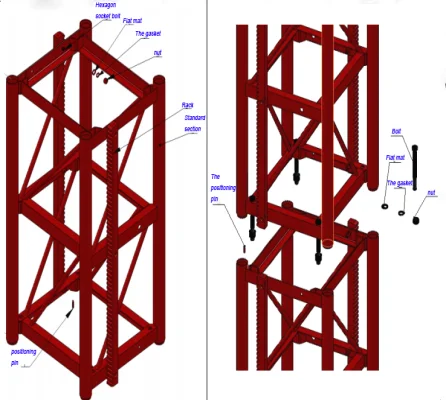

The guide rail frame is the running track of the elevator, which is composed of a length of 1508mm standard section through the connection bolt M24×240 connection, and the bolt pretightening force is not less than 30kg.m. The standard section is welded by seamless steel pipe, bending piece and steel pipe, and is equipped with rack, which is fastened by three inner hexagon screws and can be replaceable The lower end of the four main chord rod of the standard section is welded with a stop, and the lower end of the rack is provided with a positioning pin, so that the accurate positioning of the standard section is installed. The standard section size is 650×650mm square section. The guide rail frame is connected to the building by an attachment frame


Top institutions
The limit device includes the upper and lower travel limit bumping block and the upper and lower travel limit bumping block, the upper and lower travel limit bumping block to ensure the upper and lower travel limit bumping block to ensure the upper and lower cage running at the specified position automatically cut off the power supply to stop the lift operation.The limit bump ensures that the main power supply will be cut off immediately when the cage continues to operate after the upper and lower limits due to the failure of the limit switch, so that the cage system will stop, ensuring that the cage will not fall off the top when running up and will not hit the bottom when running down.


Hoisting cage

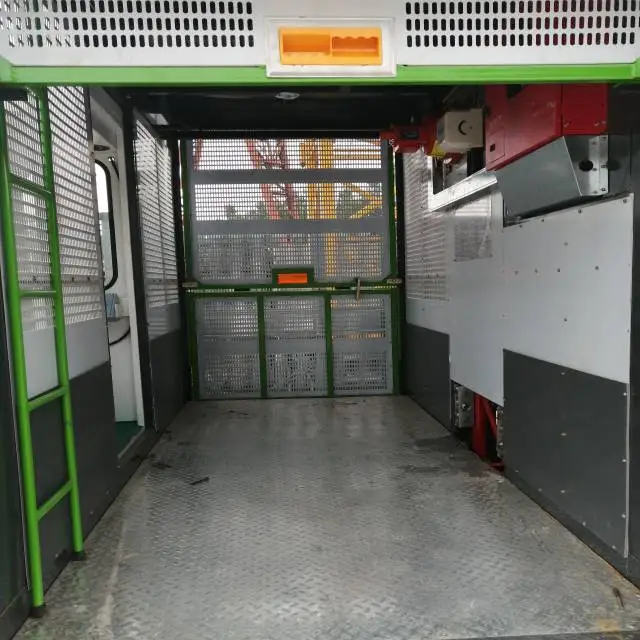

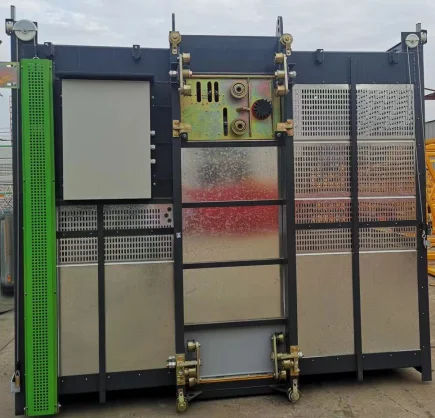

The hanging cage is made of steel, punched plate and pattern plate welded into a fully enclosed structure, the top is provided with an exit door, for the use of personnel up and down, the cage inlet door and the exit door are suction doors. The hoisting cage is equipped with an electrical interlock device. When the cage door is opened, the hoisting cage will stop working to ensure the safety of the personnel in the hoisting cage. A driver's cab is installed on the side of the hanging cage for the driver to operate. All operating switches are located in the driver's room. There are 12 guide rollers running along the guide rail frame on the hanging cage.


The process flow

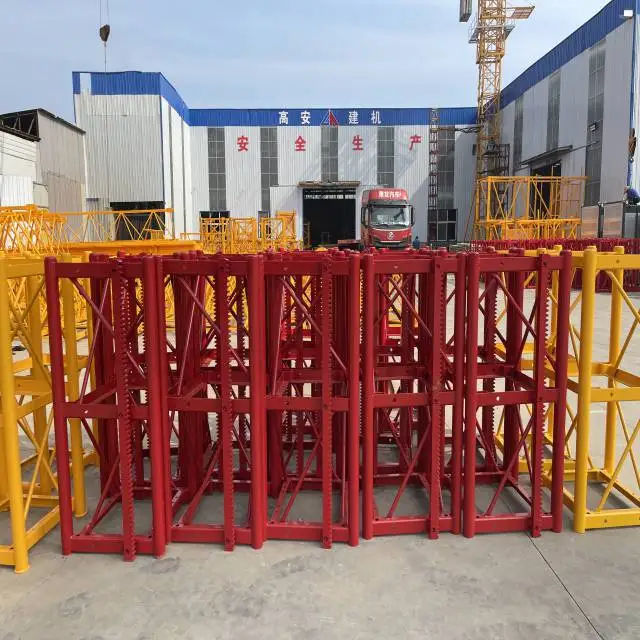

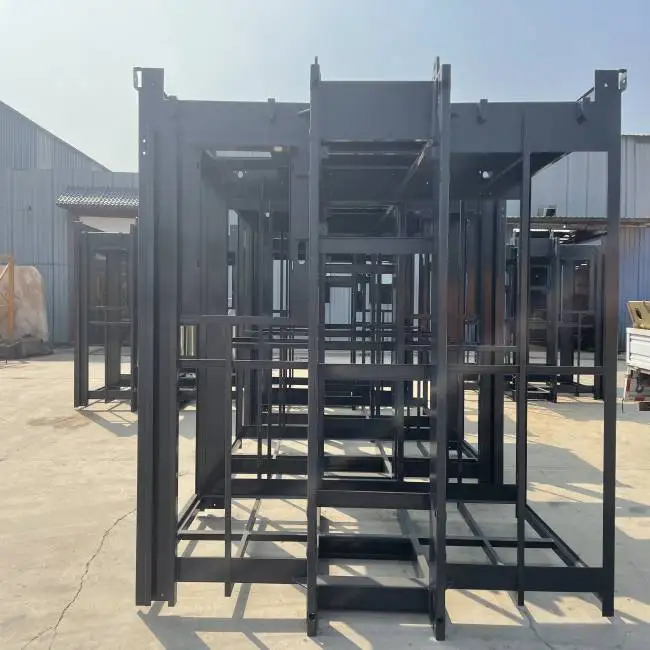

Structural parts forming
Apply laser detection, multi-point deflection compensation and other technologies to achieve high-precision molding such as standard joints and booms.
The coating part
Using automatic spraying, quaternary hot air circulation baking paint, electrostatic spraying and other technologies, the paint adhesion and corrosion resistance have reached the highest level in the industry.
