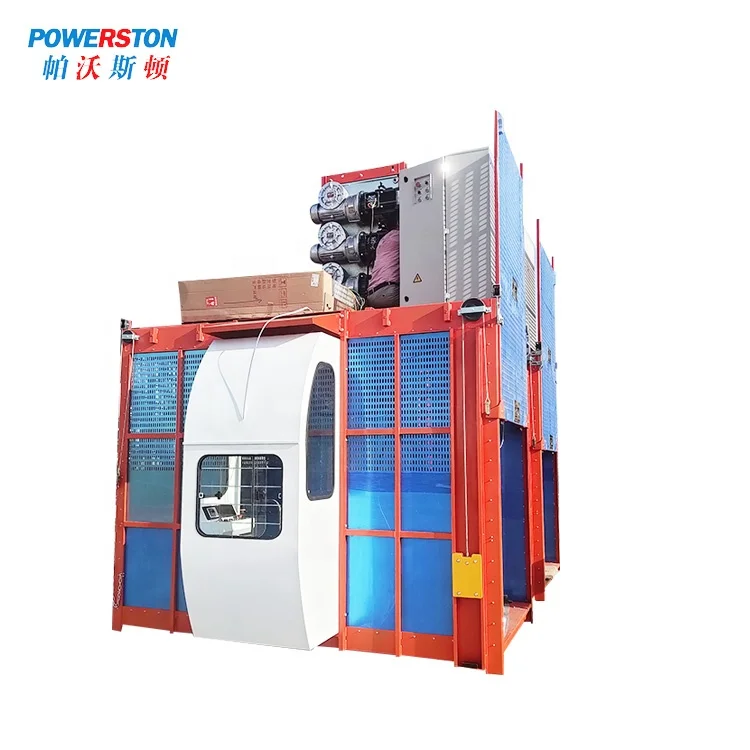

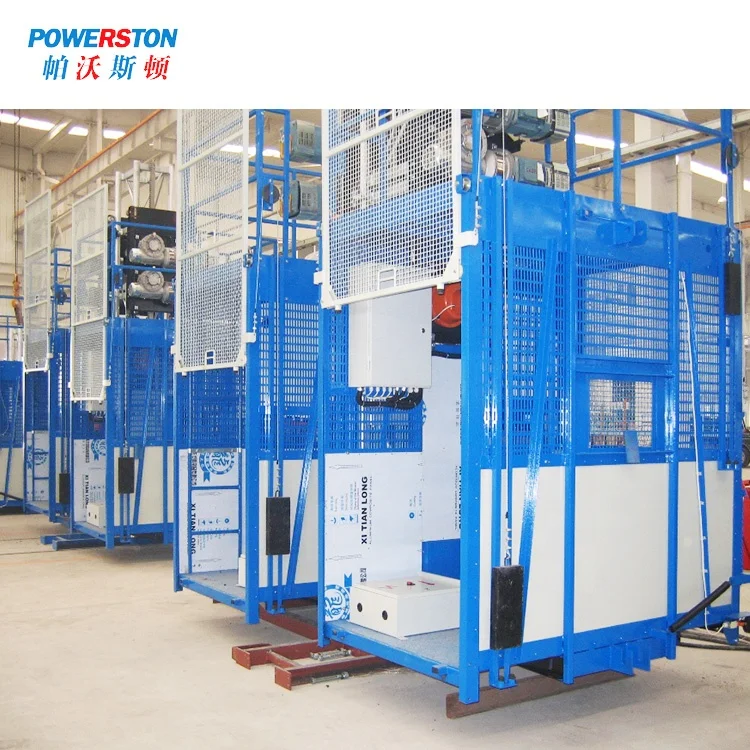

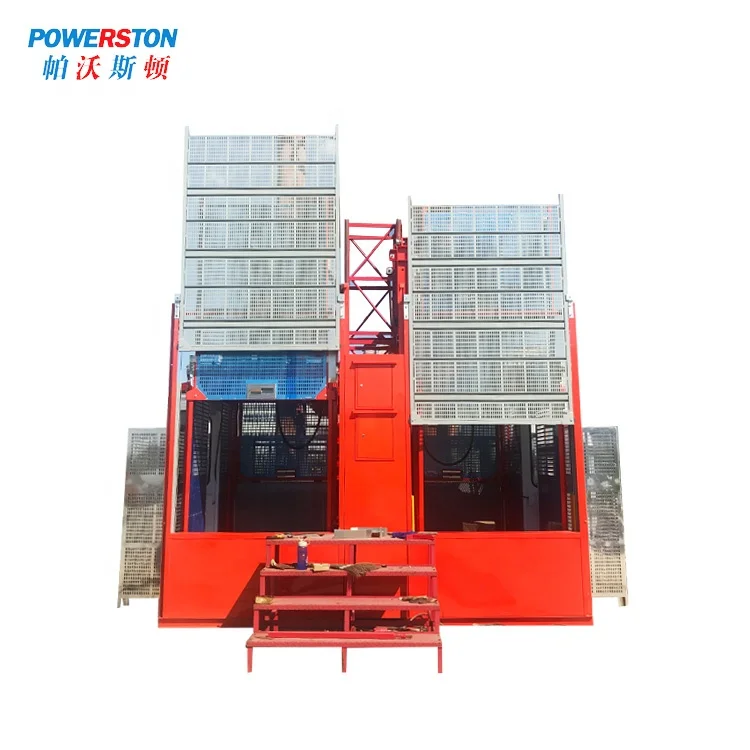

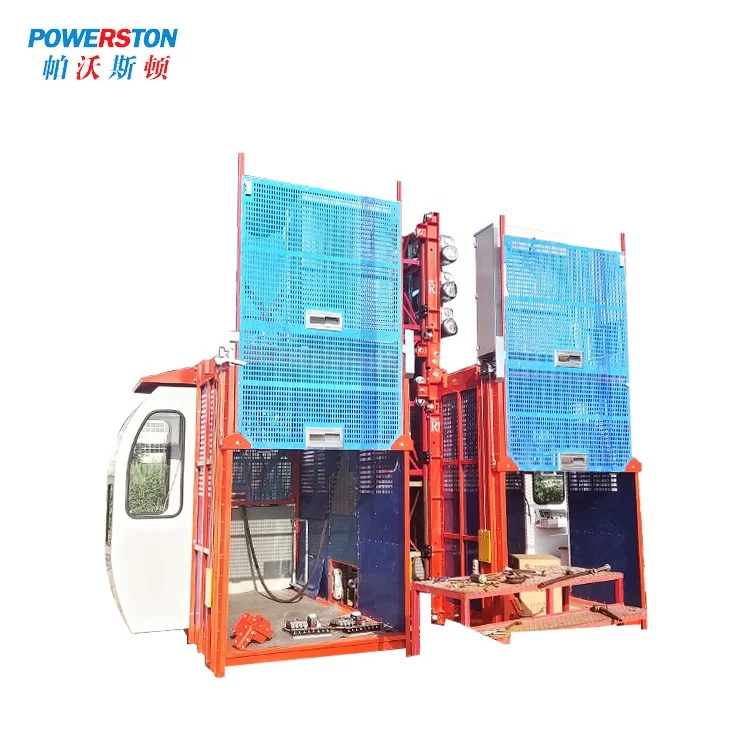

Строительный строительный подъемник, грузовой Лифт SC200, пассажирский подъемник (60605299872)

Share on (60605299872):


Price:

Quantity:


Product Overview

Description



Product Description


Product Application

We are special supplier of building hoist in China, our building hoist have been Widely exported to all over the world and won good reputation, whose payload capacity is as much as 5000kg, lifting speed can reach up to 96m/min, and the erection height reaches up to 550m., our products have been widely used for transportation for both men and cargo in field of general buildings, but also industry, electric power, mining well, oil, chemical industry etc.
SC200TD, SC200/200TD building hoist:
1). Each cage load capacity: 2000kg
2). Lifting speed: 36m/min or 63m/min or 96m/min
3). Mast section: Paint or hot dipping zinc
4). Cage: Single cage or twin cage
5). Recommended cage inner dimension(LxWxH)(m): 2.5x1.3 x2.5; 3.0x1.3x2.5; 3.2x1.5x2.5; 3.6x1.5x2.5; 3.8x1.5x2.5; 4.0x1.5x2.5; 4.2x1.5x2.5, cage dimension is according to requirement of customer and special project.
6). Motor and reducing device: Made in China, can be SEW Germany according to requirements.
7). Counterweight: With counterweight or without counterweight
8). The colors of cage: Yellow, or red, or blue
9). Other each cage load capacity for your to choose: 1000kg, 2000kg, 2700kg, or 3200kg



SPECIFICATIONS FOR OUR BUILDING HOIST
Model
Capacity(kg)
Lifting Speed(m/min)
Motor  Power(KW)

Single cage
SC100
1000
36, 63 or 96
2*11
SC200
2000
36, 63 or 96
3*11
SC270
2700
36, 63 or 96
3*15

double cage
SC100/100
2*1000
36, 63 or 96
2*2*11
SC200/200
2*2000
36, 63 or 96
2*3*11
SC270/270
2*2700
36, 63 or 96
2*3*15








Detailed Images


Machine Parts

Name: Mast section

Original: China

Dimension: 650*650*1508mm

Color: Red, Blue or Yellow, Or hot dipping zinc

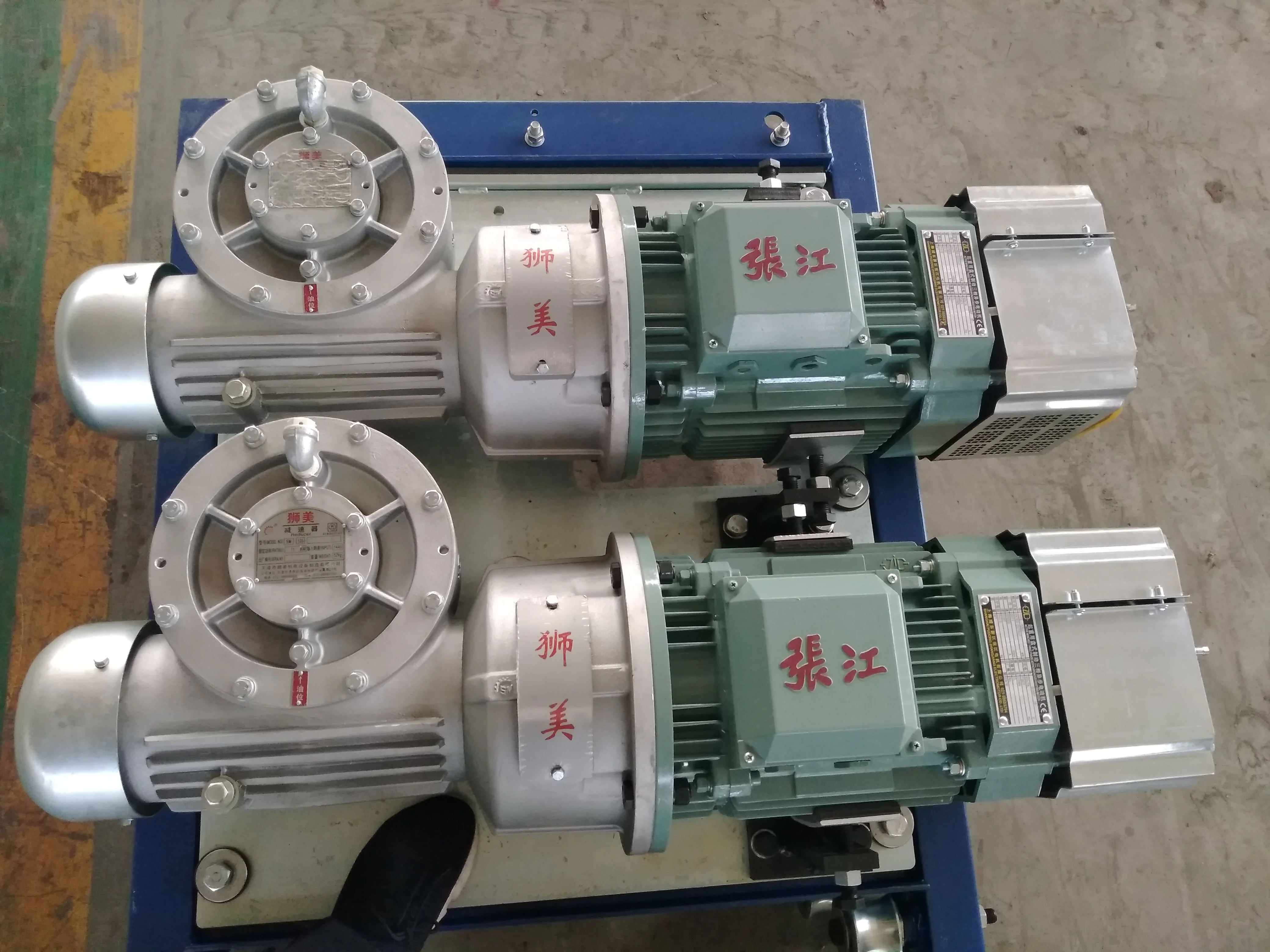

Main parts

Name: Hoist machinery
Original: China

Motor power: 2*3*11KW or 2*3*15KW depend on requirement

Gear box ratio: 1:16, 1:12, 1:10 and so on

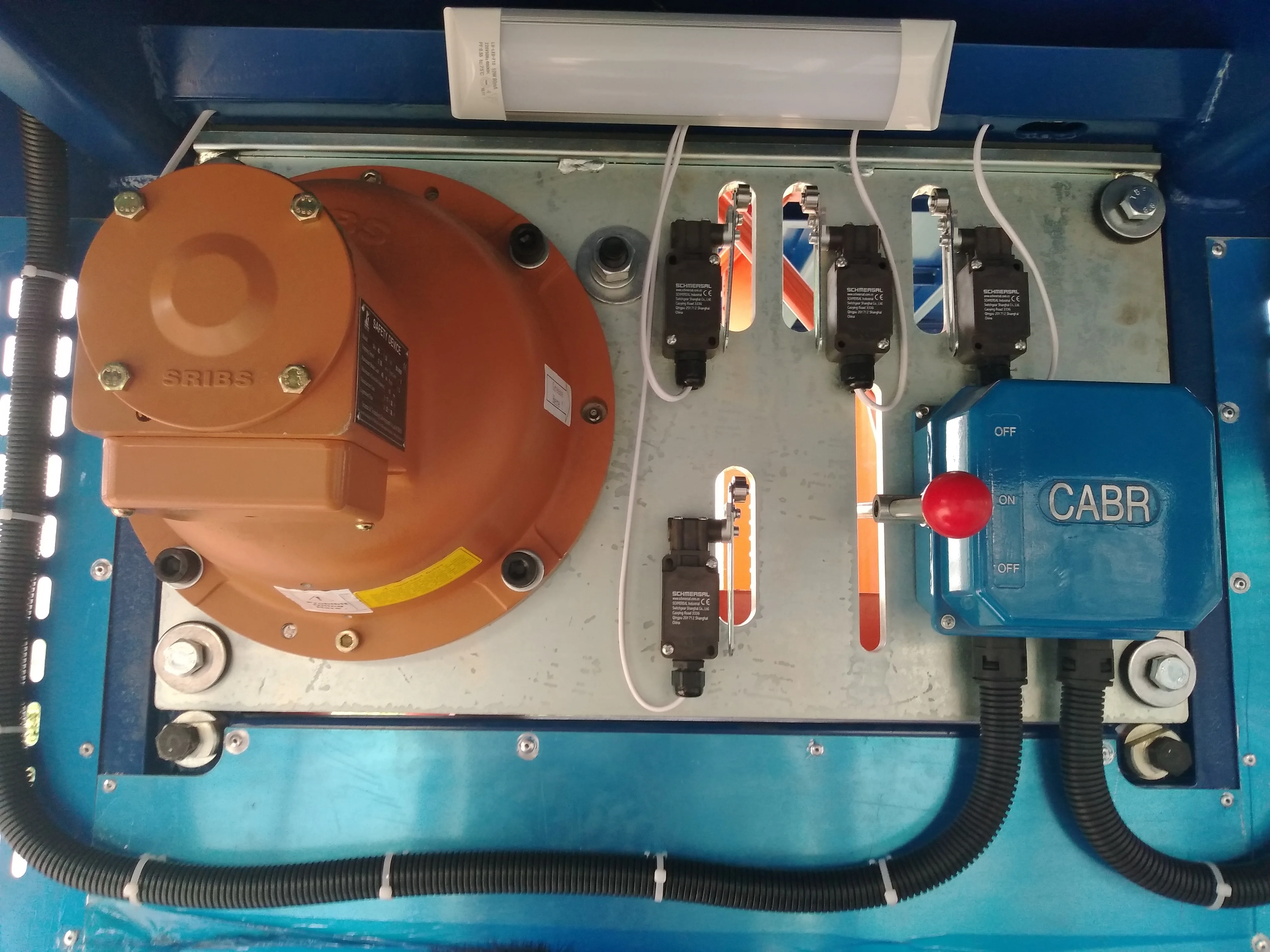

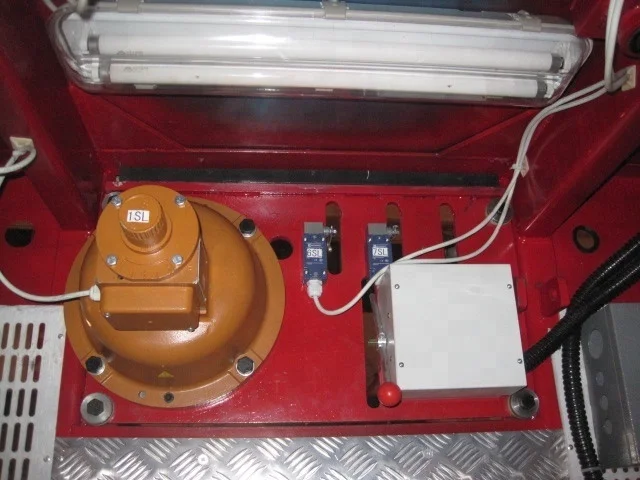

Machine Parts

Name: Safety Device
Original: China
Motor power: SAJ40-1.2



Packing and Delivery




RFQ


Q: What is the building hoist main purpose?
A: Building hoist equipped with double or single cabin to transport the materials and labors up and down. It's the ideal construction equipment for vertical transportation in the field of construction.

Q: What is the main structure of building hoist?
A: The P/M construction hoist mainly contains metal structure, driving system, electrical control system, cable guide & protection system, electrical top crane and safety device.

Q: What is the meaning of the building hoist’s code?
A: Take SC200/200 for example: “SC” stands for rack and pinion hoist, “200/200” stands for double cage and capacity is 2 tons per cage. “SC200” stands for single cage and capacity is 2 tons.

Q: What is the dimension of the cage?
A: Normally the cage dimension is 3X1.5X2.5M (L/W/H) for 2t type hoist. Details should be checked according to our quotation sheet. Also, the size can be customized according to the factual site condition. There are two doors (entrance & exit doors) for each cage, It can be produced as up & down sliding or ramping model for safety and convenience.
