4 Axles Heavy Duty 90ton 110ton Low Loader Lowboy Detachable Gooseneck Removable Lowbed Trailer
- Category: >>>
- Supplier: Shandong Yuncheng Xinya Trailer Manufacturing Co. Ltd.
Share on (1600320144576):
Product Overview
Description
Products Description

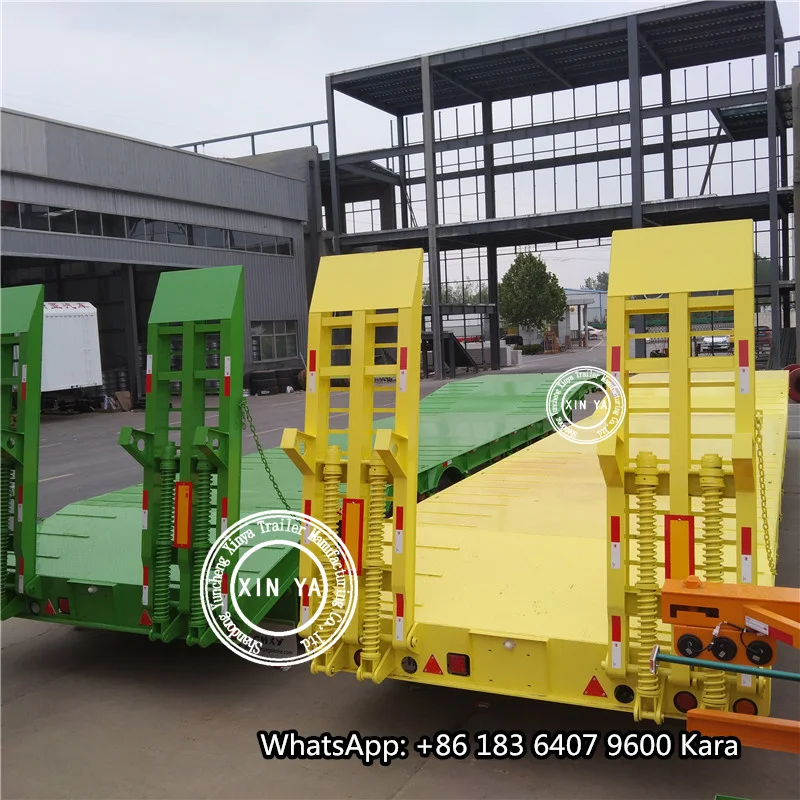

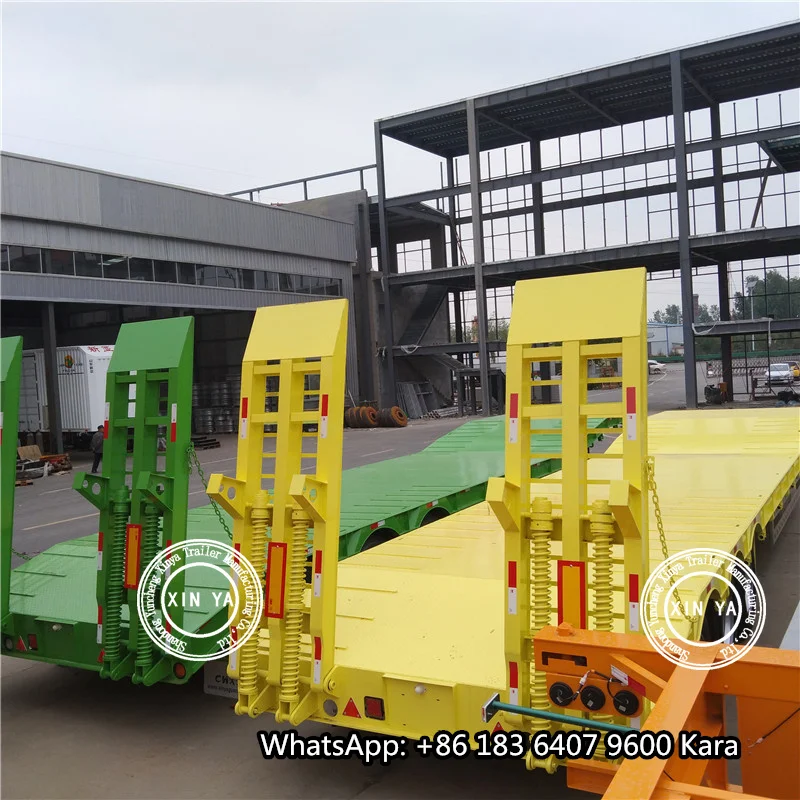

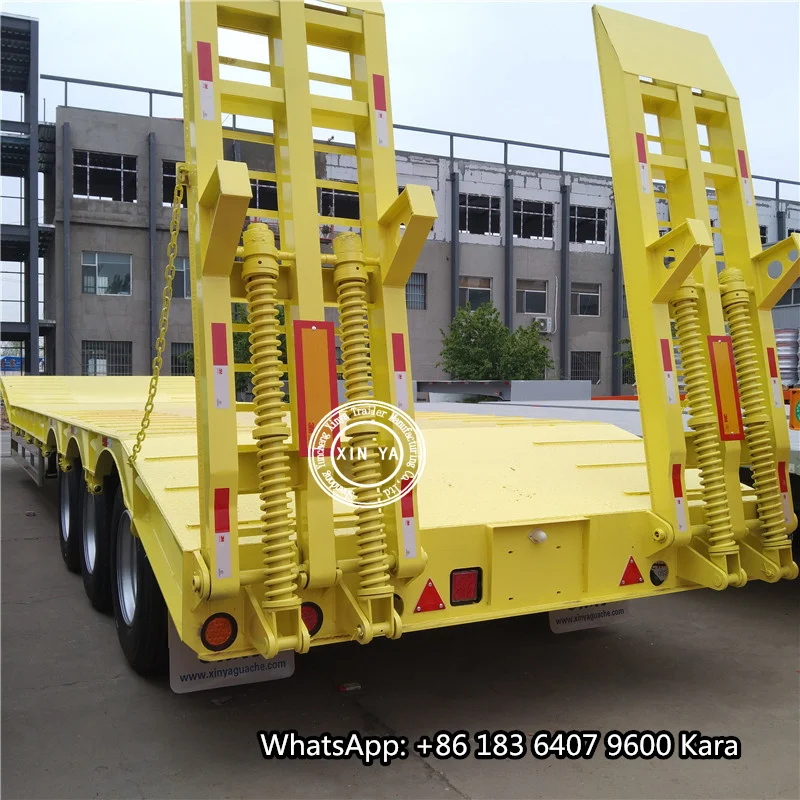

4 Axles Heavy Duty 90ton 110ton Low Loader Lowboy Detachable Gooseneck Removable Lowbed Trailer
4 Axles Heavy Duty 90ton 110ton Low Loader Lowboy Detachable Gooseneck Removable Lowbed Trailer
4 Axles Heavy Duty 90ton 110ton Low Loader Lowboy Detachable Gooseneck Removable Lowbed Trailer
Features:
1. Different length available.
2. Gooseneck type: hydraulic gooseneck, detatchable gooseneck, radial gooseneck etc.
3. Axles can be 2,3 or 4 etc. Steering axle & hydraulic axle available.
3. Line lowbed available.
4. Platform extendable, super low platform availale.
5. Twist lock available.
6. Fence Lowbed available.
Details Images
Product Paramenters
Tri Axles 80T 13 Meter Long Truck Lowbed Semi Trailer | ||
Overall Dimension(L*W*H) | 13000*3000*1800mm(Size can be chose freely) | |
Tare Weight | 10T | |
Loading Weight | 80T | |
Axle | 13T 3/4 pcs, BPW or FUWA or other china brand | |
Leaf Spring | 90*13-10 6/8 sets, Funiu or Taiyue or other china brand | |
Suspension system | Mechanical Suspension / air suspension / single point suspension; (Germany Type or America Type or Japan Type); | |
Main Beam | The height of the beam is 520 mm, upper plate 20 mm, down plate is 20 mm, middle plate is 12 mm, Material is Q 345B Steel | |
Cross member | 12#C type or AB type | |
Side rail | 250# "工" type | |
king pin | 3.5" | |
Platform | Q 235, checkered plate, 4 mm, | |
Hole / lashing | 12 pcs per side,24pcs in total | |
Hook | 9pcs per side,18pcs in total | |
Landing legs | 28 T total Lifting capacity and 50 T static capacity,two speeds | |
Brake system | Type: Dual line braking system Brake Air chamber: 6 in total, T30/30*4 + T30*2 Air tank: 40L*2 unit ABS: none | |
Electric system | 24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc. | |
Lowbed Types Recommended:
Packing & Delivery
Professional shipping plan, economical sea freight !!!
Company Profile
XINYA TRUCK TRAILER FACTORY
1. XINYA have been in truck trailer field for more than 20 years.2. Our products are famous in aftermarket.
3. We've export to Europe, South America, South Africa and Southeast Asia;
4. We've passed ISO9001:2000 & BV & SGS & CCC certificates;
5. We've set up unified technical departments and testing standards;
1. XINYA have multiple production lines, able produce multiple types truck trailers and spare parts;
2. XINYA IS THE SOLE COATING FACTORY IN TRUCK TRAILER FIELD IN CHINA!!!
Plenty trucks and trailers for your choice !!!
Production Lines
Plenty trucks and trailers for your choice !!!
Production Lines
XINYA GROUP VIP tips:
1. We've invested in trailer parts (axle, suspension, fifth wheel, kingpin, landing gear, twist lock etc) ;2. We've invested in Truck field for 5 years plus;
3. We've take part in international exhibitions;
Customer Photos
Factory Price !!!
Customization Available!!!
Customers Visiting & Contracting
Welcome Visit XINYA GROUP!!!
FAQ & Contact
1. Q: Does your company has your own factory?
A: Yes, we are factory, with long history and famous reputation in Shandong, China.
2. Q: Could you special design and produce for me?
A: Definitely! We have all kinds of professional engineers to meet your various needs.
3. Q: What's your payment term?
A: We accpet both T/T and L/C.
T/T: 30% before production, 70% before leaving factory.
L/C: 100% irrevocable Credit of Letter.
More details for these trucks, please feel free to contact us!!!
A: Yes, we are factory, with long history and famous reputation in Shandong, China.
2. Q: Could you special design and produce for me?
A: Definitely! We have all kinds of professional engineers to meet your various needs.
3. Q: What's your payment term?
A: We accpet both T/T and L/C.
T/T: 30% before production, 70% before leaving factory.
L/C: 100% irrevocable Credit of Letter.
More details for these trucks, please feel free to contact us!!!
