Sheet Extruder PP/PS /PE Materials Granule Auger/Screw Feeding Processed Bioplastic Plastic Extrusion Sheet Machine
- Category: Plastic Extruders >>>
- Supplier: Wenzhou Nailian Packaging And Technology Co. Ltd.
Share on (1600320229028):
Product Overview
Description

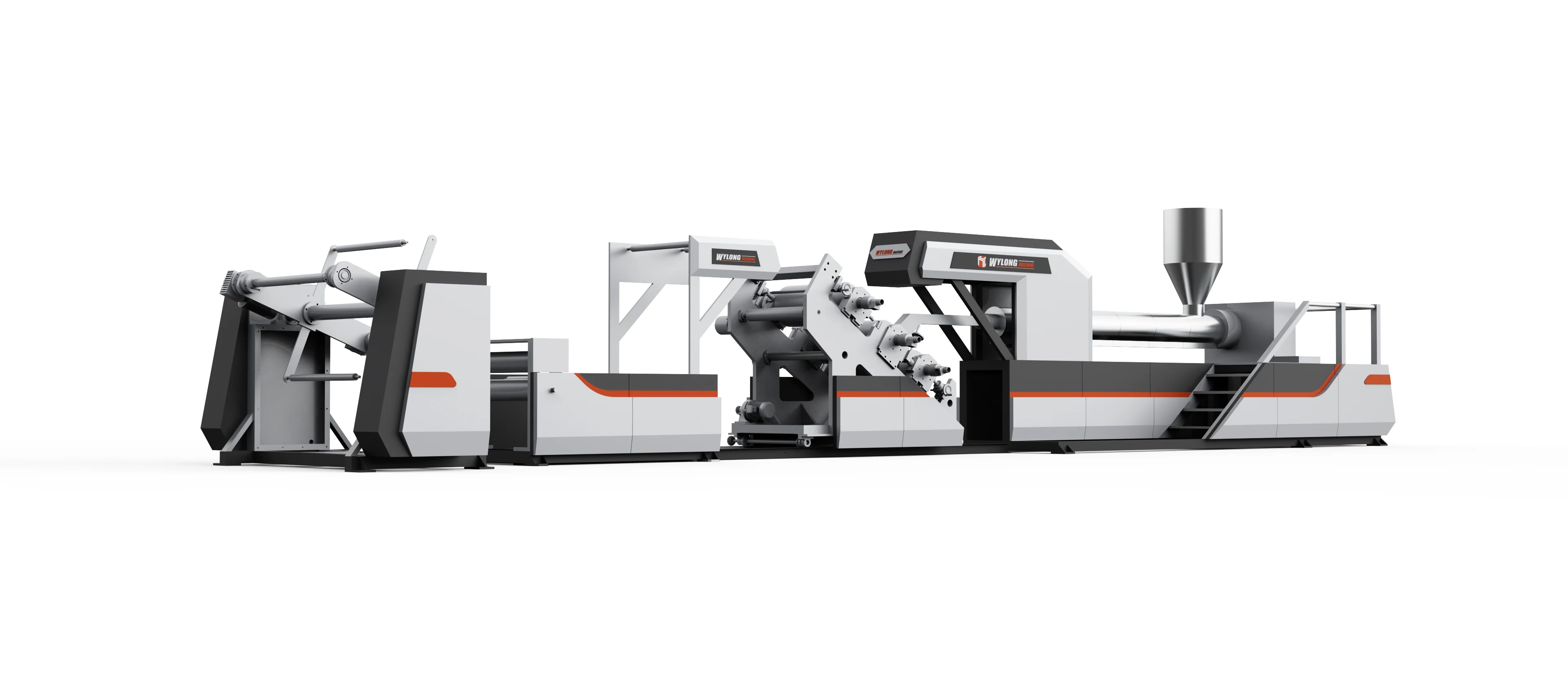

Single Screw PP/PE/PS Sheet Extrusion Line Plastic Sheet Extruding Machine
APPLICATION:

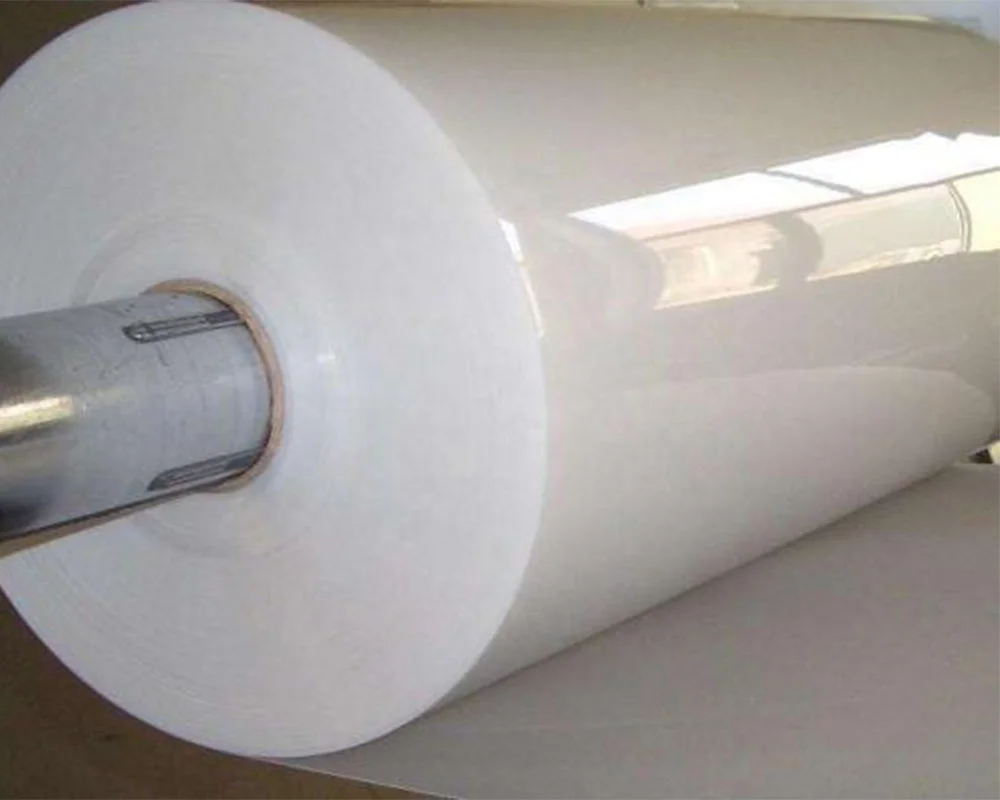

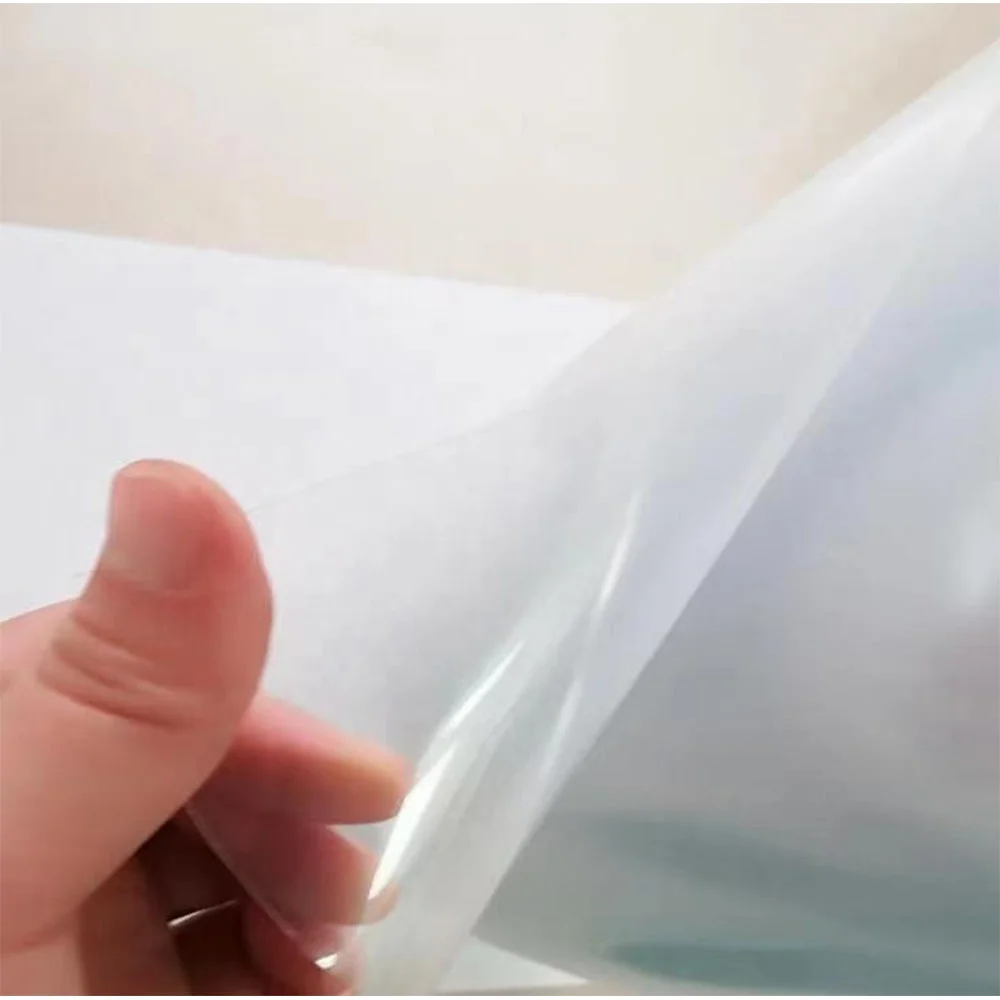

We adopt advanced international technology and make considerable innovations on design, manufacturing andaccessories for NUP series plastics sheet extruder. The machine is mainly used to produce two layers or three layers plastic sheet of PP,PS and PE. Then the sheet can be taken to produce such as disposable cups, jelly cups, plastic packing containers, file and so on.
We adopt advanced international technology and make considerable innovations on design, manufacturing andaccessories for NUP series plastics sheet extruder. The machine is mainly used to produce two layers or three layers plastic sheet of PP,PS and PE. Then the sheet can be taken to produce such as disposable cups, jelly cups, plastic packing containers, file and so on.
Product Paramenters
1. Usage condition | Power | 380V/3P/50Hz | |
Water | 10 ℃-12℃,15m3/h or 20 ℃-25℃,30m3/h | ||
2. Suitable Material | PP. PS. PE | ||
3. Sheet Specification | L=700-800mm, δ=0.25-2.5mm | ||
4. Max. Capacity | 250-300kg/h | ||
5. Total Power | About 200kw | ||
6. Complete Dimension | 15m*2m*2.2m | ||
7. Total Weight | About 9000 kgs | ||

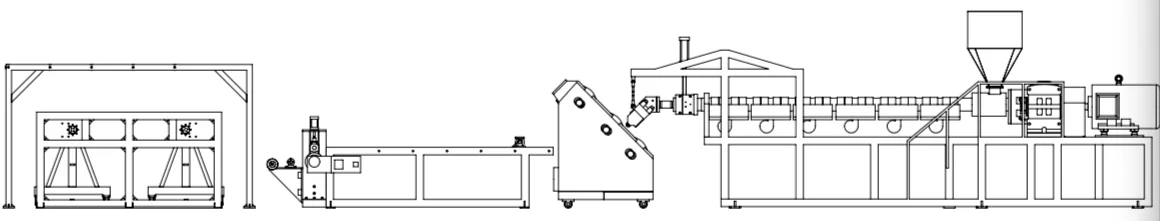

Machine structure
Auxiliary equipment .
Material Loading and mixing system
1,Loading capacity:50-600kg/h
2,Work type:Screw type
3Power:2.2 kw
2,Work type:Screw type
3Power:2.2 kw
Cooling tower
Power:1.5kw
Fan diameter:600mm
Cooling capacity:10t
Dimension:800mm*1800mm
Weight:50kg

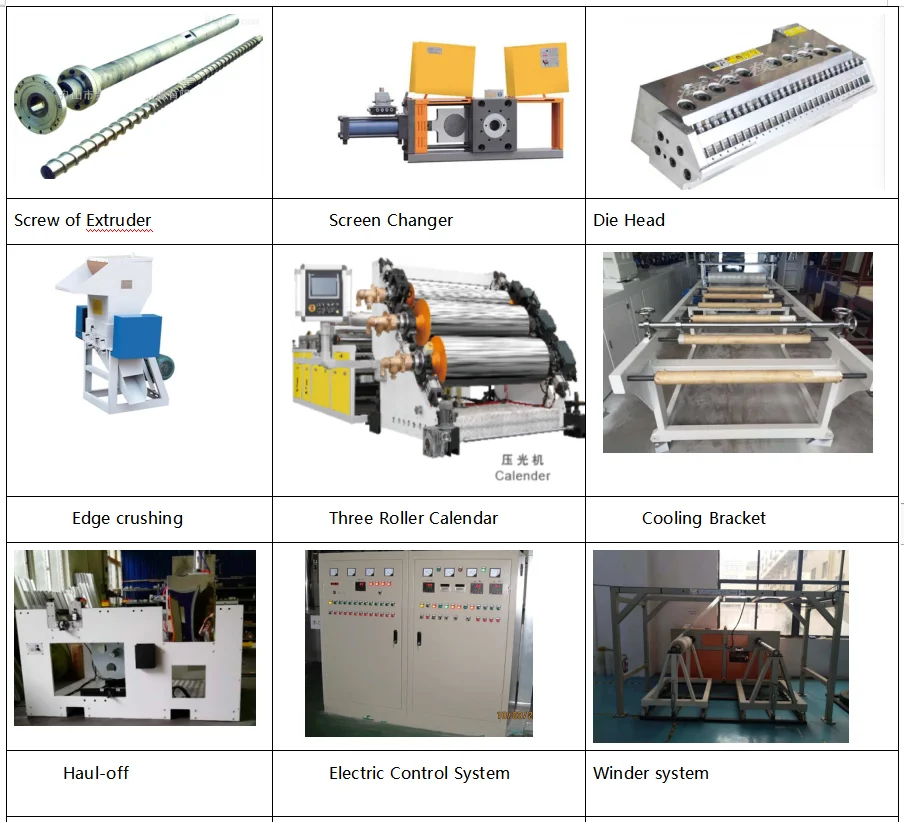

Configuration List
2. Screen changer | Drive type | Hydraulic drive with hydraulic station |
Heating method | Stainless steel heating rods | |
Structure type | Double slide plate automatic change |
3.Die Head | T-Die structure | Clothes hanger type |
Width | L=900mm | |
Heating zone | 6 zones | |
Heating power | 28kw | |
Die head material | 5CrNimo |
5. Three-roller calendar | Calendar type | “45 Degree”Oblique type | |
Roller size | Φ450mm | ||
Surface roughness | Ra≤0.015um | ||
Surface hardness | HRC≥58 | ||
Chromium coated thickness | ≥0.1mm | ||
Transmission type | Synchronize drive | ||
AC motor | 5.5kw Siemens | ||
Inverter | Danfoss(Holip) 5.5kw | ||
Gap adjustable method | Hydraulic oil cylinder | ||
Bearing of the roller | Japan NSK | ||
The frame | One block of solid steel | ||
Rotational joint | Flange type | ||
With roller temperature controller system | |||
6. Cooling bracket | Bracket length | 5 m |
Roller | Aluminum oxidized, polished. | |
Size | Φ70×1000mm | |
Edge trimming units | 3 knives, adjustable. | |
Edge recycle winding | 1 unit |
7. Haul off unit | Haul off roller | Up rubber, down steel |
Rubber roller material | Nitrile rubber | |
Roller size | Ф200mm×1000mm | |
Motor | 2.2kw Siemens | |
Inverter | Danfoss(Holip) 2.2kw |
8. Winder | Working type | Two position rotation |
Drive motor | Oil motor | |
Max. winding diameter | Ф1000mm | |
Winding speed | 0.3-30m/min | |
Air shaft | Inner core 3 inches |
9. Electric system | Contractor | Schneider |
Relay | Schneider | |
Temp. Controller | Japan Omron | |
Breaker | Schneider | |
Air switch | China Chint | |
Buttons & lights | China Chint |
10.Loading system | Loading capacity | 50-600kg/h |
Work type | Screw type | |
Power | 2.2 kw |
We also can base on customer requirement to customize machine ..
2,Spare parts.
1. Screw tool | 1 set |
2. Die head tool | 1 set |
4. Screen changer heater | 4 pcs |
5. Die head heater | 4 pcs |
6. Screw heater | 4 pcs |
7. Temp. Controller | 1 pc |
8. Contractor | 2 pcs |
9. Reply | 2 pcs |
Related product

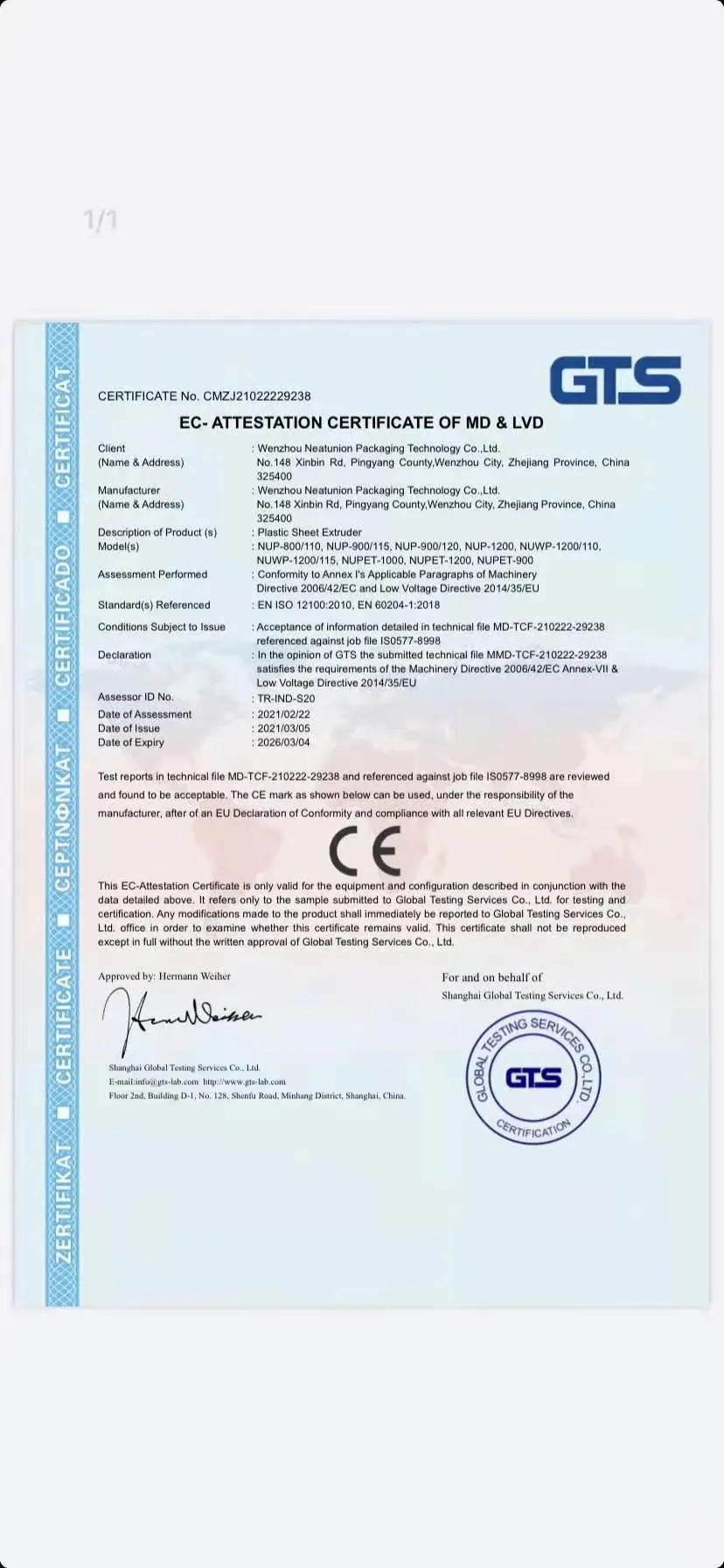

Certifications
Transportation&Packing
Company Profile
FAQ
Q1: Do you have different models for each machine?
Reply: Yes, we have different models and we can make the machine according to your requirements.
Q2: What is the production time?
Reply: Normally we need around 45 days.
Q3: What service you can offer after we buy the machine?
Reply: We have a few experienced technicians who can help to install and test running the machine anytime overseas. Moreover, our own export personel will give you the service support after buying the machine. As long as you have any questions, we will try our best to help you.
Q4: What about the payment terms?
Reply: We accept T/T. 30% as deposit and 70% balance should be paid before delivery. We can also accept 100% confirmed irrevocable L/C at sight.
Reply: Yes, we have different models and we can make the machine according to your requirements.
Q2: What is the production time?
Reply: Normally we need around 45 days.
Q3: What service you can offer after we buy the machine?
Reply: We have a few experienced technicians who can help to install and test running the machine anytime overseas. Moreover, our own export personel will give you the service support after buying the machine. As long as you have any questions, we will try our best to help you.
Q4: What about the payment terms?
Reply: We accept T/T. 30% as deposit and 70% balance should be paid before delivery. We can also accept 100% confirmed irrevocable L/C at sight.
