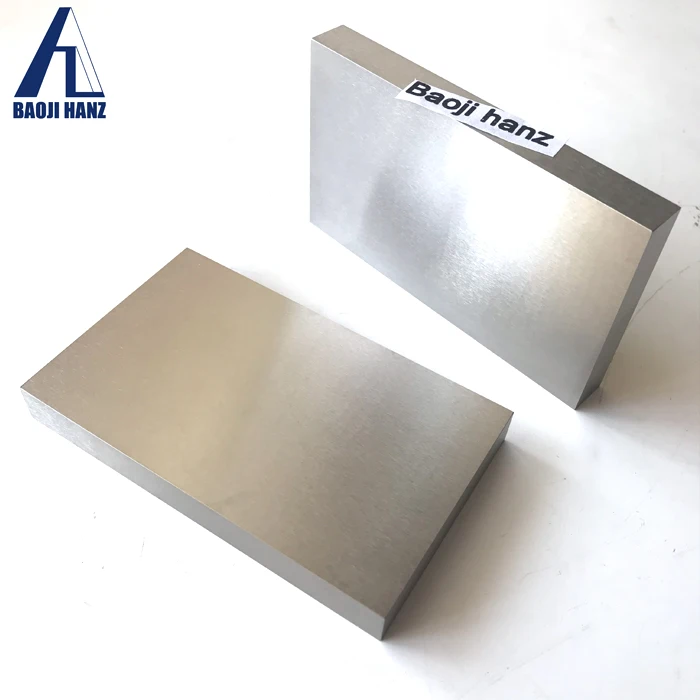

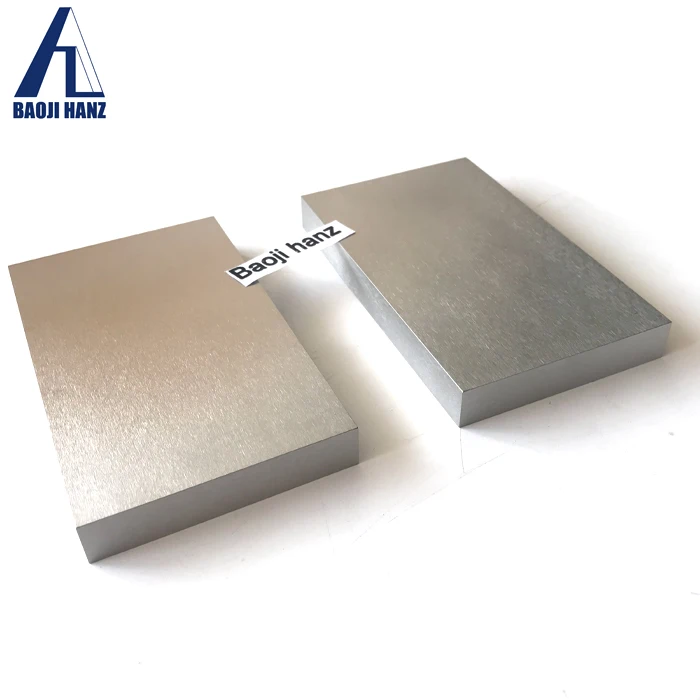

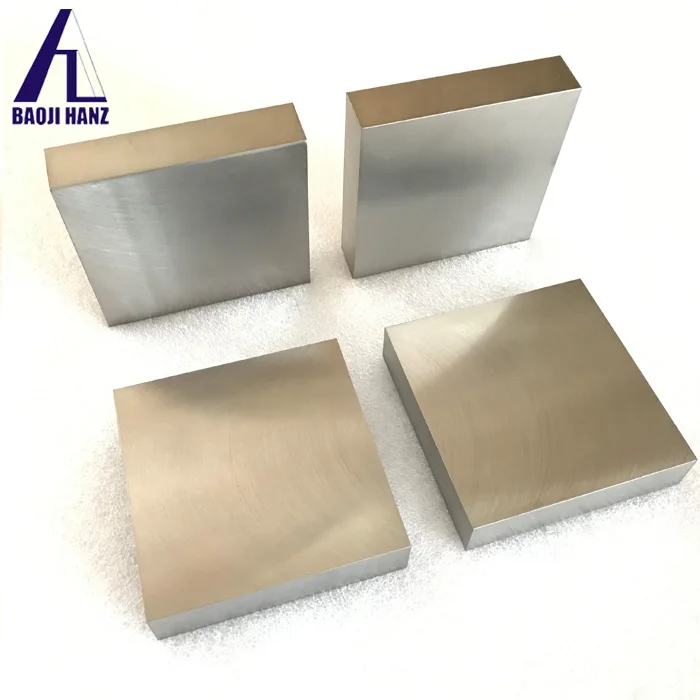

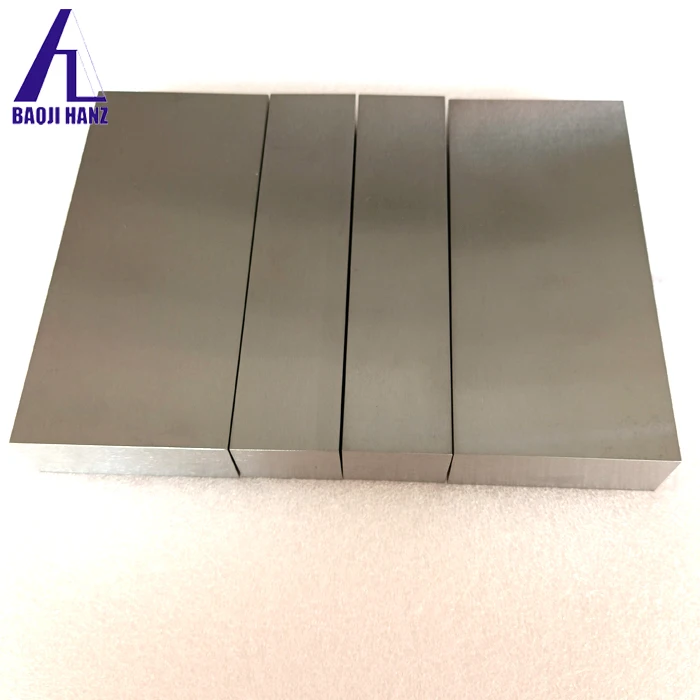

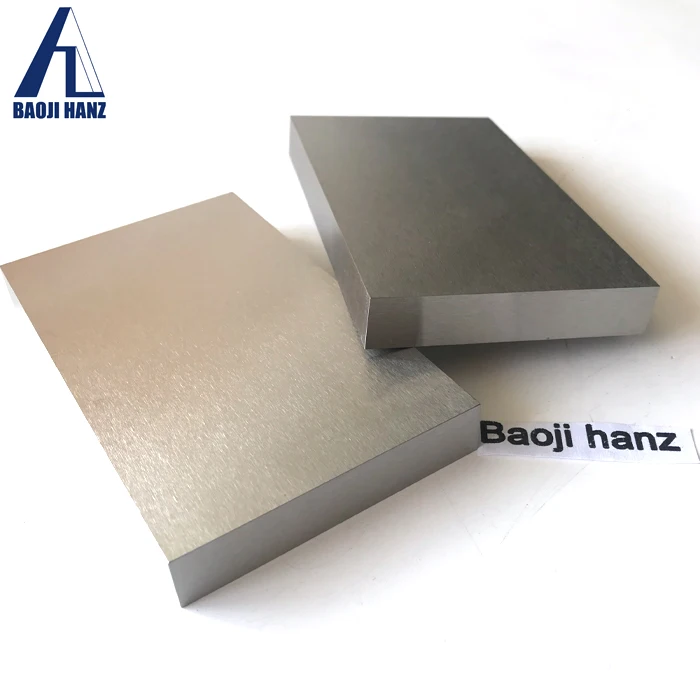

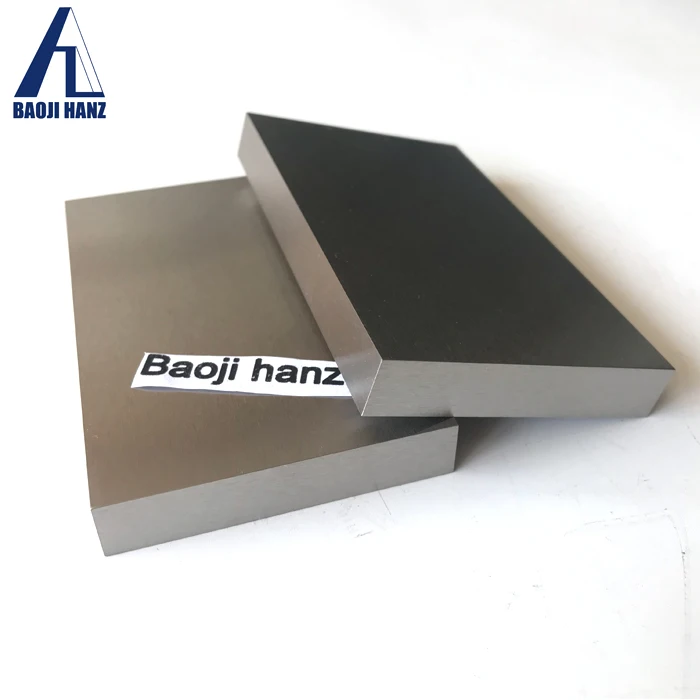

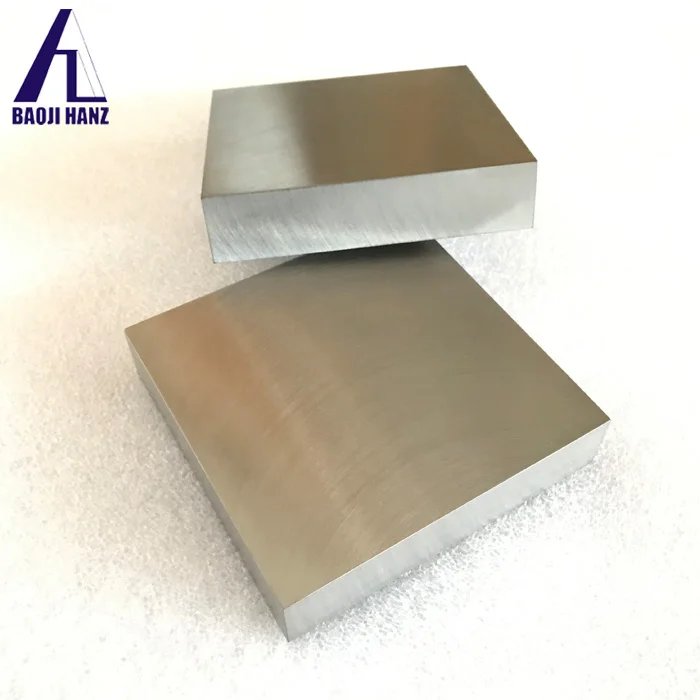

high hardness cemented carbide sheet plate

Product Overview

Description

Place of Origin	Baoji ,Shaanxi, China

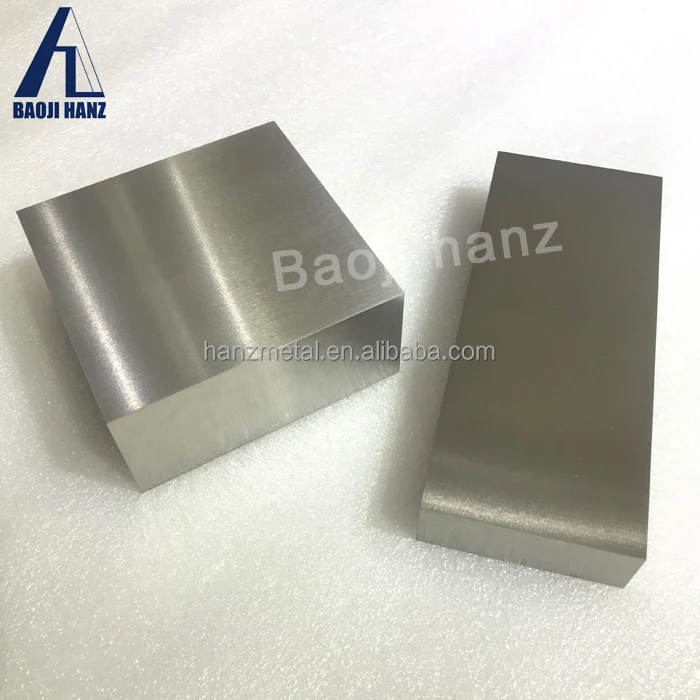

Name	Tungsten carbide block
Grade	YG6,YG8,YG15,YT5,YT15,YW1,YW2,YS25,ZP35,YC40...
Shape	block,cube,strip
Density	15.63g/cm3
Meltiing point	2870℃
Surface	Bright
Application	Mainly applicable to drill, milling cutter and reamer.  It can also be used for cutting, stamping and measuring tools.
MOQ	1KG

Size:

Thickness(mm)	Width(mm)	Length(mm)
0.05-50mm	50-500mm	100-1500mm

Grade:

Grade	YG6	YG6X	YKM6A	YG8	YT5	YT14	YT15	YW1	YW2	YS25	YC30S	YC40
Density(g/cm³)	14.9	14.8	14.7	14.8	13	11.5	11.3	13.1	13.1	12.8	12.8	13.2
Hardness(HRA)	91	92	92.5	90	90.8	91.5	91.8	91.5	91	91.5	91	90
TRS	1800	1800	1800	1950	1900	1500	1450	1600	1600	1900	2000	1850



Note:Welcome OEM&ODM.The size and purity can be customized as requiremets.

Feature:

1. Stable mechanical properties


2. Easy welding


3. High wear resistance


4. High impact resistance


5. High hardness

Application:

1,YG6 - Qualified for finish machining and semi-machining for the cast iron, non-ferrous metal, alloy and unalloyed materials.Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc.



2,YG8 - Qualified for rough machining of cast iron, non-ferrus metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts.



3,YG15 - Qualified for hard rock drilling, steel bars with high compression ratios, pipe drawing, punching tools, core cabinet of powder metallurgy automatic molders etc.



Baoji Hanz Material Technology Co., Ltd located in Baoji,China.With high preciously equipment and rich experience, our company specilizes in manufacturing  all  shapes of tungsten products and other alloy.



• Carton with water proof paper and protective foam inside

• Standard wooden case



TNT, EMS, UPS, FedEx, DHL, Air transport, Sea Transport, Railway Transport are vailable.

Depends on your demands, we will try our best to choose the most suitable way for you.

After we send the product, we will send the tracker number to you with Email, and also we will track this order until you can received successfully.
