20/40 ft swinglifters steelbro side loader lifter container side loading semi trailer
- Category: >>>
- Supplier: Shandong Yuncheng Xinya Trailer Manufacturing Co. Ltd.
Share on (1600323647585):
Product Overview
Description
Products Description

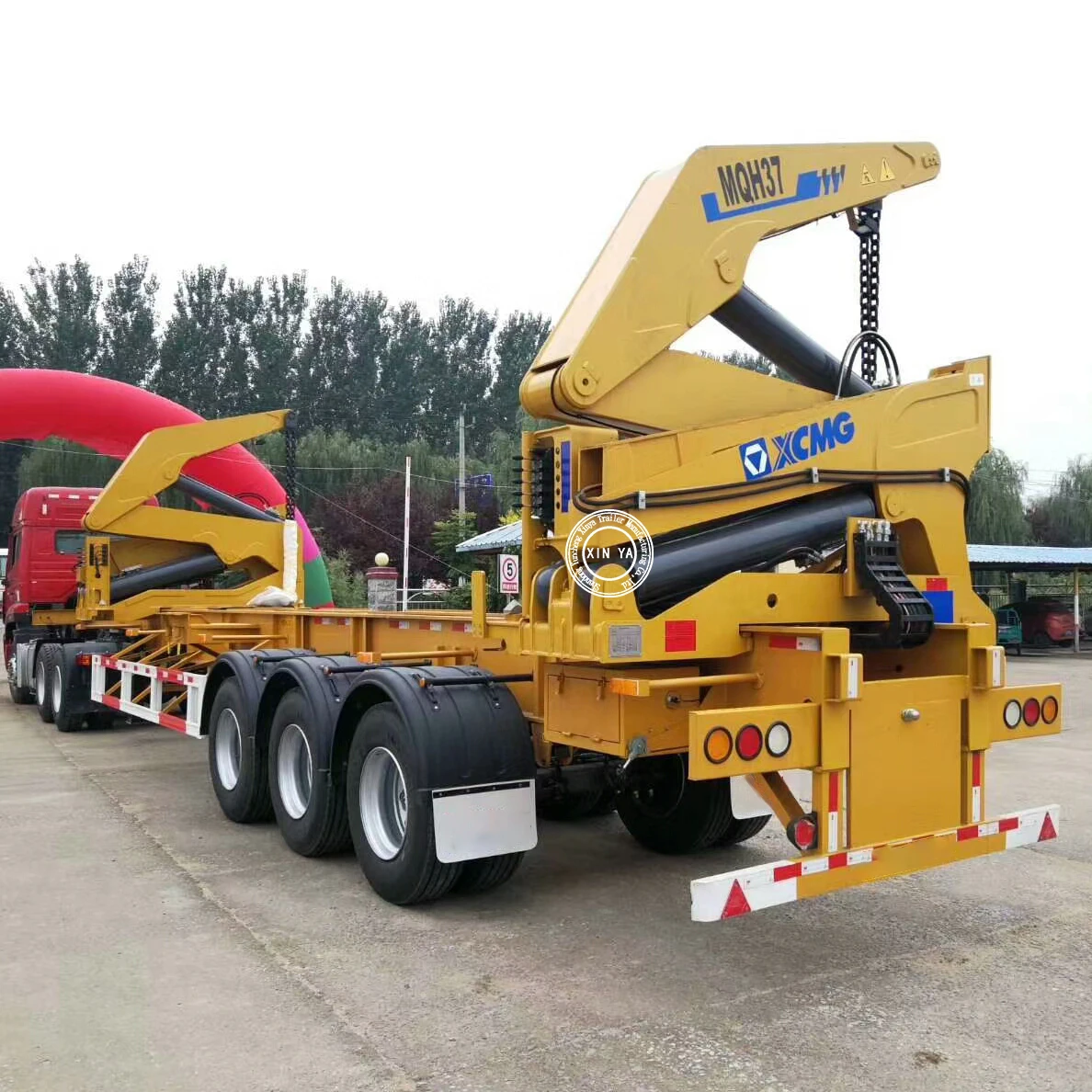

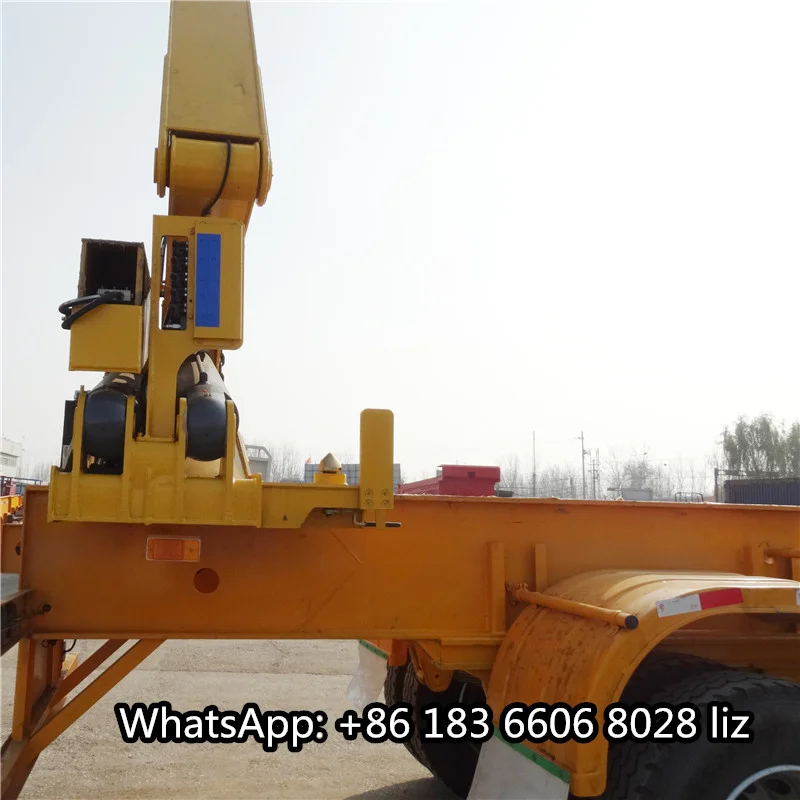

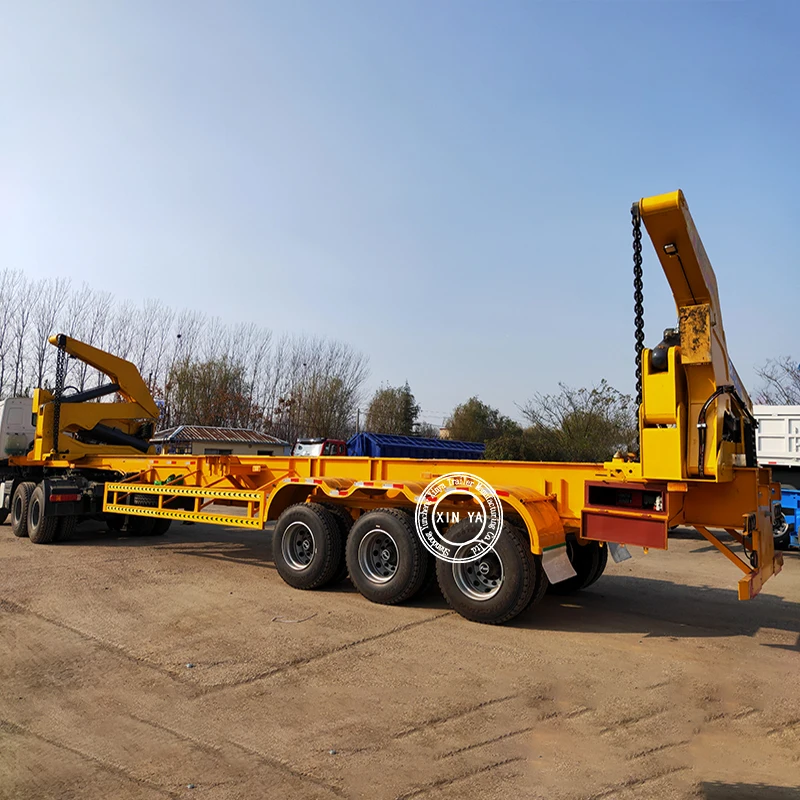

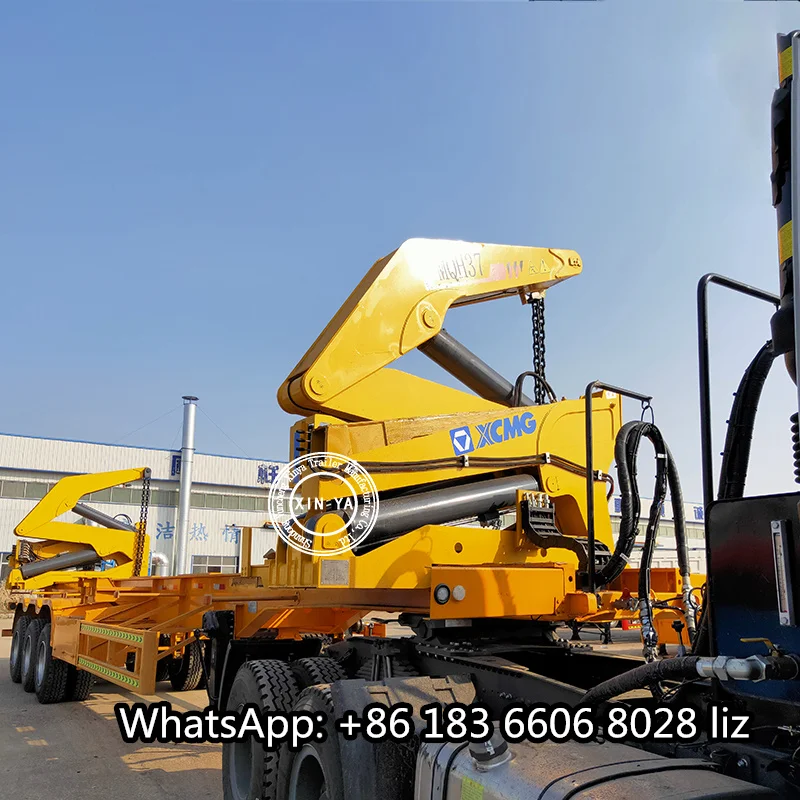

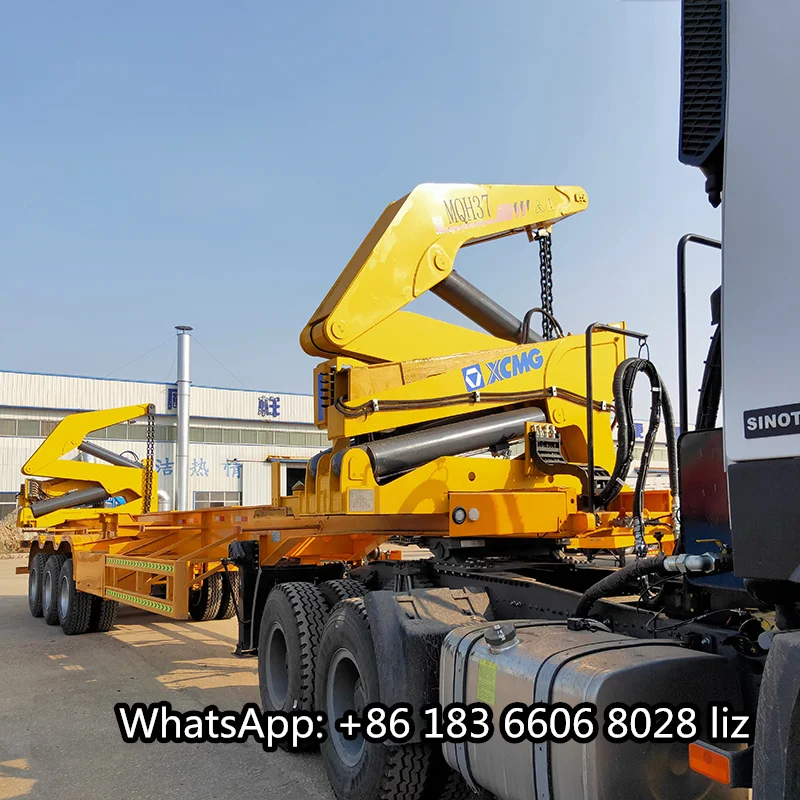

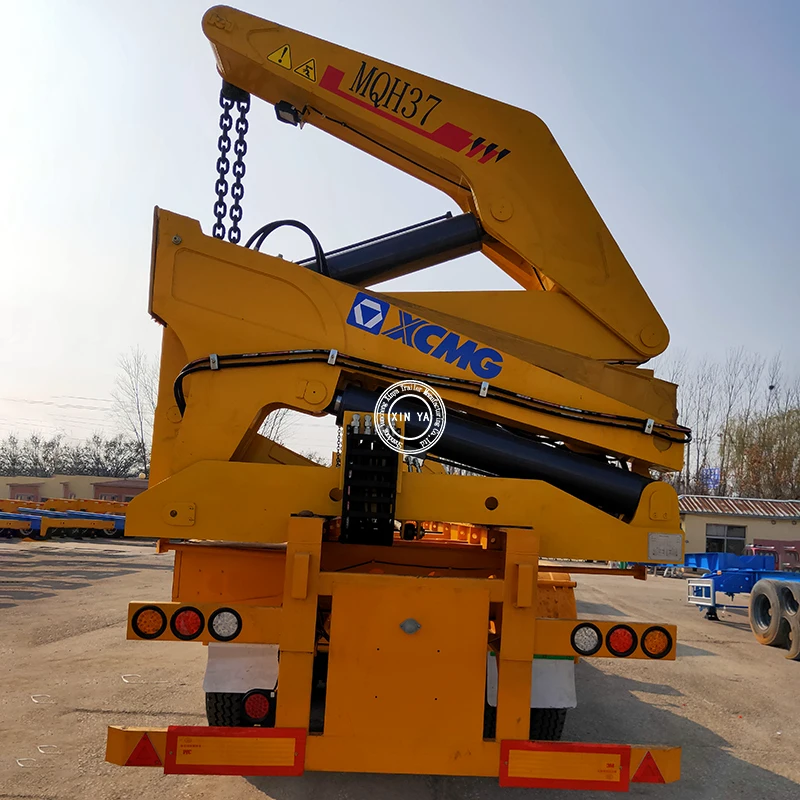

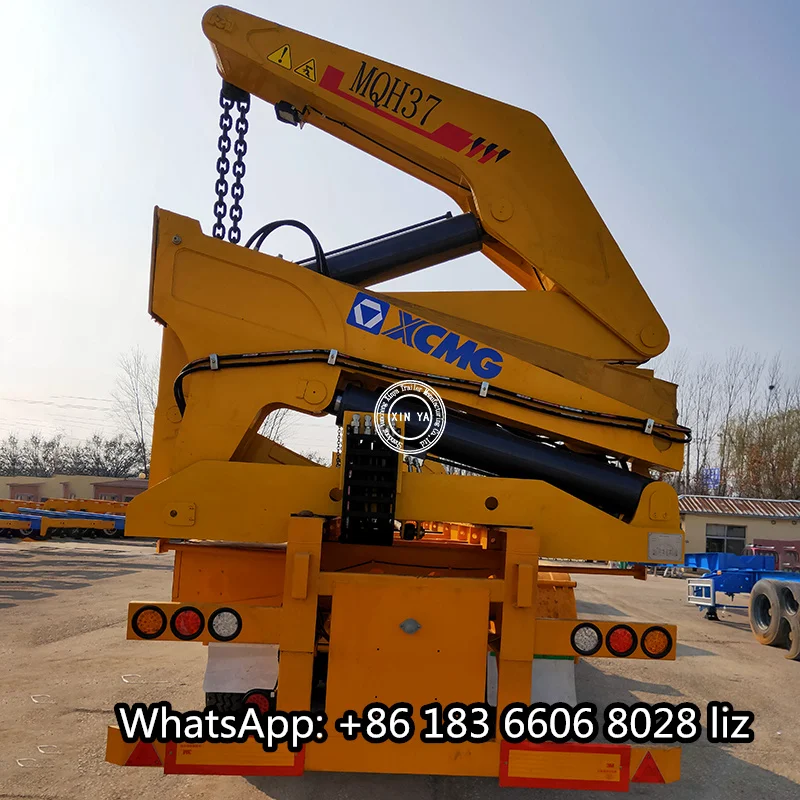

20/40 ft swinglifters steelbro side loader lifter container side loading semi trailer
20/40 ft swinglifters steelbro side loader lifter container side loading semi trailer
20/40 ft swinglifters steelbro side loader lifter container side loading semi trailer
Features and Advantages:
1. Power take off(PTO) or Diesel APU.
4. Reliable performance & Convenient operation:
1. Power take off(PTO) or Diesel APU.
2. Side loader can slide to fit:
2*20ft or 1*40ft Containers.
45'ft side lifter is customizable.
3. The front & rear crane can work together and Separately, adjusting container conveniently.
4. Reliable performance & Convenient operation:
Safety control with stop button.

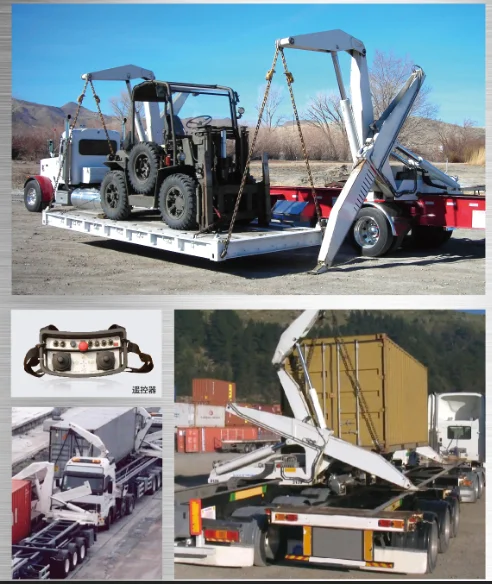

Wireless remote control/Manual operating.
5. Engine throttle size and engine speed can be controled.
Product Paramenters
40FT 37Tons side loader semi trailer/sidelifter container trailer with Wireless remote control | ||||||||
Size | Length | 14200mm | Max. Lifting Capacity | 37T | ||||
Width | 2500mm | Max. Stabilizer outreach | 3200mm | |||||
Height | 4200mm | Max. Working Range | 4000mm | |||||
Power Source | Power take-off (equipped) | Hydraulic System Max. Pressure | 28Mpa | |||||
Chasis | Main Beam | Q345 carbon steel | Floor | 3mm | ||||
Cross Beam | 80*40 square tube | Boundary Beam | 18# channel beam | |||||
Axle | 13T*3 FUWA/BPW | Drum | Hub piloted cast steel | |||||
Suspension | mechanical | Leaf Spring | 90x13mm | |||||
Tire | 12R22.5*12 | Wheel | 9.0-22.5*12 | |||||
Landing Gear | JOST D200T | Traction Pin | 2”/3.5” | |||||
Accessories | Tow Chain | Igus (imported) | Hydraulic pump | Gear type Casappa Italy | ||||
Parts | Direction control valve | AMCA Holand | Remote control | NBB Germany | ||||
Brake System | WABCO valve, 6 double chamber T24. | |||||||
Electrical | 24V 7 ways | Lamp | LED | |||||
Spare Wheel Carrier | 2 | Tool Box | 1 set | |||||
Details Images
Company Profile
XINYA TRUCK TRAILER FACTORY
1. XINYA have been in truck trailer field for more than 20 years.2. Our products are famous in aftermarket.
3. We've export to Europe, South America, South Africa and Southeast Asia;
4. We've passed ISO9001:2000 & BV & SGS & CCC certificates;
5. We've set up unified technical departments and testing standards;
1. XINYA have multiple production lines, able produce multiple types truck trailers and spare parts;
2. XINYA IS THE SOLE COATING FACTORY IN TRUCK TRAILER FIELD IN CHINA!!!
Plenty trucks and trailers for your choice !!!
Production Lines
Plenty trucks and trailers for your choice !!!
Production Lines
XINYA GROUP VIP tips:
1. We've invested in trailer parts (axle, suspension, fifth wheel, kingpin, landing gear, twist lock etc) ;2. We've invested in Truck field for 5 years plus;
3. We've take part in international exhibitions;
Customer Photos
Factory Price !!!
Customization Available!!!
Customers Visiting & Contracting
Welcome Visit XINYA GROUP!!!
FAQ & Contact
1. Q: Does your company has your own factory?
A: Yes, we are factory, with long history and famous reputation in Shandong, China.
2. Q: Could you special design and produce for me?
A: Definitely! We have all kinds of professional engineers to meet your various needs.
3. Q: What's your payment term?
A: We accpet both T/T and L/C.
T/T: 30% before production, 70% before leaving factory.
L/C: 100% irrevocable Credit of Letter.
More details for these trucks, please feel free to contact us!!!
A: Yes, we are factory, with long history and famous reputation in Shandong, China.
2. Q: Could you special design and produce for me?
A: Definitely! We have all kinds of professional engineers to meet your various needs.
3. Q: What's your payment term?
A: We accpet both T/T and L/C.
T/T: 30% before production, 70% before leaving factory.
L/C: 100% irrevocable Credit of Letter.
More details for these trucks, please feel free to contact us!!!
