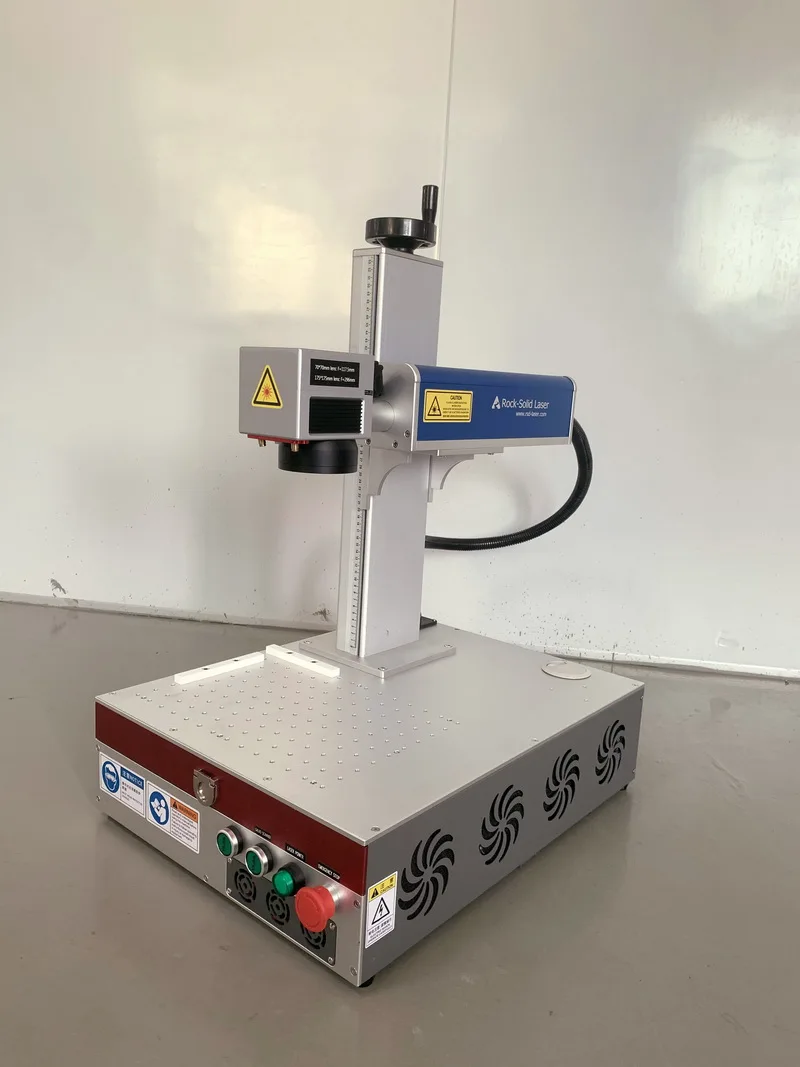

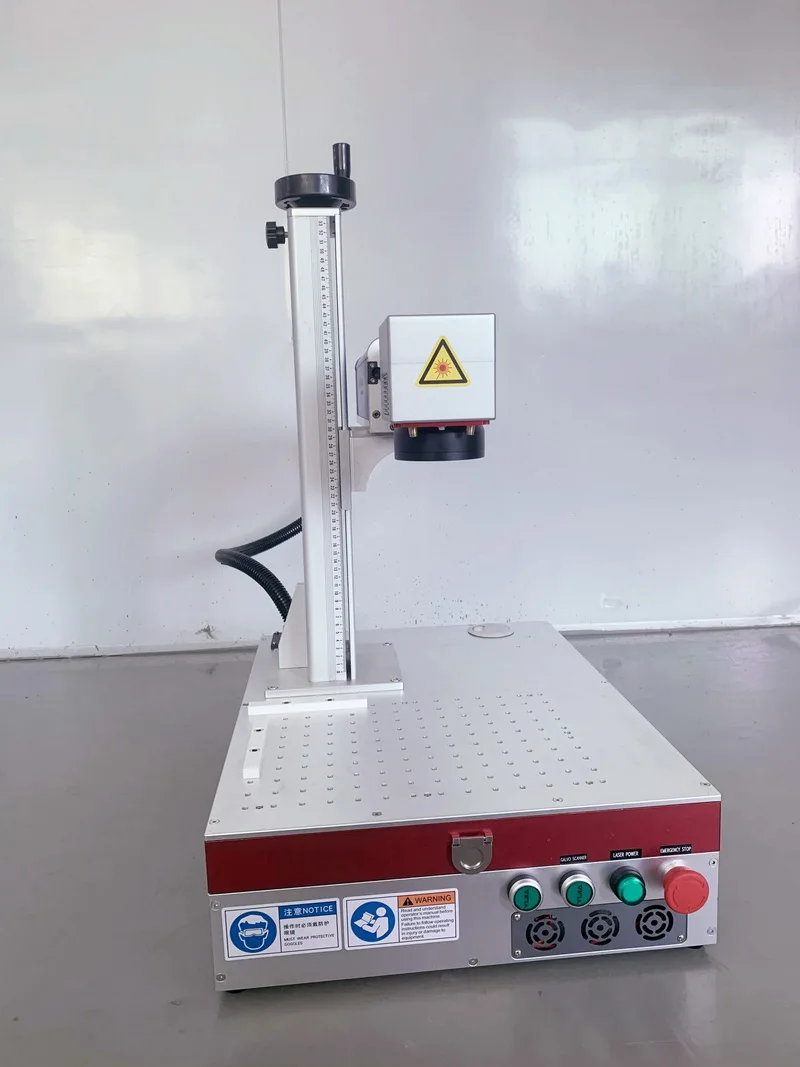

20W 30W 50W JPT M7 MOPA Fiber Laser Marking Machine Ezcad 3 DLC2 M4 2D 2.5D Deep Engraving Machine All in one Portable Marker
- Category: Laser Marking Machines >>>
- Supplier: Dongguan Dingfeng Laser Equipment Manufacturing Co. Ltd.
Share on (1600323663221):
Product Overview
Description
Product Description
Brand new type fiber laser marking machine！

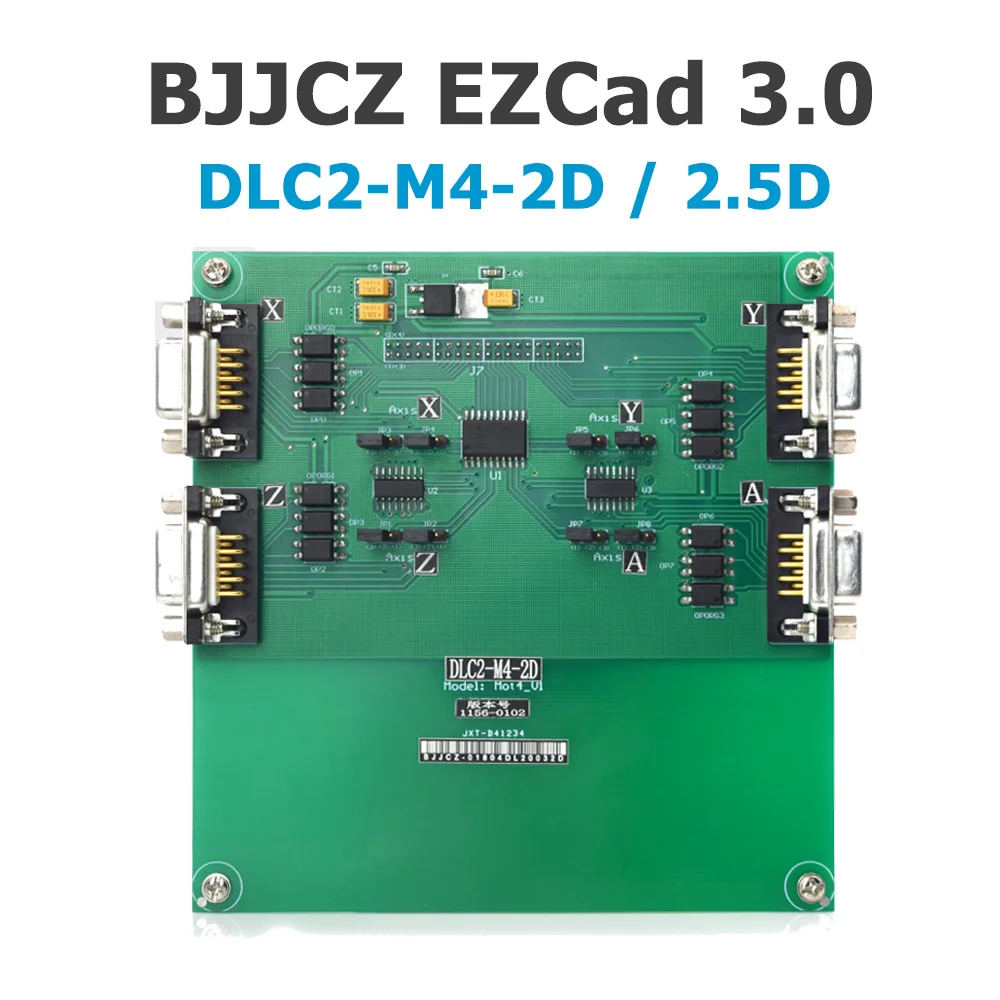

Install with BJJCZ DLC2-M4-2D (→Can upgrade to 2.5D) marking control board
The difference between 2D and 2.5D:
With the 2.5D, you can slice 3D graphics into many layers, and engrave these layers one by one automatically, so that you can do 3D eatching.
The movement of Z-axis can be controlled by the program or hand (by handwheel or the Up/Down buttons which control the motorized z-axis.
For 2D, the Z-axis cannot controlled by software, the Z-axis cannot move automatically.
With the 2.5D, you can slice 3D graphics into many layers, and engrave these layers one by one automatically, so that you can do 3D eatching.
The movement of Z-axis can be controlled by the program or hand (by handwheel or the Up/Down buttons which control the motorized z-axis.
For 2D, the Z-axis cannot controlled by software, the Z-axis cannot move automatically.

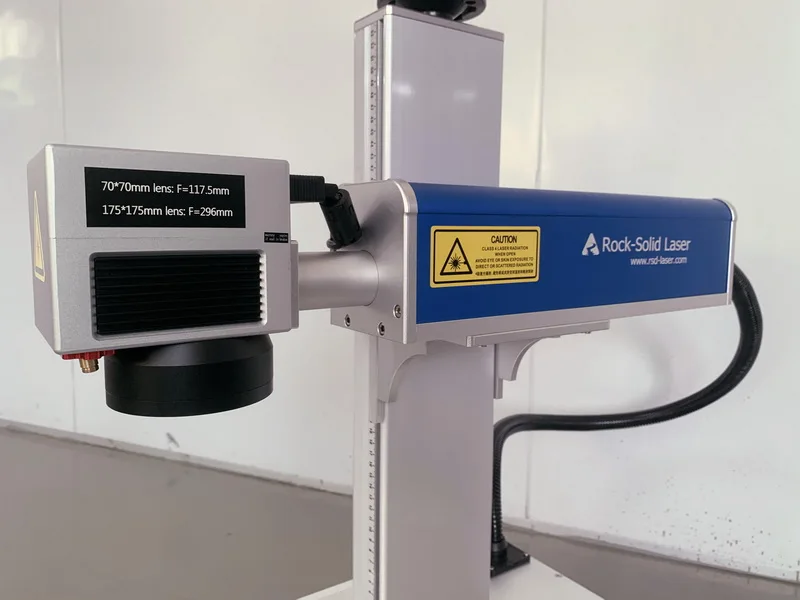

This model install with JPT MOPA fiber laser source, can use for black color marking on anodized aluminum and multi color marking on stainless steel.
All in one type and easily to operate ,its very portable to take anywhere.
Its service life is more than 100,000 hours, and aintenance free during the whole period.
Model: DFRSD-FSPM-III | Specification |
Laser Power | 20w 30w 60w |
Marking Speed | 7000mm/s |
Marking Area | 70*70mm 110*110mm 150*150mm 210*210mm |
Laser Source | JPT MOPA M7 |
Wavelength | 1064nm |
Applicable Materials | Aluminum Stainless Steel Gold Silver Copper Mild Steel Titanium Magnessium ABS PVC Nylon PET Carbon Fiber |
Input Voltage | 110-220V |
Surpported O/S | Windows XP/7/10 32/64bit |
Laser Control Board | Original BJJCZ |
Software | Ezcad 3.0 |
Supported File Format | AI, CDR, PLT, DXF, SDT, BMP, JPG,GIF, PNG, TGA, TIF |
Laser Beam Quality (㎡) | 20w/30w <1.3 60w/80w <1.8 |
Repetability | ±0.003mm |
Marking Depth | 0.5mm |
Min. Line Width | 0.015mm |
Min. Character Size | 0.15mm |
Colling System | Air Cooling |
Total Power | <600w |
Package Size | 75*55*50cm |
Gross Weight | 55kg |
Product Details
Laser Applications
Applicable Materials:
All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, HSS
steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all
kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface
treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition
Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, like ABS, PVC, and carbon fiber.
steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all
kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface
treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition
Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, like ABS, PVC, and carbon fiber.
2.Applicable Industries:
Precision instruments, computer keyboards, auto parts, plumbing parts, communications equipment, medical equipment , bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds, gaskets and Seals, data matrix, jewelry, cell phone keyboard, buckle, kitchenware, knife, cooker, stainless steel products, aerospace equipment,integrated circuit chips, computer accessories, signs molds, elevator equipment, wire and cable , Industrial bearings, building materials, hotel kitchen, military, pipelines.
Tobacco industry, bio-pharmaceutical industry, liquor industry, food packaging, beverage, health care products, plastic buttons,bathing supplies, business cards, cosmetics packaging, car decoration, logos, characters, serial number, bar code, pipeline,advertising logo and other non-metallic industries.
Tobacco industry, bio-pharmaceutical industry, liquor industry, food packaging, beverage, health care products, plastic buttons,bathing supplies, business cards, cosmetics packaging, car decoration, logos, characters, serial number, bar code, pipeline,advertising logo and other non-metallic industries.
After Sales Service
1. 3 years guarantee for main machine (Artificial damage are charged).
2. Life time technical support by e-mail, call and video.
3. Maintenance and spare parts supply.
4. Free training installation and operation for the staffs.
2. Life time technical support by e-mail, call and video.
3. Maintenance and spare parts supply.
4. Free training installation and operation for the staffs.
Focus on laser ,Pursuit of excellence ,Provide professional support!
You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
We can make free proofing, welcome inquiry!
Recommend Products
Company Profile
FAQ
Q1: How can I get the best laser marking machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of laser marking machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4: This model is not suitable for me, do you have more models available?
Yes, we can supply many models. such as advertising cnc router, metal cnc router, wood cnc router, stone cnc router and so on.
Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!
Q5:What's the guarantee, in case the laser marking machine breaks down?
The machine has one year s guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q6:How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other
certificates as required by clients.
Q7:How long is the delivery time of laser marking machine?
For standard machines, it would be 5-7 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15-30 days.
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of laser marking machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4: This model is not suitable for me, do you have more models available?
Yes, we can supply many models. such as advertising cnc router, metal cnc router, wood cnc router, stone cnc router and so on.
Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!
Q5:What's the guarantee, in case the laser marking machine breaks down?
The machine has one year s guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q6:How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other
certificates as required by clients.
Q7:How long is the delivery time of laser marking machine?
For standard machines, it would be 5-7 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15-30 days.
