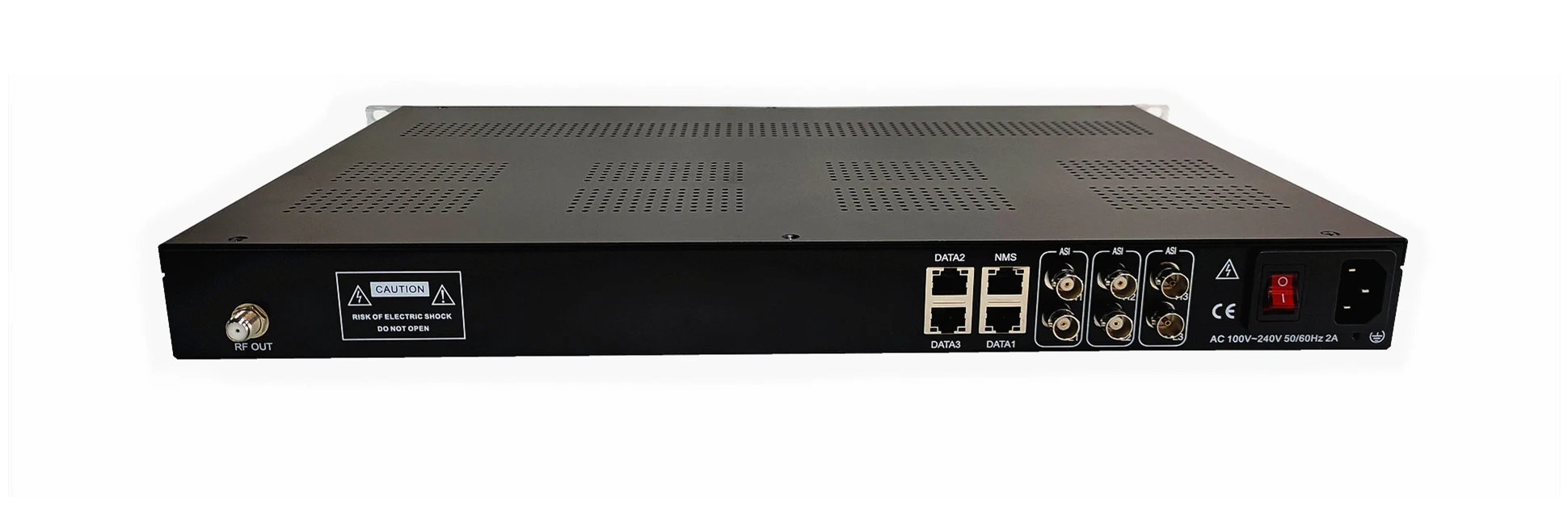

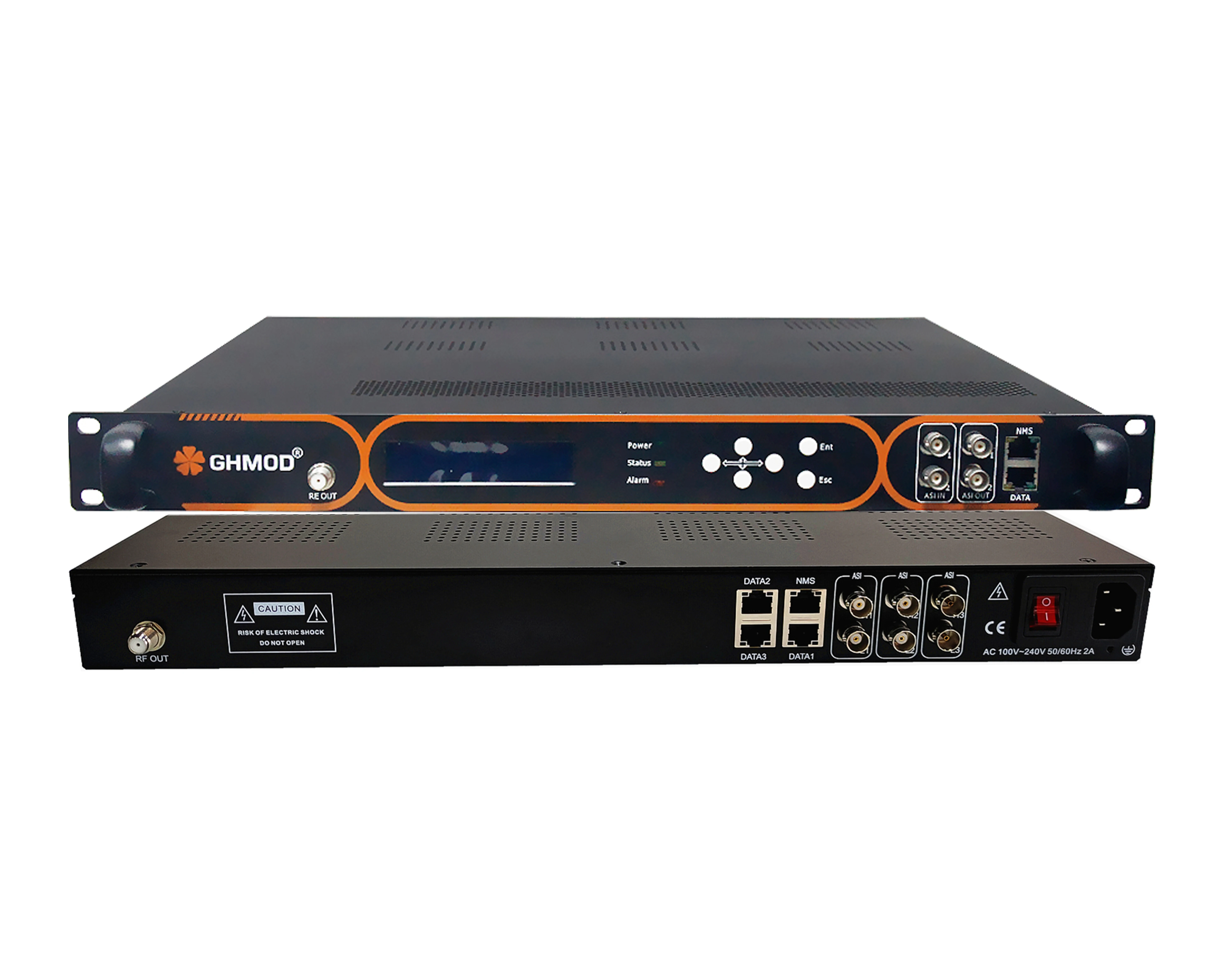

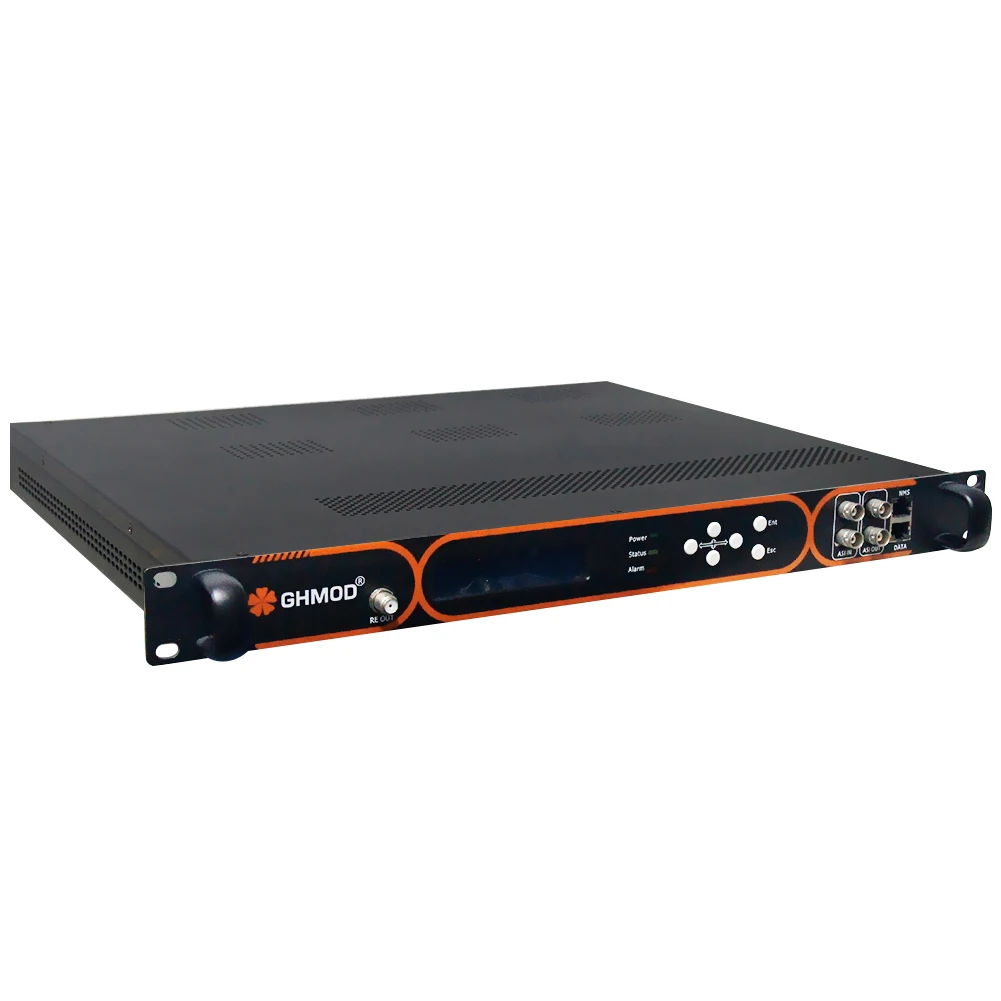

High Quality Wholesale MULTI WAY DIGITAL MODULATOR GM DM16 FM Tuner
- Category: Radio & TV Accessories >>>
- Supplier: Shenzhen Guangmai Technology Co. Ltd.
Share on (1600323714889):
Product Overview
Description
Products Description
Product Overview
GM-DM16 is a cost-effective ISDB modulator developed according to ISDB (EN300744) standard. It has 128*3 IP inputs. After multiplexing and modulating process, it gives 16 ISDB non-adjacent carriers (96MHz~864MHz) output through the RF output interface. To meet customers’ various requirements, this device is also equipped with data port for 8 MPTS output over UDP and RTP. This is very adaptable to newly generation DTV broadcasting system.
GM-DM16 is a cost-effective ISDB modulator developed according to ISDB (EN300744) standard. It has 128*3 IP inputs. After multiplexing and modulating process, it gives 16 ISDB non-adjacent carriers (96MHz~864MHz) output through the RF output interface. To meet customers’ various requirements, this device is also equipped with data port for 8 MPTS output over UDP and RTP. This is very adaptable to newly generation DTV broadcasting system.
Key Features
Support maximum 3*128 IP input (MPTS/SPTS) over UDP and RTP protocol
Support 8 MPTS Output
Support 16 channel ISDB modulating
RF 96~864MHz Any Settings
Support 6 Serial TS Input (Any Multiplex)
Integrated multiplexing and modulating functions
Support accurate PCR adjusting/PID Remapping/PSI/SI rebuilding and editing
Web-based NMS management
Support maximum 3*128 IP input (MPTS/SPTS) over UDP and RTP protocol
Support 8 MPTS Output
Support 16 channel ISDB modulating
RF 96~864MHz Any Settings
Support 6 Serial TS Input (Any Multiplex)
Integrated multiplexing and modulating functions
Support accurate PCR adjusting/PID Remapping/PSI/SI rebuilding and editing
Web-based NMS management
Modulation | Standard | ARIB STD-B31 | |
FFT mode | 2K,4K,8K | ||
Bandwidth | 6M | ||
Constellation | QPSK, 16QAM, 64QAM | ||
RF out | 16 Channels ISDB， | ||
RF frequency | 96~864MHz，1kHz step | ||
RF output level | -35dBm~-5dBm | ||
MER | ≥40db | ||
Guard Interval | 1/32, 1/16, 1/8, 1/4 | ||
IP Input | 3ch 128 IP(SPTS/MPTS) input over UDP and RTP, RJ45,1000M/100M, Unicast/Multicast, 6ch ASI input. | ||
System | LCD/Keyboard operating and web-based NMS support | ||
Ethernet software upgrading | |||
General | Dimension (W*D*H) | 440mm×300mm×45mm (Box) 482mm×340mm×45mm (Max) 525mm×375mm×85mm (Pack) | |
Temperature | 0~40℃(work)；-20~80℃(storage) | ||
Power supply | AC 110V±10%，50/60Hz AC 220V±10%，50/60Hz | ||
