Product Overview

Description

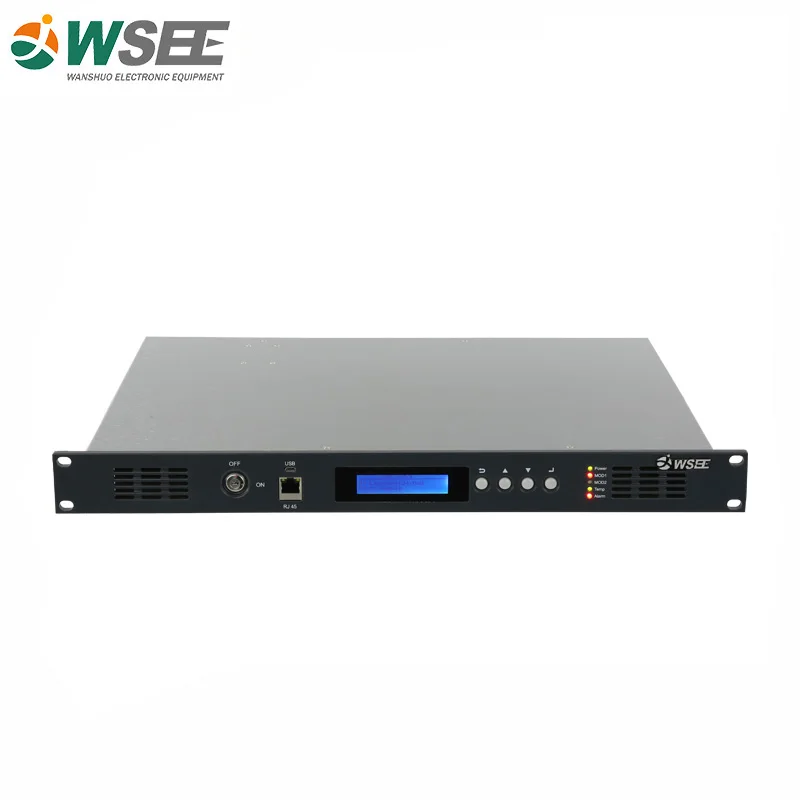

10dBm1550nm optical tv transmitter

transmitter

WS-16LTxxxx CATV optical transmitter made improved better in Power consumption, output accuracy and high reliability than that of WS-15LTxxx style which is mainly used in optical fiber Transmission of Television Image Signal, Digital Signal, Television ,Telephone, Voice Signal Data (or Compressed Data) Signal.

With All property technology data meeting international demands and pay attention to product cost CATV optical transmitter is first choice of building big and medium size optical transmission network of 1550nm CATV equipment.transmittertransmitter



Technical Data

WS-16LT50XX

Wave Length

1550nm±15nm

Optical Output power

3-10dBm

Laser Type

DFB Laser

Optical Adjusting Mode

Direct Optical Regulation

Optical Connector

SC/APC & SC/UPC

RF Input Level

75~95dBuV

RF AGC Control Range

±10dB

Bandwidth

47~862 & 1080MHz

Flatness

±0.75dB

MGC Adjustable Range

0~15dB

RF Impedance

75Ω

RF Input Return Loss

≥16dB

CNR

≥51dB

CTB

≥65dB

CSO

≥60 dB

Working Voltage

AC220V(160~265V) & DC48V(35~72V)

Consumption

<10W

Working Temp.

-5℃~+55℃

Relative Humidity

Max 95%,no condense

Net Size

423X330X45mm

Unit Packing Size

575X488X89mm

N.W.

4kgs

Carton G.W.

12kgs(2pcs)



transmitter transmitter

Model: WS-16LT5006-8A2-FM1-N

Analysis According to Model: WS-16LT5006-8A2-FM1-N, Wavelength 1550nm, Output power 6dBm, AOI laser, Bandwidth:40~860MHz, 220V power supply, FC/APC optical connector, Metric, 1 output port, with network managementtransmitter transmitter transmitter transmittertransmitter
