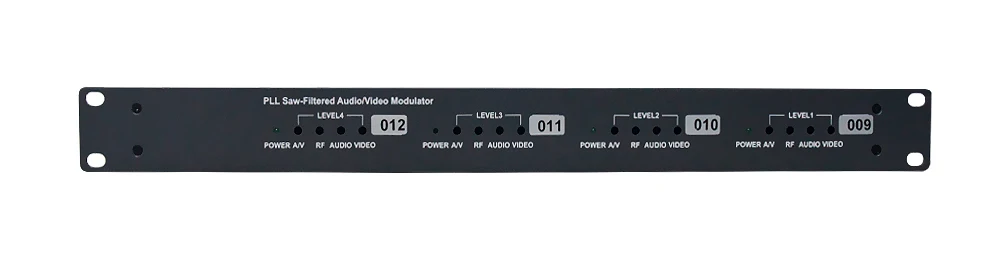

Электронная коммерция 4 способа ajacent модулятор fm тюнер

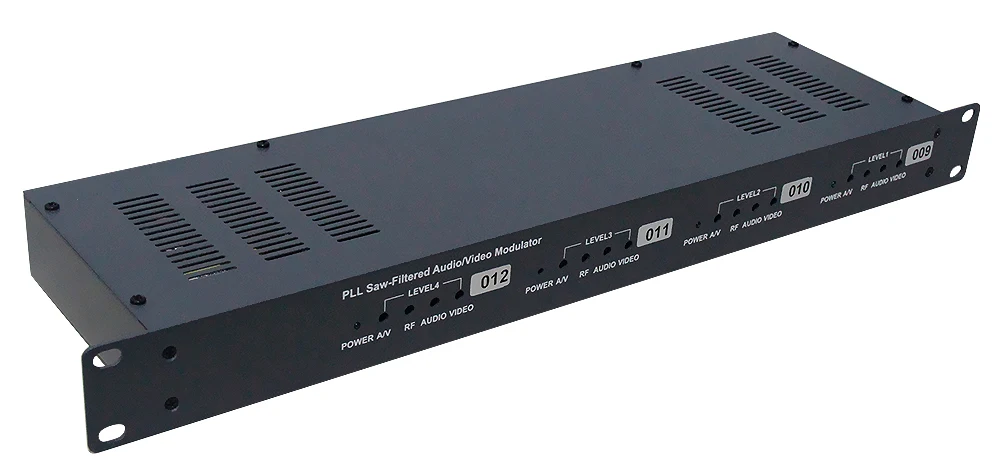

Электронная коммерция 4 способа ajacent модулятор fm-тюнер

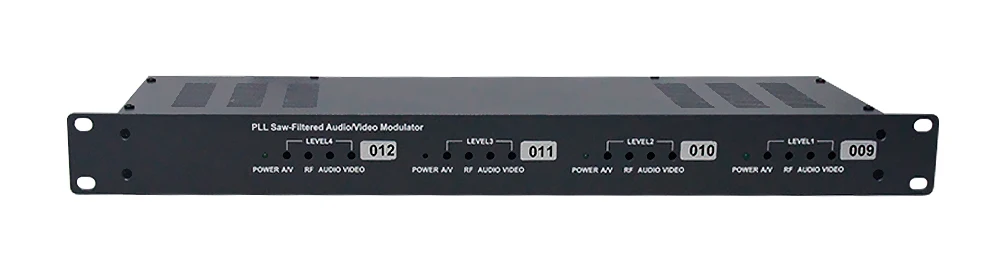

Электронная коммерция 4 способа ajacent модулятор fm-тюнер
Электронная коммерция 4 способа ajacent модулятор fm-тюнер
Электронная коммерция 4 способа ajacent модулятор fm-тюнер

Электронная коммерция 4 способа ajacent модулятор fm тюнер

Share on (1600323958004):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


RF
Pre-emphasis: 50μs
Output frequency: 45…870 MHz
Flatness (40Hz …15kHz): ≤±1.5 dB
Nominal output level: ≥50dBmV
Distortion(fm=1kHz;△f=50kHz): ≤1%
Output impedance: 75Ω
S/N ratio: ≥60 dB
A/V RATIO: -10 … -20 dB
Carrier frequency tolerance: ≤5 kHz
Carrier frequency distance tolerance: ≤100 Hz
Spurious in band: ≤-60 dB
Output level adjustment: 0 … -20 dB
Side-band Suppression: ≥65 dB
C/N ratio in channel: ≥60 dB
Video
General
Input level: 0.7…1.4 VPP
Supply voltage: AC100…250V
Input impedance: 75Ω
Consumption: 30 W
Input return loss: ≥20 dB
Operating temperature: -10 … ＋55℃
Modulation depth: 87.5%
Video,audio connector type: “RCA”
Differential gain: ≤5%
RF connector type: “F”
Differential phase: ≤5 o
Outside dimensions(h×w×d): 483×130×44mm
Flatness in band: ≤±1.5 dB
Packed weight: 2.5 kg
Cr/L delay: ≤60 ns
Weighted S/N ratio: ≥60 dB
Audio
Input level: 0.775V±10 dB
Input impedance (unbalance): 10kΩ
Adjustable peak deviation: ±50 kHz


Feature


⊙Base-band video and audio inputs
⊙ All systems and channels between 45 and 870MHz
⊙ Heterodyne conversion,IF SAW filter. High vestigial sideband selectivity
⊙ Output TV channel frequency through Double VCO-PLL synthesis
⊙ Full +50dBmV output
