Product Overview


Product Description

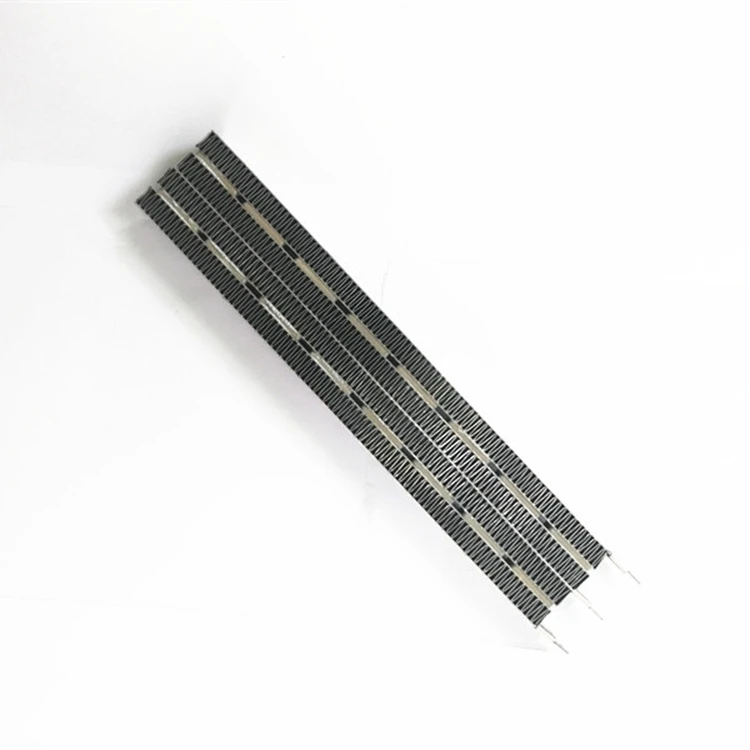

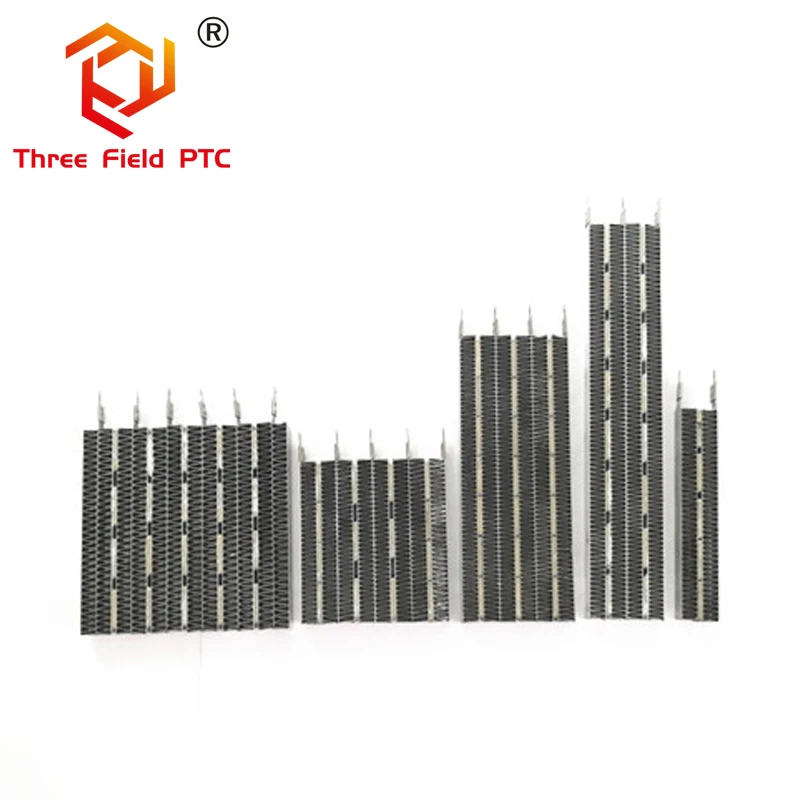

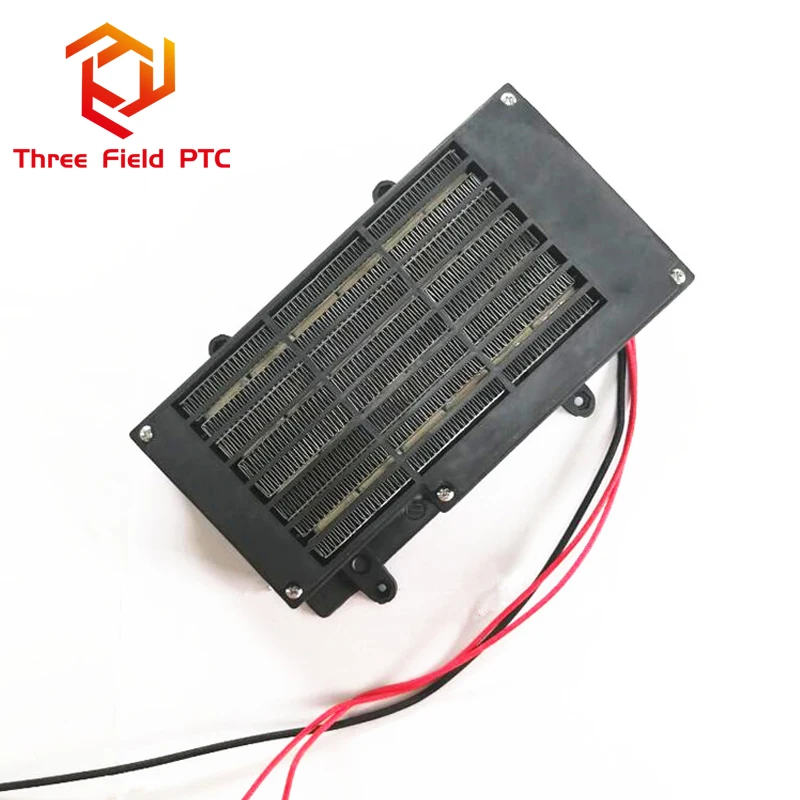

ODM Supported 500-3500W Ceramic Fast Heating Thermostatic Surface Charged 220V ceramic ptc heating element

In the field of PTC heater, the most widely used and cost-effective heater should be the surface charged corrugated heater series.
It perfectly replaces the traditional electric heating wire heating. This surface charged corrugated heater has a very huge market, and the market demand is growing at a rate of more than 10% every year.

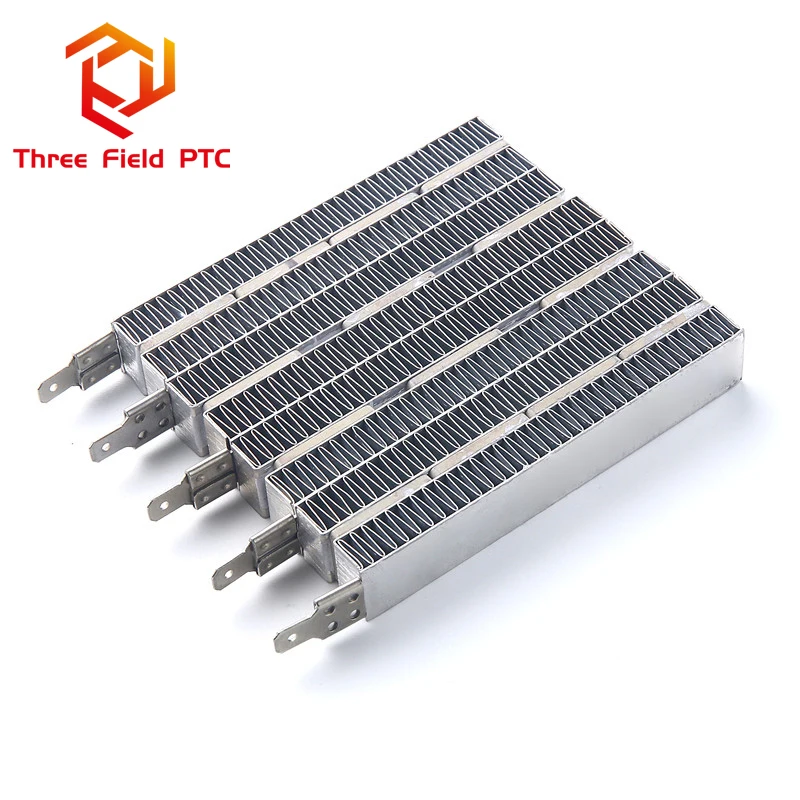

Conductive corrugated PTC heater is a kind of high-power PTC heater. Corrugated radiator is pasted on both sides of common PTC element, and corrugated hole can supply hot air. PTC Insulated Ripple heating element are dynamic heating elements designed to heat up moving air. The large surface area of the aluminium fins ensures a homogeneous heat transfer adjusting the air volume flow.

The features of surface charged corrugated heater series.
1. Its cost proportion is small compared with the the whole heater. It is an economical type of industrial ptc heater.
2. Easy installation, plug-and-play, fast temperature increase.
3. No oxygenation and open flame, secure and comfortable use. Quiet operation, and do not generate RFI noise.
4. It has a virtually unlimited service life, the service life is up to 100,000 hours.
5. Automatic adjustment to maintain balanced and continuously heating. When the temperature is too high, it will automatically reduce the power, reduce the heating and keep the temperature constant. High operational reliability and energy efficiency without
any additional switching elements.
6. Product size, voltage, power, temperature and other parameters can be customized.

The possible applications of surface charged PTC heater

Due to its own features, the surface charged PTC heater are most commonly used as pre- or post-heaters in air conditioning.
As it is surface charged, it mainly been used in relative dry and clean environment. And it should be well isolated with conductive objects. The most common usage is industrial PTC heater, home use air heater and clothes dryer, industry dryer, etc.

Production Process

1 Assemble PTC thermistors
2 Hydraulic press
3 Waterproof deal with

4 LOGO printing
5 Insulation test
6 Packing


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Shenzhen Sanye Equipment Co., Ltd. was established in 2015, with years of experience in designs, develops and manufactures PTC heaters and PTC production equipment.
New equipment are adopted for our production line and new PTC products are developed constantly. With workshop of more than 2,000sqm, our annual output of PTC heaters is more than 3 millions with their superlative performance. Now our market department is focusing on on fast-growing consumer electronics market, which includes air heater, air conditioner, hairdressing, hot glue gun, dehumidifier, and other heating apparatuses etc.
Better quality, better service is our principle, we have management center, production center, R&D center, marketing center, logistic center. We pursue modernization of enterprise management, following our management principle of “quality first, high reputation”. Sanye, your reliable PTC heater supplier!

Cooperation Customers


1. Is the sample for free?
If the proofing fee of sample is less than us$20, it is for free. Client only need to pay for the shipping cost.

2.The lead time of samples?
For ready made models, the lead time is only 3 days.For customization models, the lead time is 7-10 days. We will try our best to make the samples as fast as possible.

3.Can your company customize new PTC heater models?
Yes, ODM project is warmly welcomed in our company as we have the engineer team to take charge of development. Please tell us the requirements of the new model, we will offer a total solution to client.

4.What’s the lead time for a bulk order?
Usually it take 30 days for a bulk order. Most of clients are satisfied with our lead time.

5.What’s the shipping method for PTC heaters?
For most of PTC heaters, the volume is not small, we suggest client to place quantity order and ship through sea shipping, then the unit cost is competitive in your market. Except you need these PTC heaters in your country in short time.

6.How to ensure the quality?
100% of products were tested before shipment. We provide 3 years of quality warranty for our PTC heaters.
7.How to develop a new model for my project?
Please provide these information to us for a new project:
The usage of PTC heaters, the type of PTC heater you want, its related voltage, related power, temperature, size and shape, the wind speed and environment temperature condition (for air heater), the finished product structure, requirements on material and so on. The more information you provide, the better for us to develop a suitable model for you.
