Product Overview

Description


50kw 100kw Hydro Francis Turbine Generator Water Energy for Small Plant


hydro turbine





Product Features:

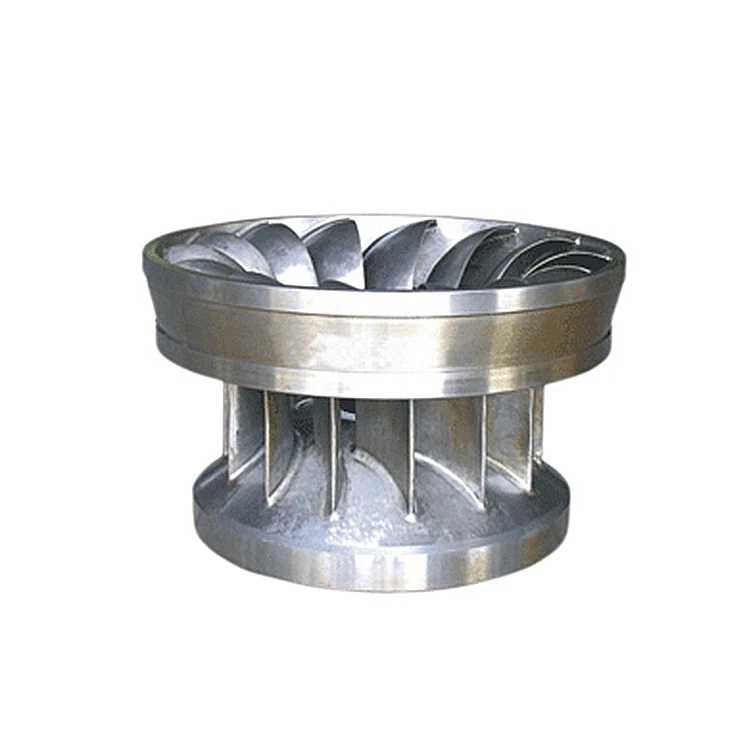

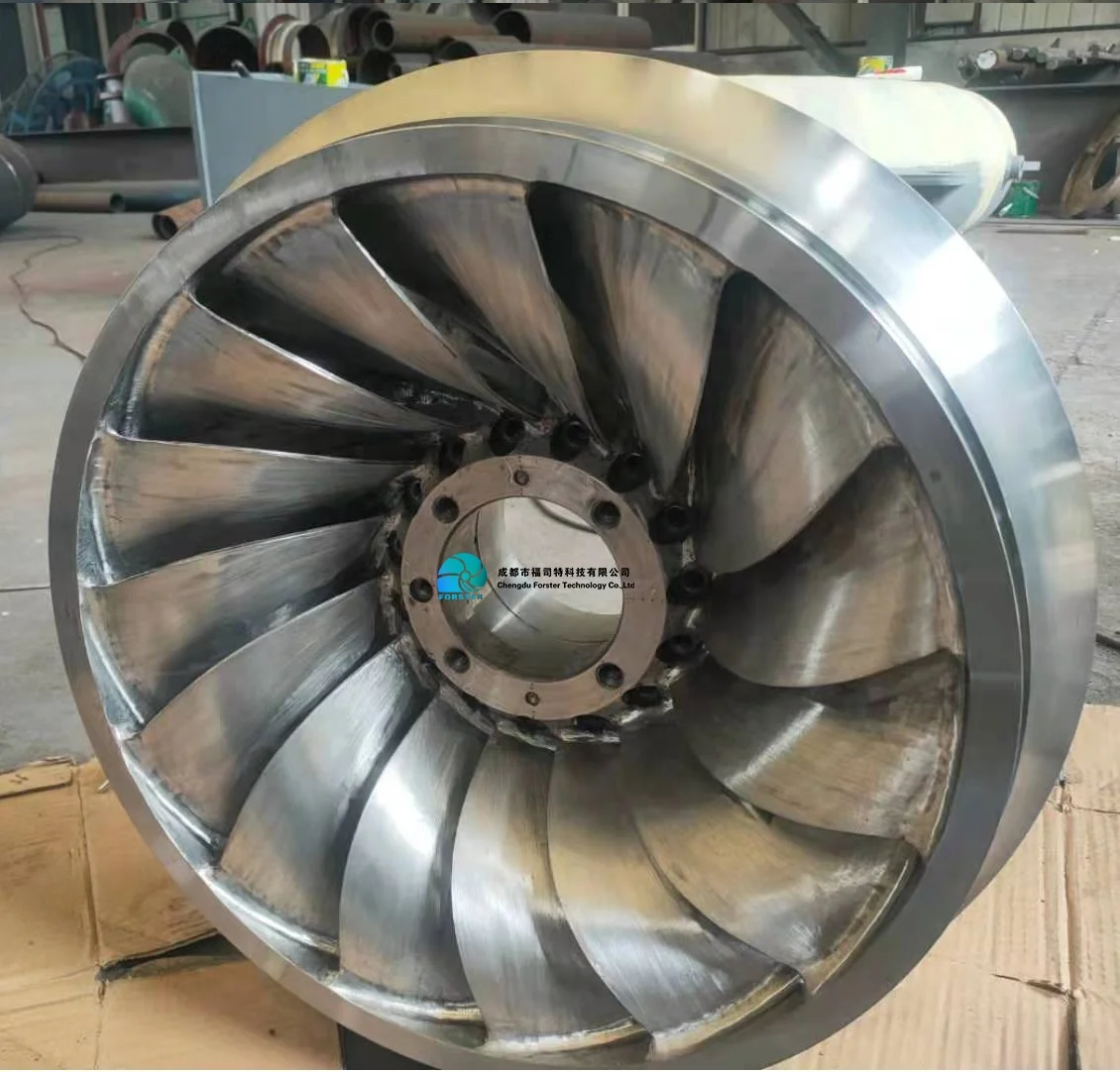

Francis turbine has the advantages of compact structure, high efficiency, can adapt to a wide range of water head of turbine type, is one of the widely used around the world; when the water flow through the turbine wheel, it flows into, axial to radial, so it is also called the radial axial flow turbine; francis turbine is also called francis turbine, the flow from the surrounding radial inflow runner, then approximate axial flow runner, runner by the crown, under the ring and the blade; it is applicable to the head from a range of 20meters of up to 700meters, has the advantages of simple structure, stable operation, and high efficiency ,but it is generally used in the head in the range(50 to 400 meters). Single power from a few kw to several 101000 tile. At present, the turbine output has exceeded 700000 kilowatts, the maximum. A turbine is one of the most widely used.


Francis turbine is a kind of turbine suit to water head 20-300meters and with certain suitable flow.


It could be divided into vertical and horizontal arrangement. Francis turbine have the advantage of high efficiency, small size and reliable structure.


Product Parameters:










































































































































HL220-WJ-50 turbine performance data and supporting table
ModelTurbine ParametersGenerator ParametersDriving modeWater Intake
Design head(m)Under the design  headDesign speed (r/min)The power of generatorRated speed(r/min)Diameter (mm)
Flow rate (m3/s)The output(kw)
HL220-WJ-5015.81.08140546125600Direct Connection700
18.51.186179591160600
21.31.3223634200600
24.81.353276684250750
291.486351740320750
33.61.633441796400750
39.31.7115448615001000
45.21.827680.49246301000Direct Connection
52.82.0118649988001000
612.21080107310001000
712.4051342115812501000

Product Pictures:

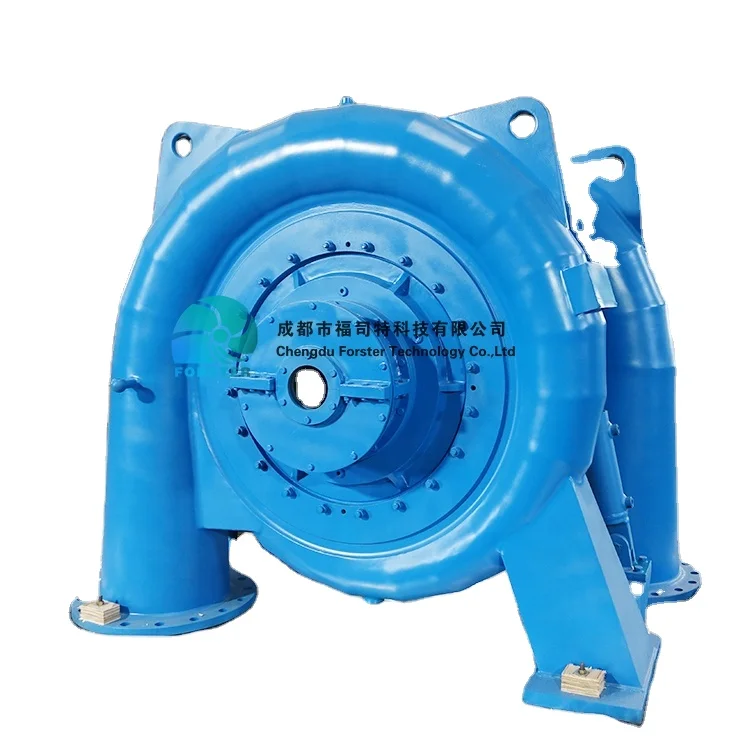

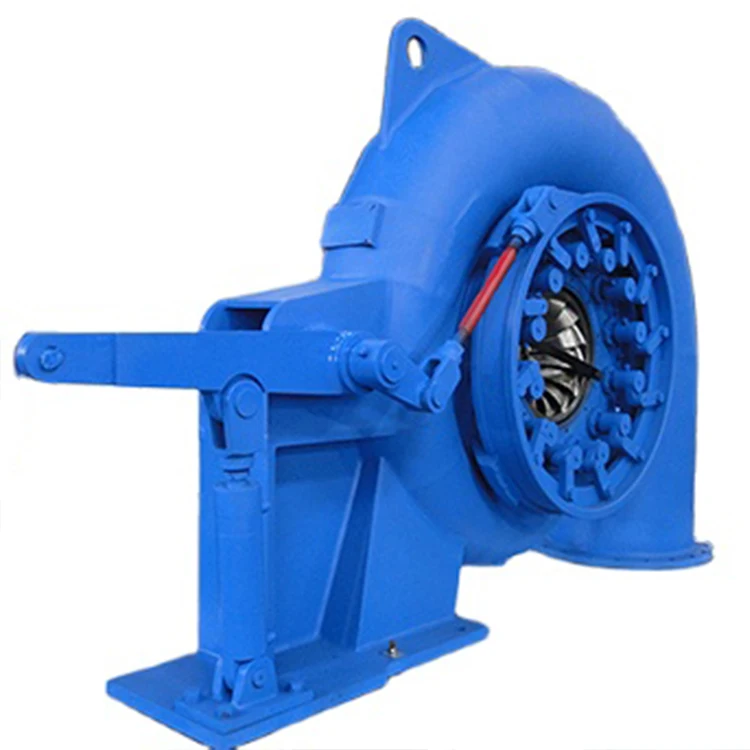

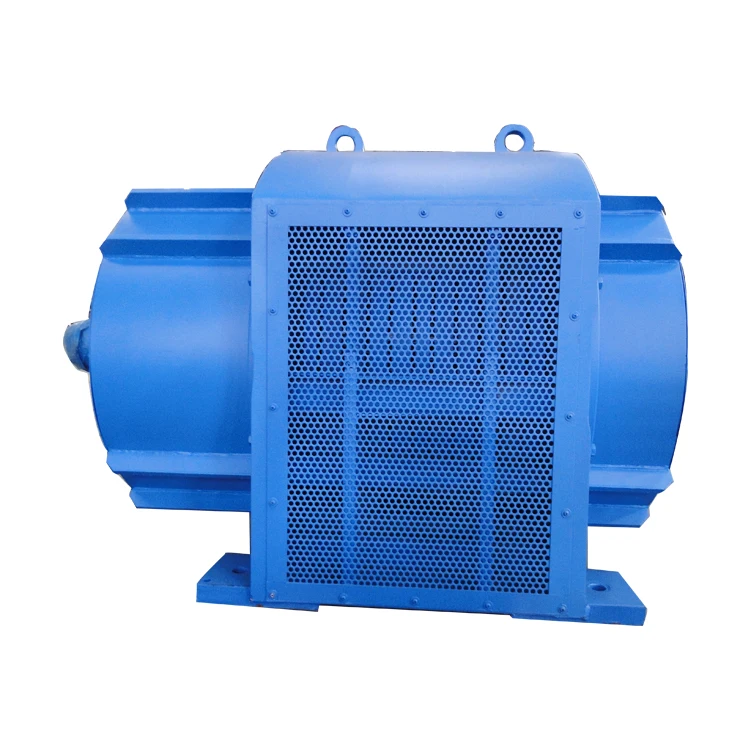

hydro francis turbinefrancis water turbinegenerator

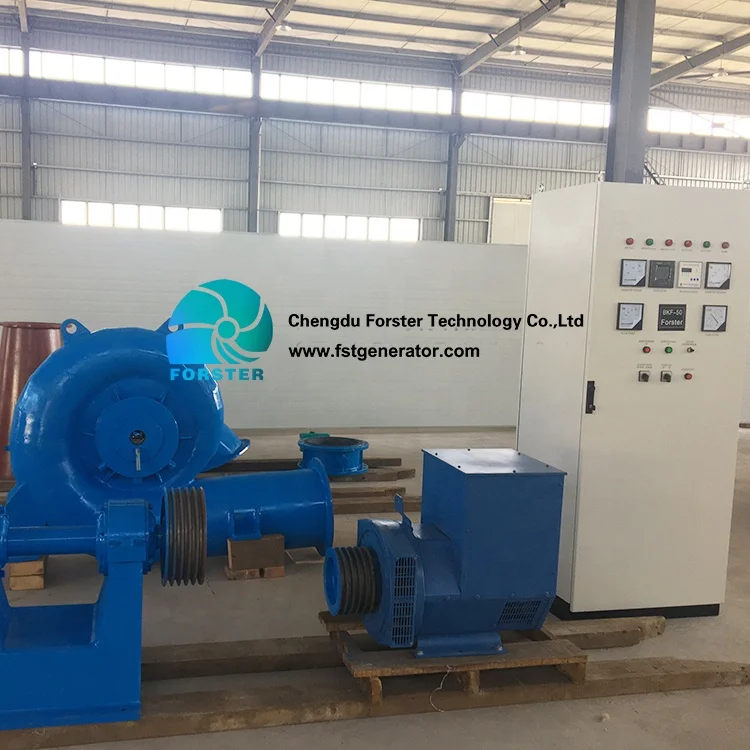

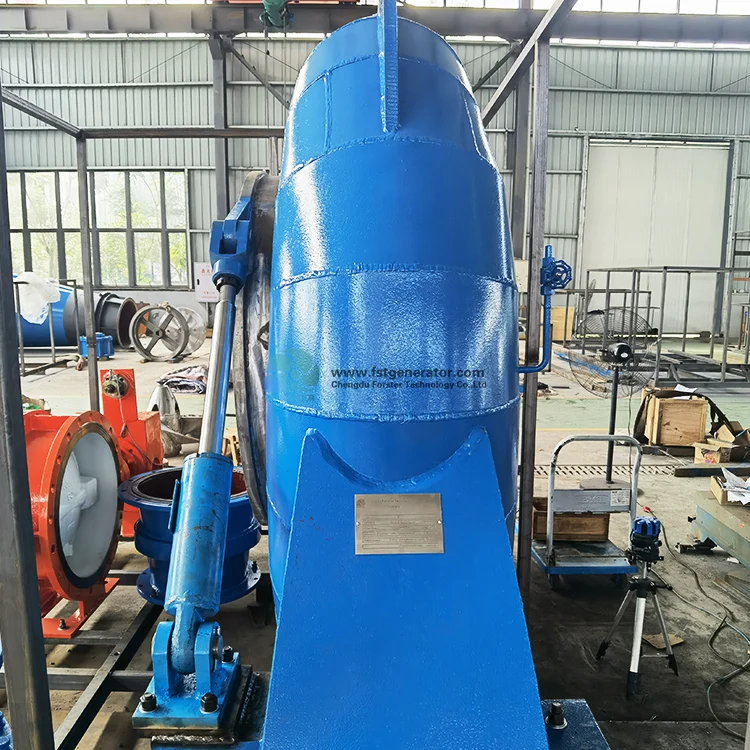

Installation Picture


Francis






Other products

































Low Head High FlowHigh Head Low Flow
kaplan turbine (1)pelton turbine
Power                                             1.6-98.2 KWPower                                       1000-5000KW
Water Head                                      2-7 mWater Head                              250-440m
Flow Rate                                         0.1-2.6 m3/sFlow Rate                                 0.51-1.14m3/s
AdvantageAdvantage

 1. Suitable for the development of low water head(2-30m) and larger flow of water resources.


2. Suitable for large change of water head and small load changes of power station,


3. Suitable for the power station that middle and low water head, head and power can be changed greatly,it can be operated stably and efficiently in various working conditions


4. This machine is a vertical shaft device, it has the advantages of simple structure and convenient repair, the equipment ‘s price is low and it ‘s easy to realize the characteristics of direct drive etc.



1. Suitable for high head, small flow and flow changes in large runoff hydro power station;


2.With the power plant investment is small, compact units structure characteristics;


3.Has the efficiency changes smoothly, operating a wide range, even in the 15%-20%load is reduced efficiency;


4.Suitable for high head small flow station in mountain area;


5.A unit construction, simple restrictions without cavitation condition, the advantages of stable operation, less investment,construction area.






Company Information








Main Products


Our main products included:


1,Francis turbine hydro generators series.


2,Pelton turbine generators series and double turbine generators series and so on.


3,Kaplan turbine generators series.


4,Tubular turbine generators series, e.g. Bulb type and shaft extension type


5,Turgo turbine generators series, e.g. vertical type and horizontal type.


















Workshop


work shop





Advantages


advantages





Packaging & Shipping


packing shipping





FAQ





Q1, Which turbine should I choose?


Please tell me the water head, flow rate, frequency, total power you need,


voltage, on grid or off grid operation, we will propose a solution.


Q2, Can your factory provide all the equipment for hydropower generation?


Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.





Q3,Is your company a trading company or a manufacturer?


We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.


Q4, What is an acceptable MOQ?


For this product, our acceptable MOQ is 1 set.


Q5,How long is the delivery time?


Delivery times range from 15 days to 6 months depending on the model you are purchasing.
