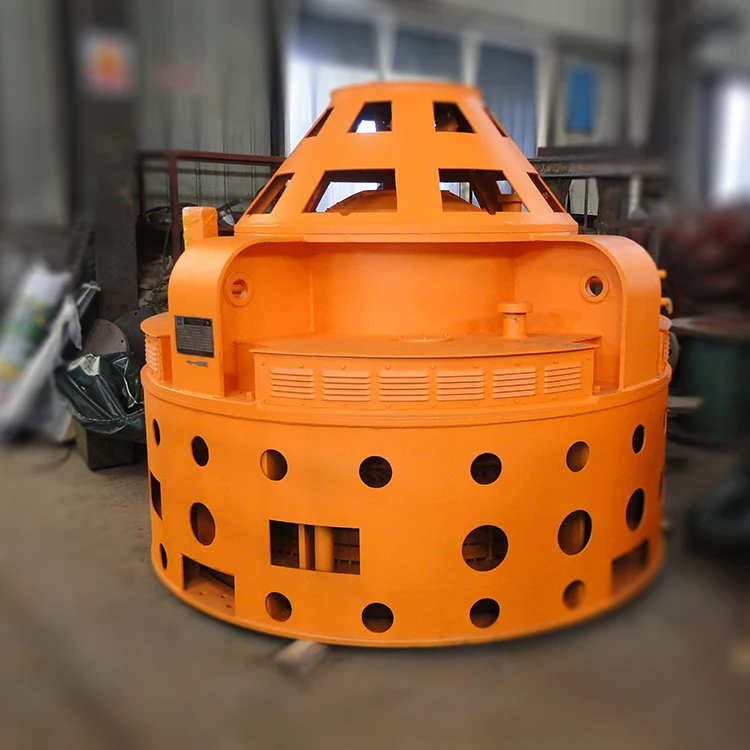

1.5KW Hydro Turbine Generator Micro Hydro Kaplan Turbine
US $720.00-$760.00
С низким потолком от пропеллер Гидротурбина 220V 252 750r/мин ZD760 LM 425 1950r/мин 656 2000r/мин Forster 5 30KW CN;SIC 0,104 2.06m3 /s
- Category: Hydro Generator >>>
- Supplier: Chengdu Forster Technology Co. Ltd.
Share on (60189579280):
Product Overview
Description

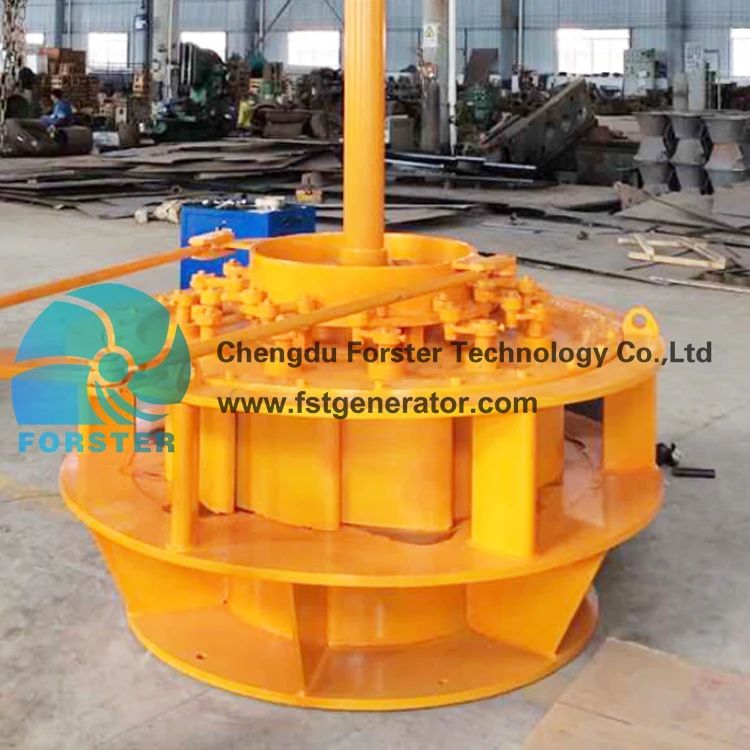

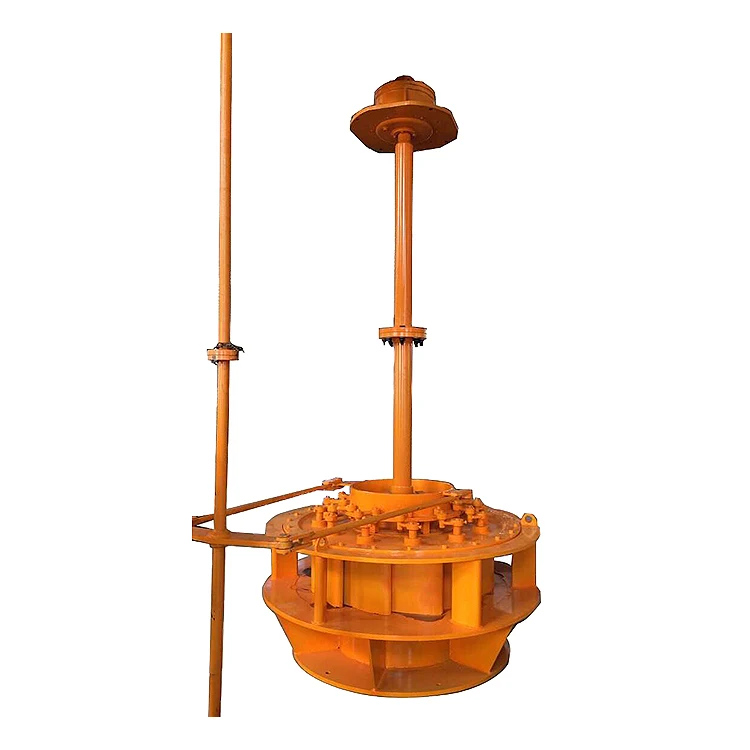

Low Head Propeller Hydro Turbine
Our main products included:
1.Kaplan turbine generators series.
2.Turgo turbine generators series,e.g. vertical type horizontal type.
3.Tubular turbine generators series ,e.g. Bulb type and shaft extension type.
4. Francis turbine generators series.
5.Pelton turbine generators series and double turbine generators series and so on.
6.Other auxiliary equipment for hydropower station, such as generator, control panel, governor, valve, transformer, automatic electrical equipment, electricity meter, pressure tube, etc

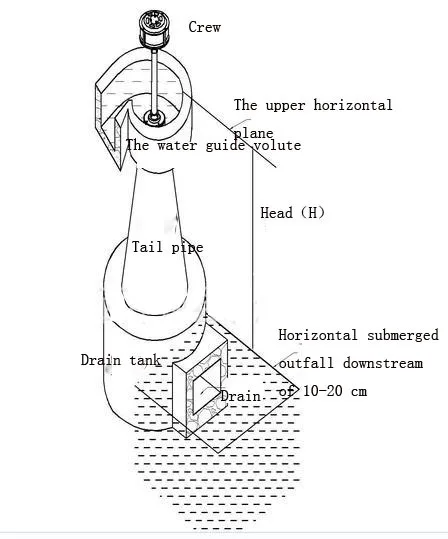

Axial flow turbine generator unit is widely used for low water head such as small river, small dam, etc. The mini axial turbine generator is made by generator and Impeller coaxial. Working principle and installation method: Choose suitable installation place ( riverside, rocky place of downstream river),use concrete and stone to build water channels; use wood to make a water gate; use barbed wire to make filter; use concrete and stone to make spiral case; build trumpet-style draft tube under the spiral case; the draft tube should be covered and under water 20-50m. The length of draft tube is the water head. The mini axial turbine generator is suitable for water head 1-6m.
Product features
1. Suitable for the development of low water head larger flow of water resources;
2. Appliceable to large and small head change load changes of power plant;
3. For the low head,head and power changed greatly power station,can stably under various working conditions;
4. This machine is a vertical shaft device,has the advantages of simple structure,convenient repair,equipment,low price,easy to realize the direct drive etc.
5. The Kaplan blade is generally operated by the oil pressure relay installed in the body of the runner, which can rotate according to the change of head and load, so as to maintain the optimal coordination between the Angle of the guide vane and the Angle of the blade, thus improving the average efficiency. Kaplan turbine The highest efficiency of this kind of turbine has exceeded 94%. However, this kind of kaplan turbine needs a mechanism to operate the rotation of the blade, so the structure is more complex and the cost is higher.
Product parameters
| ZD760-LM-40 Hydro Tubine Performance Data And Supporting Table | ||||||
| Model | Turbine Parameters | Generator Parameters | ||||
| Design head(m) | Under the design head | Design speed (r/min) | Model | power (kw) | ||
| Flow rate (m3/s) | The output(kw) | |||||
| ZD760-LM-40 = + 5° | 3 | 0.51 | 12.6 | 779 | SF10-8/368 | 10 |
| 3.5 | 0.56 | 16.2 | 840 | SF12-8/368 | 12 | |
| 4.5 | 0.65 | 24.1 | 1000 | SF18-6/368 | 18 | |
| 5.5 | 0.67 | 3.6 | 1000 | SF26-6/423 | 26 | |
| ZD760-LM-40 = +10° | 2.9 | 0.57 | 13.2 | 724 | SF10-8/368 | 10 |
| 3.4 | 0.62 | 16.8 | 784 | SF12-8/368 | 12 | |
| 4.3 | 0.69 | 23.9 | 880 | SF18-6/368 | 18 | |
| 5 | 0.77 | 30.7 | 1000 | SF26-6/423 | 26 | |
| 5.5 | 0.78 | 34.6 | 997 | SF26-6/423 | 26 | |
| 6 | 0.82 | 39 | 1041 | SF40-6/423 | 40 | |
| ZD760-LM-40 = + 15° | 2.8 | 0.62 | 12.6 | 711 | SF10-8/368 | 10 |
| 3.2 | 0.66 | 16.4 | 760 | SF12-6/368 | 12 | |
| 4.2 | 0.76 | 24.7 | 870 | SF18-6/423 | 20 | |
| 4.9 | 0.87 | 32 | 1000 | SF26-6/423 | 26 | |
| 5.8 | 0.93 | 39.6 | 1023 | SF40-6/423 | 40 | |

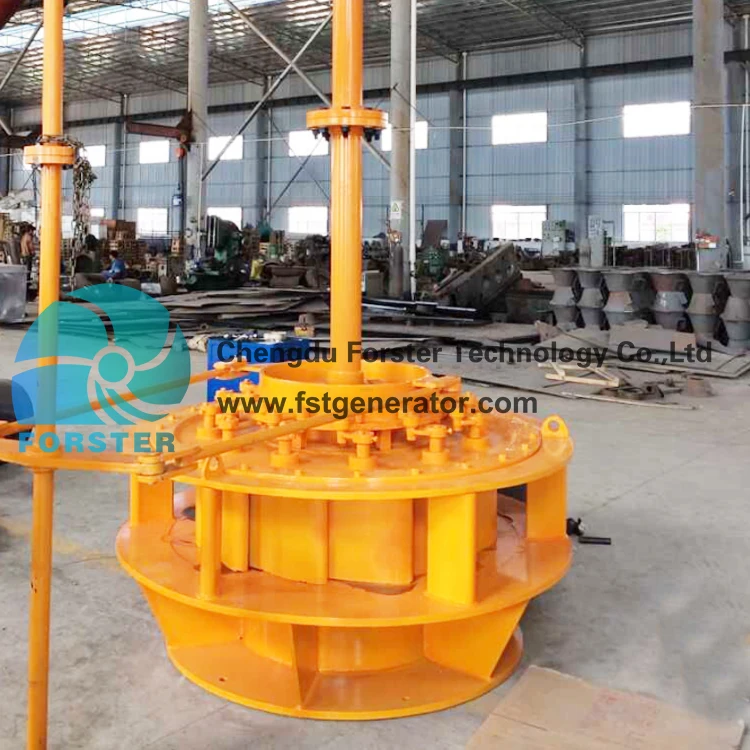

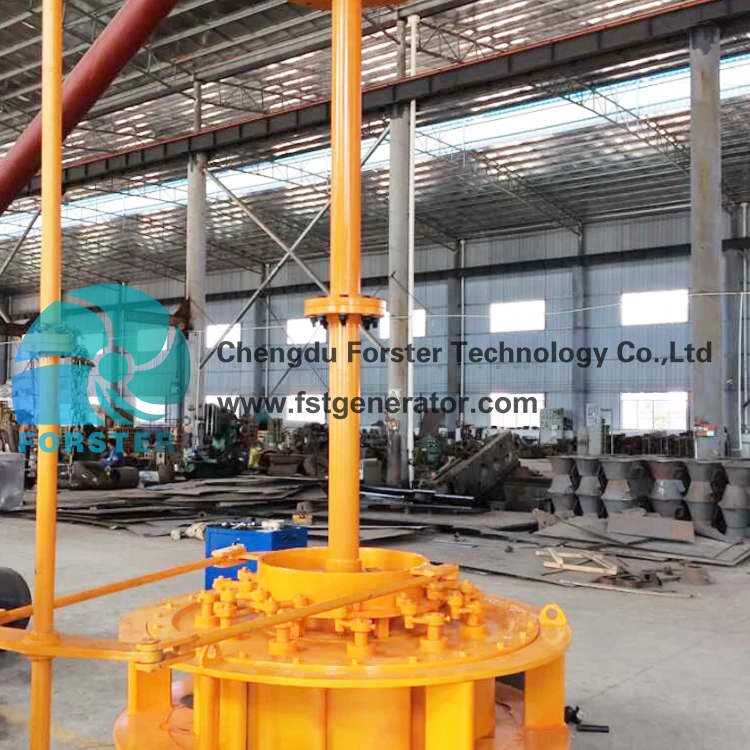

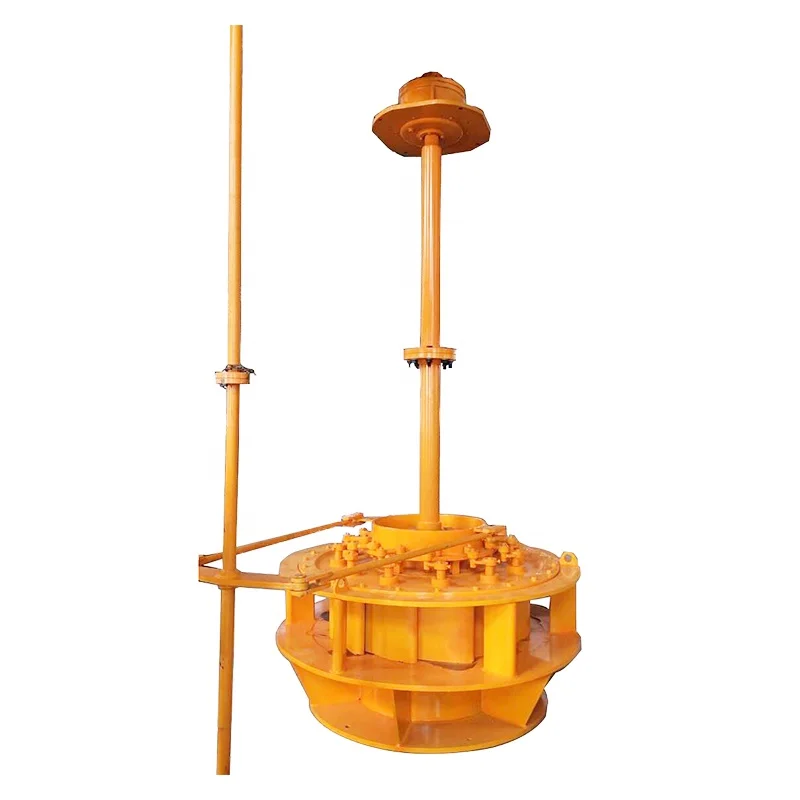

Product pictures
Company Information
Our Workshop
Engineering Case
Advantages
FAQ
1. You are a trading company or a manufacture?
We are a hydro turbine manufacture with over 60 years of experiences, we have facilities in Zigong City, pay a visit to our factory you will know more about us.
2. How to choose a right turbine? There are so many models offering on your website. And how to calculate the turbine capacity?
Just tell me the water head, flow rate, our senior engineer will work out the solution for you. The turbine capacity: P=Flow rate(cubic meter/second) * Water head(m) * 9.8(G) * 0.8(efficiency).
3. What information shoul I provide for getting the quotation?
We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution.
4. When my turbine shut down, who can help me solve the problem?
You are free to call me day or night at my cellphone number +8613540368205. I am sure our engineer able to fix the problem either by changing spare parts or remove something.
5.Can you do EPC for a hydroelectric power plant?
Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.
6. How can I trust you?
Pay us via trade assurance is not a problem. And we also accept L/C. To build mutul-trust we think pay a visit to our facility is the best way.
Q7,Does your company have its own independent official website?
Of course, and we can see more information about our company and products on our official website. website address: www.fstgenerator.com
Hydro Turbine belongs to customized products. We could design products according to your requirement. Could you give us the following parameters so that we could make a professional solution for your project.
1.Flow rate ( lit/sec or m³/sec?)
2.Water head ( m?)
3.Total power you need( KW?)
4.Frequency ( 50 hz or 60 hz?)
5. Voltage( V?)
6. On grid or off grid?
7. Voltage of transmission line if it is on grid( V?)
8. Elevation(MSL)
9. Is it clean fresh water(with our sand, stone and silt ect,.)
By the way,could you tell me your whatsapp number(phone number) ?
