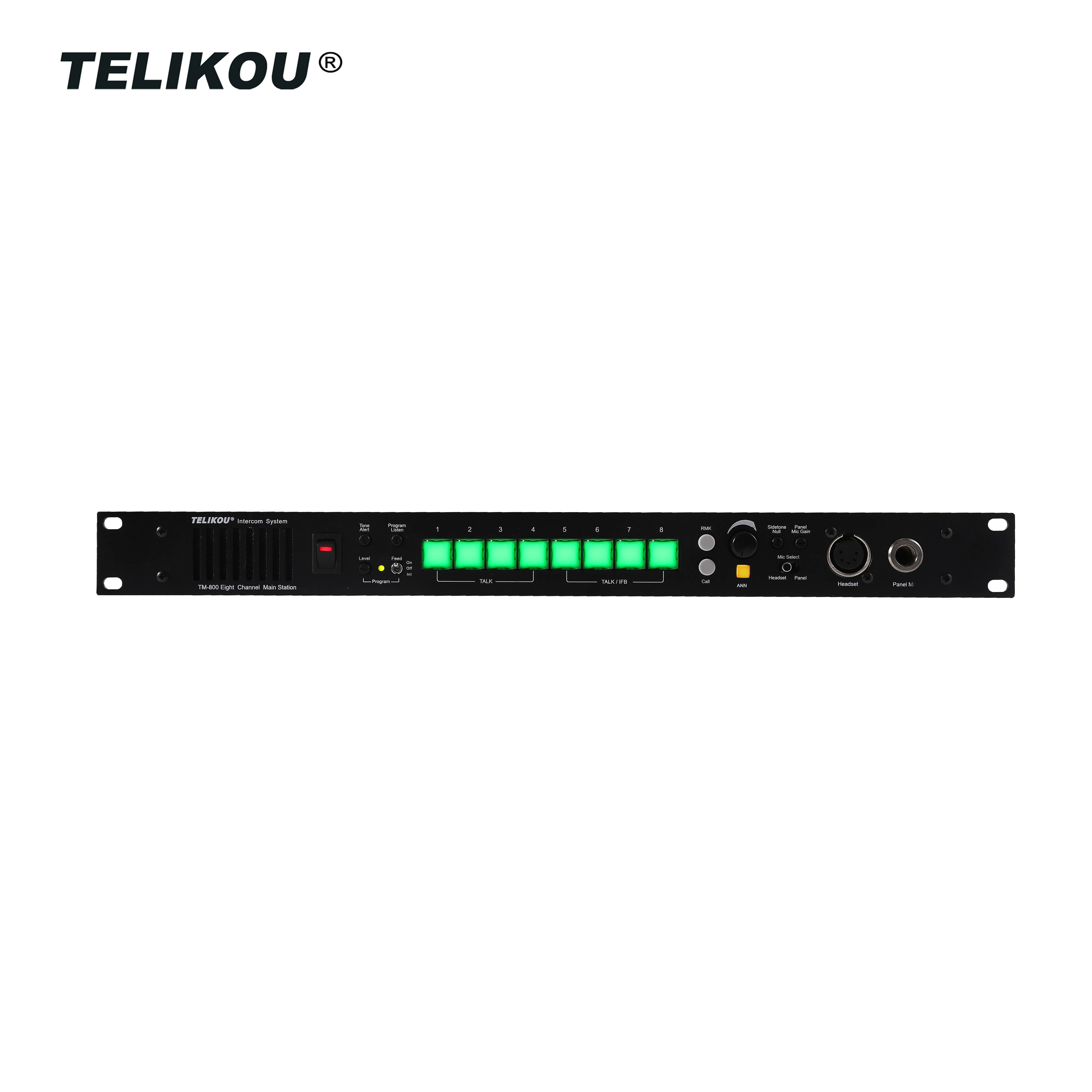

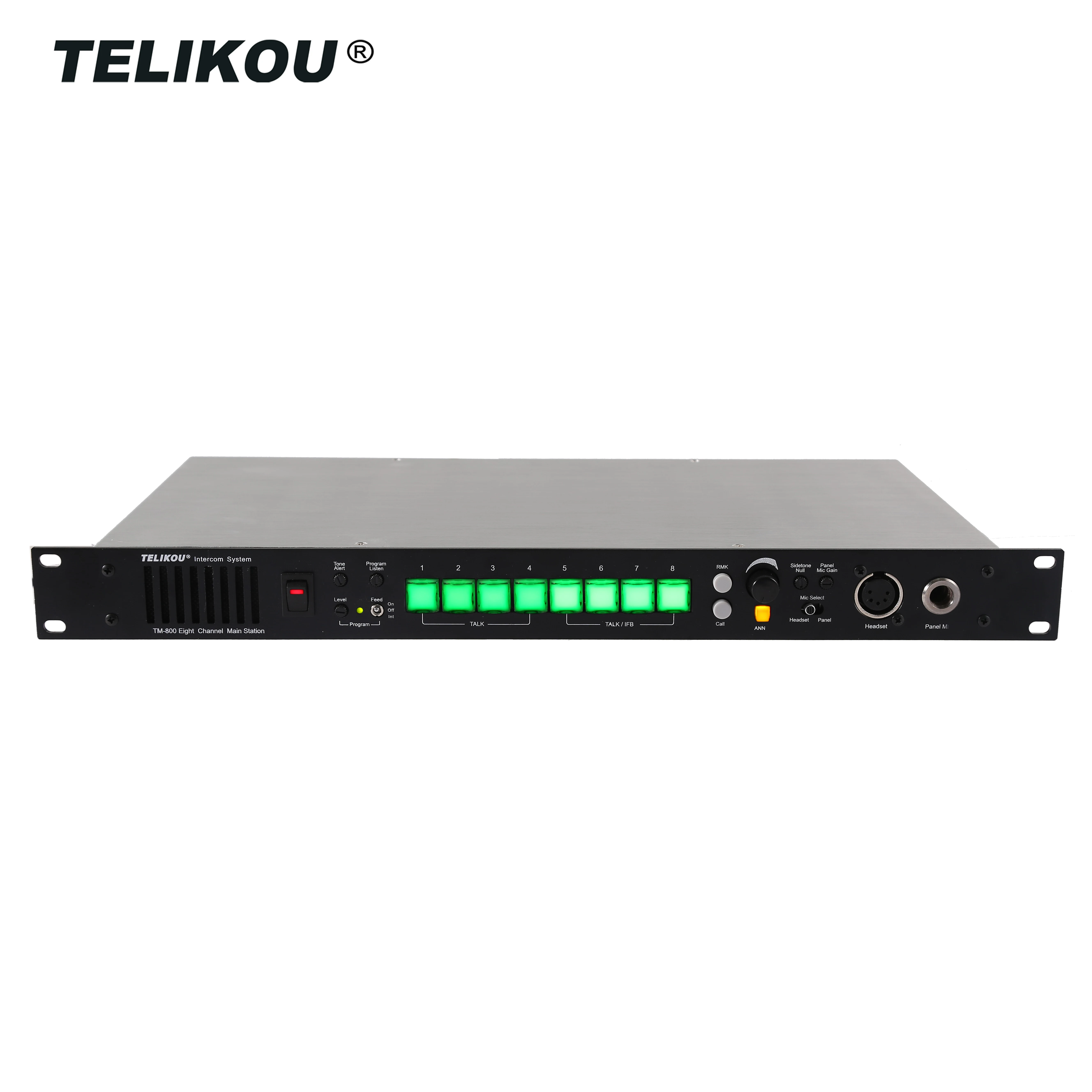

TELIKOU TM 800 eight channel Encore Analog Partyline system broadcast intercom master station for Small, Single site Church

Product Overview

Description

channel	1. Headset connector	BANDWIDTH	SIDETONE:	EARPHONE:
eight	4-pin XLR Male or 5-pin XLR Female	300Hz-4000Hz ±3dB	Adjustable range: >32dB	Dynamic 8 - 300ohm
HEADSET MICROPHONE:	POWER SUPPLY:	DIMENSION:	WEIGHT:
Dynamic 200-600 ohm	AC 90-260V, 50-60Hz, <45VA	19” (W) x1.75” (H) x9.48” (D), 482mm x 44.5mm x 241mm	2.6kg

6I. Introduction

Thank you for choosing TELIKOU intercom product. TM-800 main station is suitable for television station, communication center, UB truck, live performance and any other environment which requires communication. We recommend you read through this manual to better understand the functions of TM-800.



This system adopts wired connection, and has following features, free of external emission interference, stable and reliable performance, flexible configuration, full-duplex communication, clear and loud communication sound, easy operation, and strong noise resistance.



II. Characteristics

l Remote Microphone kill function (RMK).

l IFB function

l Announcement output

l Controllable background input

l Automatic circuit short protection and indication.

l Supports LED working light

l Supports Dynamic or Electrets Gooseneck Microphone



III. Technical Specification

BANDWIDTH:

300Hz-4000Hz ±3dB

SIDETONE:

Adjustable range: >32dB

EARPHONE:

Dynamic 8 - 300ohm

HEADSET MICROPHONE:

Dynamic 200-600 ohm

POWER SUPPLY:

AC 90-260V, 50-60Hz, <45VA

DIMENSION:

19” (W) x1.75” (H) x9.48” (D), 482mm x 445mm x 241mm

WEIGHT:

2.6kg
