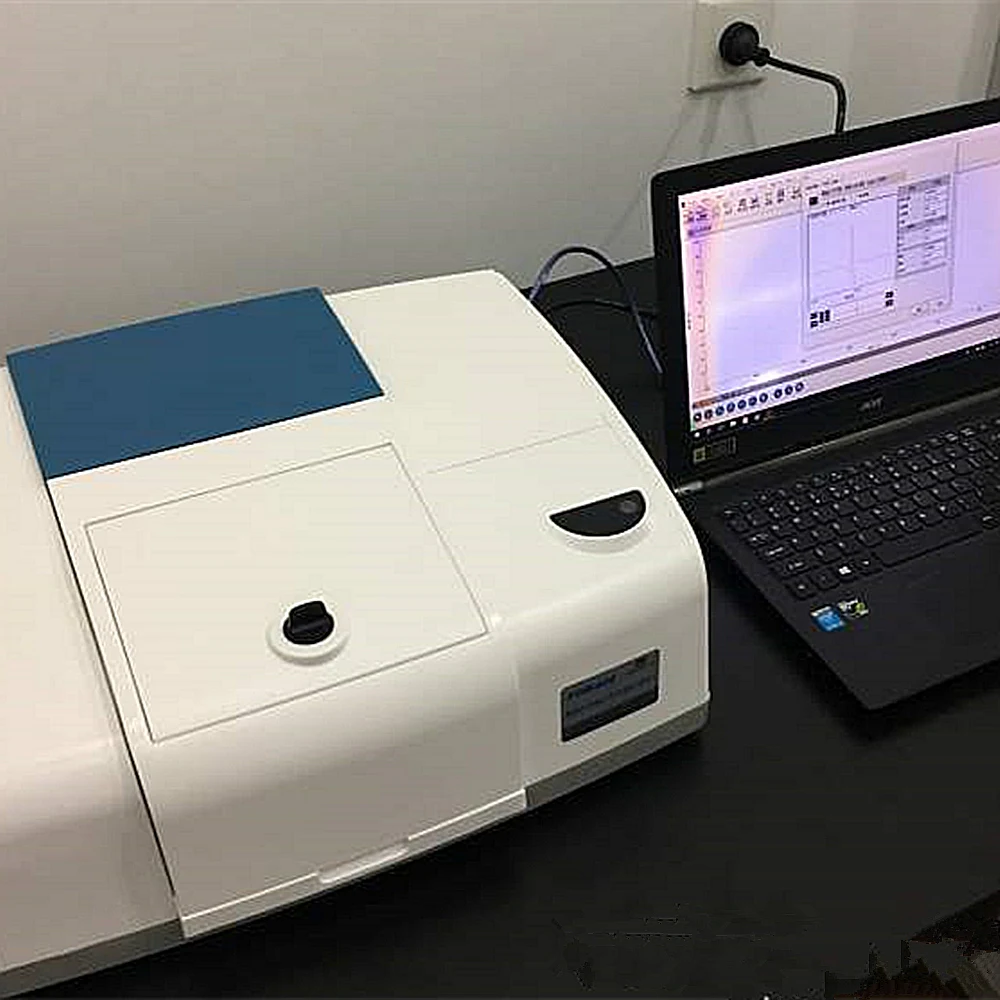

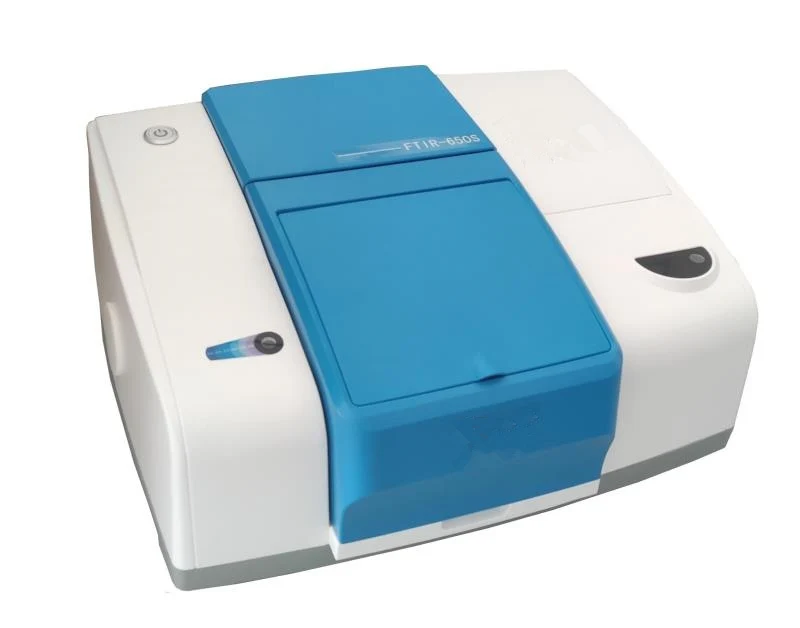

Infrared ATR FTIR Spectrophotometer Ft-IR Spectromete

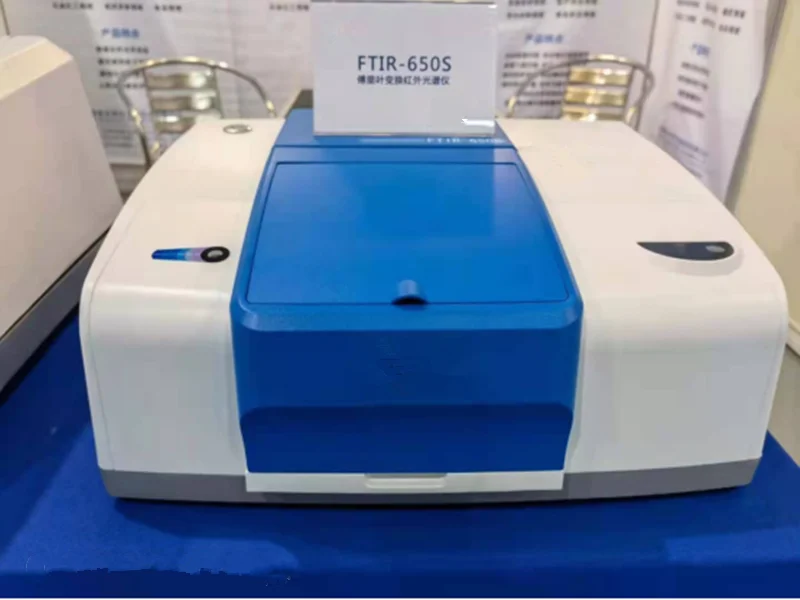

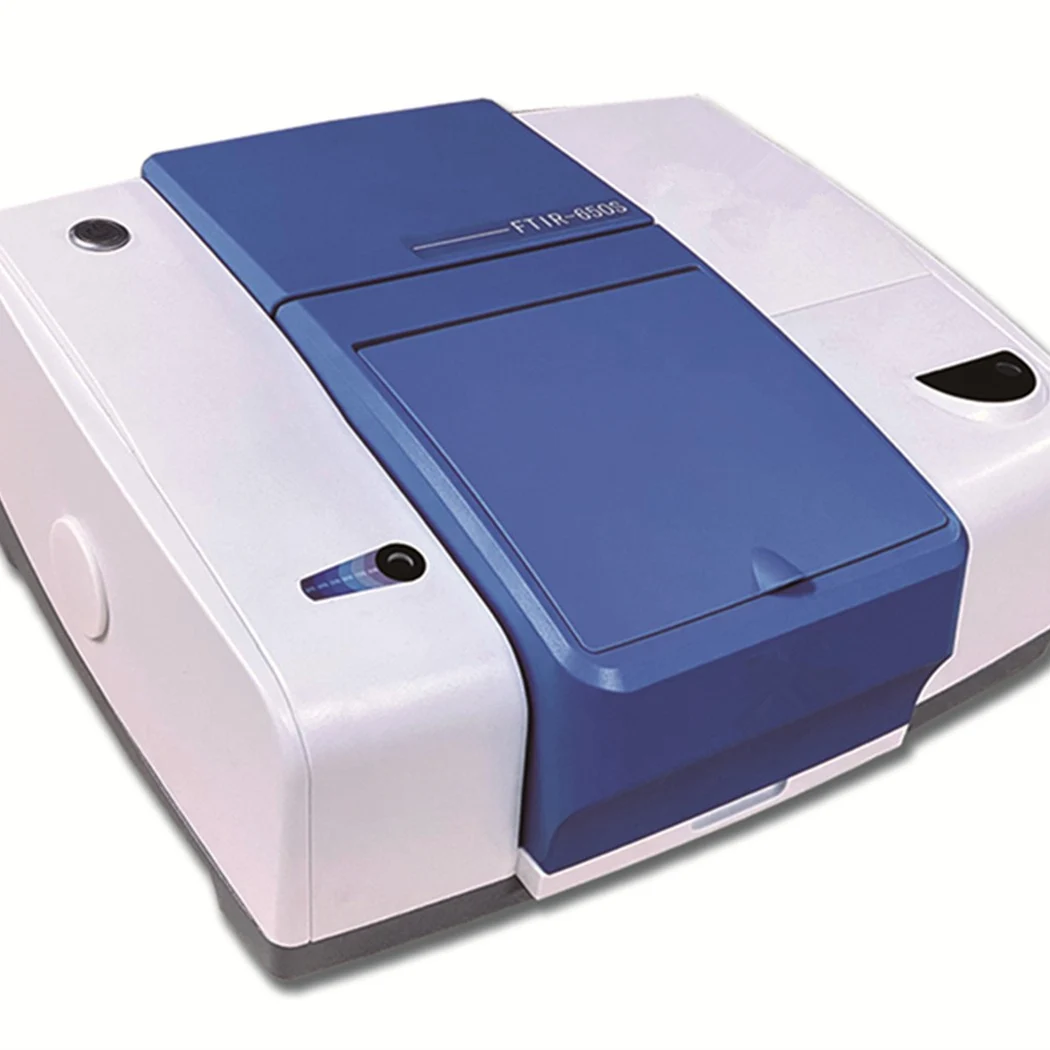

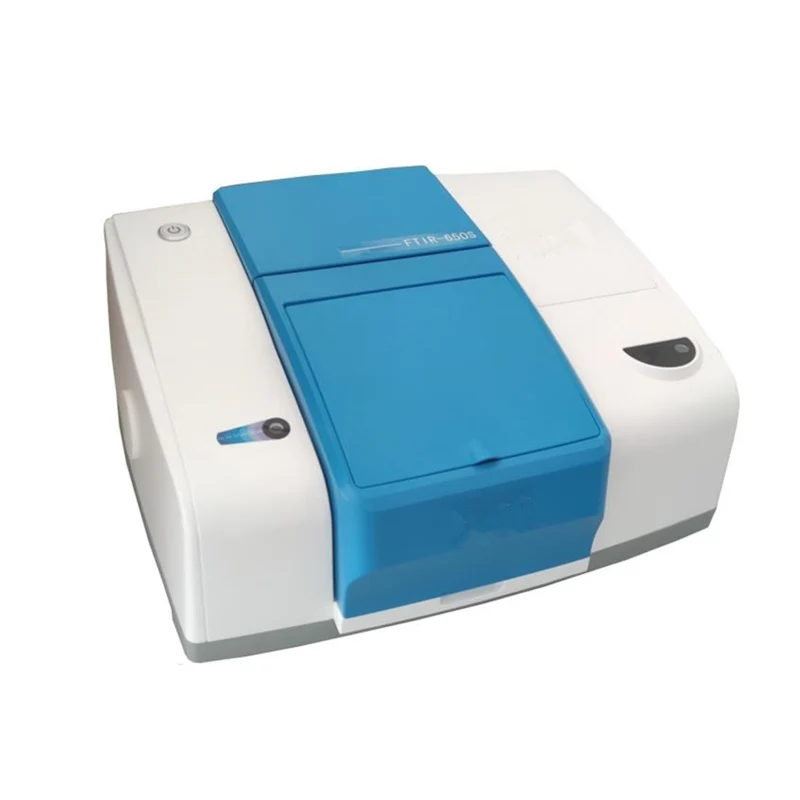

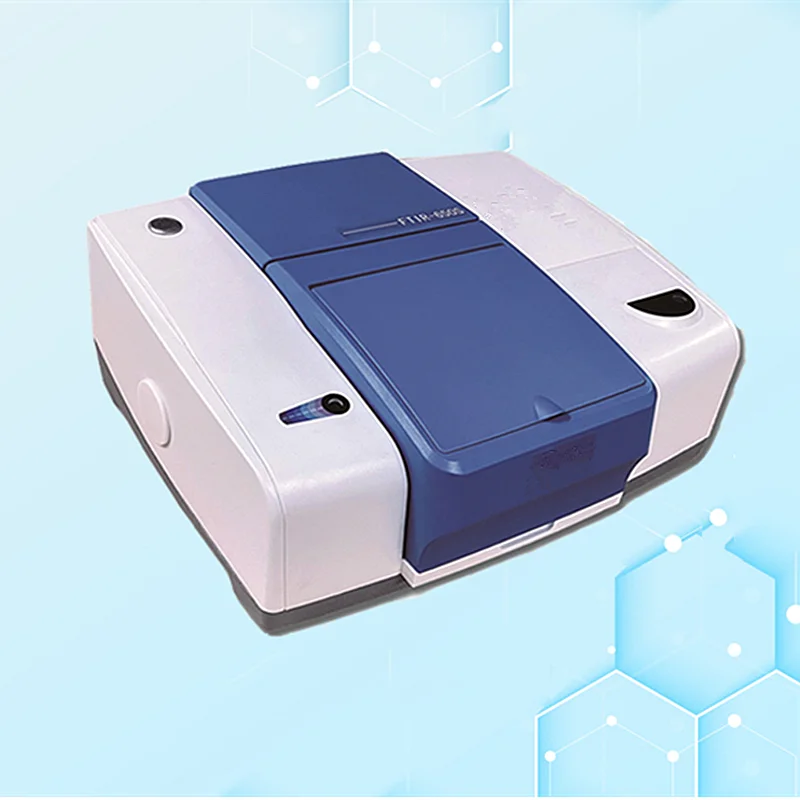

FTIR850 is a special analysis system for semiconductor coating materials. Many improvements and innovations have been made on the basis of the original FTIR-650, and the performance of the instrument has been significantly improved. It has the characteristics of high resolution, good scalability, stable performance, simple operation, long service life, low maintenance cost, etc. Its product performance and main technical indicators have reached the international advanced level of similar products. It is widely used in the fields of medicine, chemical industry, petroleum, environmental protection, food, materials, public security, national defense, semiconductor, optics, etc. It is an indispensable analytical test tool for laboratory scientific research and enterprise production

Features

(1) High resolution Resolution can reach 0.5cm-1, which meets sample test needs of users in different situations.

(2) High stability

· Using moving mirror dynamic collimation technology, up to 130,000 times per second real-time dynamic adjustment, to ensure that the sample detection has repeatability, long-term stability and spectral peak shape.

· The use of flat mirrors overcomes the "spectral distortion" phenomenon of the interferometer of the cube corner mirror compensation system

· More excellent structure design, strong earthquake resistance, maintenance-free, no need for post-adjustment

(3) New infrared light source

Use high temperature resistant ceramic oxide (temperature resistant greater than 1600 degrees) as the insulation material. The iris is used cleverly to form a semi-closed heat preservation warehouse to ensure long life use. After power on, the filament can quickly rise to the working temperature, with high efficiency and good heat preservation effect.

(4) Good moisture-proof effect

It adopts a fully enclosed design to effectively isolate moisture; the super large-capacity desiccant box increases the dehumidification capacity by eight times, reduces the frequency of desiccant replacement, and improves the efficiency of the instrument.

(5) Strong scalability

The large sample chamber design is convenient for customers to expand other infrared accessories, such as gem identification accessories, parallel light accessories, infrared microscope accessories, specular reflection accessories, diffuse reflection accessories, ATR accessories, gas pools, liquid pools, polarization accessories, etc.

(6) Audit trail function

The instrument supporting software has a "three-level management authority" function, which meets the testing requirements of the National Pharmacopoeia.





Interferometer	Digital dynamic adjustment, 130000/s, it ensures ultra-high stability at simultaneous and continuous detection.
Beam splitter	Ge evaporation KBr
Light source	High-energy ceramics light source
Detector	High- sensitivity DLATGS detector
Spectral range	7800~350cm-1
Resolution	0.5cm-1
Peak noise	<2.2×10-5AU(1 min scanning, 4cm-1 resolution)
Linearity	<0.1%
Wave number	0.01cm-1
Dimension	543mm×455mm×248mm
Power supply	AC220V/50Hz
A/D transfer	24bit
Data collection	He—Ne laser
Interface	USB2.0
System	windows XP, windows Vista, windows 7, windows 8
