XDEM 1.2ton Mini Wheel Excavator 4 Wheels Tire Digger mini digger
- Category: >>>
- Supplier: Nanyang Xinda Electro-Mechanical Co. Ltd.
Share on (1600330147305):
Product Overview
Description

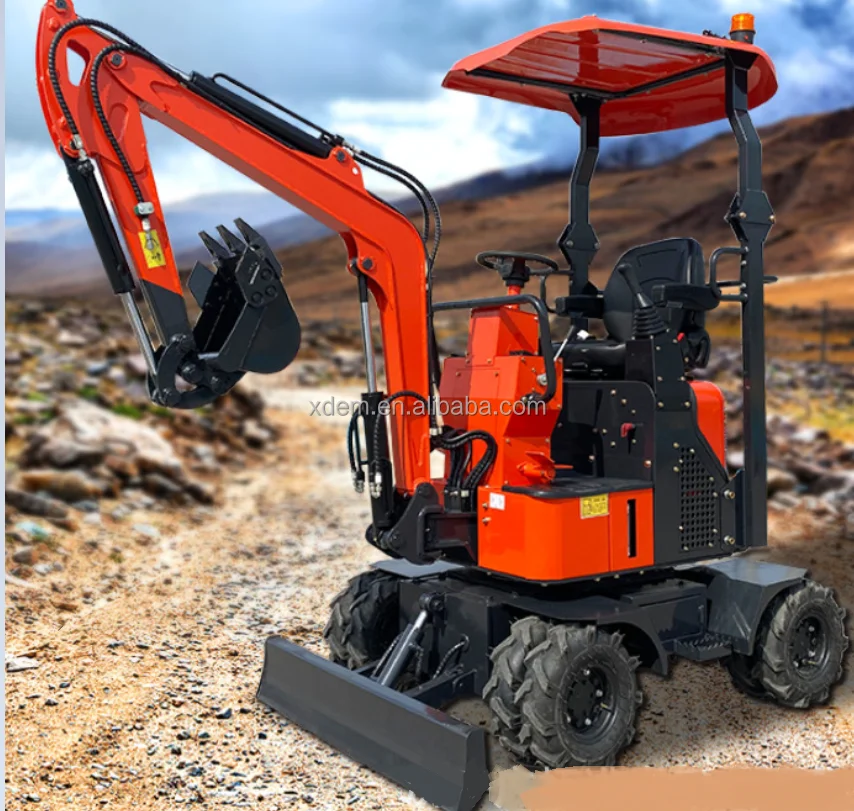

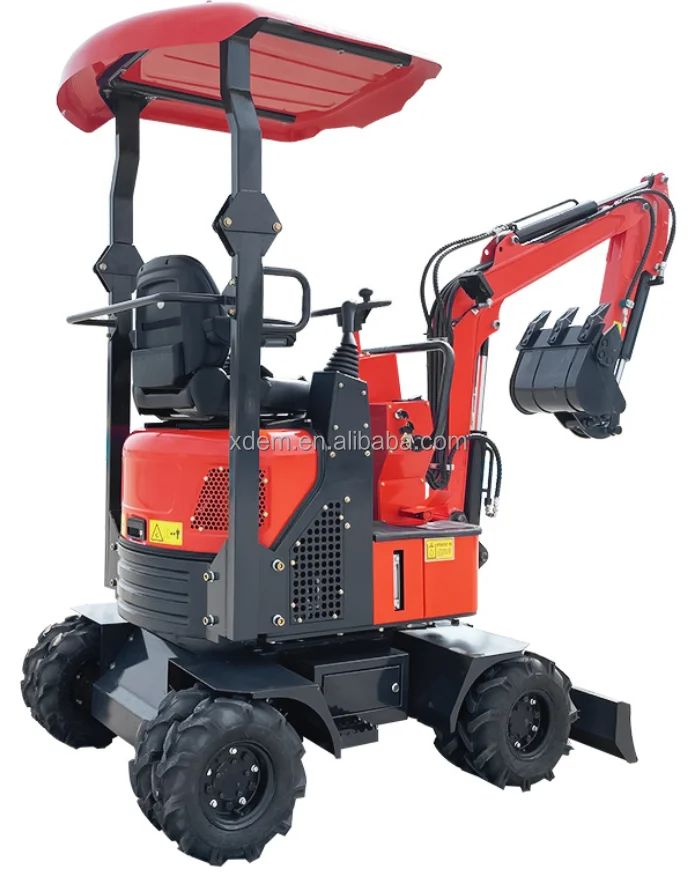

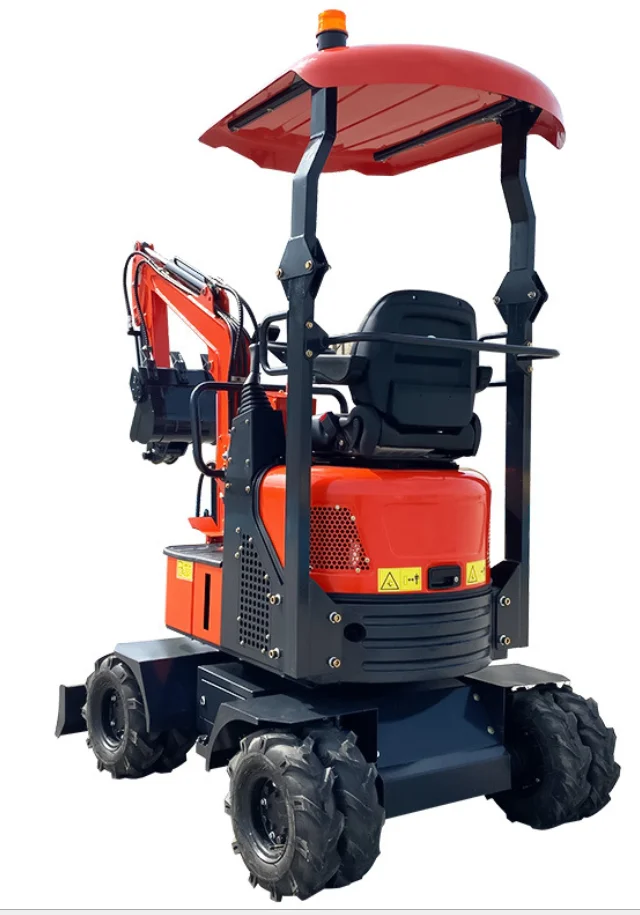

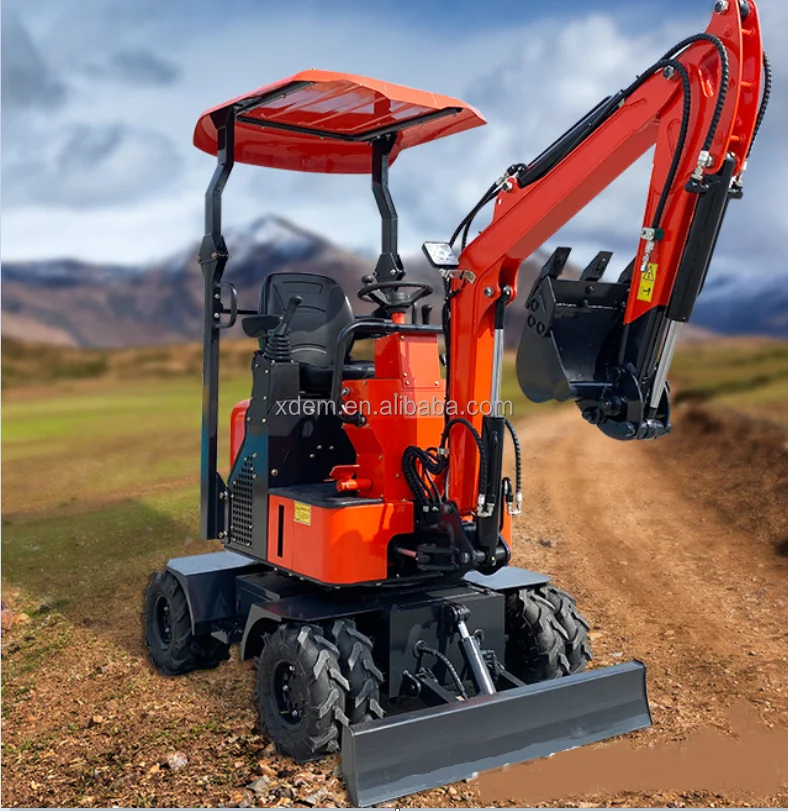

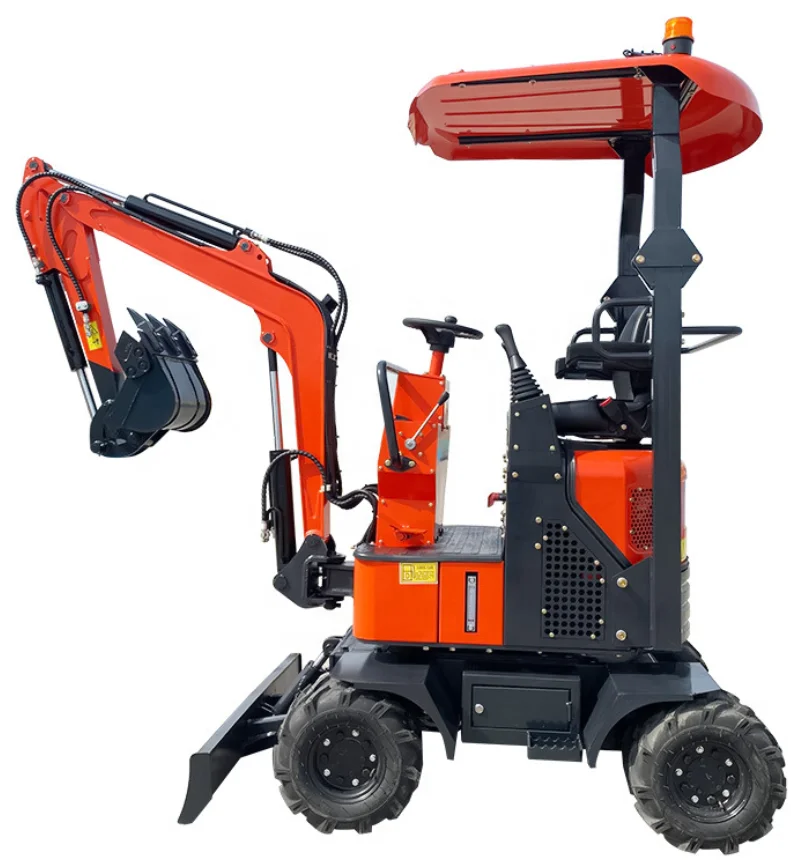

XDEM 1.2ton mini wheel excavator tire excavator
Technical Parameter of 1.2Ton Mini wheel Excavator
Model | HT12 |
Dimensions | |
Wheelbase | 1400mm |
Mini ground clearance | 380mm |
Tail rotation Radius | 733mm |
Chassis width | 1300mm |
Front wheel height | 500mm |
Rear wheel height | 500mm |
Shipping length | 3200mm |
Overall Width | 1300mm |
Overall height | 2200mm |
Operating range | |
Max digging Radius | 2400mm |
Max digging depth | 1600mm |
Max digging height | 2490mm |
Max dumping height | 1750mm |
Max vertical digging depth | 1320mm |
Mini Rotation radius | 1190mm |
Blade Max lifting height | 325mm |
Blade max digging depth | 175mm |
Weight | 1200kg |
Standard bucket volume | 0.02m3 |
Rated power | 8.6kw/12hp |
