abrasive belt deburring machine after laser cutting and plasma cutting
abrasive belt deburring machine after laser cutting and plasma cutting
abrasive belt deburring machine after laser cutting and plasma cutting
abrasive belt deburring machine after laser cutting and plasma cutting
abrasive belt deburring machine after laser cutting and plasma cutting
abrasive belt deburring machine after laser cutting and plasma cutting
abrasive belt deburring machine after laser cutting and plasma cutting

abrasive belt deburring machine after laser cutting and plasma cutting

Share on (1600330153522):


Price:$35,000.00

Quantity:


Product Overview

Description



PRODUCT SPECIFICATIONS


1
Working Width
1000mm
2
Working Thickness
0.5-80mm
3
Feed Speed
5-12m/min
4
Min. size of workpiece
30*30(vacuum table)
5
Total Power
49.64KW
6
Machine dimension
2350*1650*2200mm
7
Machine weight
2.6ton


PRODUCT CONFIGURATION




Products Description


Grinding process

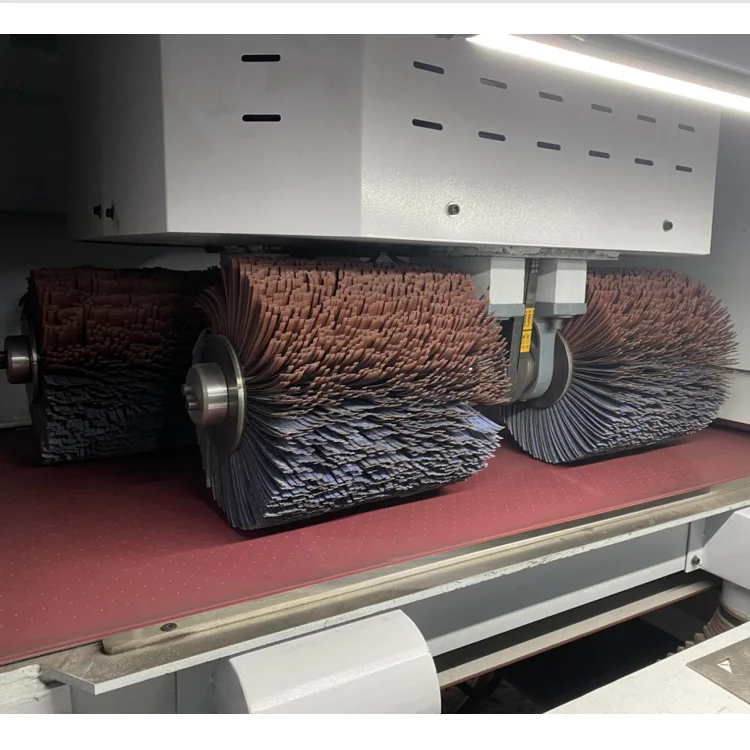

• Combination of double wide sand belt and brush rollers

Conveying Mode
• Turbine vacuum adsorption, Conveying by high damping and wear resistant rubber belt (Optional permanent magnet)

Application
• Slag, hard burr produced by laser, flame, plasma and other hot-working processes
• Burr, sharp edge of NCT, die stamping, cutting, etc.

Applicable Material
• Stainless steel,aluminium,iron,copper,etc


Our Advantages

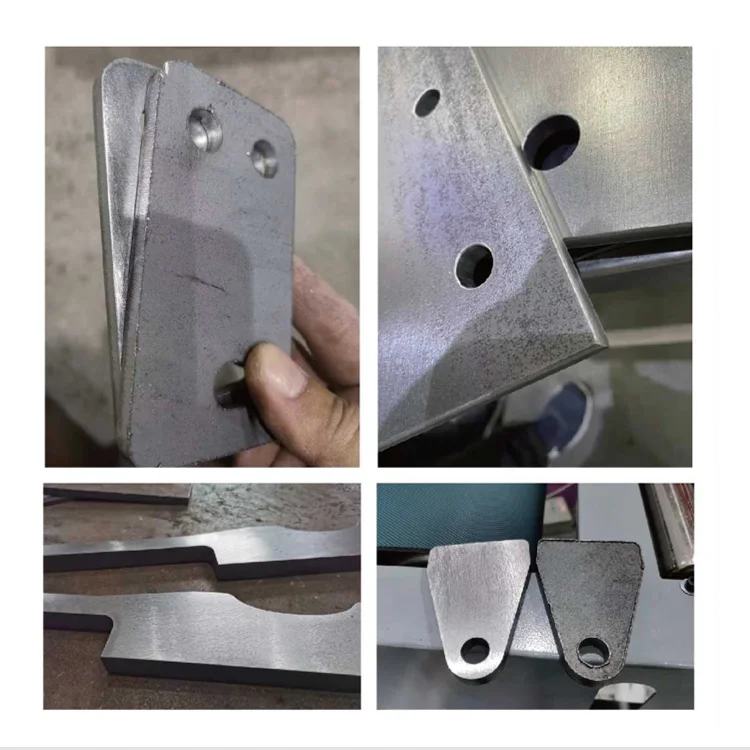

• Remove large slag and burr, remove oxide scale; surface wire drawing
• Chamfer of outside and inside profile more uniform
• Strong adsorptive force, Satisfy smaller parts
• Automatic compensation for abrasive material
• process parameters memory
• Adsorption cavity automatic cleaning
• Intelligent awareness protect


Product Display
