30 years factory produce BBQ charcoal briquette making machine product line

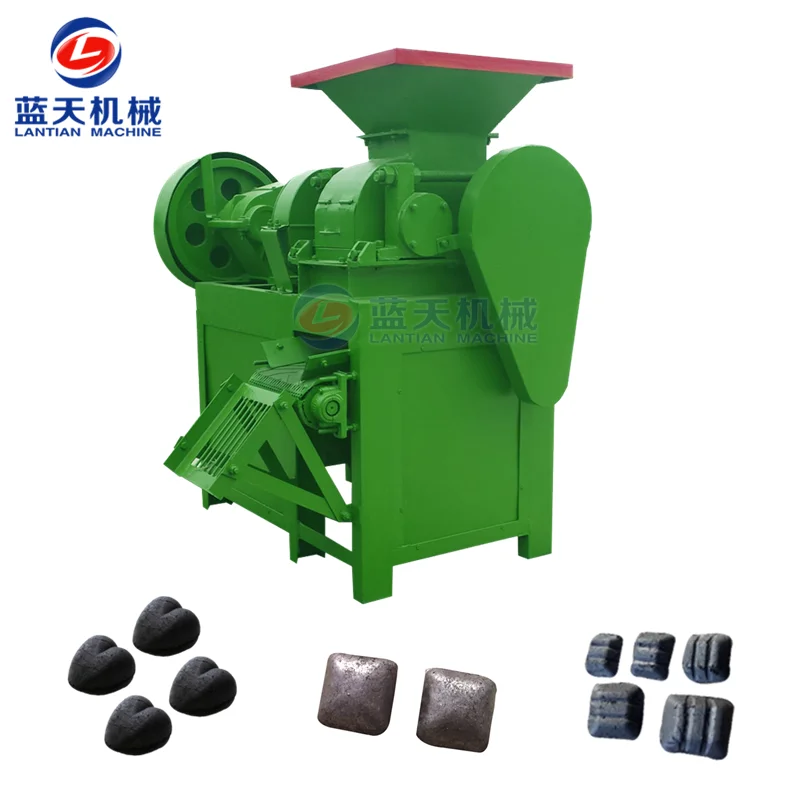

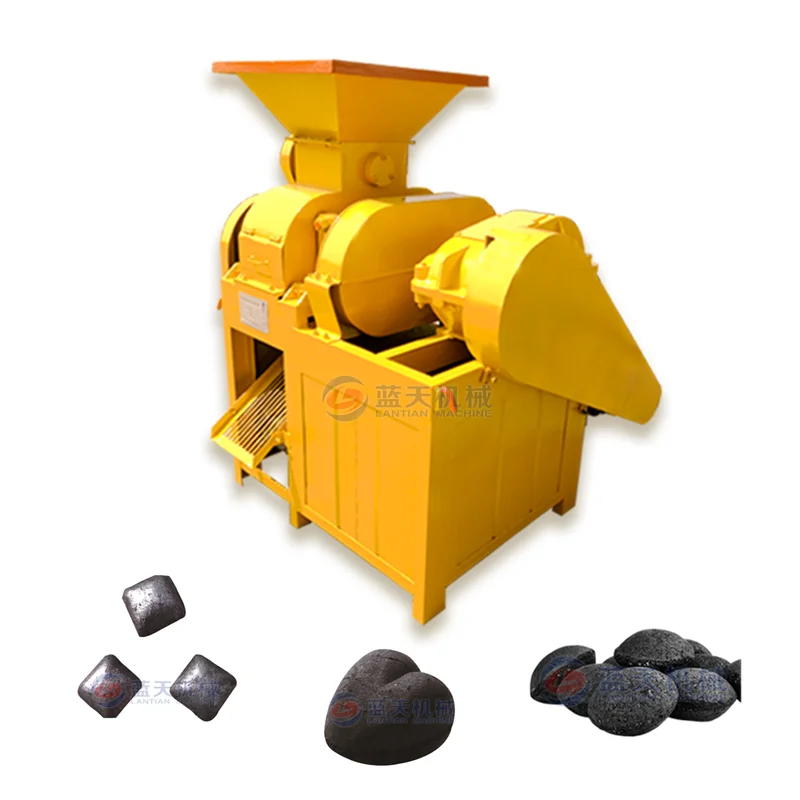

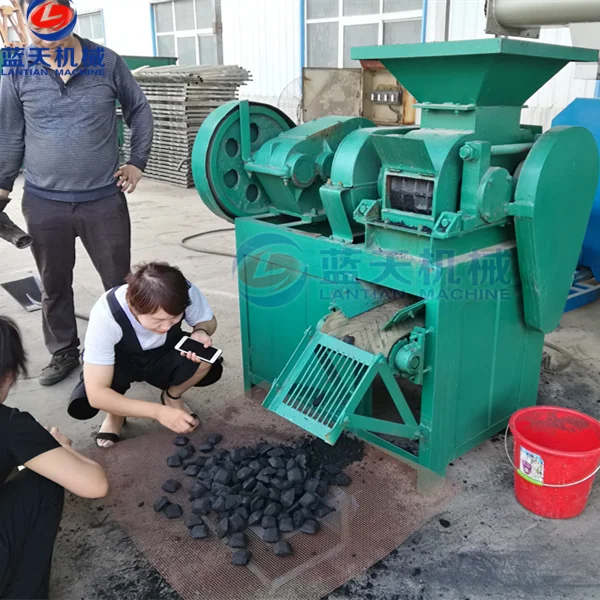

1. Brief introduction of 30 years factory produce BBQ charcoal briquette making machine product line

Our factory charcoal coal power ball briquettes press machine is transmitted to the reducer through the belt, and the reducer is transmitted to the driving shaft through the coupling, and then a pair of open gears to ensure that the two rollers are synchronized (constant speed reverse). Entering the forming hopper, the unit forming pressure of the material changes from small to large. The forming pressure at the center of the pair of rollers reaches the maximum value. After the material passes through the line, the forming pressure quickly decreases and the material enters the ball-off state, and the ball is off-ball smoothly. This machine compares easily materials such as coke powder, iron oxide scale, dust removal, coal slime, various metallurgical powders, sponge iron carbon products and other materials with obvious effect and extraordinary effect.Mainly used for: coal powder molding; dry powder molding; desulfurized gypsum molding; coke powder molding; iron filings and various metal ore powder molding.




2. The structure of 30 years factory produce BBQ charcoal briquette making machine product line

-The inlet part mainly realizes quantitative feeding to ensure that the material enters the pair of rollers evenly. The screw feeding device is driven by an electromagnetic speed-regulating motor and rotates through the pulley and worm reducer to force the pressed material into the main feed port. Due to the constant torque characteristics of the electromagnetic speed regulating motor, when the amount of material of the screw feeder is equal to the amount of material required by the host, a constant feed pressure can be maintained to stabilize the pellet quality. If the feed volume is too large, the feeding device is electrically overloaded; if the feed volume is too small, no balls are formed. Therefore, skilled operation technique is an important condition to ensure the normal work of the ball.

- The transmission part, the main transmission system is: motor-triangle belt-reducer-open gear-roll. The main engine is powered by an electromagnetic speed-regulating motor, and is transmitted to the driving shaft through a pin coupling through a pulley and a cylindrical gear reducer. The active and passive shafts are operated synchronously through open gears. A hydraulic device is installed behind the passive bearing seat. The hydraulic protection device is that the hydraulic pump drives the high-pressure oil into the hydraulic cylinder to cause the axial displacement of the piston. The front joint of the piston rod bears on the bearing seat to meet the production pressure requirements.

-The forming part mainly refers to the host part, and the core part is the roller. When there is too much feed between the two pressure rollers or into the metal block, the hydraulic cylinder piston rod is overloaded, the hydraulic pump will stop, the accumulator buffers the pressure change, the overflow valve opens to return oil, and the piston rod is displaced The gap between the pressing rollers is increased to allow hard objects to pass through the pressing rollers, and the system pressure returns to normal, which can protect the pressing rollers from damage. The pressure density is required to adjust the pressure, and the production is flexible and flexible.

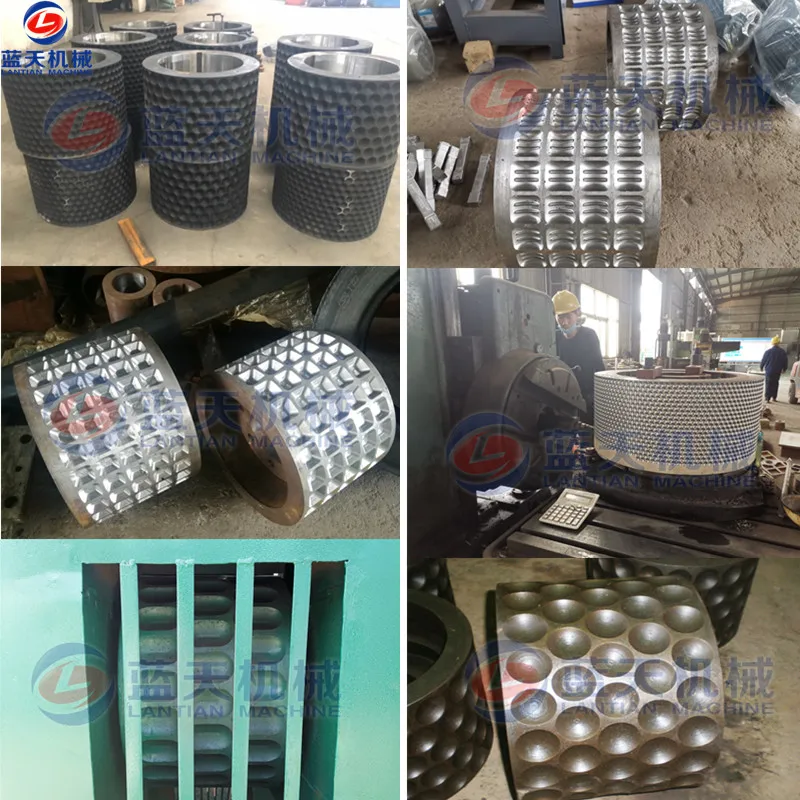

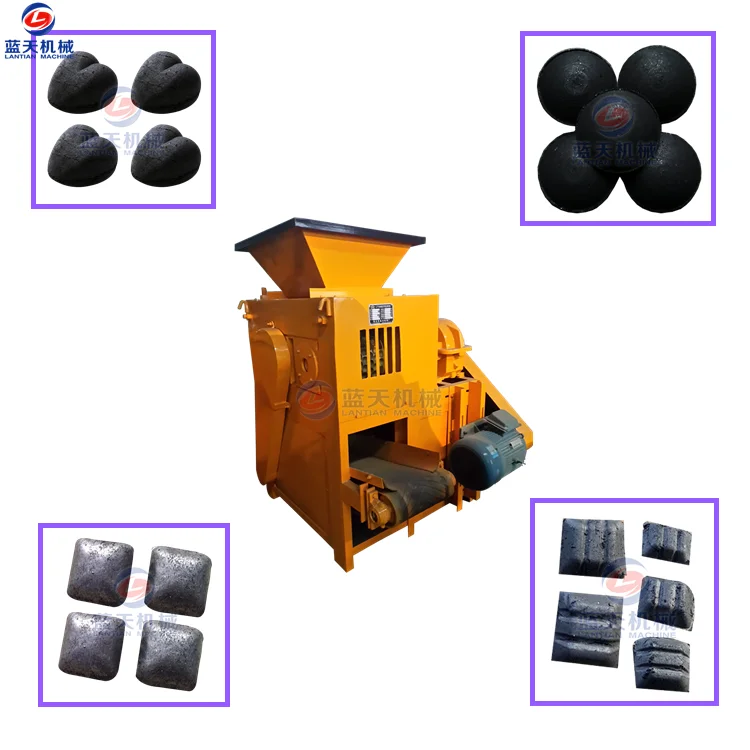

3. The mold of 30 years factory produce BBQ charcoal briquette making machine product line

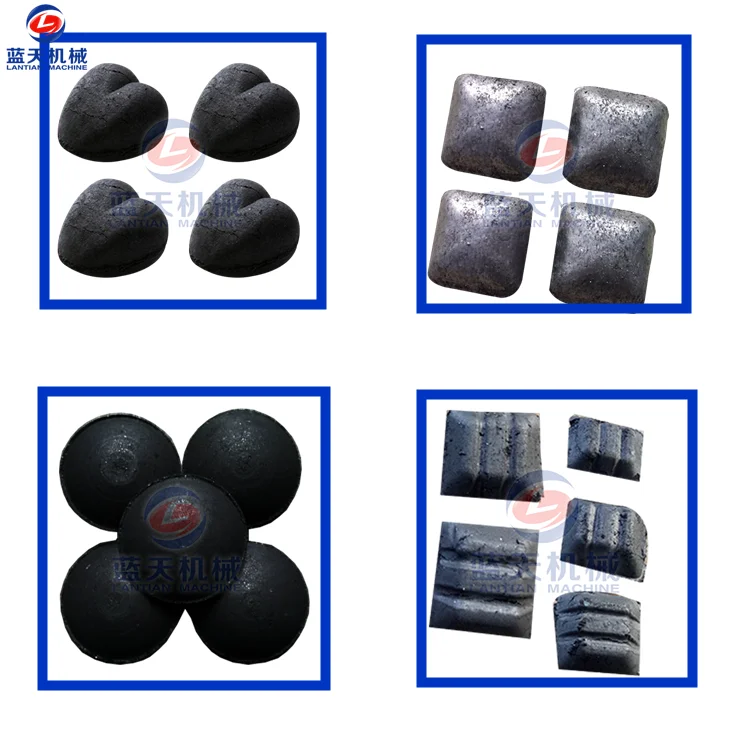

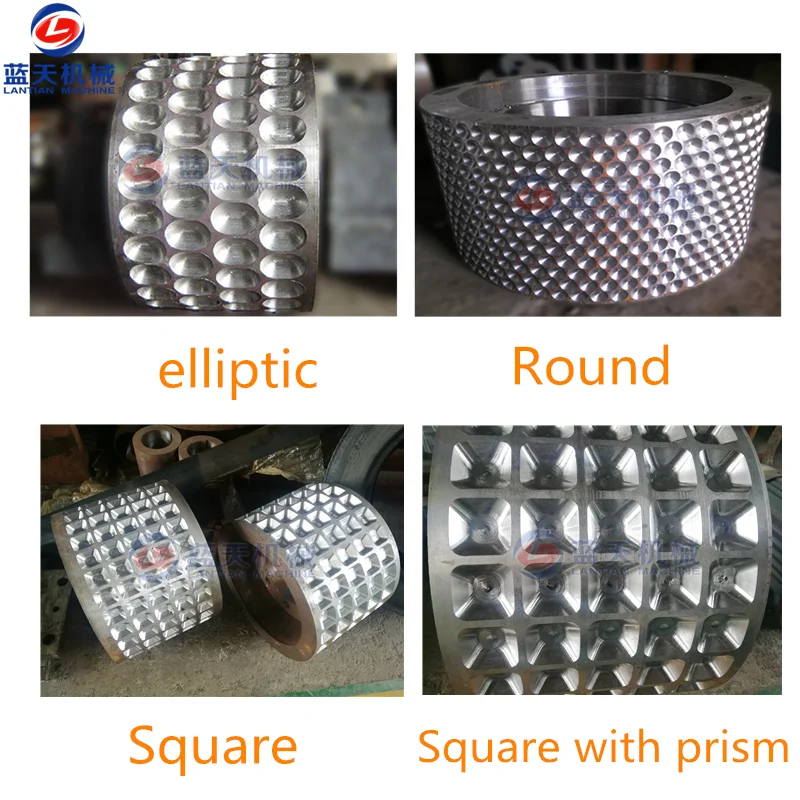

Charcoal briquette making machine use different moulds to make different shapes.




Specification


4. The Models and parameters of 30 years factory produce BBQ charcoal briquette making machine product line


Type
Dimensions
Coal Capacity
Charcoal capacity
Power
Weight
LT-290
1.5*1.25*1.55m
2-3t/h
1-1.5t/h
5.5kw
800kg
LT-360
1.6*1.45*1.65m
4-5t/h
1.5-2t/h
7.5kw
1000kg
LT-450
2.6*1.7*2.1m
5-7t/h
3-4t/h
18.5kw
3000kg
LT-650
2.6*3.3*2.3m
10-12t/h
7-8t/h
30kw
5000kg
LT-850
3.85*2.2*2.3m
12-15t/h
9-10t/h
55kw
8000kg
LT-1000
3.85*2.6*2.5m
15-20t/h
13-15t/h
75kw
10000kg

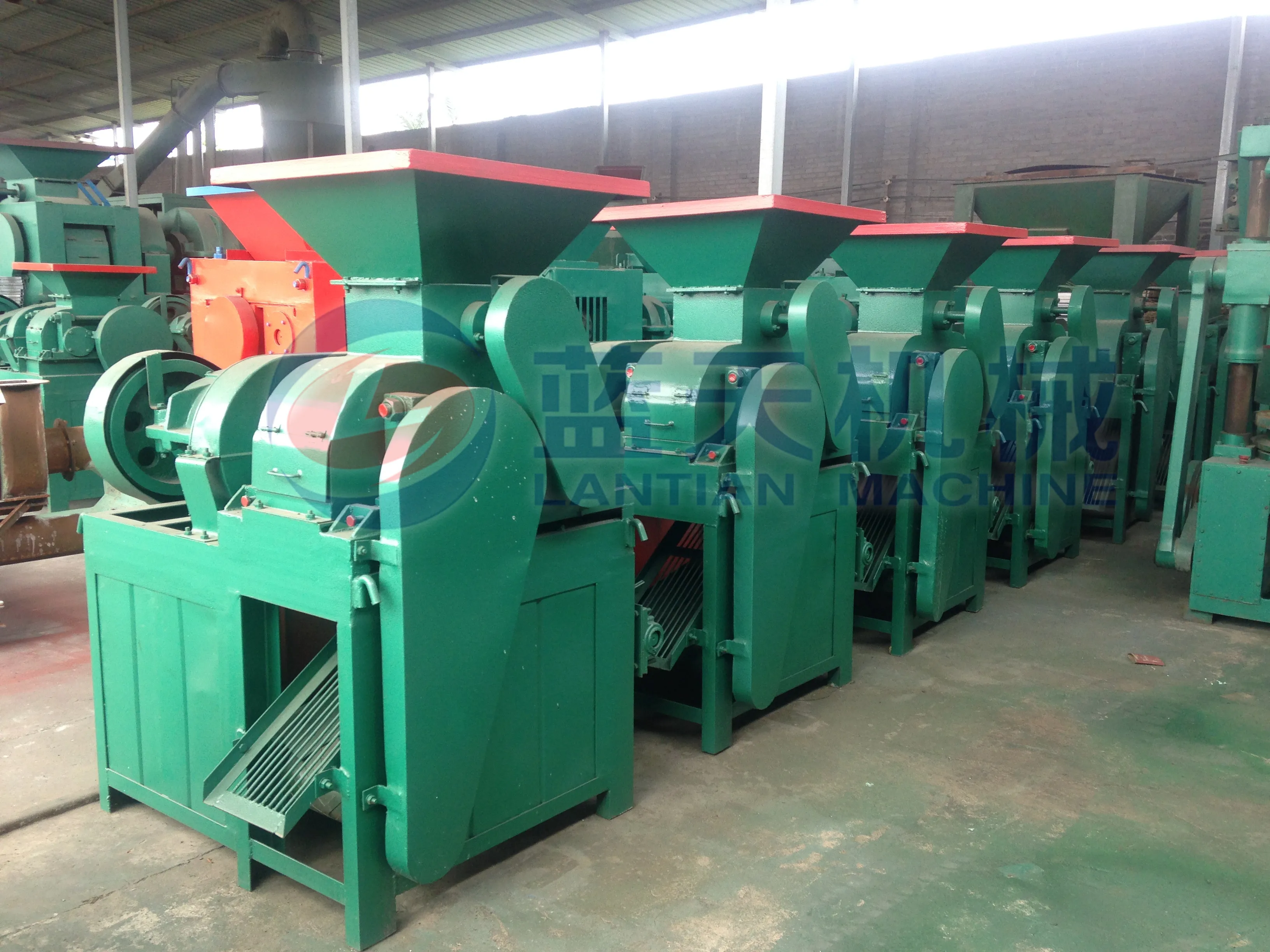

5. The inventory of 30 years factory produce BBQ charcoal briquette making machine product line

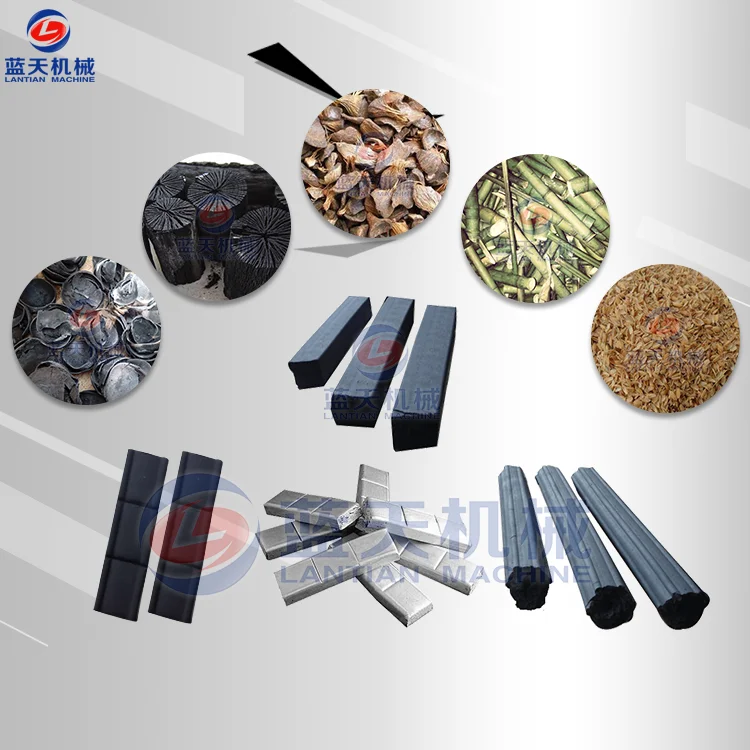

6. Raw materials of 30 years factory produce BBQ charcoal briquette making machine product line

30 years factory produce BBQ charcoal briquette making machine product line use charcoal dust or coal dust as raw materials. For the sawdust, rice husk, coconut shell, palm shell, bamboo, wood, we can use crusher machine to crush, then use carbonization stove to carbonize, when they get charcoal dust, they can be used for extrduer machine to make BBQ charcoal. Below production line part you can see details.

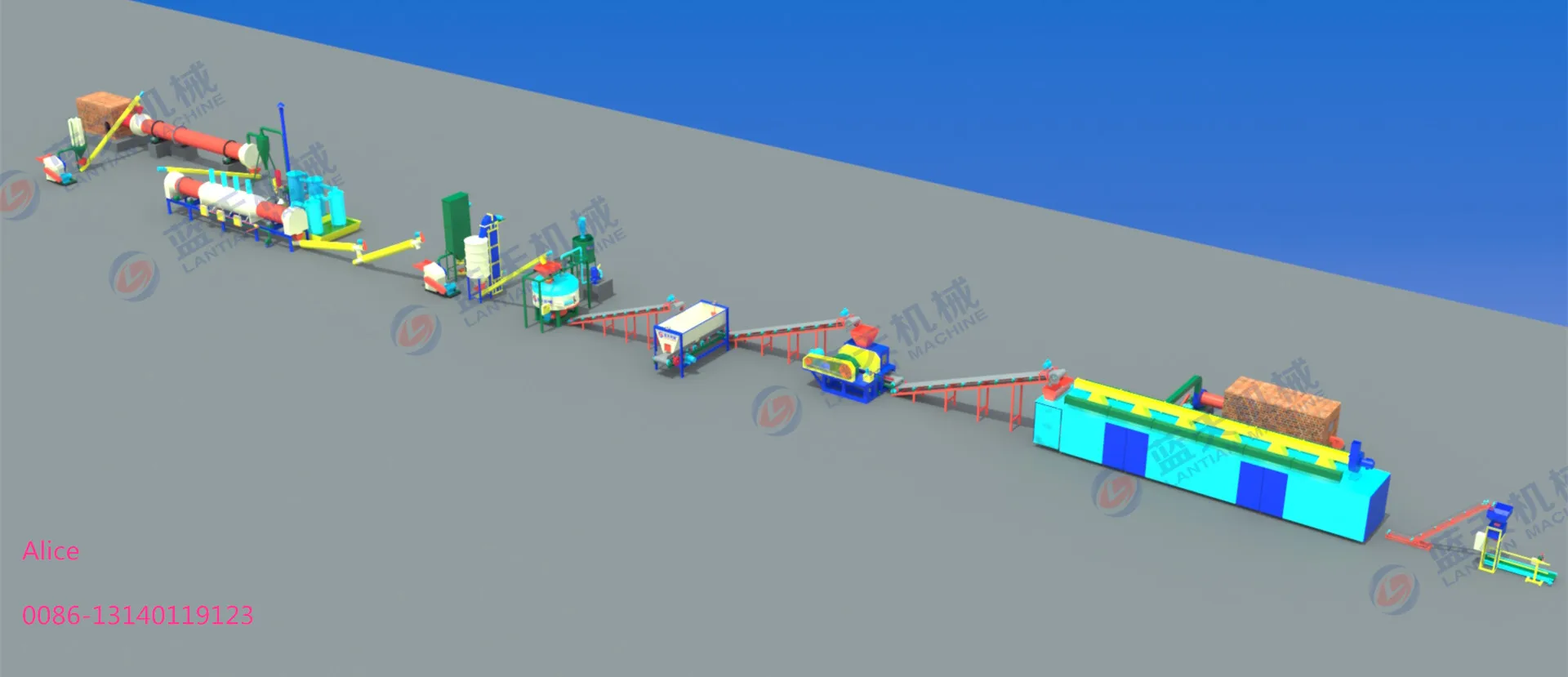

7. Production line of 30 years factory produce BBQ charcoal briquette making machine product line

1). The raw materials are various, such as wood block, coconut shell, palm shell, etc.
2). Use the crusher machine to crush into powder.
3). Use a dryer to dry, and then use a drum continuous carbonization furnace to carbonize into carbon powder.
4). Use the wheel mixer to mix the charcoal powder and binder.
5). Use the charcoal coal dust briquette machine to make barbecue charcoal.
6). Finally, charcoal briquettes mesh belt dryer machine dry these BBQ briquettes.




Packing & Delivery

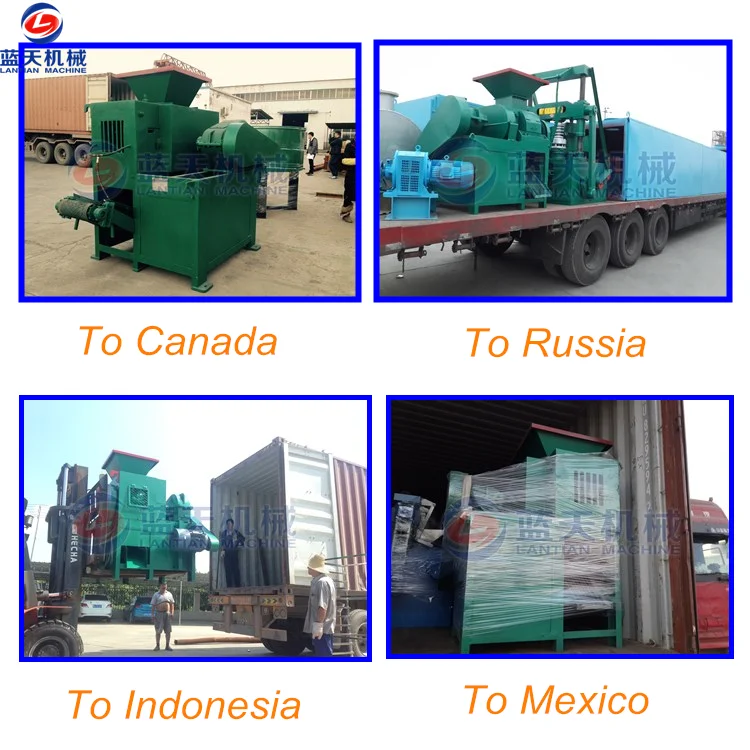

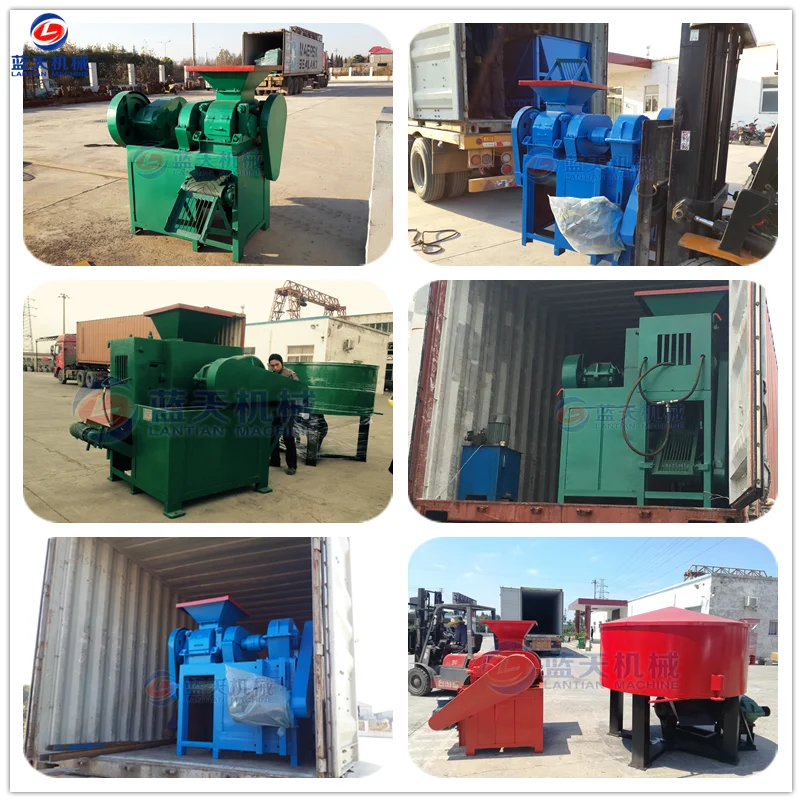

8. Packing $ Delivery of 30 years factory produce BBQ charcoal briquette making machine product line

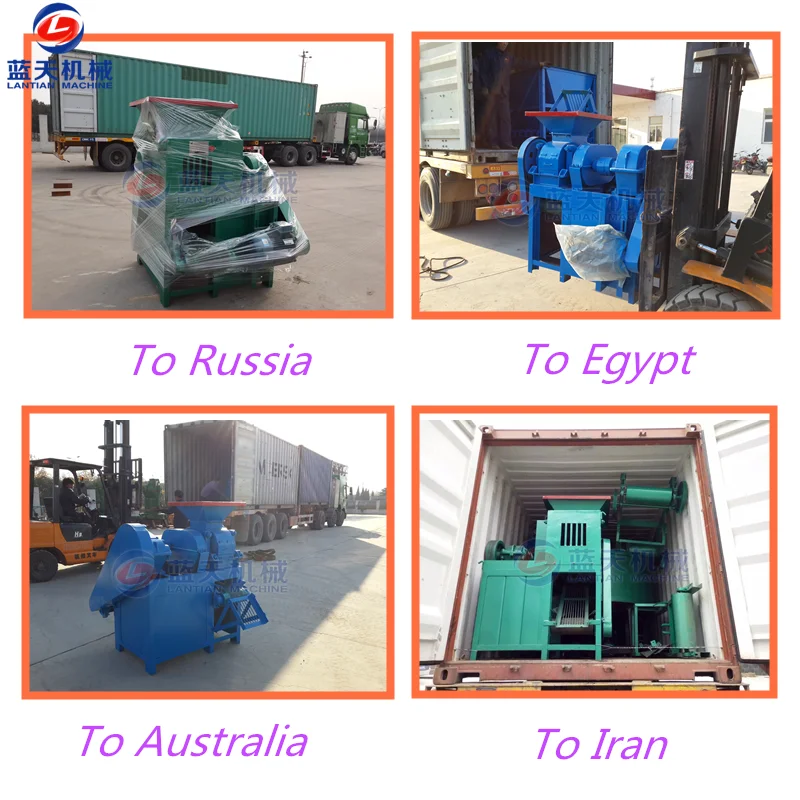

Briquettes charcoal machine can use wooden box packing or nude packing in standard containers.




Company Profile


Henan Lantian Machinery Manufacture Co., Ltd was built at 1980s, more than 20 years manufacturing experience. It is located in Gongyi City, Henan Province, and has an excellent geographical location. Since its establishment, our factory has adhered to the core of professional technology, precise manufacturing, bold innovation concepts, and high-quality services. Our factory mainly produce sawdust briquette machine, coal dust briquette machines, shisha charcoal briquette machine, barbecue charcoal making machine, suitable for drying machine with different materials. We help clients choose and design the best quality product line for different type machine. We can supply various certifications: CE, ISO9001, CO, Form E, COC, CIQ, to help customers from different country custom clearance. Now all products have passed ISO9001: 2000 international certification and are exported to Russia, USA, Canada, South Africa, Germany, Uzbekistan and other countries, and have been well received and recognized by customers. Welcome to visit our factory and test our machines, please note the address,
Middle of heluo road, Gongyi city, Zhengzhou city, Henan province.
Air port name: Zhengzhou Xinzheng International air port.
Train station name: Zhengzhou (Zhengzhou East) train station.




Customer Photos




Our Service


(1) Pre-sales service
a. Technicians will design and propose suitable production plan.
b. Technicians analyse and design special molds for you.
c. Pick you up at airport, arrange hotel-booking.
d. Other travel arrangements.

(2) After-sales service
a. Assist you build up factory and production line.
b. Install and maintain machines.
c. Training your workers to achieve skillful operation.
d. Offer technical support through telephone or online videos at any time.


FAQ


**Which payment method you can accept?
1. T/T or L/C or According to customers' requirement.

**What information do you need to provide in order to understand the machine and production line?
1. Your raw material, final products, capacity.
