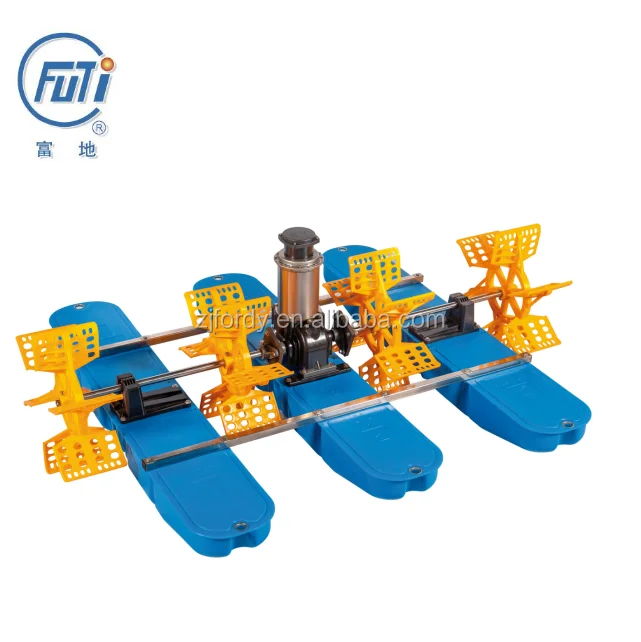

1,5 кВт, однофазный водно охлаждающий 2 лошадиный двигатель с 4 лопастными колесами, аэраторы для аквакультуры

1,5 кВт, однофазный водно охлаждающий 2 лошадиный двигатель с 4 лопастными колесами, аэраторы для аквакультуры

Category: Aquaculture Machine Aerators >>>
Supplier: Zhejiang Fordy Imp. & Exp. Co. Ltd.

Price:322,90 $ - 337,80 $

Quantity:

Product Overview

Description

DESCRIPTION
Model	spare parts	unit	special	material
S.S. SC-1.5	Stainless Steel Motor	1	2HP 3 PHS Inductrial motor, motor to be made according to the customer's requiry for the voltage	Stainless steel 316 housing, aluminum motor fan, 100% new copper
		Cast iron Reducer	1	arcuate bevel gear, mechanical seal, 50Hz/60Hz	cast iron reducer , arcuate bevel gear, made of chromium manganese titanium with carbonitriding on the surface
		202 Nylon impeller	4	660*210MM, weight: 2.5Kgs	Nylon, 4 Pieces Impeller & 8 Trident Replaceable paddle + confirmation of toughness against corrosion & UV resistance.100% new raw materials
	CSC-816	pedestal	2		Nylon
		Floats	3	1600285178mm	HDPE float made of 100% new HDPE material, resist impact, acid-alkalinity & sun exposure No influence of water
		movable joint	2	hole: 25.5mm	cast iron or stainless steel(depends on customer's requiry)
		shaft	2	length::750mm	stainless steel 304(SUS 304) solid shaft
		bearing base set	2	adjustable bearing base	25mm diameter 100% new raw materials
		frame	2	150033mm	stainless steel 304(SUS 304)
		bolt and nut bag	1		stainless steel 304(SUS 304)

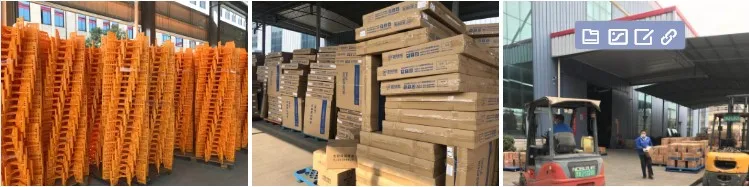

		quantity in one container		20FT: 70sets	40FT 140sets 40HQ:170sets
CHARACTERISTICS
1.Arcuate bevel gears are used instead of worm gears, thereby economizing on energy with high efficiency,and saving over 20% electric energy over traditional models.
2.Arcuate bevel gear is made of chromium-manganese-titanium with cartonitriding on the surface, Long life span and high rigidity are available
3. mechanical seal is adopted which life span is 2 or 3 times longer than oil seal
4. protector inside motor is available to avoid motor being burnt accidentally
5. HDPE flat, Nylon impeller, stainless steel solid shaft, and frame are available
6. the housing of motor and reducer is electrophoresis, the anti-corrosion performance is much better

Product Description

Main Part:Stainless Steel Motor

Brand:FUTI

Original:China

Power:1.5Kw(2HP)

Phase:3phs

RPM1440/50HZ 1700/60HZ

Our high-efficiency motor is made of 100% new copper wire, adopting the automated coil reeler, rotor positioning instrument and following uncompromised precessing and inspection procedures. good quality, longevity, lower amp, low power comsumption

Main part:Cast iron

Brand:FUTI

Original:China

Ratio 1:14 1:16.8

oilLiter0.8L

cast iron reducer , arcuate bevel gear, made of chromium manganese titanium with carbonitriding on the surface, oxygen transfer capacity is 36.3% higher, power efficiency is 36.8% and save at least 20% electric energy than traditional models, mechanical seal on it

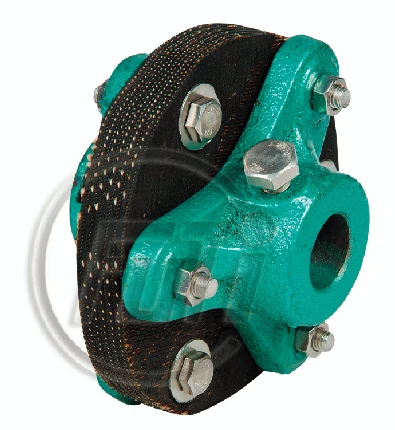

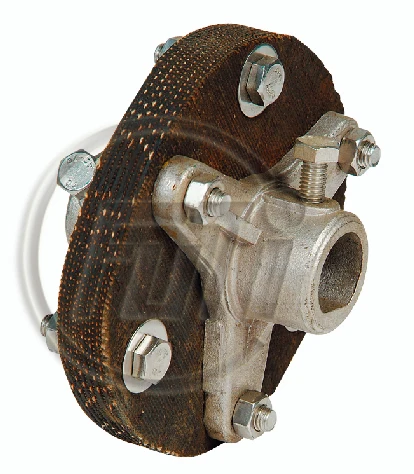

MAIN SPARE PARTS DETAILS：cast iron movable joint

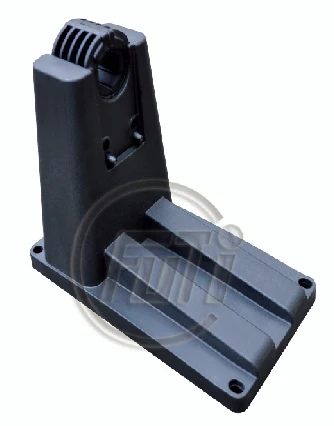

MAIN SPARE PARTS DETAILS：Bearing Base Set

adjustable 3 in 1
plastic bearing, easy
for replace ment
no aging or cracking
problem

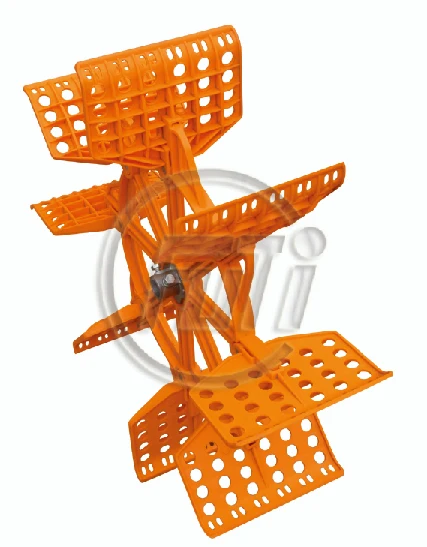

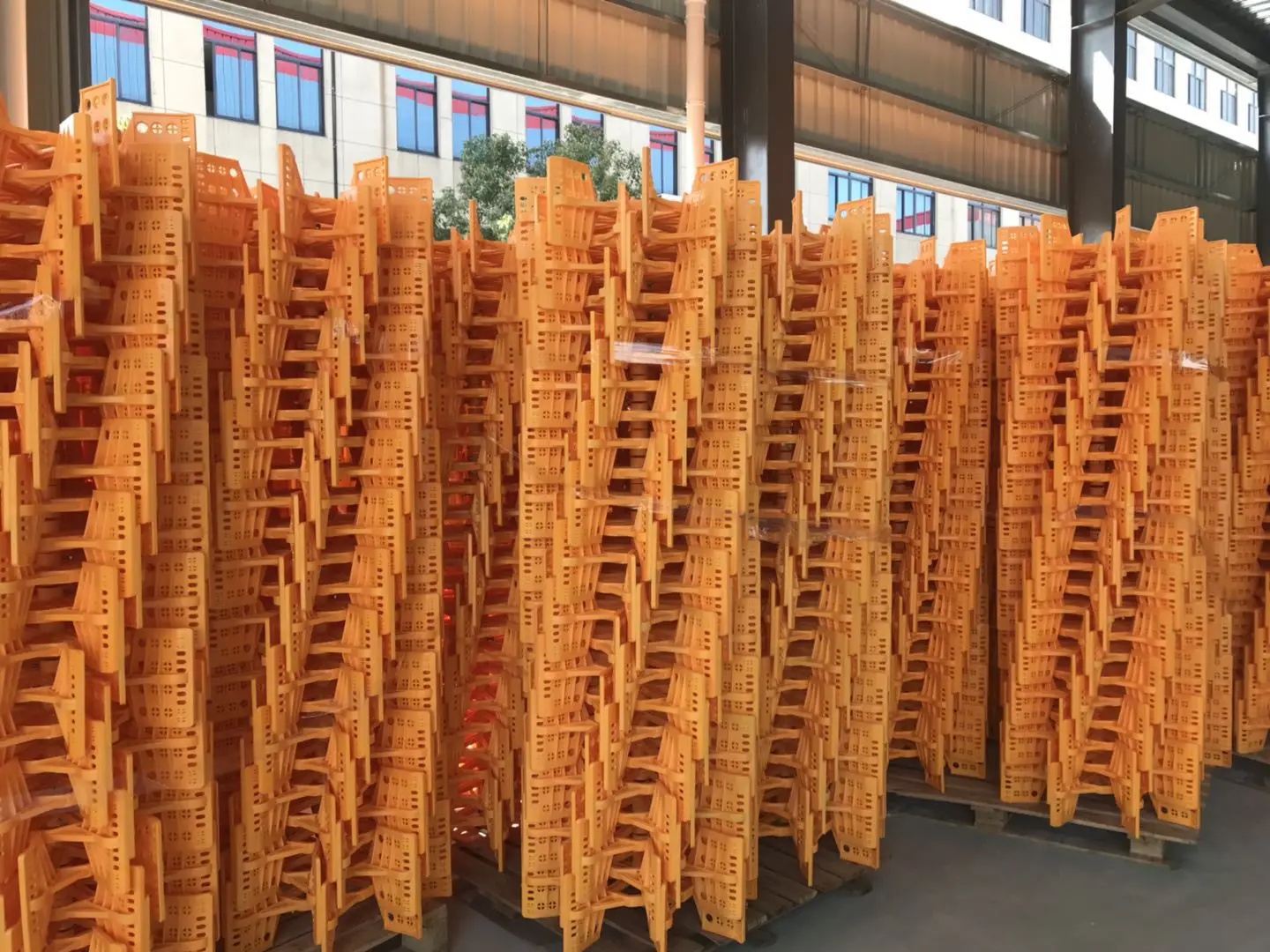

Main Part:Impeller

material:Nylon

Size:660*210mm

weight2.5kgs

Original:China

6 Pieces Impeller & 8 Trident Replaceable paddle + confirmation of toughness against corrosion & UV resistance.100% new raw materials

Main Part

1. made from HDPE material with excellent ductility 2.intergral blow molded formation, No influence of water 3.excellent in withstanding larger impact, corrosion free and weathering 4.100% new HDPE material, resist impact, acid-alkalinity & sun exposure
