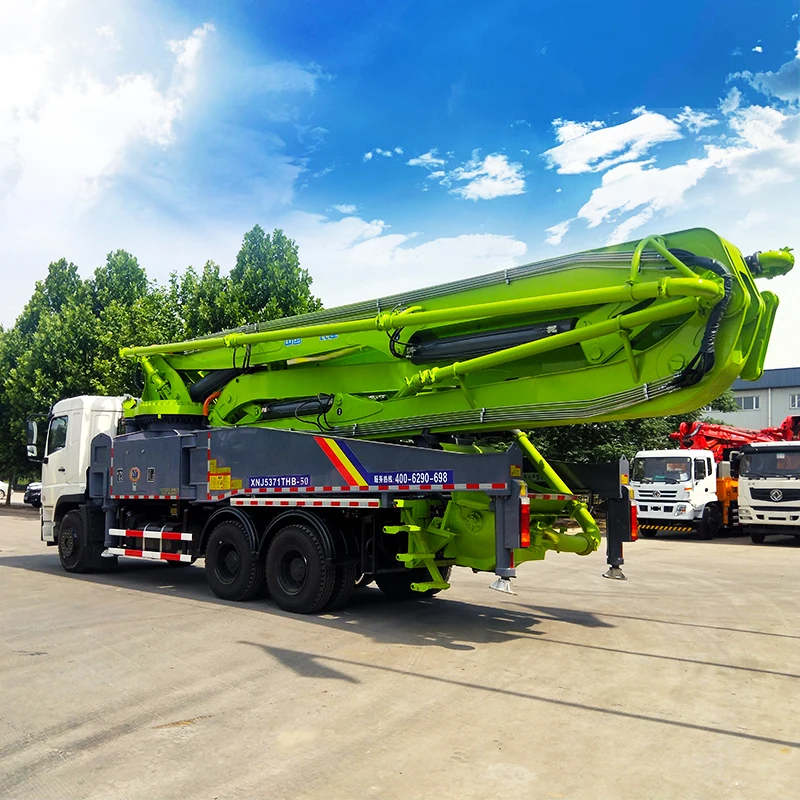

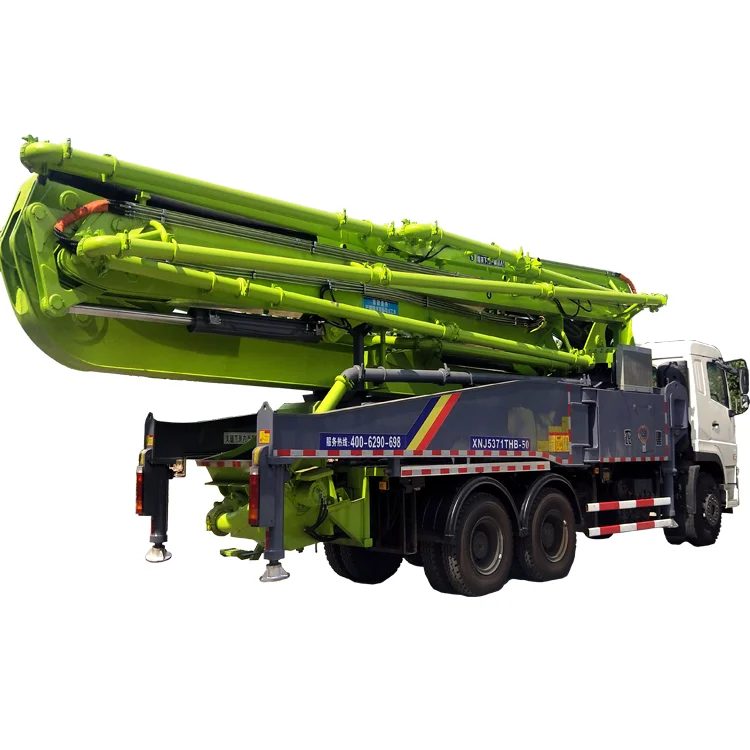

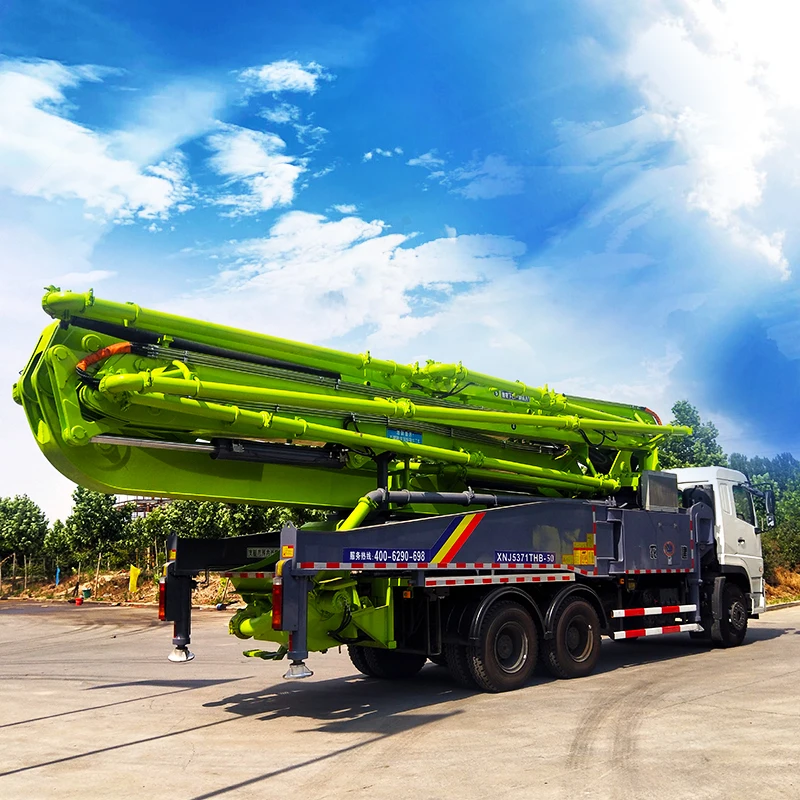

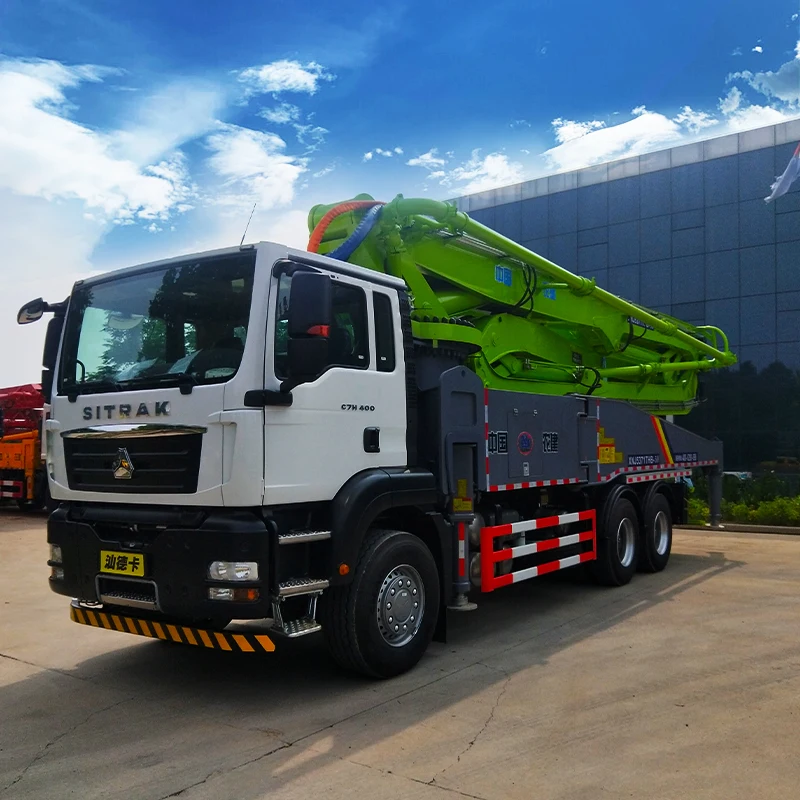

Factory Price 50m NONGJIAN Truck Concrete Pump concrete mixer truck
- Category: >>>
- Supplier: Changyuan Nongjian Machinery Equipment Co. LtdChangyuan Ltd
Share on (1600336793416):
Product Overview
Description
NJ5351thb50(6*4) 50m pump truck configuration | ||||
Chassis | Chassis | Dongfeng | ||
Emission Standards | CHINA V | |||
Engine | Yuchai | |||
Engine power/speed | 294kw/2100rpm | |||
Wheelbase | 6050mm | |||
Maximum travel speed | 80km/h | |||
Vehicle approach/away angle | 21°/11.5° | |||
Maximum vertical height of boom | 50m | |||
Boom horizontal cloth radius | 46m | |||
boom length of each section (1-6) | 10000/8250/8050/9450/5750/4300mm | |||
Rotation angle of each boom | 90/180/180/243/220/110° | |||
Turntable rotation angle | ±360° | |||
Boom control mode | Load-sensitive proportional control | |||
Boom folding method | M-L type (Six-section boom) | |||
Front leg spanning distance | 9500mm | |||
Back leg span distance | 9800mm | |||
Longitudinal distance between front and rear legs (MM) | 10400mm | |||
Size & weight | Total dimension（L*W*H） | 13200*2550*3950mm | ||
Total weight | 35000kg | |||
Pumping system | Theoretical pumping times (times/min) | 18~26 | ||
Maximum feeding height | 1450mm | |||
Hopper volume | 500L | |||
Theoretical concrete displacement | 97-163m³/h | |||
Company profile
The company has fixed assets of 60 million yuan, covers an area of 240 acres, and has a construction area of 40,000 square meters. It has standardized workshops, 3 small and medium-sized concrete pump truck production lines, with a total investment of 200 million yuan and an annual output of 500 small and medium-sized concrete pump trucks.
Changyuan Agricultural Construction specializes in the production of small and medium-sized concrete pump trucks with a complete range of products. The main products are 30-meter, 33-meter, 38-meter, 42-meter mixer pump trucks, and 30-meter, 33-meter, 38-meter, 42-meter, 47-meter, 50-meter, 58-meter, and 63-meter pump trucks.
The medium and small pump trucks developed and produced by the company have obtained a number of patented technologies. In 2017, our company's single-axle 37m concrete pump truck won the "BICES China International Construction Machinery Innovation Product Award". In 2019, the company was rated as "Science and Technology SMEs in Henan Province" by the Henan Provincial Department of Science and Technology; in 2019, it was recognized as "Henan Province Enterprise Technology Center"; in 2020, the company successfully passed the ISO9001 quality management system, ISO14001 environmental management system, OHSAS 18001 Occupational Health and Safety Management System Certification. A dazzling laurel has won widespread praise from the society, and it is also a sign of the rapid development of Changyuan's agricultural construction.
Changyuan Agricultural Construction specializes in the production of small and medium-sized concrete pump trucks with a complete range of products. The main products are 30-meter, 33-meter, 38-meter, 42-meter mixer pump trucks, and 30-meter, 33-meter, 38-meter, 42-meter, 47-meter, 50-meter, 58-meter, and 63-meter pump trucks.
The medium and small pump trucks developed and produced by the company have obtained a number of patented technologies. In 2017, our company's single-axle 37m concrete pump truck won the "BICES China International Construction Machinery Innovation Product Award". In 2019, the company was rated as "Science and Technology SMEs in Henan Province" by the Henan Provincial Department of Science and Technology; in 2019, it was recognized as "Henan Province Enterprise Technology Center"; in 2020, the company successfully passed the ISO9001 quality management system, ISO14001 environmental management system, OHSAS 18001 Occupational Health and Safety Management System Certification. A dazzling laurel has won widespread praise from the society, and it is also a sign of the rapid development of Changyuan's agricultural construction.
Construction Site
House construction
Shopping mall construction
Bridge construction
High-speed rail construction
FAQ
Q1:Which country do you export to?
Asia:India,Philippines,Thailand,Burma,Vietnam,Bangladesh,Kazakhstan,Turkmenistan,etc.
Middle east:Saudi Arabia,UAE,Jordan,Oman,Syria,Pakistan,etc.
Europe:Russia,Ukraine,Belarus,Bulgaria,etc.
Africa:South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America:Brazil,Peru,Chile,Cuba,Venezuela,Mexico,etc.
Oceania:Papua New Guinea,Australia,etc.
Q2:What is the proportion of your products export?
75% of our products are exported to all over the world.
Q3:What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers.TT,L/C,D/P,depending on the
cooperation time,country and contract value.
Q4:What kind of logistic service do you supply?
FOB,CIF,DAP,ETC.
Asia:India,Philippines,Thailand,Burma,Vietnam,Bangladesh,Kazakhstan,Turkmenistan,etc.
Middle east:Saudi Arabia,UAE,Jordan,Oman,Syria,Pakistan,etc.
Europe:Russia,Ukraine,Belarus,Bulgaria,etc.
Africa:South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America:Brazil,Peru,Chile,Cuba,Venezuela,Mexico,etc.
Oceania:Papua New Guinea,Australia,etc.
Q2:What is the proportion of your products export?
75% of our products are exported to all over the world.
Q3:What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers.TT,L/C,D/P,depending on the
cooperation time,country and contract value.
Q4:What kind of logistic service do you supply?
FOB,CIF,DAP,ETC.
