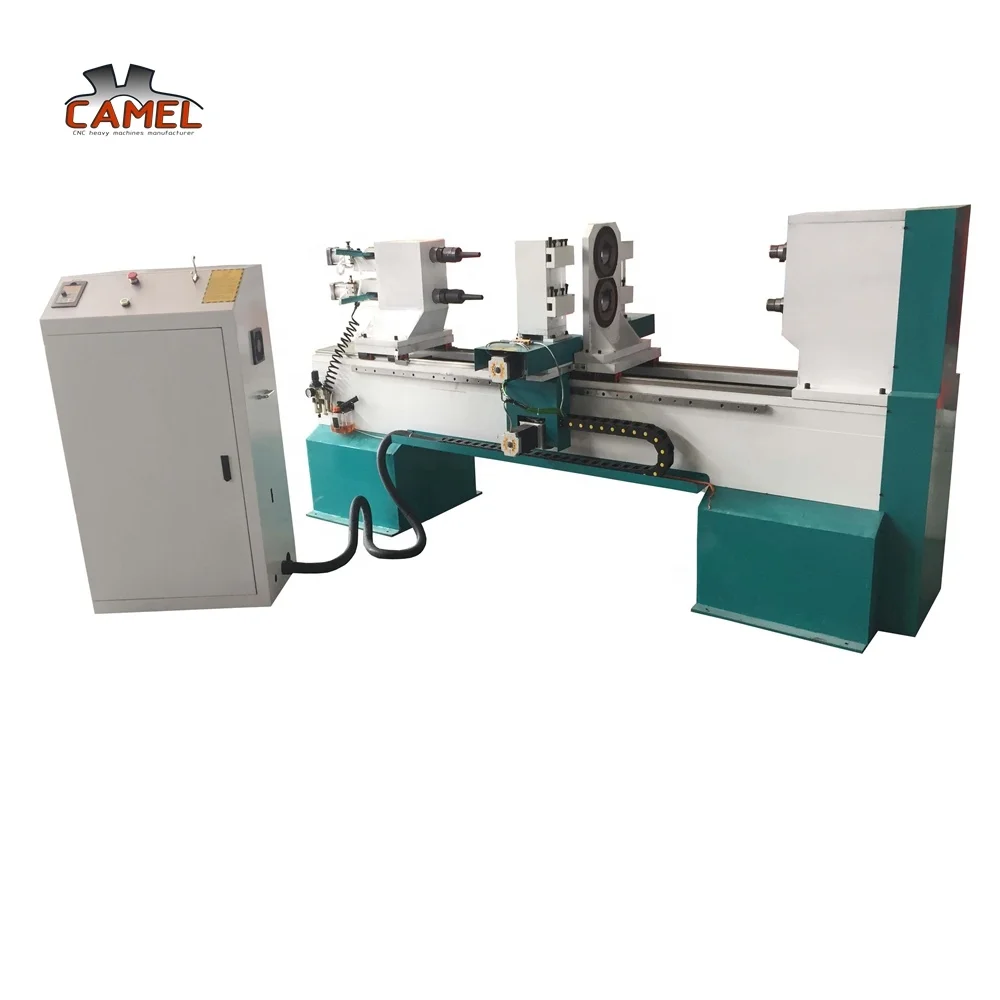

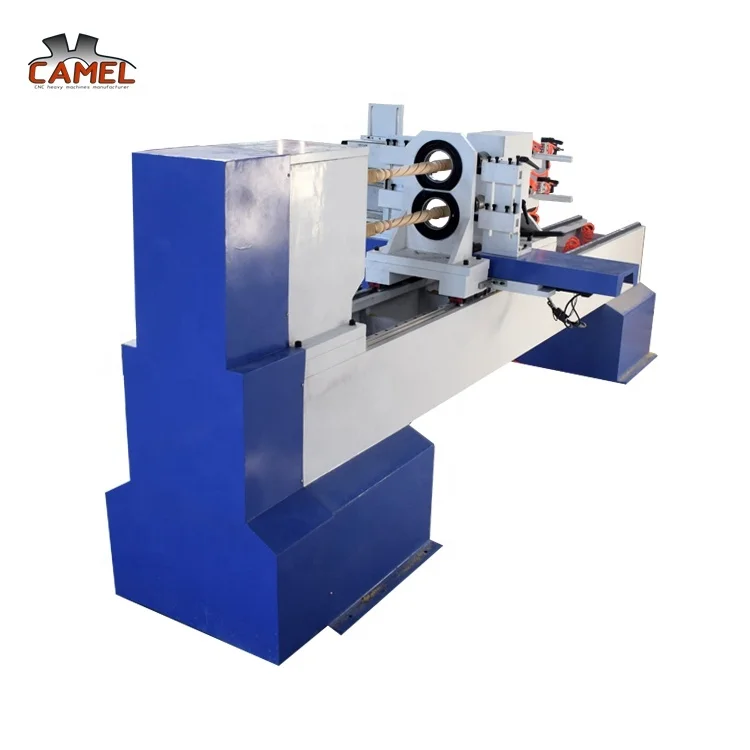

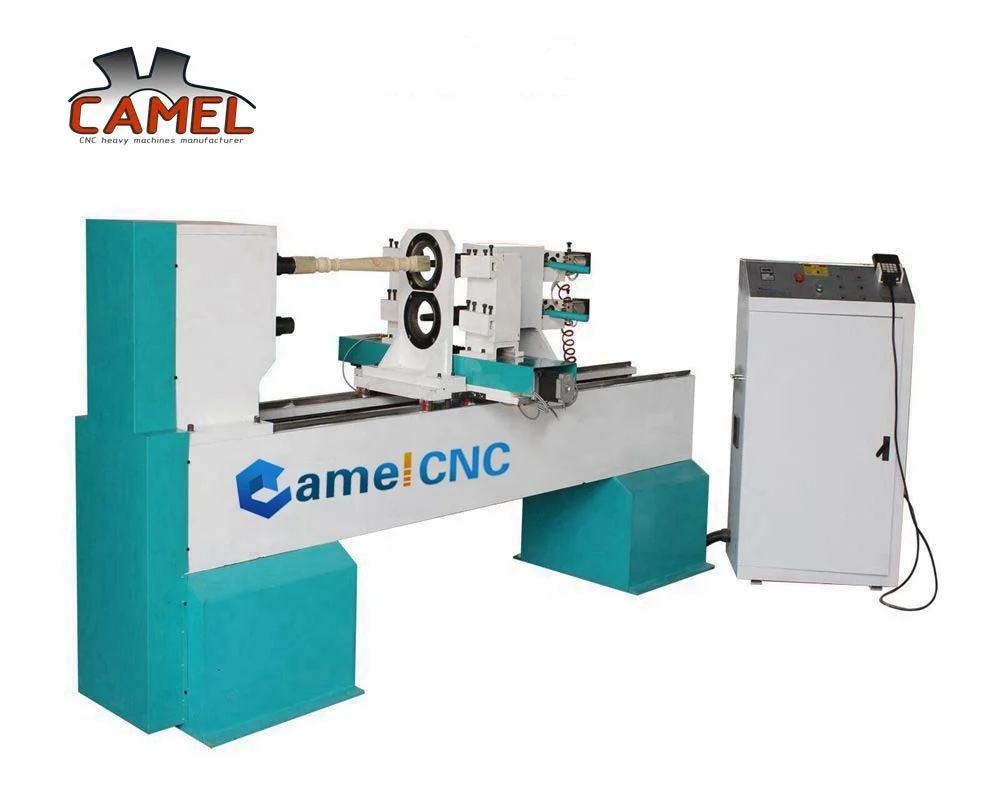

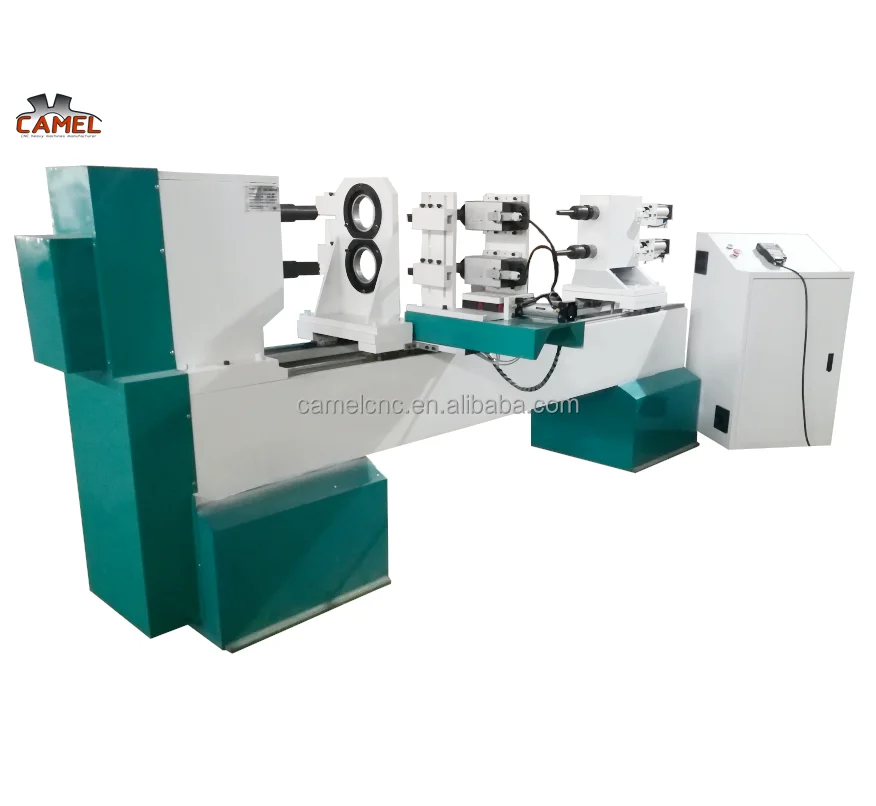

CA 1516 Jinan woodworking CNC wood turning lathe carving machine with spindle for staircase ,Rome column,baseball bat,chair legs
CA-1516 Jinan woodworking CNC wood turning lathe carving machine with spindle for staircase ,Rome column,baseball bat,chair legs
CA-1516 Jinan woodworking CNC wood turning lathe carving machine with spindle for staircase ,Rome column,baseball bat,chair legs
CA-1516 Jinan woodworking CNC wood turning lathe carving machine with spindle for staircase ,Rome column,baseball bat,chair legs
CA-1516 Jinan woodworking CNC wood turning lathe carving machine with spindle for staircase ,Rome column,baseball bat,chair legs
CA-1516 Jinan woodworking CNC wood turning lathe carving machine with spindle for staircase ,Rome column,baseball bat,chair legs
CA-1516 Jinan woodworking CNC wood turning lathe carving machine with spindle for staircase ,Rome column,baseball bat,chair legs

CA 1516 Jinan woodworking CNC wood turning lathe carving machine with spindle for staircase ,Rome column,baseball bat,chair legs

Share on (1600337063231):


Price:$5,880.00 - $7,380.00

Quantity:


Product Overview

Description

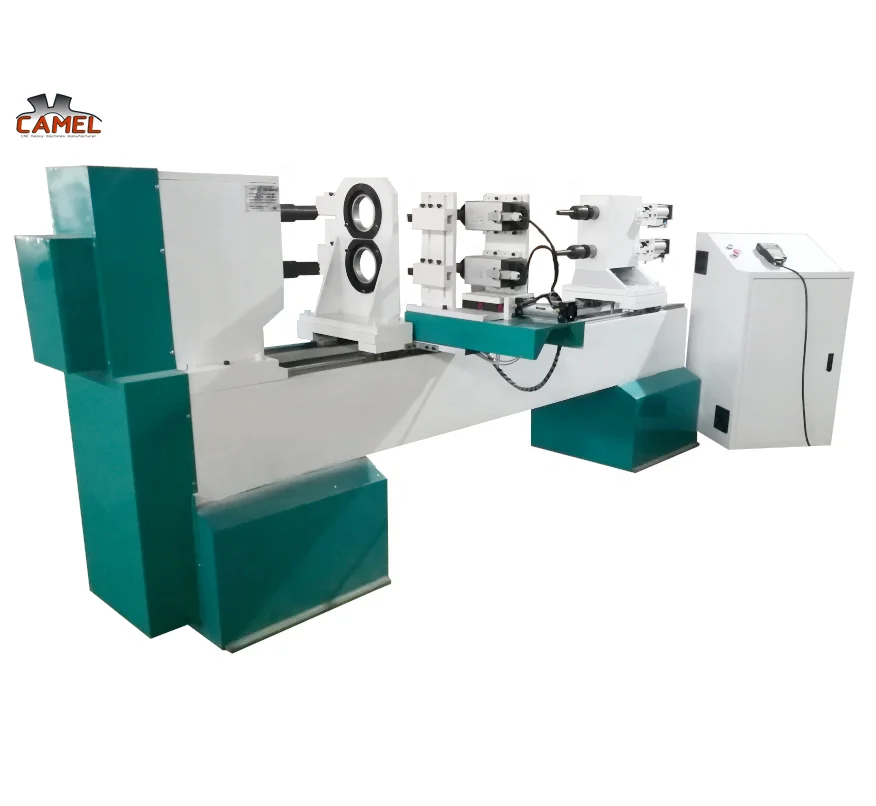

CA-1516 Jinan woodworking CNC wood turning lathe carving machine with spindle for staircase ,Rome column,baseball bat,chair legs


Product Description




Features


1.Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, machineweight up to 1500kgs to make sure the lathe body stabilized and never deformed.

2.Special used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc.

3.Adopting advanced handheld DSP system with USB port which is easy for operating even without a computer

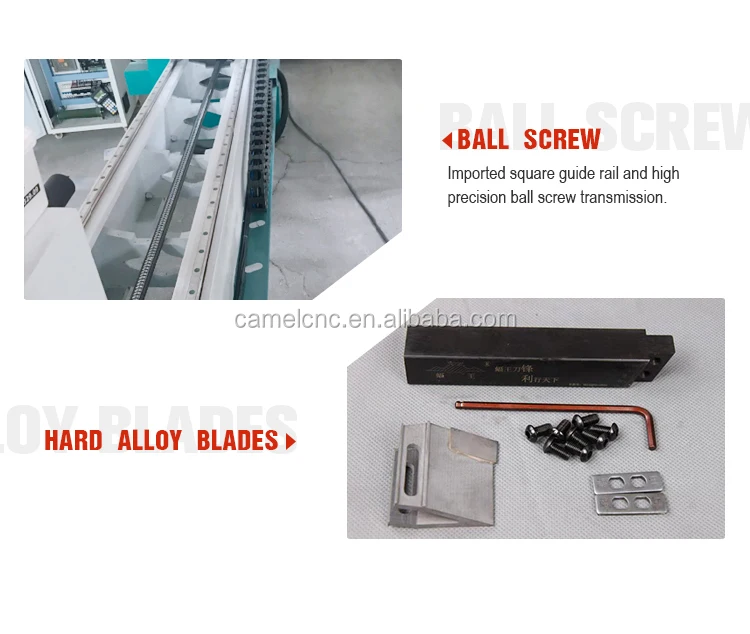

4. Adopt Germany ball screw and Taiwan HIWIN helical square guide rail with high precision and longevity.

5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.

6.Rotating speed can be adjusted by inverter also you can see speed on control cabinet panel

7.One time tool setting to finish the whole work piece.

8.Turning,broaching and engraving can be done with one machine by high speed.


Specification


1
Model
CA-1516
2
Max processing length
1500mm(can custom 2000/2500/3000mm)
3
Max turning diameter
160mm
4
Air pressure
0.6-0.8Mpa
5
Power supply
AC 380V 3 phase 50HZ/60HZ（can custom 220V）
6
Max feed rate
2000mm/min
7
min setting unit
0.01cm
8
Transmission type
Ball screw for Y axis
9
Guider
Taiwan Hiwin orbit
10
Main shaft rotating speed
0-3000r/min
11
Motor power
8kw
12
Spindle
2*3.5KW air cooling spindle with servo motor
13

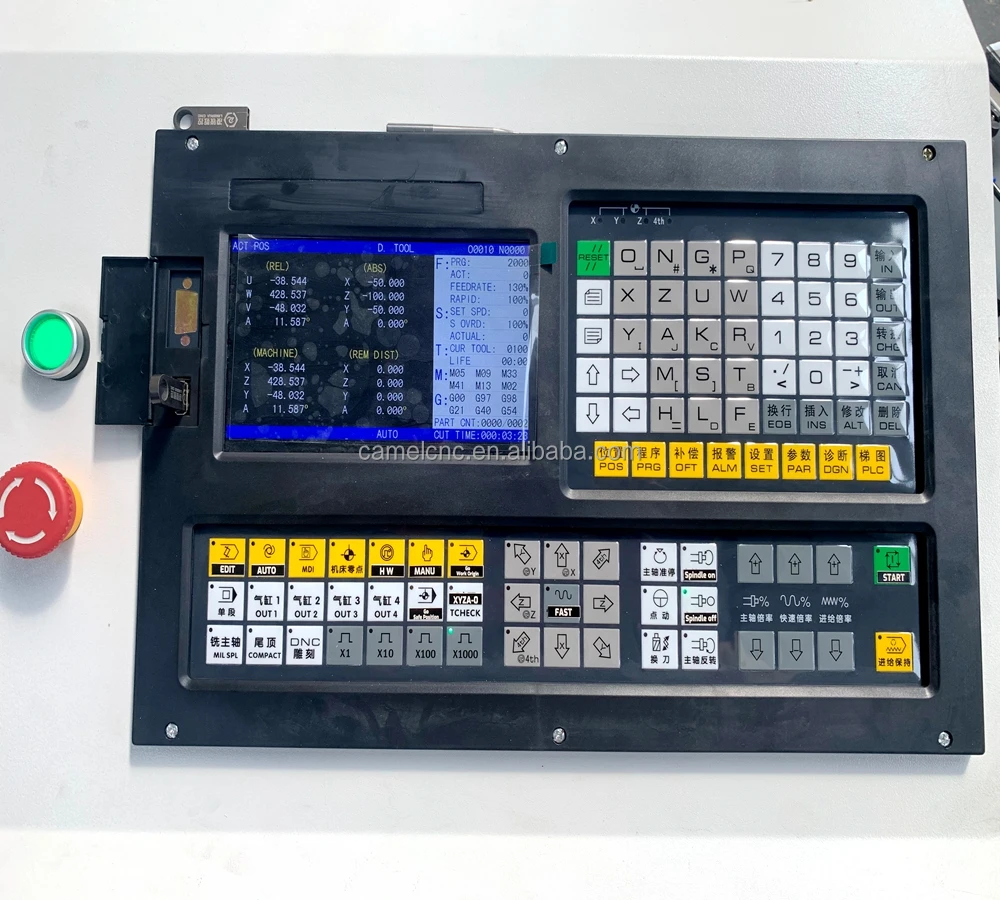

Control System
Beijing GXK LCD controller(RichAuto A136 handheld optional)
14
Hand controller recognise file
*.dxf
15
Drawing Software
AutoCAD
16
Command Language
G code

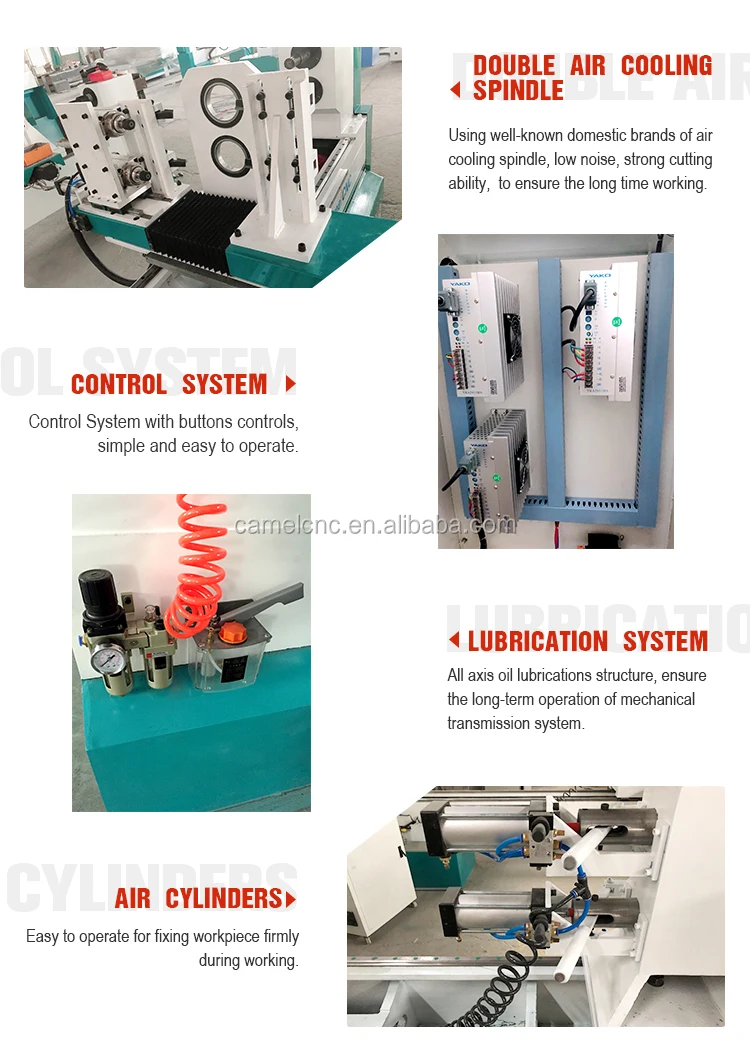

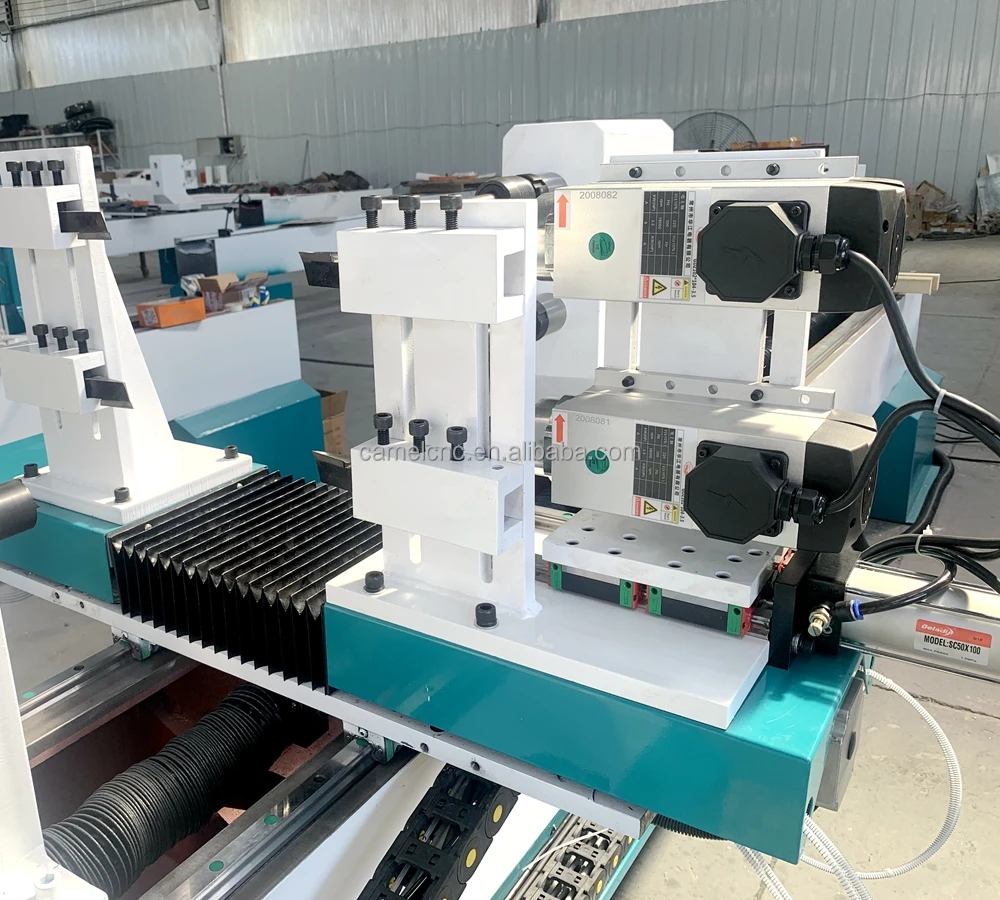

Details Images

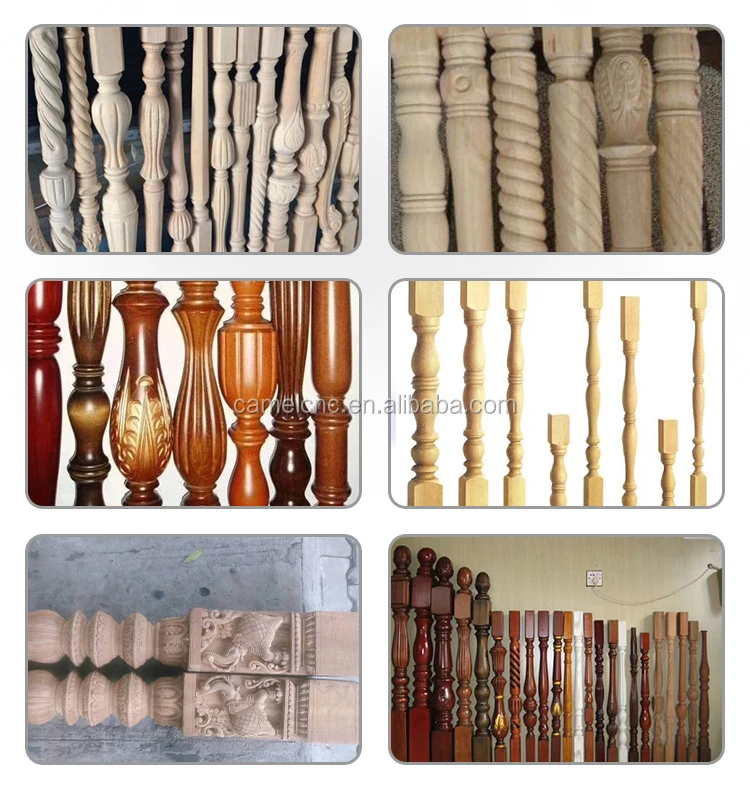

Sample


Staircases, stairway balusters, stairway newel posts; dining table legs; end table Legs; sofa table legs;bar stool legs; chair legs; chair arm posts; chair stretchers; bed rails, lamp posts,baseball bats

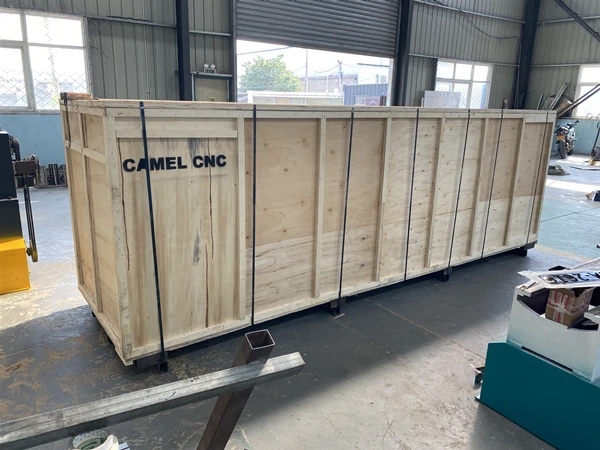

Packing & Delivery




To better ensure the safety of your machine, professional, environmentally friendly, convenient and efficient packaging services will be provided.

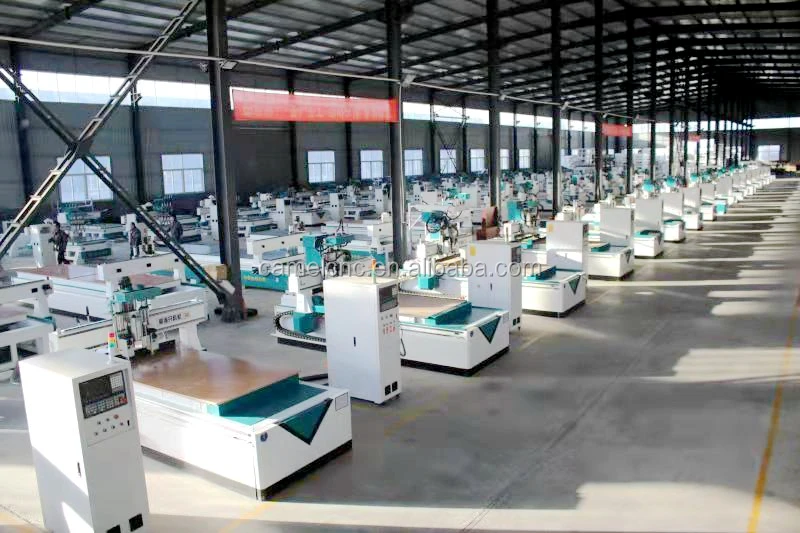

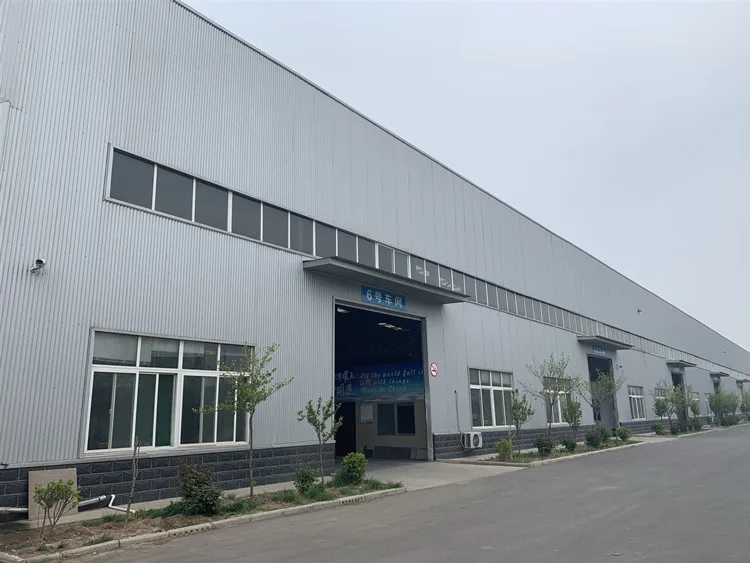

Company Profile








Jinan Camel CNC Machinery CO.,LTD is the leading enterprise specializing in manufacturing, marketing and R&D of CNC router, laser, plasma cutting machine, fiber laser cutting machine Panel furniture production line, CNC working center, CNC wood turning lathe, CNC spare parts and other CNC machines.

We are committed to providing customers with high quality products, competitive prices and excellent services.
For over 10 years development, our efforts bring us stable customers from home and abroad. Our products have exported to Europe, Africa, Mid east, America, Oceania and Southeast Asia, etc.

With superior performance to price ratio, high quality, and perfect post-sales service, our products expands largely and will unceasingly develop and innovate with our full enthusiasm, to carry forward our brand and offer better products for our users.



Related Products:


Mini cnc wood lathe
Singel axis cnc wood lathe with spindle
Triple axis six blade cnc wood lathe


Woodworking cnc router
Laser cutting machine
Plasma cutting machine


FAQ


Q1: How to choose a suitable machine?

You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.

Q2: This is the first time I buy the machine, is it easy to operate?

We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by “Team viewer”online, with telephone or Skype explain.

Q3: Can you customize the machine for me?

Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.

Q4: What is the guarantee? In case the machine break down?

The machine has 2 year guarantee, fail parts will be replaced for free if the machine under "normal operation".

Q5: How about the documents after shipment?

We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other certificates required by clients.

Q6: Delivery time?

For standard machine, it would be 7-10 working days; for non-standard machine, it would be 20 - 30 working days.

Q7: How is the payment?

Normally we accept T/T or L/C, if you like other terms, tell us in advance.

Q8: Do you arrange the shipment for me?

For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.

Q9: How is the packing?

Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
