1.5 Inch Very Small Lcd Screen JHD144B2605
US $0.01-$1.00
Low price 5.5 inch Sharp LCD Display with 1080*1920 to MIPI board for Raspberry and custom cover lens LS055T1SX01
- Category: LCD Module >>>
- Supplier: Shenzhen Youritech Technology Co. Limited
Share on (1600337726409):
Product Overview
Description
Products Description

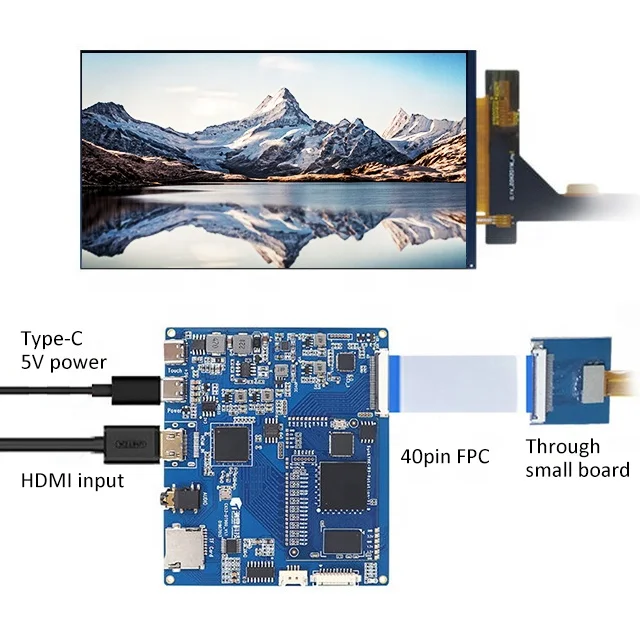

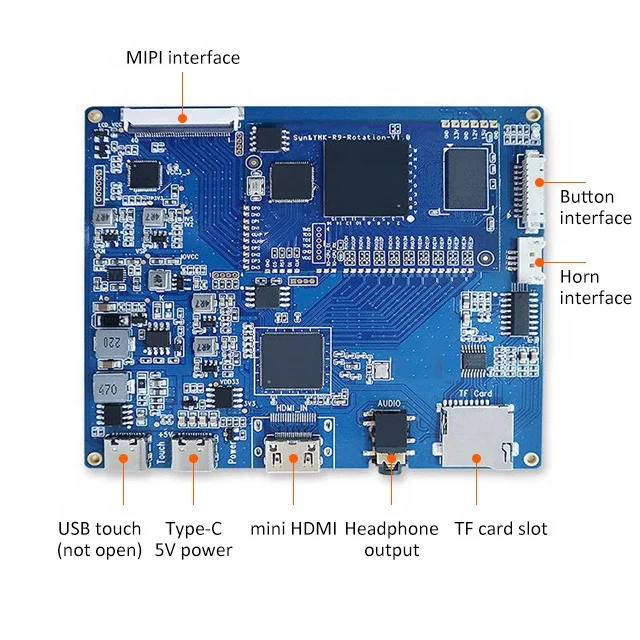

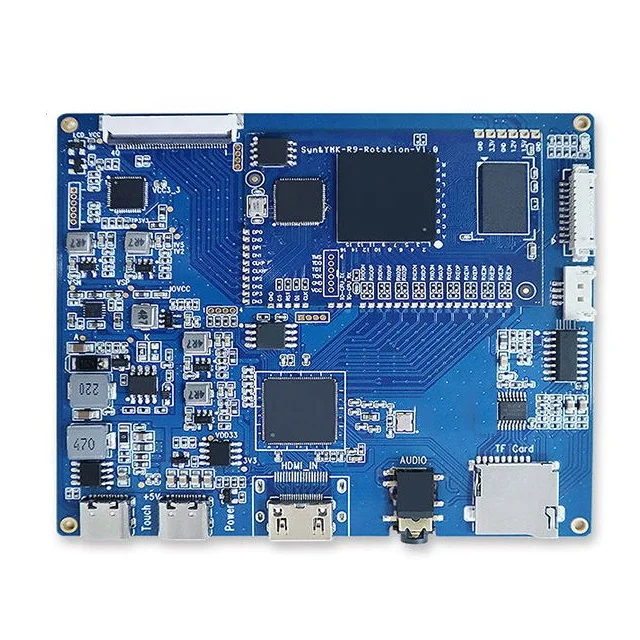

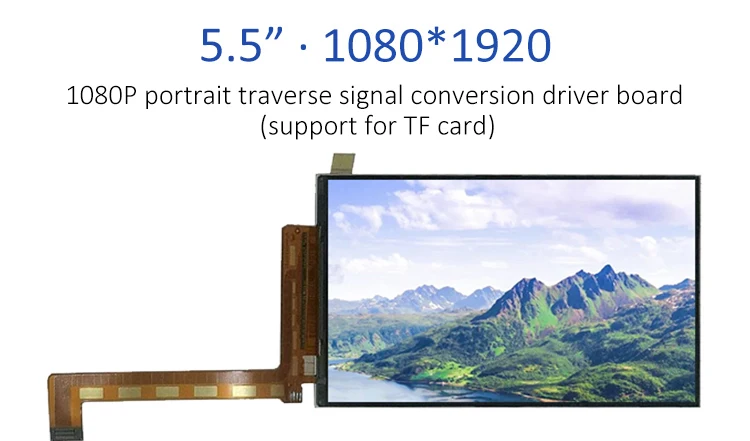

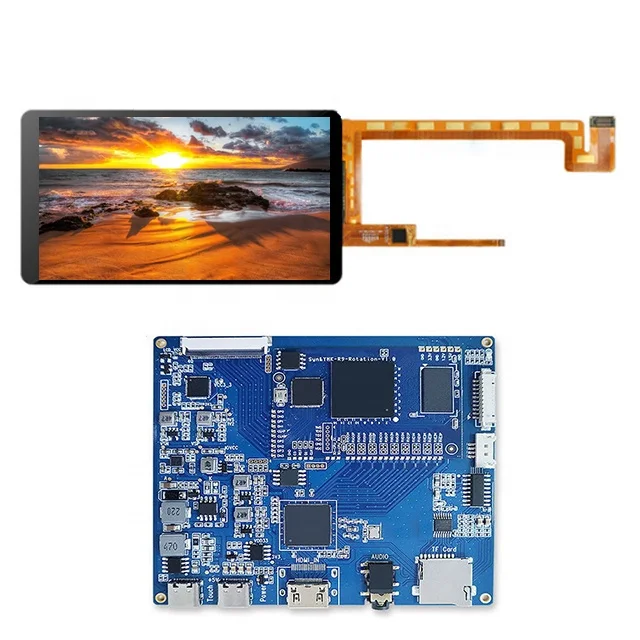

Low price 5.5 inch Sharp LCD Display with 1080*1920 to MIPI board for Raspberry and custom cover lens LS055T1SX01
Manufacturer | Sharp | Model | LS055T1SX01 | ||
Screen Size | 5.5 inch | Screen Type | CG-Silicon,LCM | ||
Pixel Number | 1080(RGB)x1920,FHD | Arrangement | RGB Vertical Stripe | ||
Active Area | 69.012(W)x122.688(H)mm | Outline Dim. | 71.72(H)×130.4(V) ×1.81(D) mm | ||
Bezel Area | 70.01(H)×123.688(V) mm | Treatment | Clear | ||
Luminance | 500cd/m2(Typ.) | Contrast Ratio | 1000:1(Typ.)(TM) | ||
Good View at | Symmetry | Response Time | - | ||
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Work Mode | Normally Black,Transmissive | ||
Color Depth | 16.7M 70% NTSC | Light Source | WLED,No Driver | ||
Mass | 25.0g (Typ.) | Designed For | Moble Phone | ||
Pefresh Rate | 60Hz | Touchscreen | Without | ||
Signal Type | 30 pins Connector, MIPI (4 data lanes) | ||||
Power Supply | 1.8/5.6/-5.4V(Typ.)(VDDIO/VSP/VSN) | ||||
Environment | OperatingTemp:-20~60°C;Storage Temp.:-30~70°C | ||||
OEM /ODM

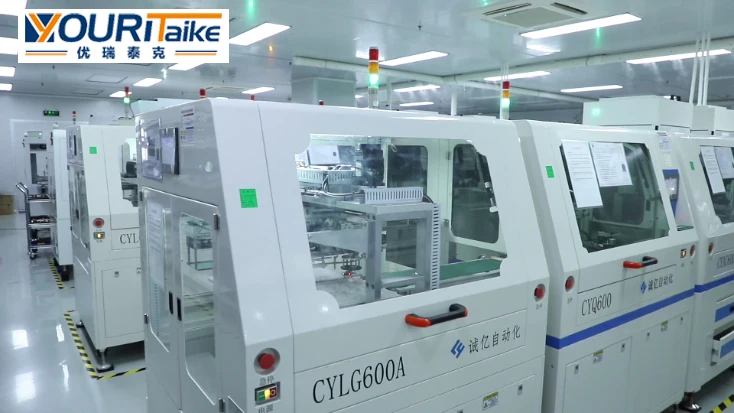

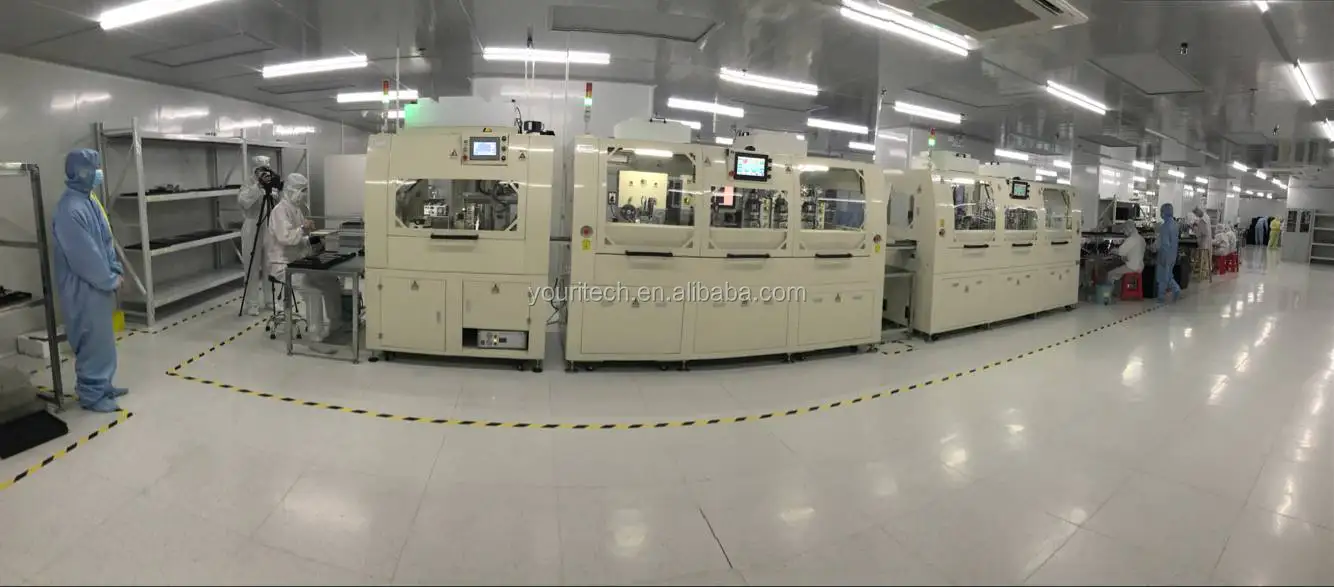

Company Profile
Exhibition
Product Uses
Main Customers
Certifications
FAQ
1.What advantages do you have?
A. Fast delivery time, can support sample services, products are in stock, can be supplied at any time, 24 hours online service,products have passed strict certification, and the buyer has good results.
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling &samples → Samples finished → Delivery via freight or sea collect.
3.Q: How long can I expect to get the sample?
A: Contour drawing: 2-4 days Sample time: 7-15 days.
4.Q: Can you design the lcd in acccordance with our demand?
A: Sure.We will give you the best tooling charge.
5.Q: How to place orders ?
A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
(1) Product information-Quantity,model number
(2) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.
(3) Forwarder's contact details if you have any in China.
6. Q: How can you guarantee the production quality ?
A: Our production quality follow ISO9000 standard system, stable design team,10 years experience of QC team and strictly quality control system guarantee the production quality. accept third part Inspection,high&low temperature storage&operating test during high.
A. Fast delivery time, can support sample services, products are in stock, can be supplied at any time, 24 hours online service,products have passed strict certification, and the buyer has good results.
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling &samples → Samples finished → Delivery via freight or sea collect.
3.Q: How long can I expect to get the sample?
A: Contour drawing: 2-4 days Sample time: 7-15 days.
4.Q: Can you design the lcd in acccordance with our demand?
A: Sure.We will give you the best tooling charge.
5.Q: How to place orders ?
A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
(1) Product information-Quantity,model number
(2) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.
(3) Forwarder's contact details if you have any in China.
6. Q: How can you guarantee the production quality ?
A: Our production quality follow ISO9000 standard system, stable design team,10 years experience of QC team and strictly quality control system guarantee the production quality. accept third part Inspection,high&low temperature storage&operating test during high.
