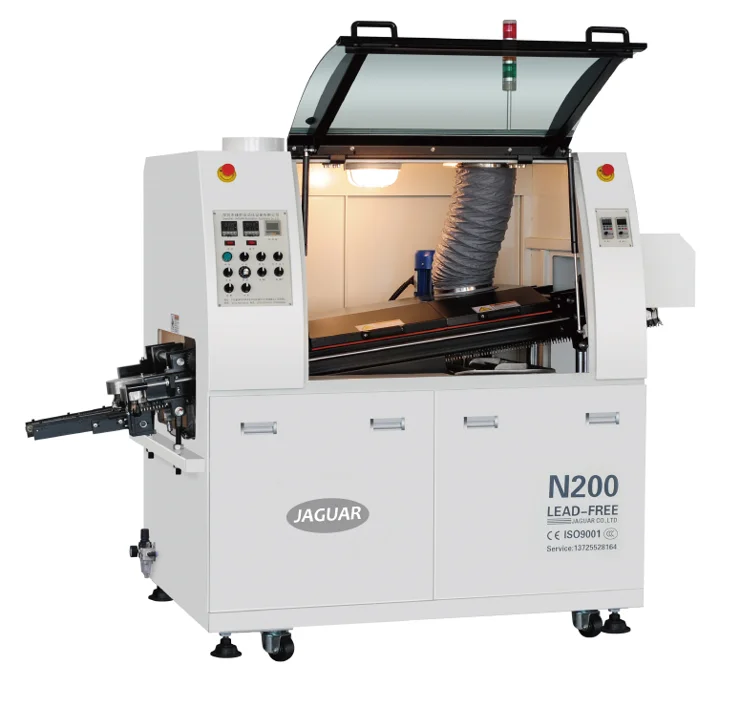

JAGUAR Lead-free Wave Solder Machine N200

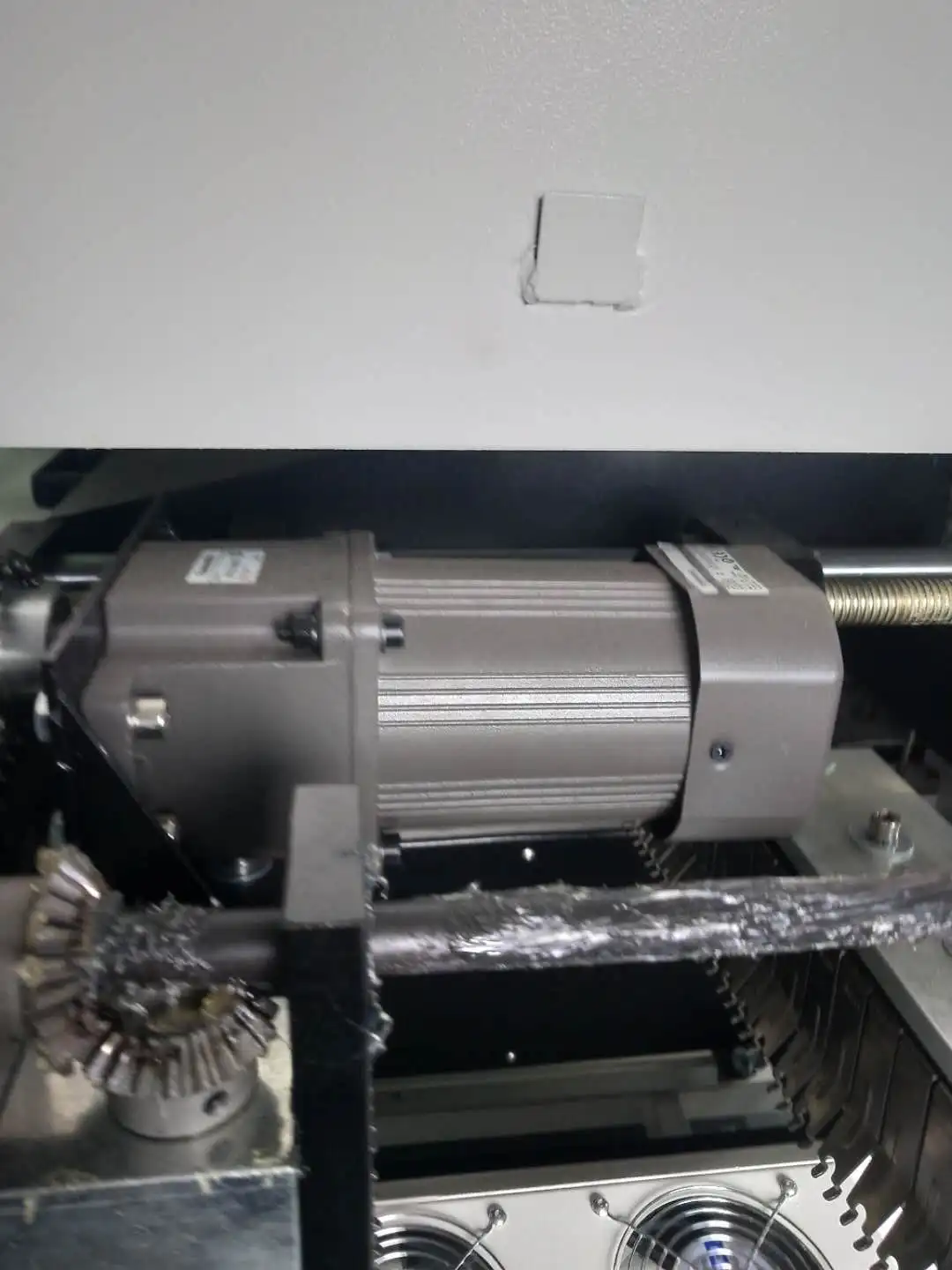

1. Automatic conveying power system and auto synchronous board feeding functions.
2. Solder Pot peak uses frequency conversing speed adjustment which can independently control the wave height.
3. Fluxer system using transverse Japanese spray nozzle, driven by pneumatic cylinder and PLC control, accurate and reliable.
4. PLC is used to control the machine, to ensure the reliability and stability of the system.

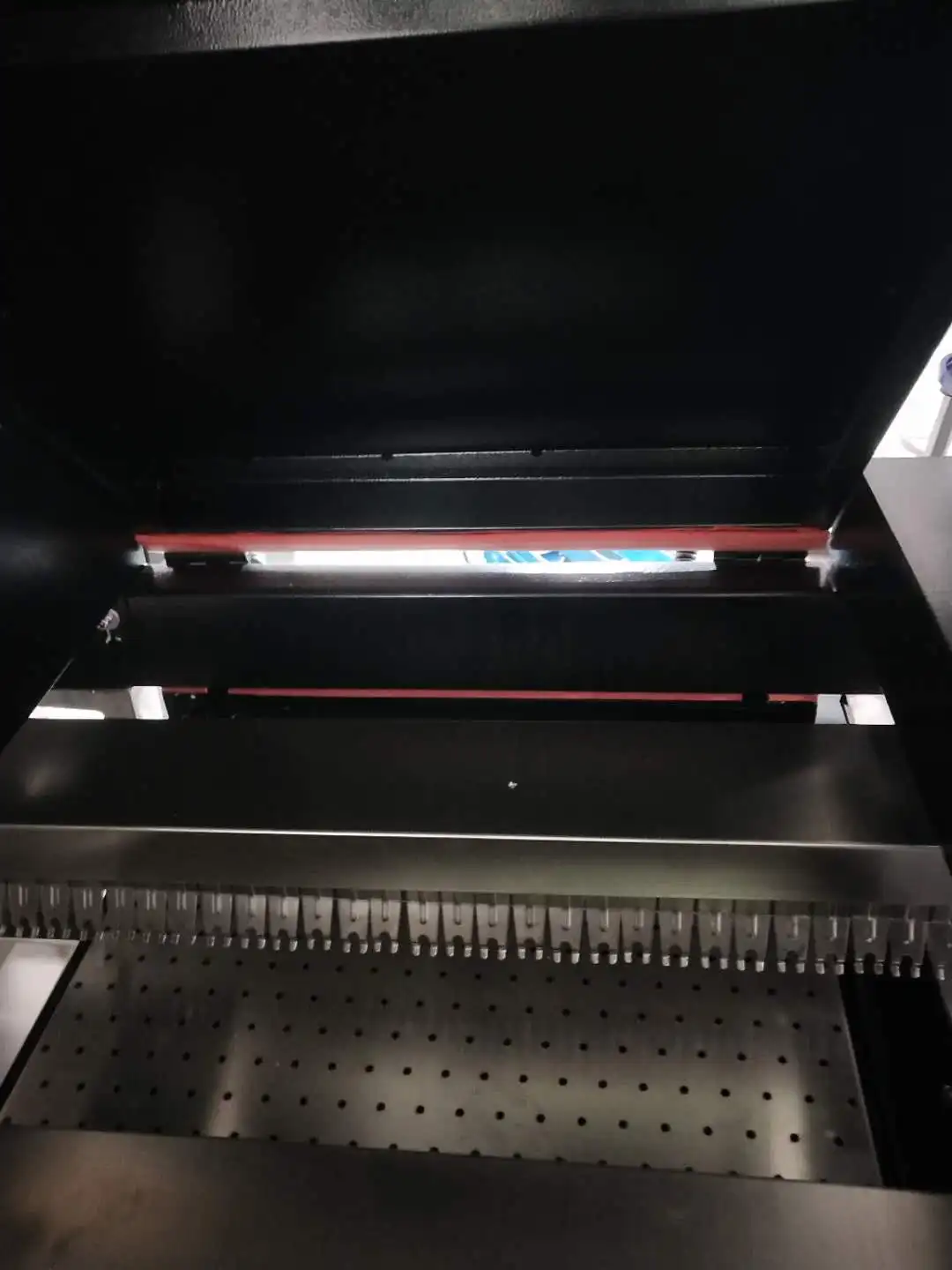

5. Pre-heaters using Infrared heating element, heat radiated efficiently to the circuit board with fast ramp up and fully activating liquid flux.
6. Special alloy solder fingers, strengthened double v-groove.
7. Solder-motor adopts imported high frequency conversion motor with independent control, stable performance and long lifetime.
8. Pre-heater passage with modularized design, meet with environmental protection requirement, safety and convenient to cleanup.
9.Preheaters uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
10.Timer startup feature for solder pot, solder melted within 90 minutes.
11. Automatic finger cleaner ensure the cleanliness of solder fingers.
Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.
2. Solder Pot peak uses frequency conversing speed adjustment which can independently control the wave height.
3. Fluxer system using transverse Japanese spray nozzle, driven by pneumatic cylinder and PLC control, accurate and reliable.
4. PLC is used to control the machine, to ensure the reliability and stability of the system.
5. Pre-heaters using Infrared heating element, heat radiated efficiently to the circuit board with fast ramp up and fully activating liquid flux.
6. Special alloy solder fingers, strengthened double v-groove.
7. Solder-motor adopts imported high frequency conversion motor with independent control, stable performance and long lifetime.
8. Pre-heater passage with modularized design, meet with environmental protection requirement, safety and convenient to cleanup.
9.Preheaters uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
10.Timer startup feature for solder pot, solder melted within 90 minutes.
11. Automatic finger cleaner ensure the cleanliness of solder fingers.
Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.
Product Paramenters
Model No | JAGUAR N200 |
Number of Pre-heater | 1 |
Pre-heat Passage | 500mm |
Body Size | 1400*1200*1600mm |
Outside Dimension | 2100*1200*1600mm |
Weight | 700KG |
Component Lead | Within 10 mm |
Total/steady Consumption | 9KW/3-5KW |
Air Supply | 0.5MPa |
Preheating Style | Hot Air |
Preheater Consumption | 220V 5KW |

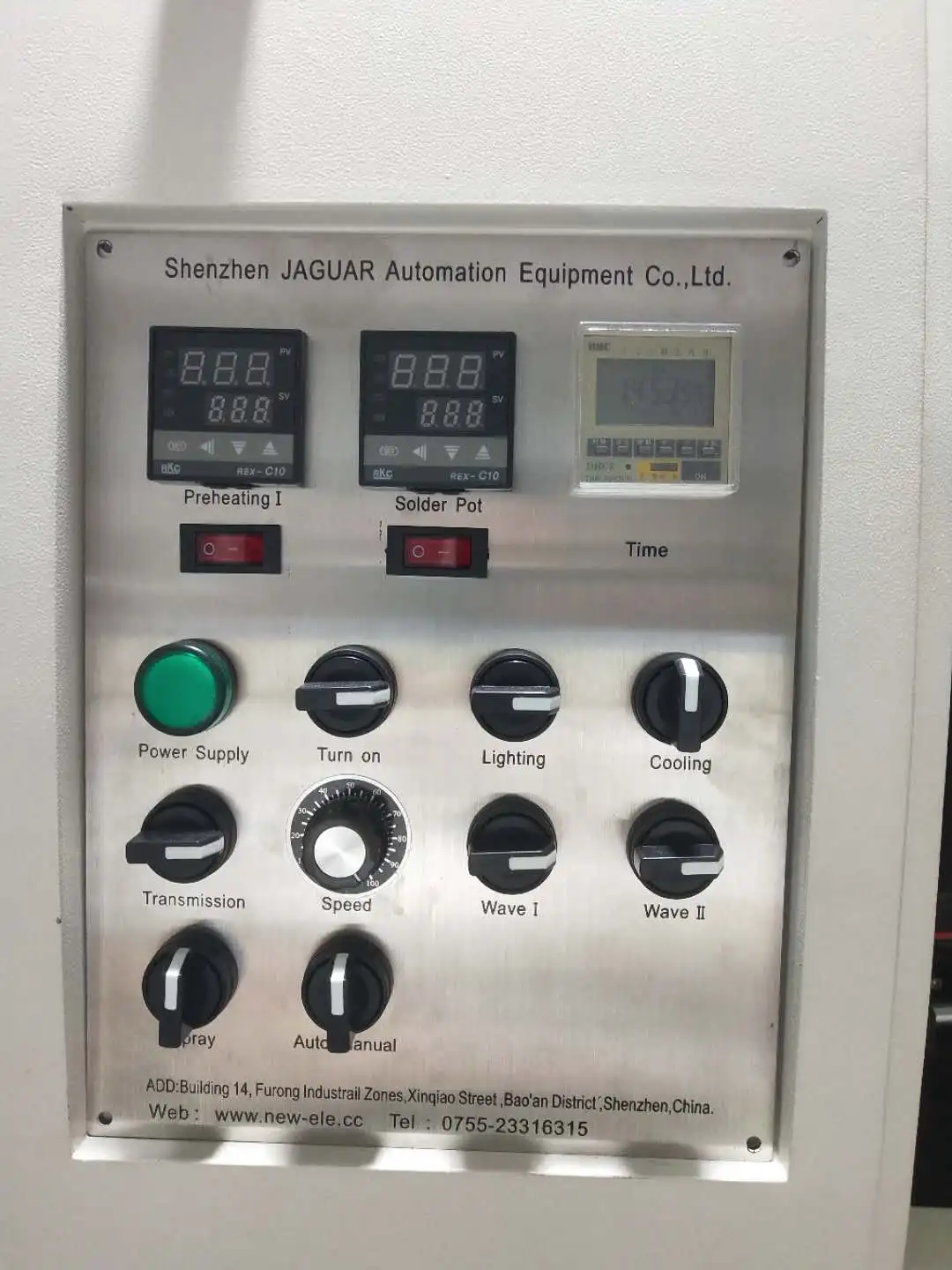

Control Method | Button+PLC(Option: Touch screen or PC) |
Range of Temp. Set Point | Room Temperature---300ºC |
Preheating Time | About 10-15mins for Setting 150ºC |
Solder Application | Lead-free / Sn-Pb |
Solder Pot Capacity | 180KG |
Solder Pot Temperature | 300ºC |
Solder Pot Consumption | 380V 6KW |
Solder Temp. Control method | PID&SSR |
Wave Motor Consumption | 180Wx2pcs 220V |
Solder Melting | About 120mins for Setting 250ºC |
PCB Width | 50-200mm |
Conveyor Speed | 300-1800mm/min |
Conveyor Direction | L→R (R→L optional) |
Solder Angel | 4-7 º |
Flux Pressure | 3-5 Bar |
Flux Capacity | 3.2L |
Company Profile
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.
Our Factory show:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC
Exhibitions:
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey
Details Images
Button Control
Touch Screen Control

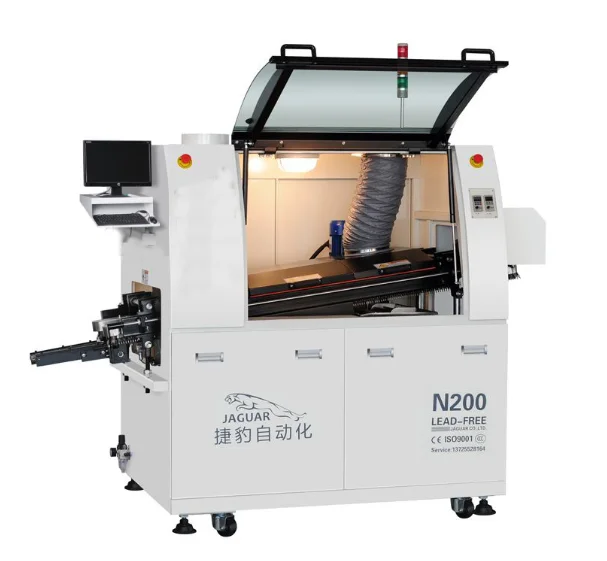

PC Control
SIMILAR PRODUCTS

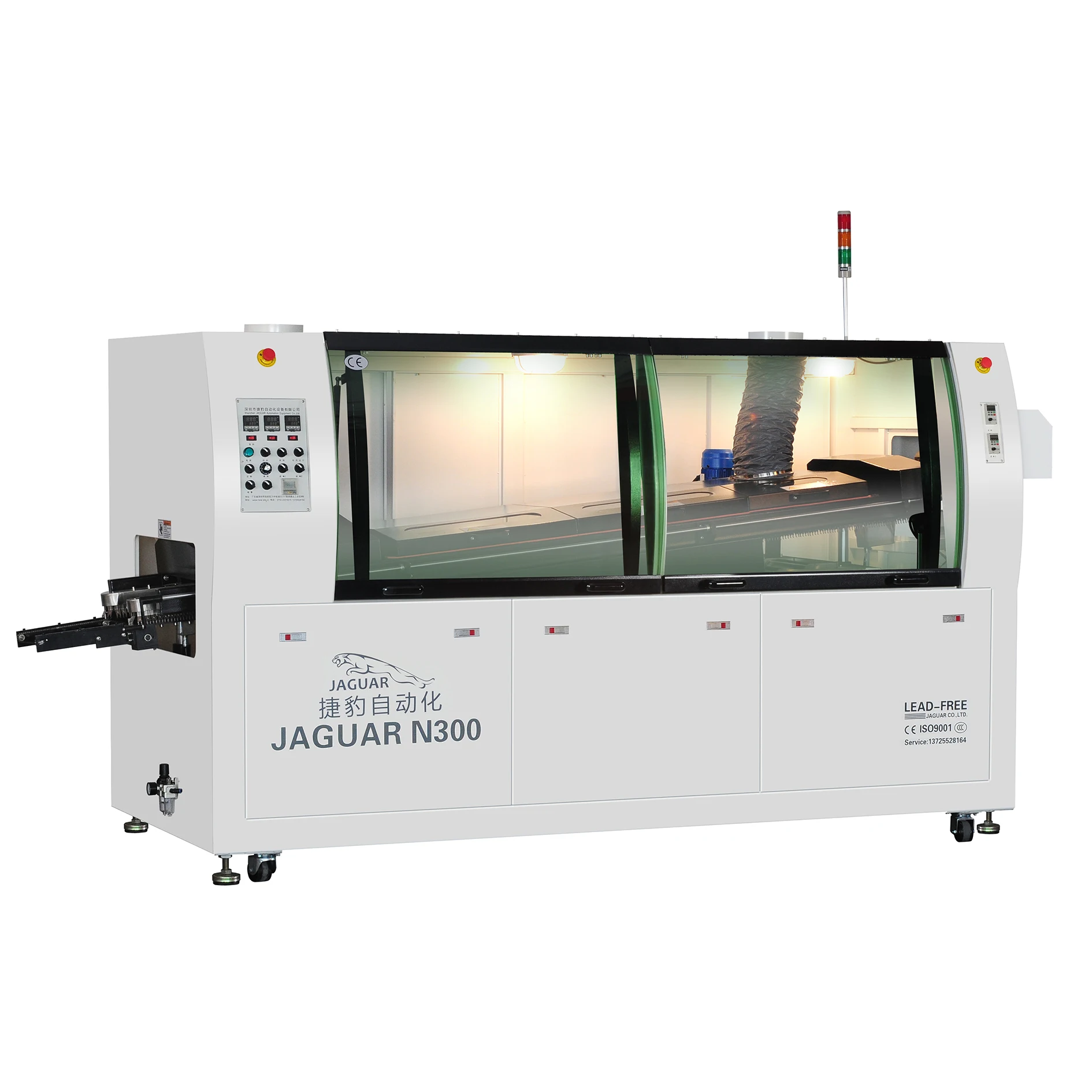

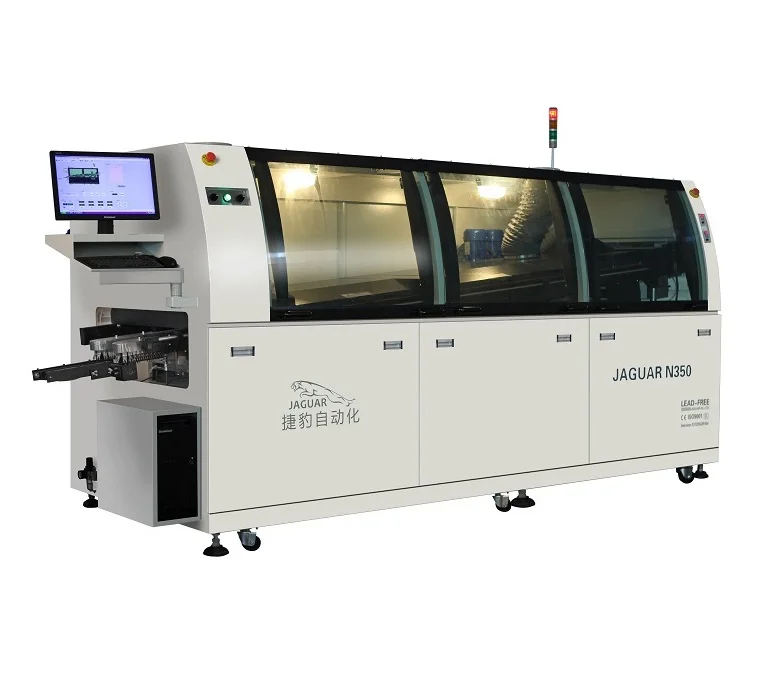

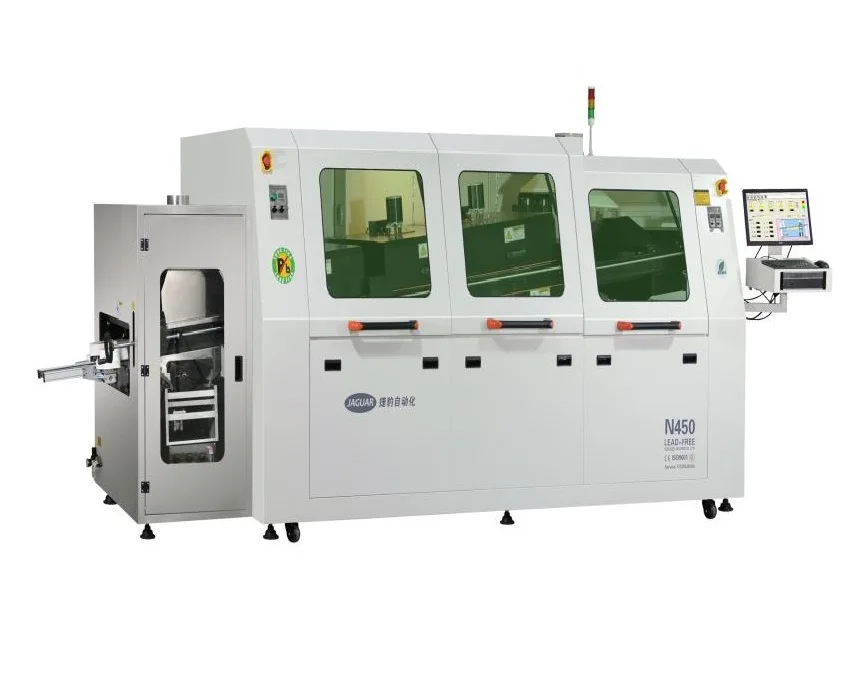

N200/N250/N300/N350/N450 Different size for options,Hot Air Lead-free Wave Soldering Machine
