Product Overview
Description
Product Description

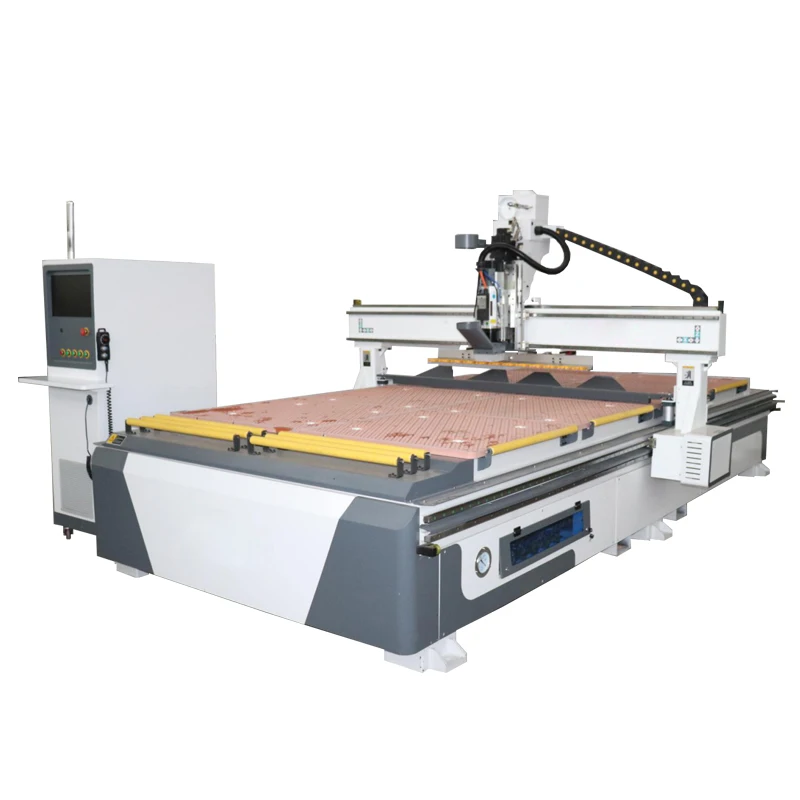

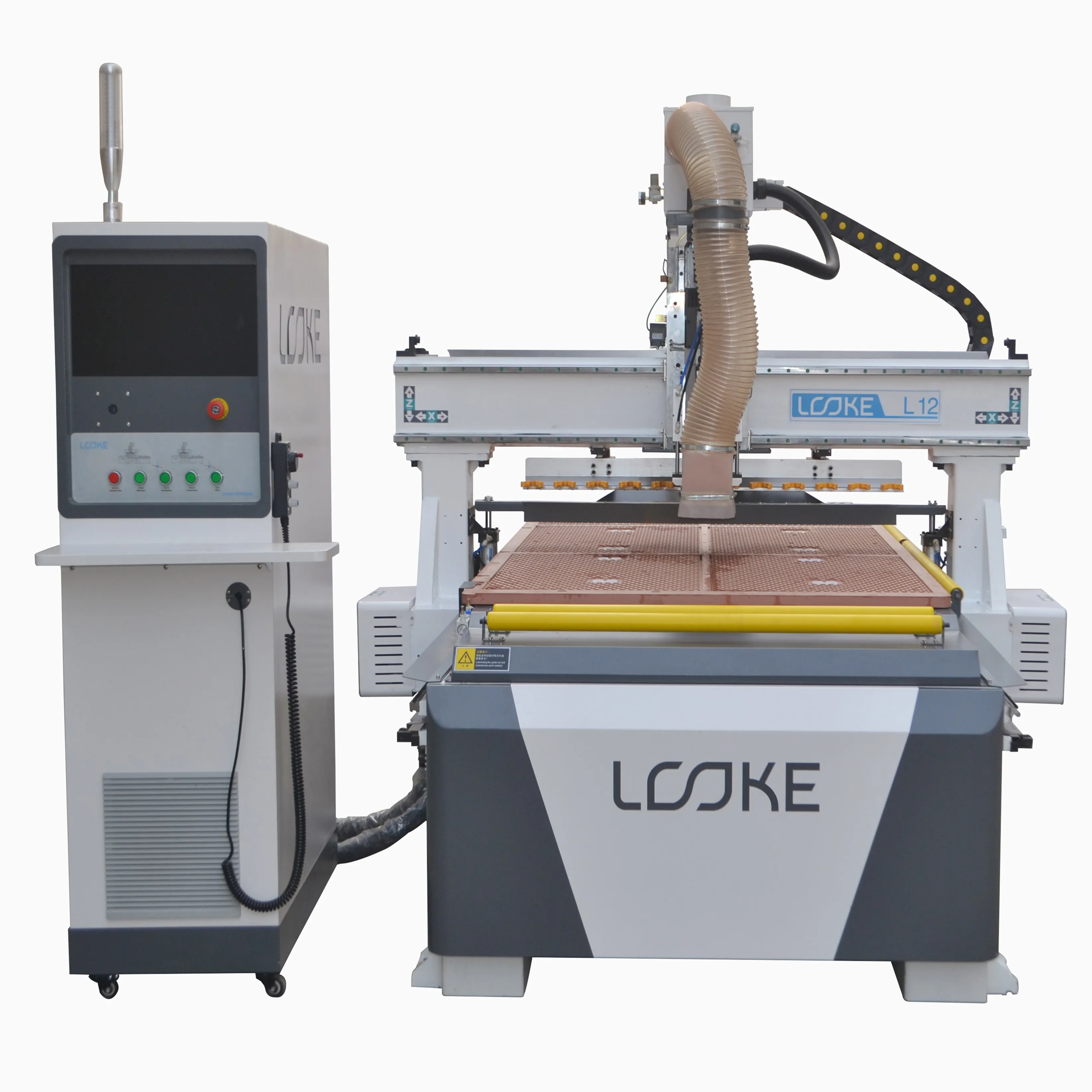

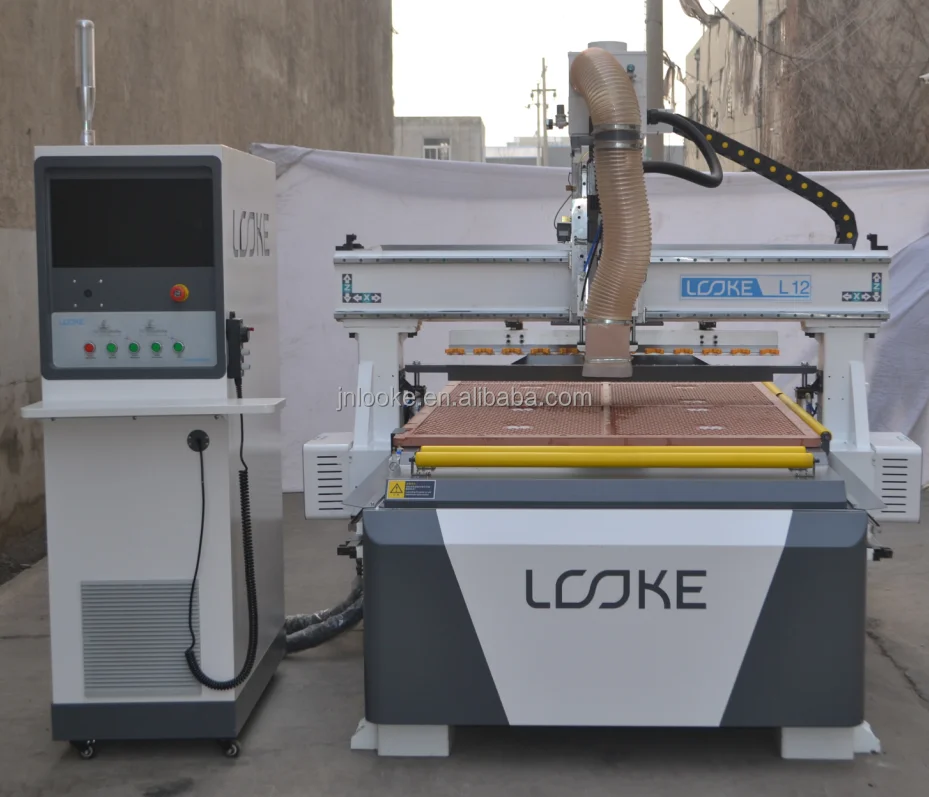

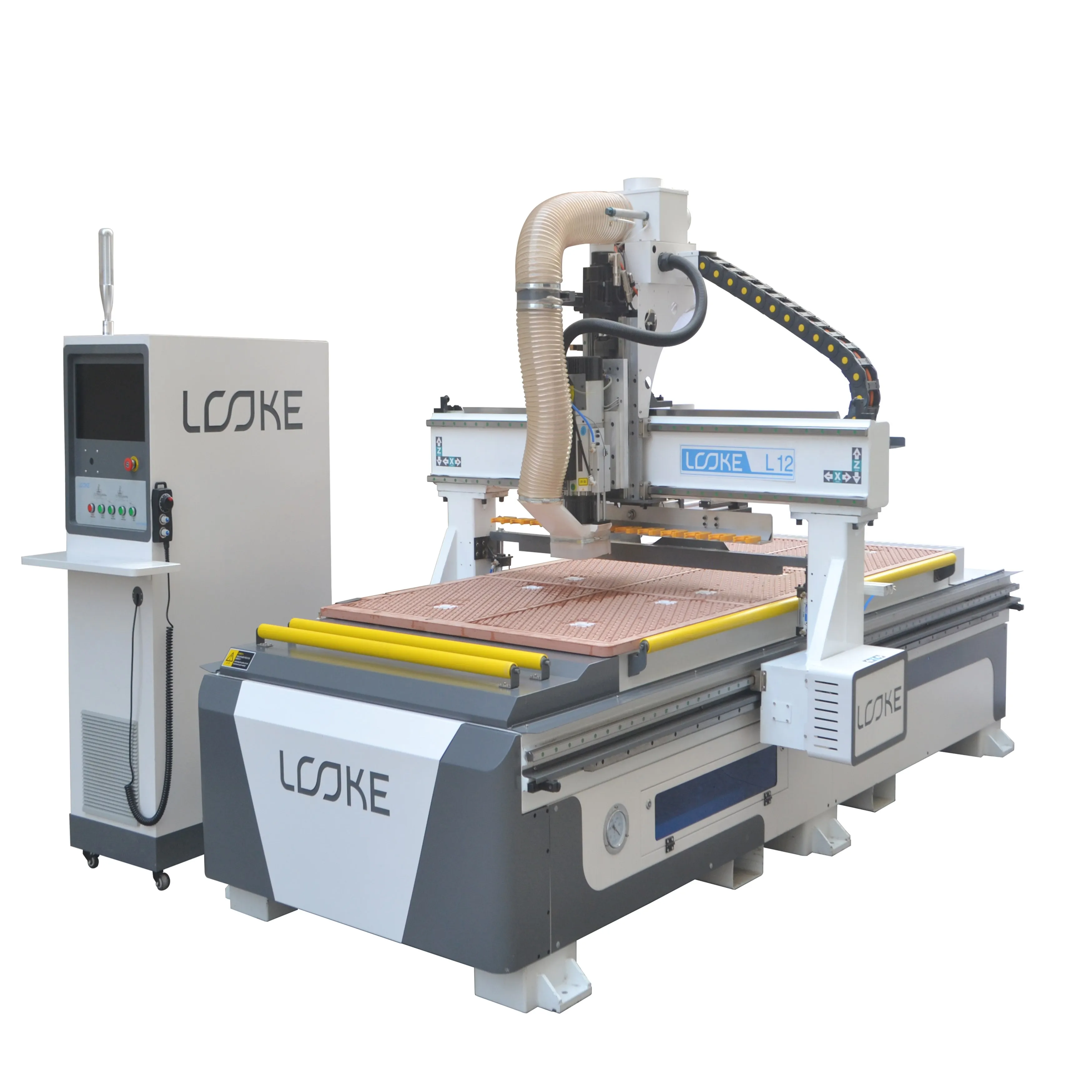

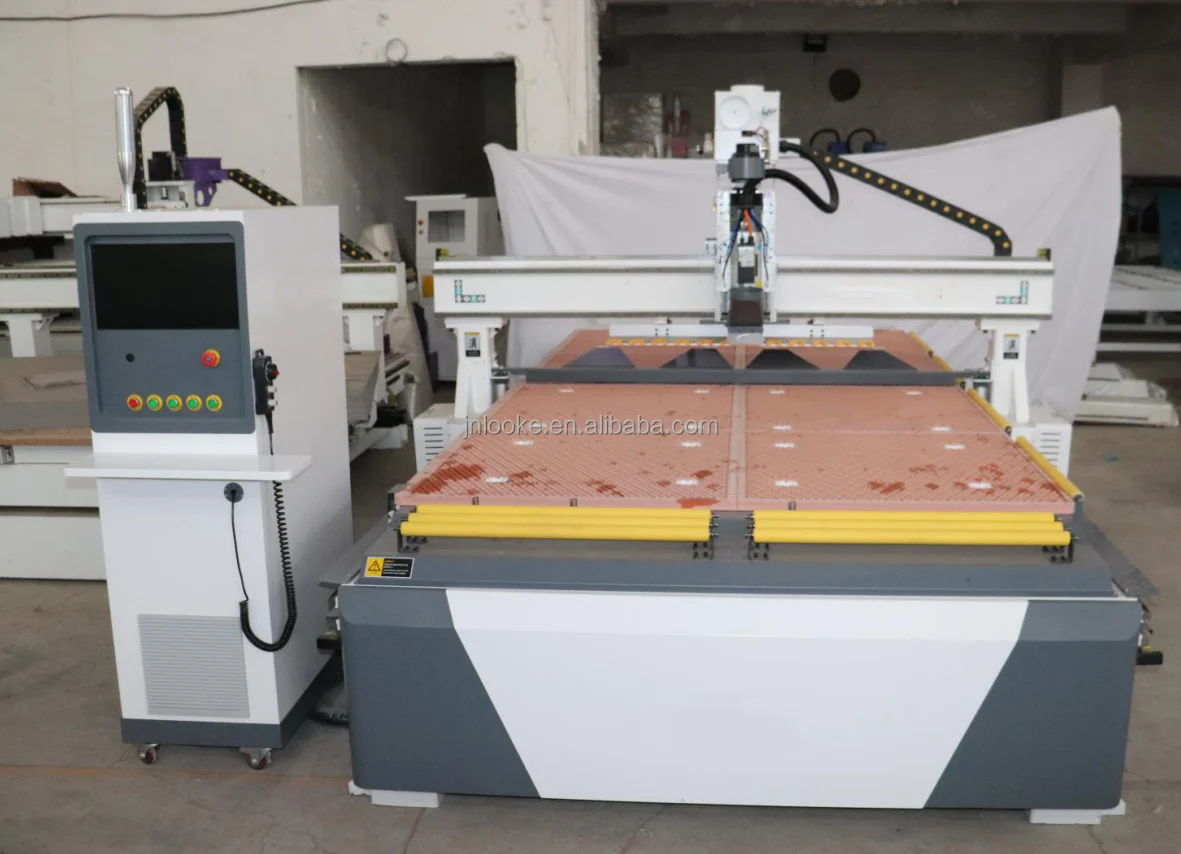

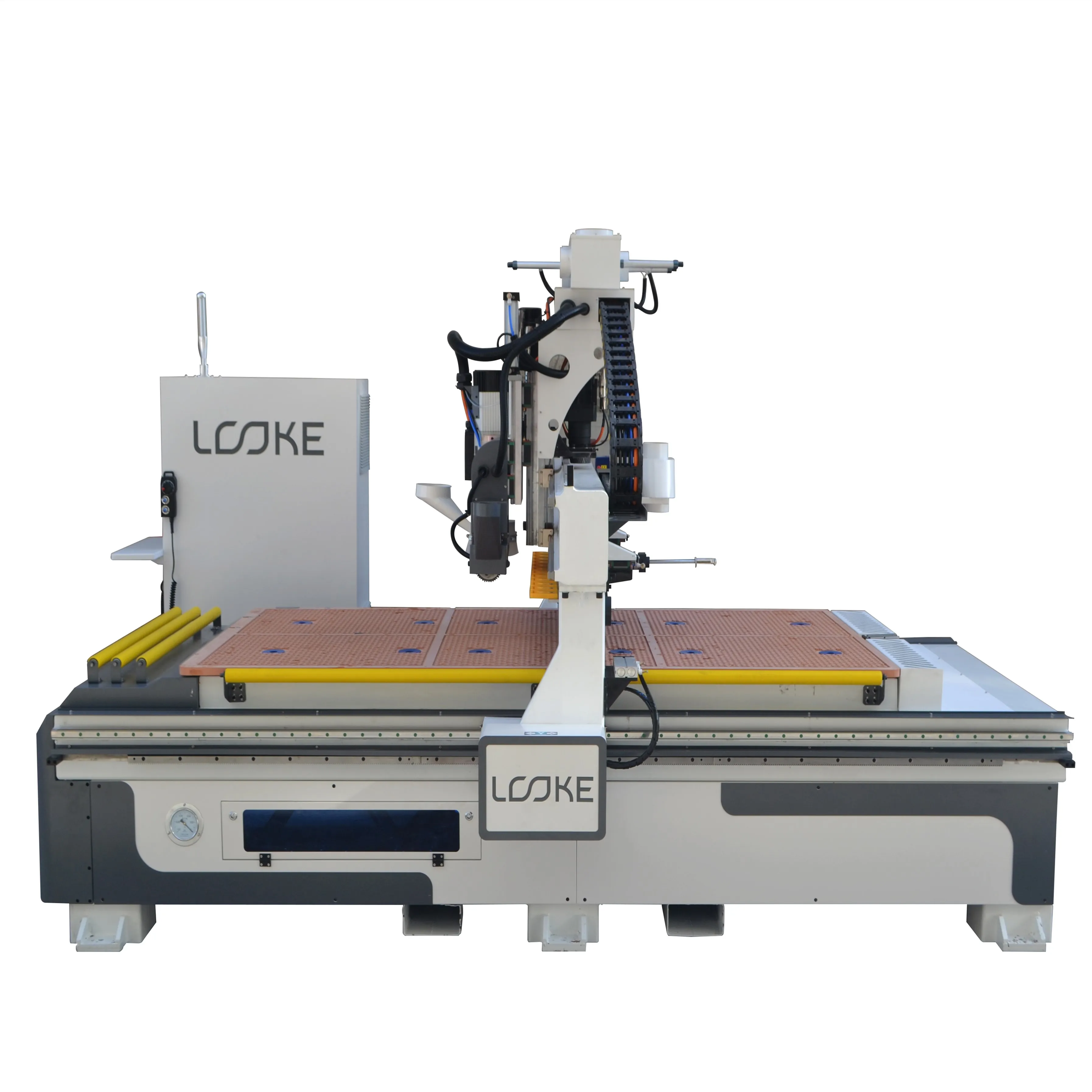

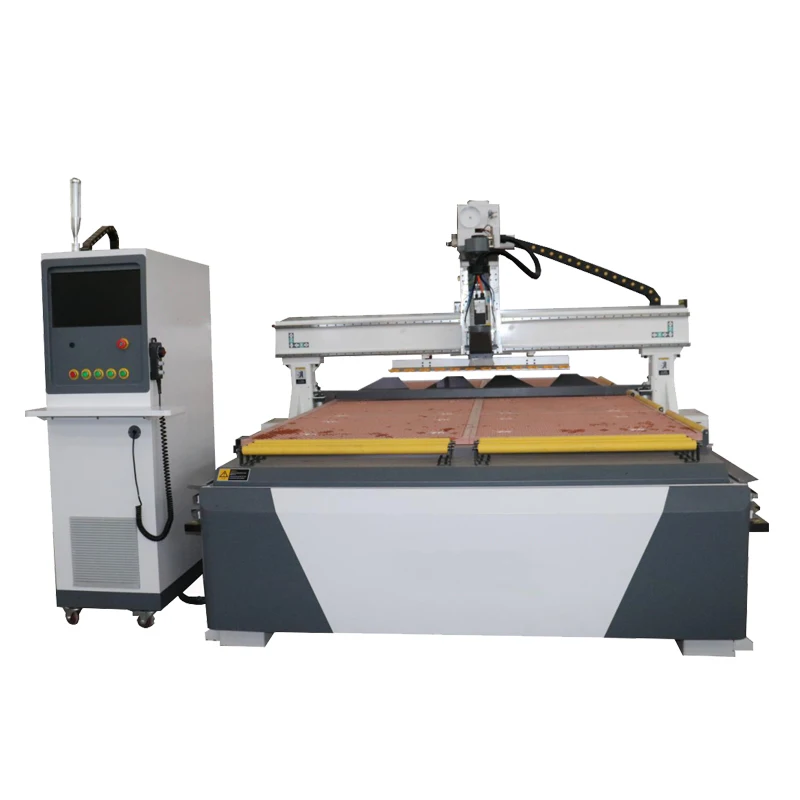

1325 1530 2030 ATC Wood Router Linear Tool Magazine
1 Perfect model ATC automatic tool changer 1300*2500mm wood carving CNC router;
2 Heavy duty body stable 8mm thickness welded steel bed structure;
3 New style ATC CNC router machine for woodworking, fulfilling the need for the production with most wooden materials, Devices like vacuum system and dust collector etc, are optional choice for different requirement as convenience to work fast and efficiently.
4. With Japan YASAKAWA servo motor driver and Japan SHIMPO reducer which is more powerful.
2 Heavy duty body stable 8mm thickness welded steel bed structure;
3 New style ATC CNC router machine for woodworking, fulfilling the need for the production with most wooden materials, Devices like vacuum system and dust collector etc, are optional choice for different requirement as convenience to work fast and efficiently.
4. With Japan YASAKAWA servo motor driver and Japan SHIMPO reducer which is more powerful.
Specification
Model | LK-1325/1530/2030/2040 ATC cnc router machine |
Working area | 1300*2500/2000*3000/2000*4000/2000*6000*200mm |
Machine structure | Heavy duty 5 axis machining center bracket |
Working table | Vacuum table with 7.5kw water cooled vacuum pump |
Spindle | Changsheng 9.0kw ATC air cooling spindle |
Spindle rotating speed | 0-24000 rpm |
Collet holder | ISO 30 |
Guide rail | Taiwan Hiwin linear square guide rail 25mm |
Transmission | X,Y axis by helical gear rack (Xinyue brand), Z axis by pneumatic |
Motors and drivers | Leadshine 2206 AC Hybrid servo motor & driver |
Control system | SYNTEC FC control system |
Invert | 11KW Fuling invert |
Reducer | Japan imported SHIMPO reducer |
Limit Switch | Japan OMRON limit switch |
Position cylinder & Push device | Y3+X2 position cylinder + push device |
Dust collector | 4.0kw double bags electricity dust collector |
Tool sensor | Automatic tool sensor |
Lubrication system | Automatic lubrication system |
Max. idling speed | 60m/min |
Max. working speed | 25m/min |
Working Accuracy | <0.05/300mm |
Instruction format | G code *.u00 *.mmg *.plt |
Working voltage | AC220V/AC380V,single phase/3 phase,50-60Hz |
Standard software | YUNXI |
Compatible software | Type3/Castmate/Coreldraw/AutoCAD and other CAM/CAD software |
Other | Tool Sensor; Oiling system; Water pump; Tool Box,English manuals |
Machine details

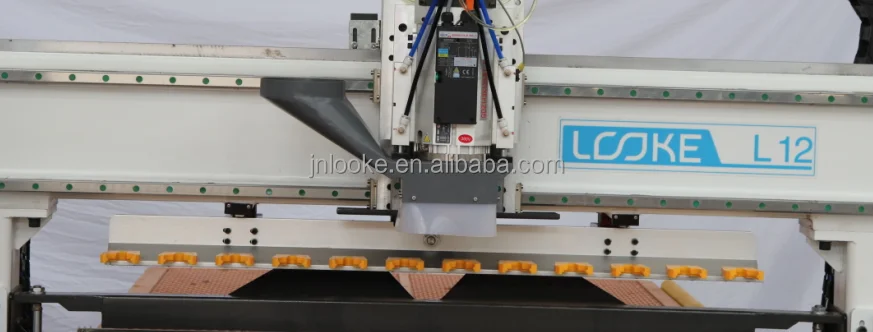

9.0KW ATC spindle
Which can change to tools automatically
11kw Fuling inveter
Control cabinet
Including the inveter, drivers, and other electrical accessories.
High soft cable, tow line
25# HIWIN square linear guide rail & Helical gear rack
Automatic lubrication system
Thicker yellow vacuum table
7.5kw vacuum pump
Position Cylinder
Feeding rollers
Japan SHIMPO reducer
Position cylinder
Performance feature
1.Imported linear guide rail, double-row four columns ball bearings, huge bearing capacity, good moving stability, long lifetime.Imported ball-screw, high precision.
2.Adopting high-precision gear rack transmission, faster working and high precision.
3.Equipped with NCStudio 95A-3A,NK260, SYNTEC6MA operating system, which is very simple and advanced.
4.With YUNXI software, type3, ARTCAM, CASTMATE, UCANCAM etc.
5.Adopting the international advanced technology of vacuum absorption mesa, equipped with the strongly vacuum pump, the six zones design can absorb the different area of the material strongly.
6.Adopt heavy duty 5 axis machining center bracket. Which is more stable and durable.
2.Adopting high-precision gear rack transmission, faster working and high precision.
3.Equipped with NCStudio 95A-3A,NK260, SYNTEC6MA operating system, which is very simple and advanced.
4.With YUNXI software, type3, ARTCAM, CASTMATE, UCANCAM etc.
5.Adopting the international advanced technology of vacuum absorption mesa, equipped with the strongly vacuum pump, the six zones design can absorb the different area of the material strongly.
6.Adopt heavy duty 5 axis machining center bracket. Which is more stable and durable.
Sample exbition
Wood furniture making:Panel furniture, wardrobes, cabinets, office furniture, custom furniture. Insulating materials, PVC, Acrylic cutting and other non-metallic materials processing
Advantage:
Perfect function, vertical perforation, slotting, material cutting, one-step completion, completely replacing traditional sliding table saws and electronic cutting saws, to get rid of the traditional reliance on artificial materials. At the same time, the vertical holes were also made in one go with the NC row drilling group. Through the combination of dedicated production design software, intelligent production is truly realized.
Advantage:
Perfect function, vertical perforation, slotting, material cutting, one-step completion, completely replacing traditional sliding table saws and electronic cutting saws, to get rid of the traditional reliance on artificial materials. At the same time, the vertical holes were also made in one go with the NC row drilling group. Through the combination of dedicated production design software, intelligent production is truly realized.

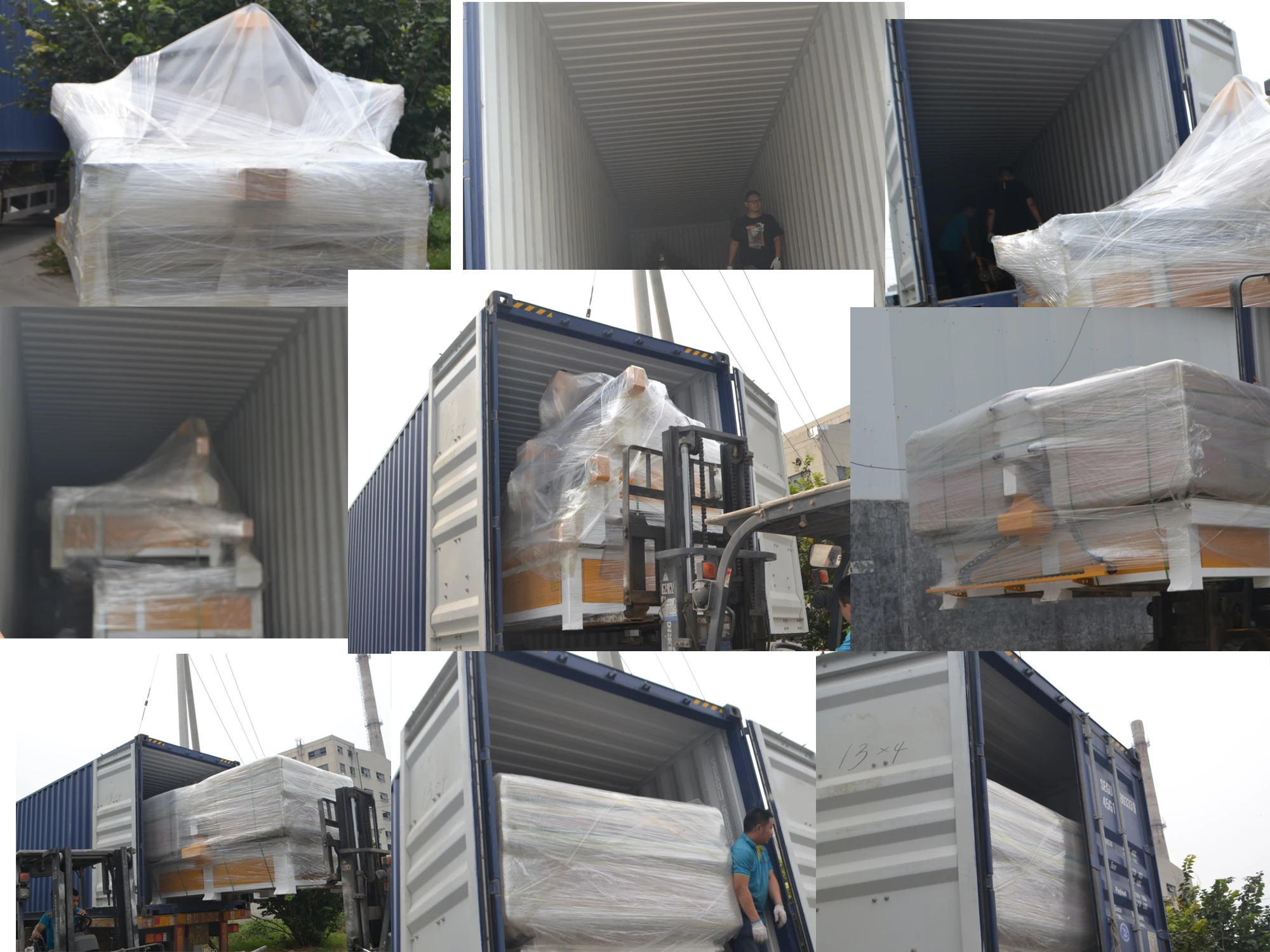

Packing & Delivery
We will strictly inspection the goods before packing by professional team. Before shipping, they will commission cnc router firstly, then brush oil to linear guide, ball screw, and all the metal sheet,and then lubricate all the hinged parts like pin and bearings. All those wood carving machine will be kept clean,covered of plastic film and then put into the plywood case. Then the
cnc router will be in its good conditions on the whole inland and sea transportation. When the machine arrives, a nice,safe,strong and beautiful packaging will catch the client's eyes unexpectedly.
cnc router will be in its good conditions on the whole inland and sea transportation. When the machine arrives, a nice,safe,strong and beautiful packaging will catch the client's eyes unexpectedly.
Related machine
LK-1325 Wood CNC Router
LK-6090 Advertising CNC Router
LK-3015F Fiber Laser Cutting Machine
LK-1530 Plasma Metal Cutting Machine
Company Profile
Jinan LOOKE Intelligent Equipment Co., Ltd. is famous in CNC equipment, located in Jinan, Shandong. Our company integrates the R&D, production, sale and maintenance services. We depend on high-tech and high-quality products to build the world brand.
Certificate
We have CE/ ISO9001/SGS/TUV certificates
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, please tell me the max working
area, materials for processing and the thickness for materials processing engraving or cutting.
Then perfect suitable CNC router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
we will give you 24hours service from phone and Skype.
There are English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, please tell me the max working
area, materials for processing and the thickness for materials processing engraving or cutting.
Then perfect suitable CNC router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
we will give you 24hours service from phone and Skype.
