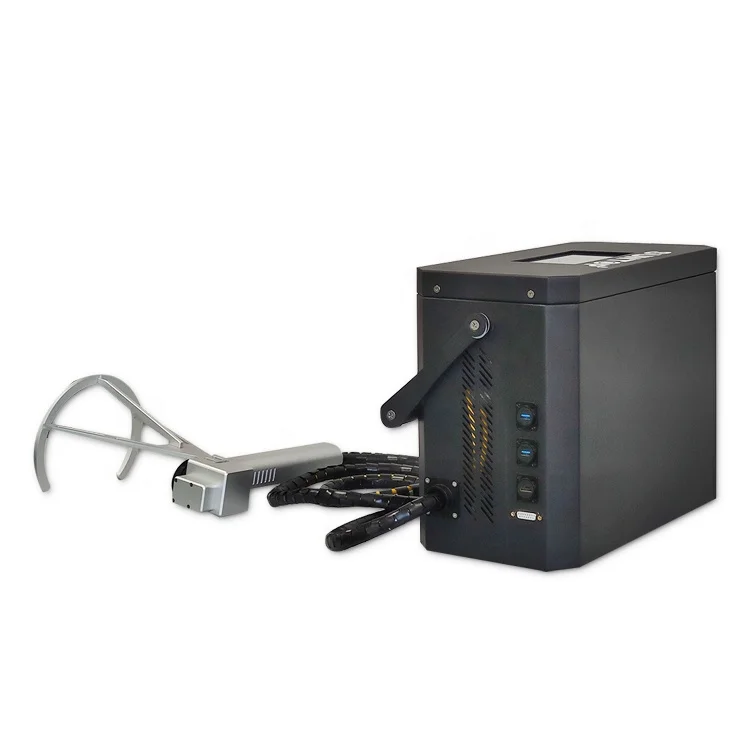

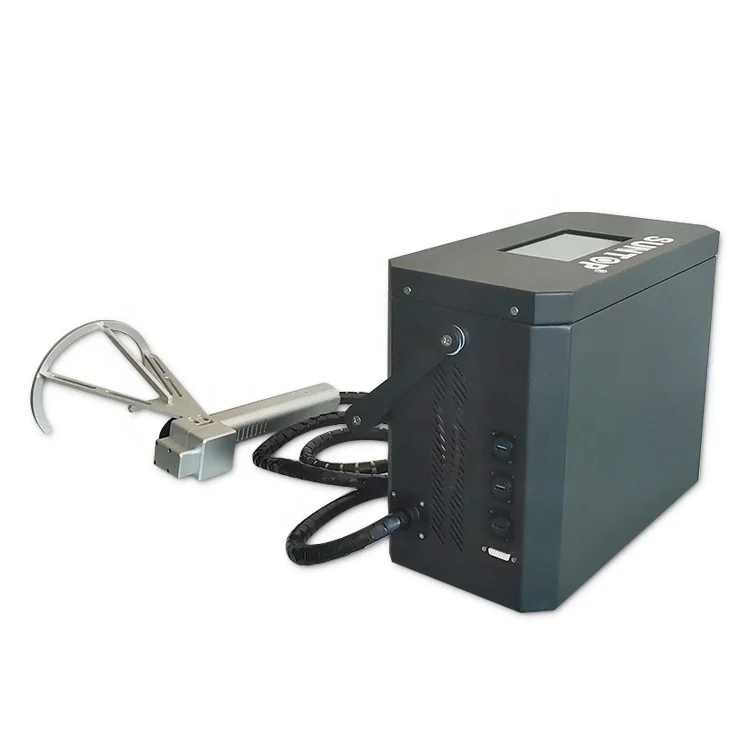

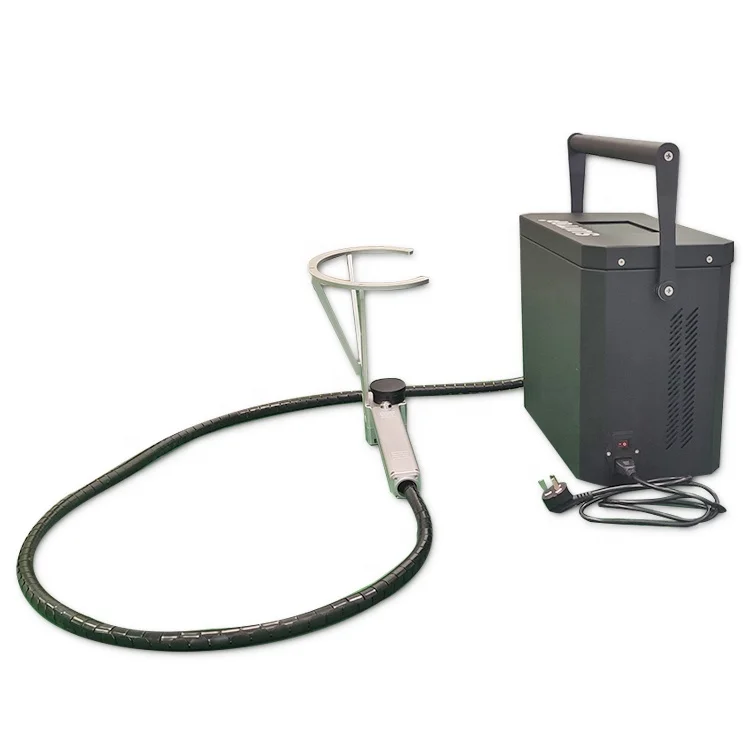

Handheld Fiber Laser Marking Machine Laser Marker 20W RAYCUS Laser Source
- Category: Laser Marking Machines >>>
- Supplier: Suzhou Suntop Laser Technology Co. Ltd.
Share on (1600340409657):
Product Overview
Description
Products Description

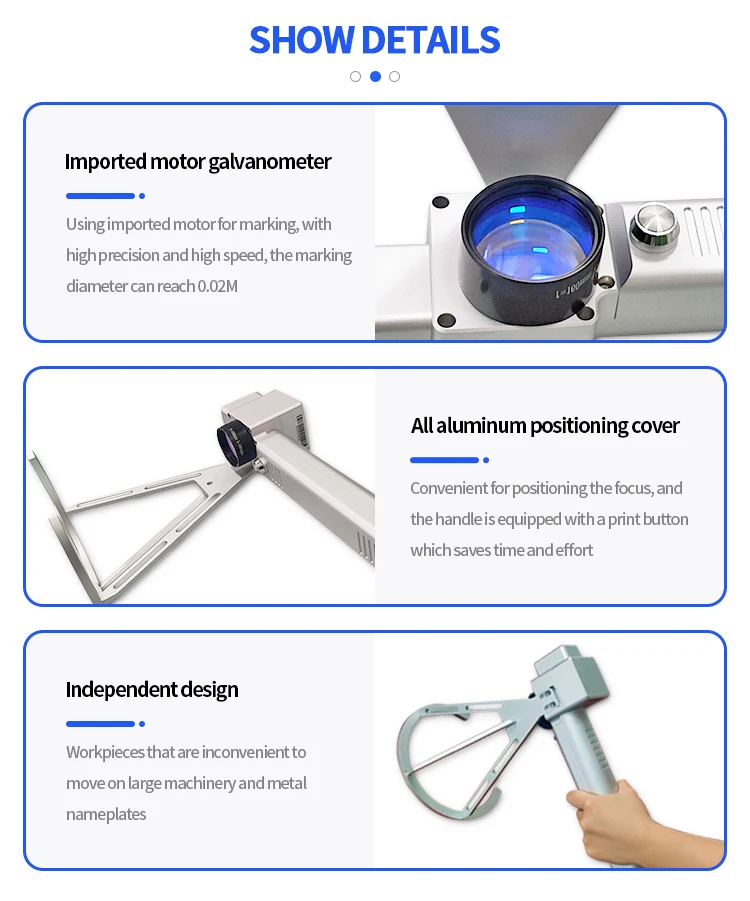

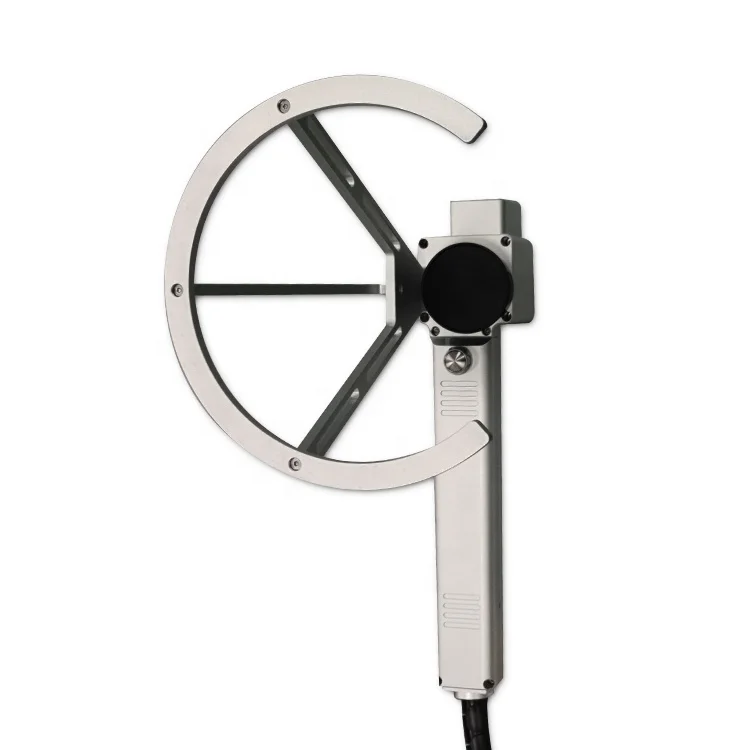

The marking content only needs to be edited on the computer, the handheld marking head is aligned with the marking position and the switch is pressed to achieve rapid marking, which can be applied to stainless steel, carbon steel, aluminum, etc.
Laser Power | 20W | ||||
Model | ST-FL20P | ||||
Max Marking Range | 110*110mm | ||||
Depth of Single Marking | 0.01mm | ||||
Whole Machine Power | 600W/h | ||||
Laser Type | Fiber Laser | ||||
Laser source | RAYCUS Brand | ||||
Control Software | EZCAD | ||||
Cooling Mode | Air Cooling | ||||
Working Accuracy | ±0.002MM | ||||
Marking Speed | 1-7000mm/s | ||||
Repetition Frequency | 20-100KHz | ||||
Laser Wavelength | 1064nm | ||||
Minimum Font for Marking | 0.15mm | ||||
Working Voltage | 110V-220V（Adjust according to customer's needs） | ||||
Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg, DXP | ||||

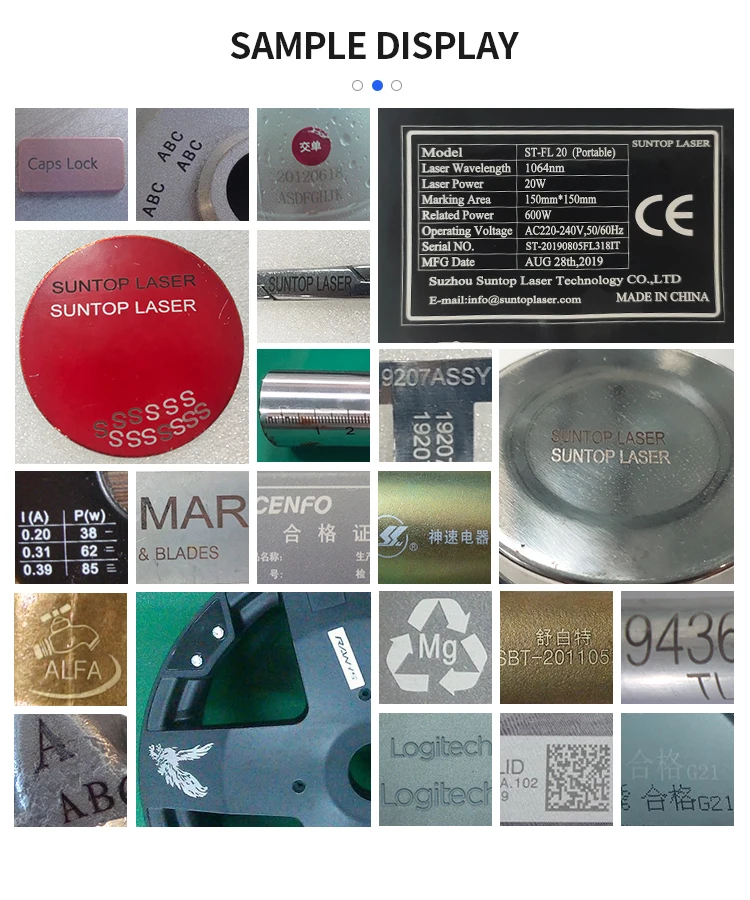

Applicable Material | All metal (Stainless steel, Carbon steel, Brass,etc.) and some plastic(ABS, PVC,PES, ETC.) | ||||
Spare Parts Come with the Machine | Protective glasses, Metal business card, Hex socket wrench, Power cord | ||||
Net Weight | 19.6KG | ||||

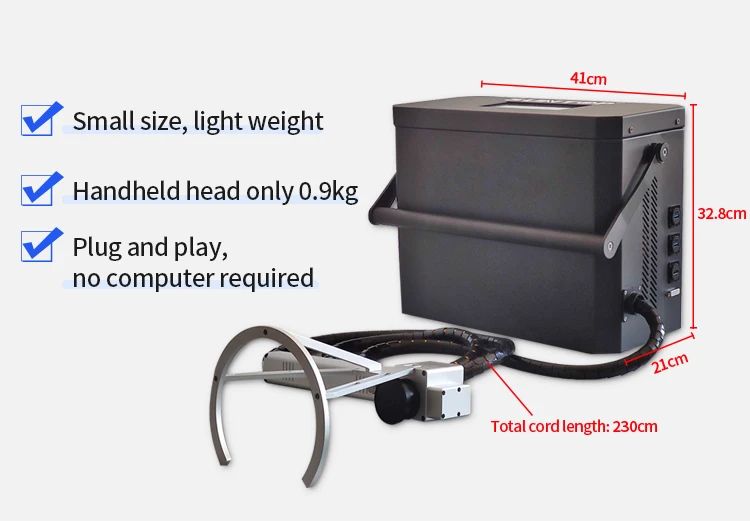

Machine Dimension | 410*210*328mm (L*W*H) | ||||
Packaging And Logistics
Production Process
Our Team
Company Profile
Why Choose Us
FAQ
Q1: What is your delivery time?
It usually takes us 5-7 days to finishe producing machine.
Q2: How can I confirm if your fiber laser marking engraving machine meet my needs?
You can send us some samples so that we can make a demo video for you.
Q3: What's your payment terms? MOQ?
We accept T/T(bank transfer), L/C, West union etc. MOQ 1 set.
Q4: What's your after sales service and warranty?
We provide 24 hours online technical support and instruction and 3 years warranty.
It usually takes us 5-7 days to finishe producing machine.
Q2: How can I confirm if your fiber laser marking engraving machine meet my needs?
You can send us some samples so that we can make a demo video for you.
Q3: What's your payment terms? MOQ?
We accept T/T(bank transfer), L/C, West union etc. MOQ 1 set.
Q4: What's your after sales service and warranty?
We provide 24 hours online technical support and instruction and 3 years warranty.
