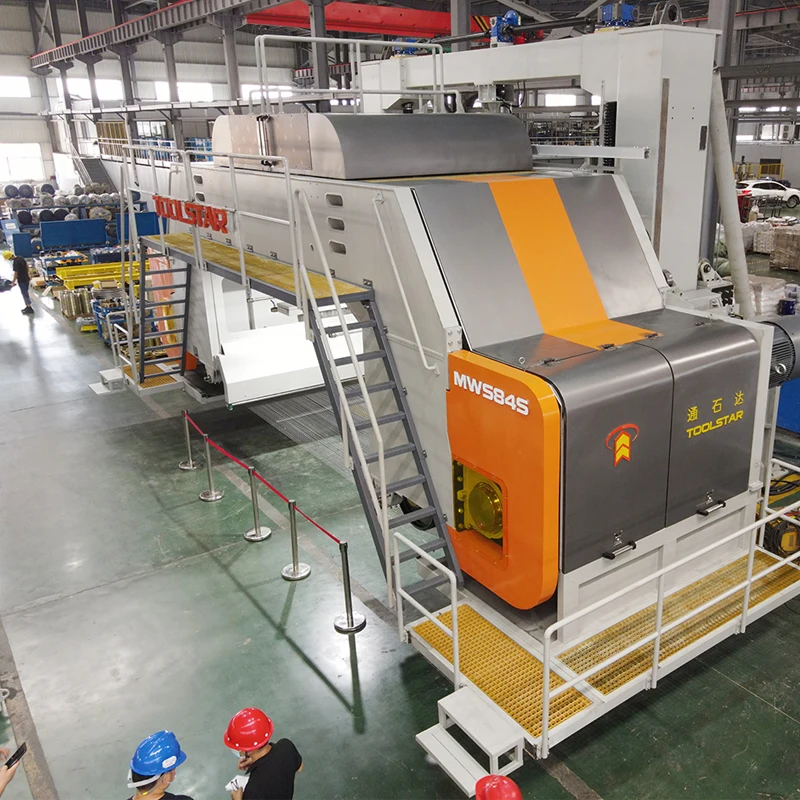

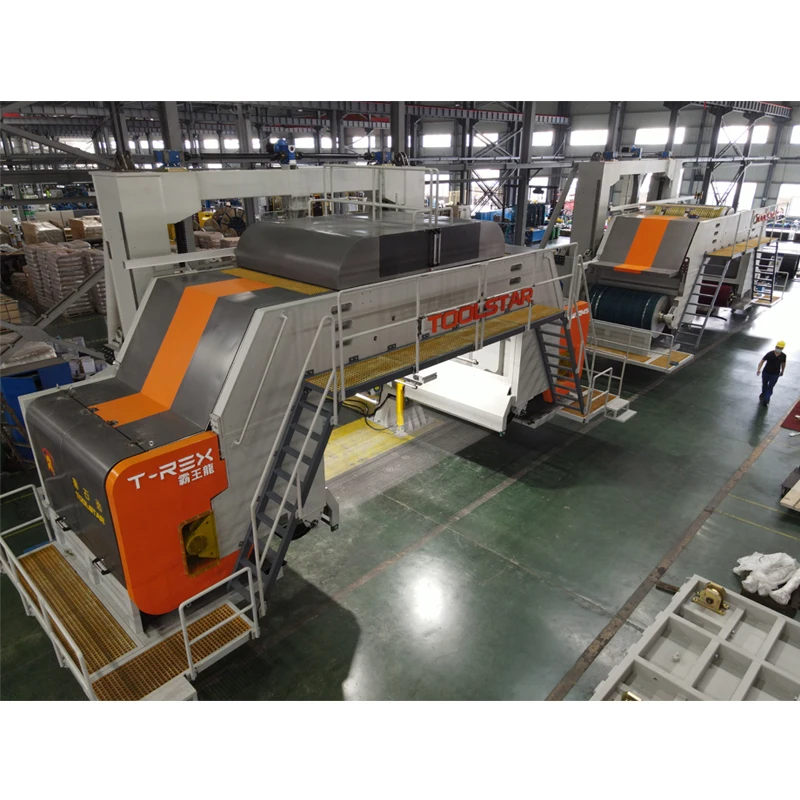

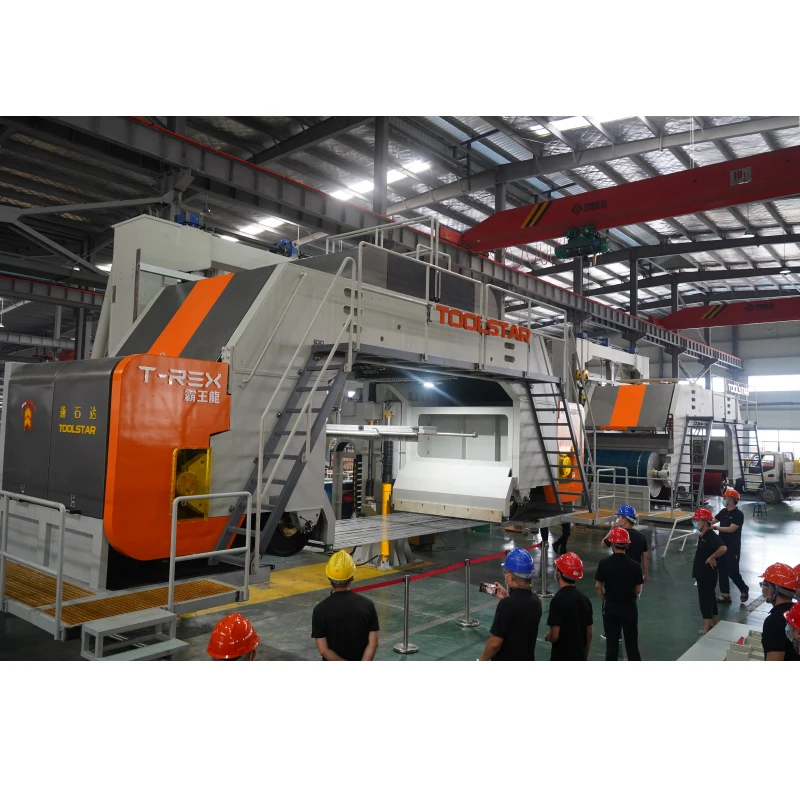

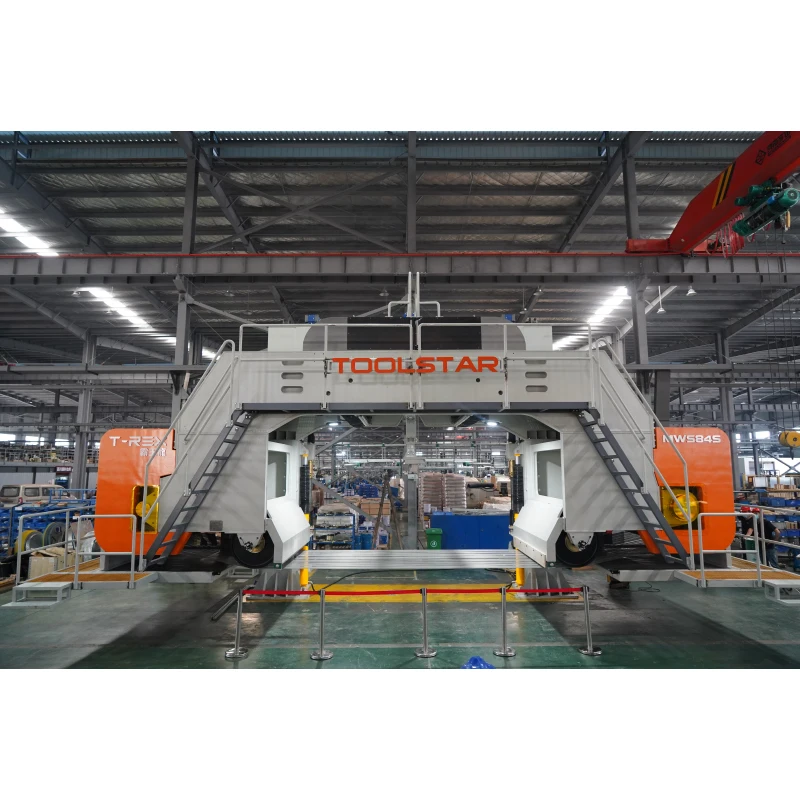

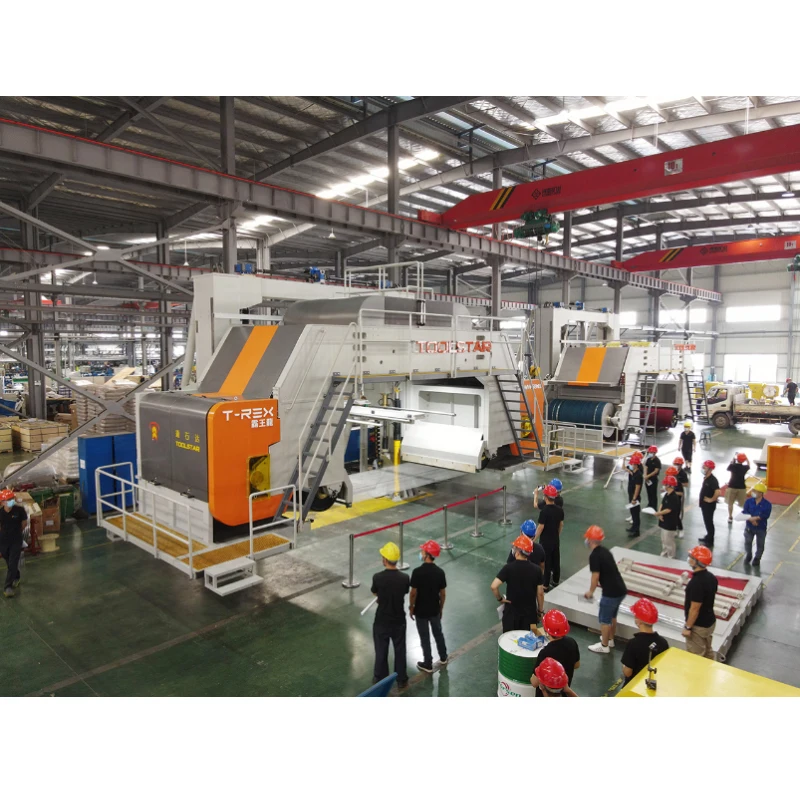

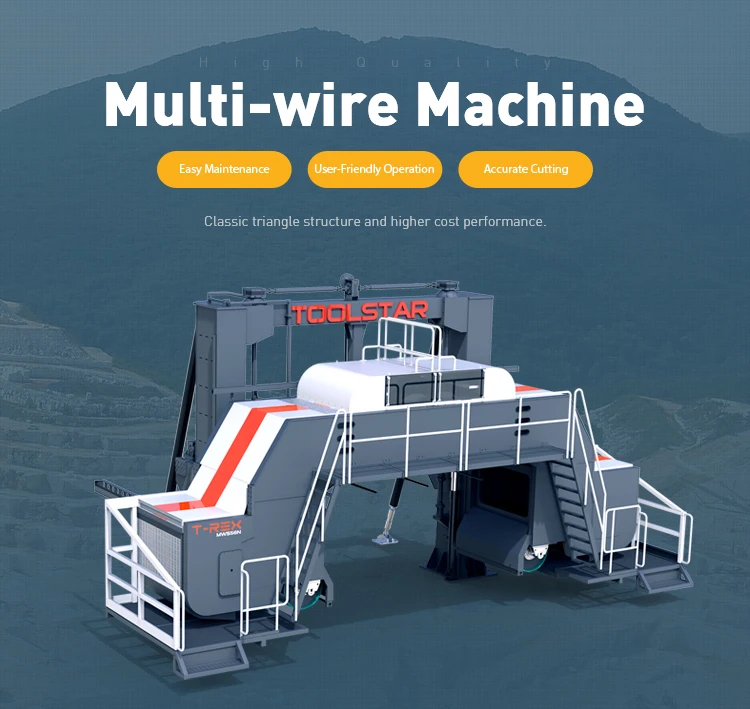

Multiwire Gangsaw Slab Stone Cutting Machine
- Category: Stone Machinery >>>
- Supplier: Changsha Toolstar Machinery Manufacturing Co. Ltd.
Share on (1600340494229):
Product Overview

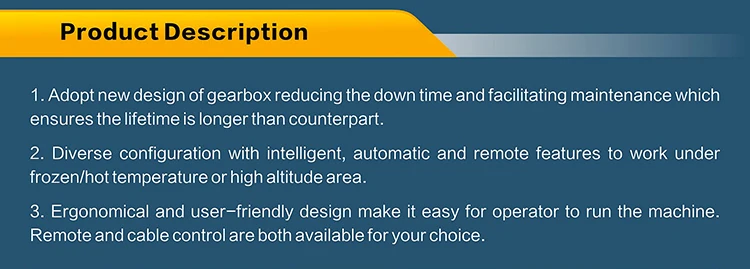

Description
1. Adopt international brand of motor/inverter/electronics to maintain the stable workingand excellent performance.
2. Stainless steel covers with three coating and painting ensures the good protection from the rusts,especially in the water and dust working condition.
3. Ergonomical and user-friendly design makes it easy for operator to run the machine, especially for assembling the
wires and regular maintainence.
wires and regular maintainence.
φ8.4（Technical parameter） | ||||||||||
Wire diameter/mm | φ8.4 | |||||||||
Slot pitch/mm | 9.5 | |||||||||
Slab thickness/mm | 5 wires | 20 wires | 40 wires | 56 wires | 72 wires | |||||
60~100 | 20.5/30/39.5/49/58.5/68/77.5/87/96.5 | |||||||||
Power/kW | 5 wires | 20 wires | 40 wires | 56 wires | 72 wires | |||||
37Kw | 110Kw | 160Kw | 200Kw | 250Kw | ||||||
Driving wheel diameter/mm | φ1200 | |||||||||
Driven wheel diameter/mm | φ1200 | |||||||||
Lifting stroke/mm | 2300 | |||||||||
Horizontal stroke/mm | 9500 | |||||||||
Size of trolley /m | 2.5*2 | |||||||||
Tensioning | Hydraulic tensioning | |||||||||
Tension force/kgf | 220~260 | |||||||||
Wire speed | 0~35m/s | |||||||||
Wire length/m | 21.52±0.02m | |||||||||
Cutting area(W×H)/m | 3.6x2.1 | |||||||||

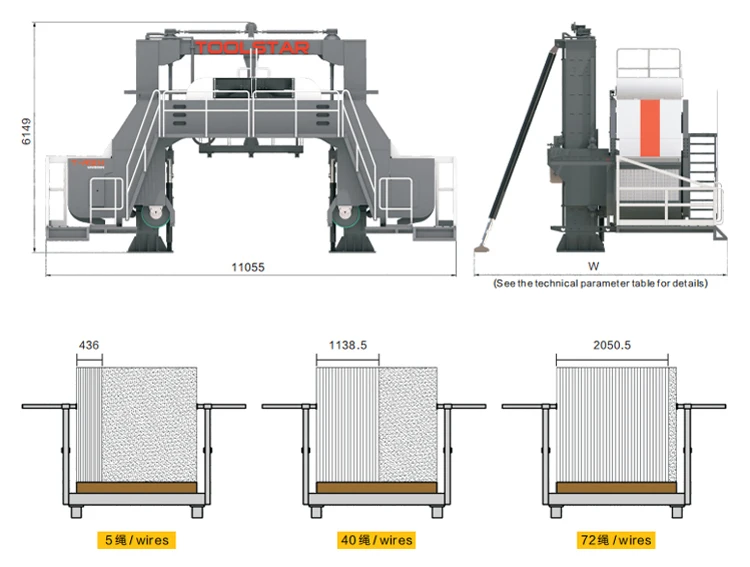

Max. cutting width/mm | 5 wires | 20 wires | 40 wires | 56 wires | 72 wires | |||||
436 | 568.5 | 1138.5 | 1594.5 | 2050.5 | ||||||
Dimension L×H/mm | 11055x6149 | |||||||||
Dimension W/mm | 5 wires | 20 wires | 40 wires | 56 wires | 72 wires | |||||
3100 | 3906 | 4475 | 6826 | 7282 | ||||||
Weight/t | 5 wires | 20 wires | 40 wires | 56 wires | 72 wires | |||||
28 | 32 | 48 | 55 | 62 | ||||||
Q: Can the design be customized ?
A: Yes, we can offer the design based on the customers' requirements,to match different block sizes and different slab thicknesss;
A: We have an experienced after-sales service team with more than 20 technicians ready for the buyers in 24hours to give them the reasonable suggestions and travel on site if necessary.
Q: What kind of wire saws you can supply for the multi wire machines?
A: We have 4.3mm/5.3mm/6.3mm/7.3mm wire saws for your options depends on your stone hardness and requirements.
Q: How is the leadtime?
A: Normally 90-120 days depending on the production plan.

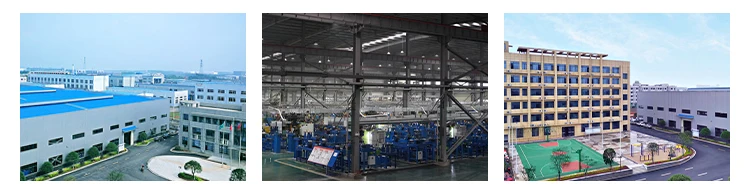

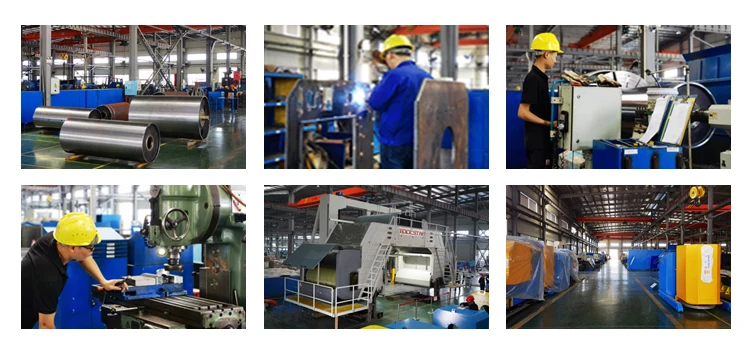

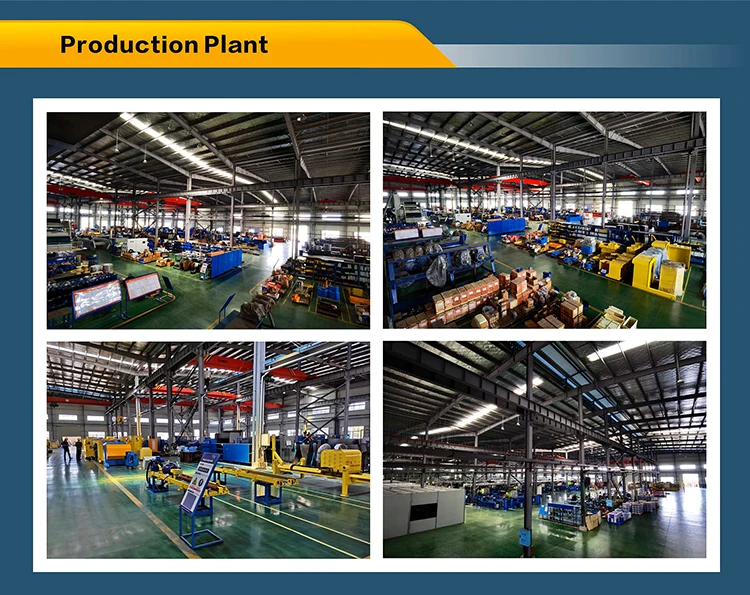

CHANGSHA TOOLSTAR MACHINERY MANUFACTURING CO.,LTD, founded in 2008, is a Hi-Tech enterprise being dedicated in research and development of diamond wire saw machines and other stone processing equipment.
Until now, TOOLSTAR has set up branches in Brazil, Chile, U.S, Spain, Russia, South Africa, India. TOOLSTAR’s product line covers multi-wire saw machine, profiling machine, squaring machine, quarrying machine, drilling machine and other stone processing equipment, which are widely used in quarrying, stone processing, mechanical manufacturing and infrastructure industries.
The machines have been exported to U.S., Spain, Italy, Brazil, Poland, Saudi Arabia,Cambodia, etc. Since beginning, TOOLSTAR has been constantly focusing on technical innovation and application of quarrying, as well as R&D of diamond wire saw machine and other stone processing equipment. So far TOOLSTAR has obtained 24 national patents including 3 invention patents. The article of ‘The Research,Development and Industrialization of Diamond Wire Saw Machine’ was appraised as the Third Advance Prize of Changsha Science and Technology.
The independently researched multi-wire saw machine MWS40 was defined as a leading product in China after national technology assessment, and awarded as the first major technology equipment in 2014 in Hunan Province. Meanwhile, it was listed in the menu of Changsha Self-innovative and Energy-saving Products. The new multi-wire saw machine MWS72A is the largest and most technically difficult slab cutting machine in China. TOOLSTAR has become a name brand all over the world based on its advanced technology and stable quality of diamond wire saw machines.
