Проект ODM поддерживает мощность 100% протестированный 1500 Вт 120 220 В PTC нагревательный вентилятор
- Category: Home Heater Parts >>>
- Supplier: Shenzhen,Three,Field,PTC,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
What’s a surface charged corrugated PTC heater?
In the field of PTC heater, the most widely used and cost-effective heater should be the surface charged corrugated heater series. It perfectly replaces the traditional electric heating wire heating. This surface charged corrugated heater has a very huge market, and the market demand is growing at a rate of more than 10% every year.

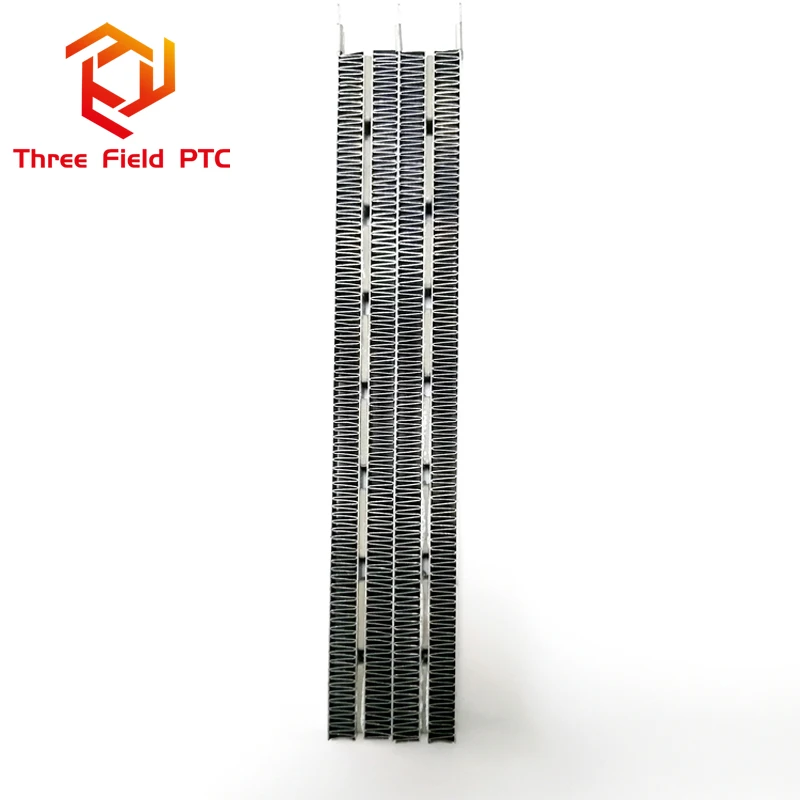

Conductive corrugated PTC heater is a kind of high-power PTC heater. Corrugated radiator is pasted on both sides of common PTC element, and corrugated hole can supply hot air. PTC Insulated Ripple heating element are dynamic heating elements designed to heat up moving air. The large surface area of the aluminium fins ensures a homogeneous heat transfer adjusting the air volume flow.
Conductive corrugated PTC heater is a kind of high-power PTC heater. Corrugated radiator is pasted on both sides of common PTC element, and corrugated hole can supply hot air. PTC Insulated Ripple heating element are dynamic heating elements designed to heat up moving air. The large surface area of the aluminium fins ensures a homogeneous heat transfer adjusting the air volume flow.
ODM Project Supported Power 100% Tested 1500W 120-220V PTC Heater Fan
For the surface charged PTC heater, the width can be customized. Below chart shows the parameters of PTC heater in 88mm width. It has 5 pcs of 250 terminals, it can be set up to be 3 gears or even more.
No. | L*W*T (mm) | Customizable Voltage Range | Related Power | Customizable Power Range | ||||
1 | 48*88*15 | 100～240V | 800W | 50～1200W | ||||
2 | 72*88*15 | 100～240V | 1200W | 50～1600W | ||||
3 | 96*88*15 | 100～240V | 1600W | 100～2400W | ||||
4 | 120*88*15 | 100～240V | 2000W | 100～3000W | ||||
5 | 144*88*15 | 100～240V | 2400W | 100～3600W | ||||
6 | 168*88*15 | 100～240V | 2800W | 100～4200W | ||||
7 | 192*88*15 | 100～240V | 3200W | 100～4800W | ||||
8 | 216*88*15 | 100～240V | 3600W | 100～5400W | ||||
9 | 240*88*15 | 100～240V | 4000W | 100～6000W | ||||
No. | L*W*T (mm) | Customizable Voltage Range | Related Power | Customizable Power Range | ||||
10 | 30*88*24 | 100～240V | 600W | 50～800W | ||||
12 | 45*88*24 | 100～240V | 900W | 50～1200W | ||||
13 | 60*88*24 | 100～240V | 1200W | 50～1600W | ||||
14 | 75*88*24 | 100～240V | 1500W | 50～2000W | ||||
15 | 90*88*24 | 100～240V | 1800W | 100～2400W | ||||
16 | 105*88*24 | 100～240V | 2100W | 100～2800W | ||||
17 | 120*88*24 | 100～240V | 2400W | 100～3200W | ||||
18 | 135*88*24 | 100～240V | 2700W | 100～3600W | ||||
19 | 150*88*24 | 100～240V | 3000W | 100~ 4000W | ||||
20 | 165*88*24 | 100～240V | 3300W | 100～4400W | ||||
21 | 180*88*24 | 100～240V | 3600W | 100～4800W | ||||
22 | 195*88*24 | 100～240V | 3900W | 100～5200W | ||||
23 | 210*88*24 | 100～240V | 4200W | 100～5600W | ||||
24 | 225*88*24 | 100～240V | 4500W | 100～6000W | ||||
25 | 240*88*24 | 100～240V | 4800W | 100～6400W | ||||
ODM supported different length 96*88*15mm 1500W -5000W 88mm width ptc heating element resistance
ptc heating element constant temperature
Below chart shows the specification and explains what can be customized.
No | Item | Description |
1 | Material | PTC thermistors and aluminium strips, joined with soldering and gluing. |
2 | Dimension | The same width of this model is 66mm. For different power the length is different. |
3 | Rated power | From 100W to 4800W. It can be customized, the longer of the PTC heater, the bigger of the power. |
4 | Withstanding Voltage | During the withstanding voltage test, we input 2 times of related voltage to the PTC heater for a minute. |
5 | Surge current | It will reach 1.5-2 times of related current when power on for about 10-15 seconds. |
6 | Power supply | Electricity power supply |
7 | Assembly mode | Reserve 5 pcs of 250 terminal, it can output 3 gears of power or even more, and it is easy to install, plug-and-play. The other options include making outgoing fire resistance wires or making a frame of heat resistant plastic. We have engineer team who can help client to design how to assemble the PTC heater. |
8 | Temperature | The highest temperature of the heater body is 280℃, the highest temperature of the heated air is 130℃. It doesn’t have light fire. |
9 | Temperature control | This heater doesn’t have it. For safety consideration, we can add it to the PTC heater, need to negotiate with client about how to design a plastic frame to fix the sensor. |
10 | Testing | 100% power and high pressure withstanding test. |
11 | Surface charge | For this model yes. We also have surface uncharged models. |
12 | PTC thermistors surface deal with | This model we don’t deal with its surface. Can make PTC thermistors been covered with a layer of thick dropped glue, so it is better for dust-proof and moisture-proof. The cost increasing is about us$0.08/pc. |
1. Its cost proportion is small compared with the the whole heater. It is an economical type.
2. Easy installation, plug-and-play, fast temperature increase3. No oxygenation and open flame, secure and comfortable use. Quiet operation, and do not generate RFI noise.
4. It has a virtually unlimited service life, the service life is up to 100,000 hours.
5. Automatic adjustment to maintain balanced and continuously heating. When the temperature is too high, it will automatically reduce the power, reduce the heating and keep the temperature constant. High operational reliability and energy efficiency without
any additional switching elements.
6. Product size, voltage, power, temperature and other parameters can be customized.
The possible applications of surface charged PTC heater
Due to its own features, the surface charged PTC heater are most commonly used as pre- or post-heaters in air conditioning.
As it is surface charged, it mainly been used in relative dry and clean environment. And it should be well isolated with conductive objects. The most common usage is home use air heater and clothes dryer, industry dryer, etc.
Other ptc heating element constant temperature
Equipment to make ptc heating element constant temperature
Company Profile
Our company’s advantages in this industry:
1. We have an experienced engineer technical team, which can design different types of heaters according to customer needs. The design content includes product frame, wiring mode, ceramic chip formula, power, temperature control, etc.
2. Our company has rich relevant production equipment, such as glue dropping print machines, glue rolling print machines, terminal adding machines, power on curing machines, power testing machines, etc. These equipment ensure the production capacity and technical level of our company. 100% of our products accepted some testing before shipment, such as insulation test (optional), power test, high voltage resistance test, etc.
3. We have equipment design and production capacity, can develop new equipment for different products according to customer requirements. We can improve the production efficiency and share economic benefits with our customers.
ODM Project Supported Power 100% Tested 1500W 120-220V PTC Heater Fan
