Product Overview
Description

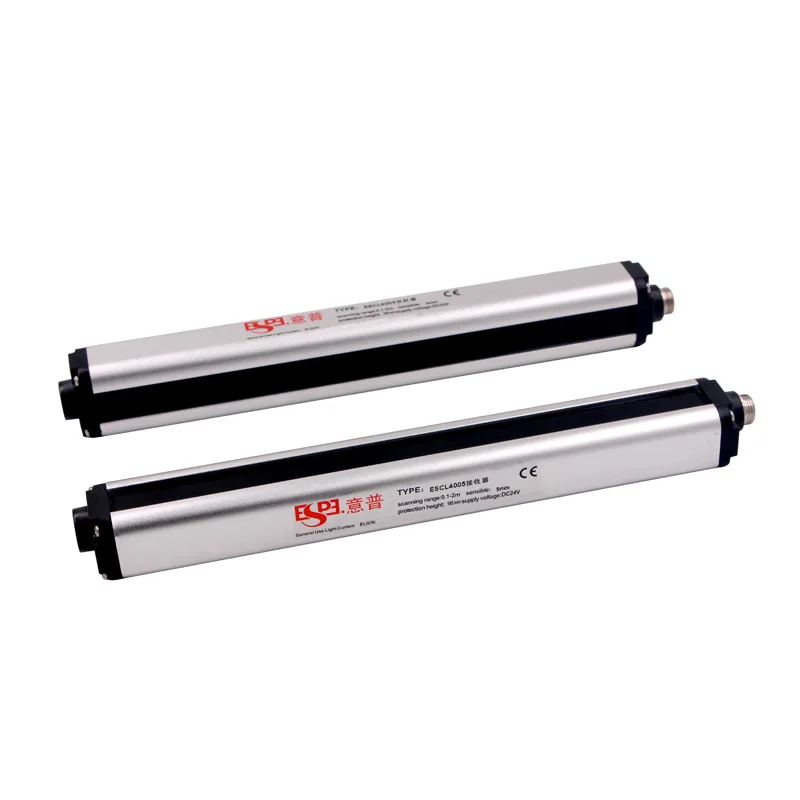

Sport Coordinate Detective Light Curtain Spraying Light Sensor Barrier Measuring Light Curtain
Product Description
| Protective Height | 77.5mm (customized) | NO. of beam | 4~160 (customized) |
| Beam Gap | 2.5mm | Resolution | >2.5mm |
| Power Volatge | DC24V ±20% | Output Current | ≤200mA |
| Watts | <5W | Response Time | <5ms |
| Insulation Resistance | ≥100MΩ | Detection Mode | Thru-beam |
| Sectional area | 36*45mm | Working temperature | -10 °C - 55°C |
| Anti-interference | yes 10000lux | Output type | RS485 |
| Sensing distance | 0.1-5m (standard), can be customzed in 0.1-20m | ||
ESCF have special function to detect fix place of project cross the light curtain. So it's popular in education and physical training. For example, it can measure how long long-jumper do, or how far spot-put athlete achieve. Or even football game.
For industry, it can detect shape and save paint for spraying.
For tire factory, it can check place, height of tire;
For car equipment, it can measure tiny components.
We could explain more, welcome to contact us.
Our Services
Company Information

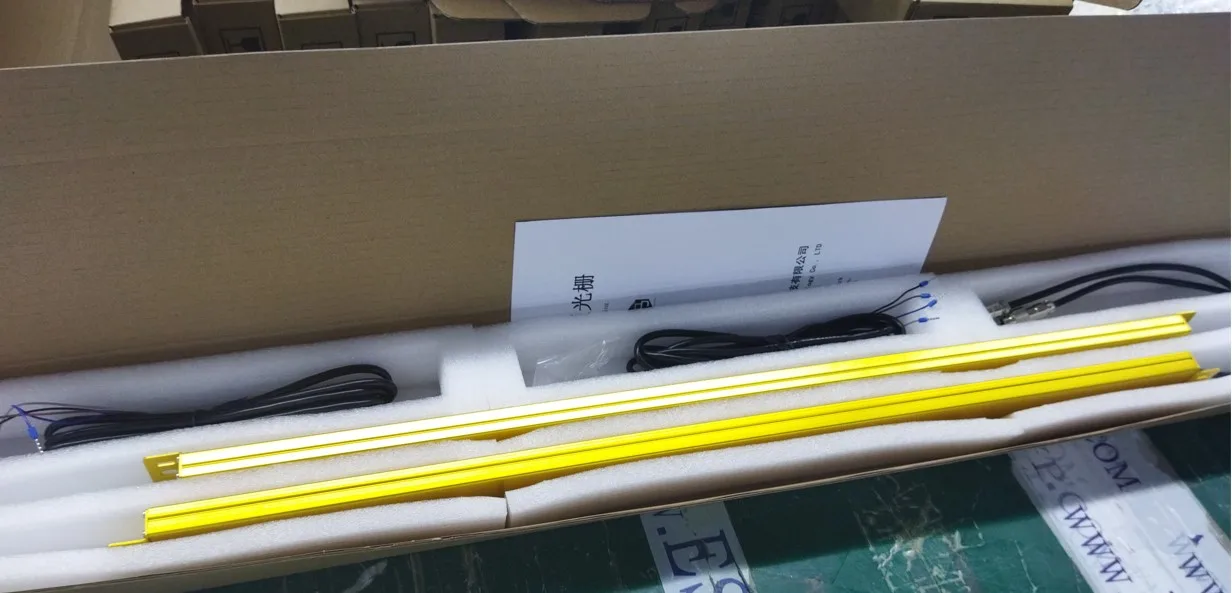

Packaging & Shipping
FAQ
Q1.What is the MOQ?
AC: 1 PCS for our own available designs.
Q2.Do you customize logo, color, and label of product?
AC: Of course, we support ODM service, can customize logo, color etc.
Q3.Do you have certification?
AC: Factory pass ISO9001:2015, product with EU TYPE 4, CE, FCC etc. certification.
Q4.How long will you take once a order placing?
AC: We're 16 years factory, all product is mature, small order is finished in 2-3 work days; big order around 15 days.
Q5.How is your quality?
AC: With 16 years experience, ESPE is model of safety light curtain. Current product is mature.
Our workers will inspect material 1 by 1. Each process is made by skilled workers. After sensor finished, inspector will check the response time, sending distance etc. After all, we do aging testing to ensure every product is good.
1 year warranty.
Q6. How can i get a lower price?
AC: Large order quantity with lower price, you can contact us to confirm the certain discount with different quantity order.
Q7. How to select the correct model?
AC: a. The best way, contact us, we can assist you . (We provide 24h online service)

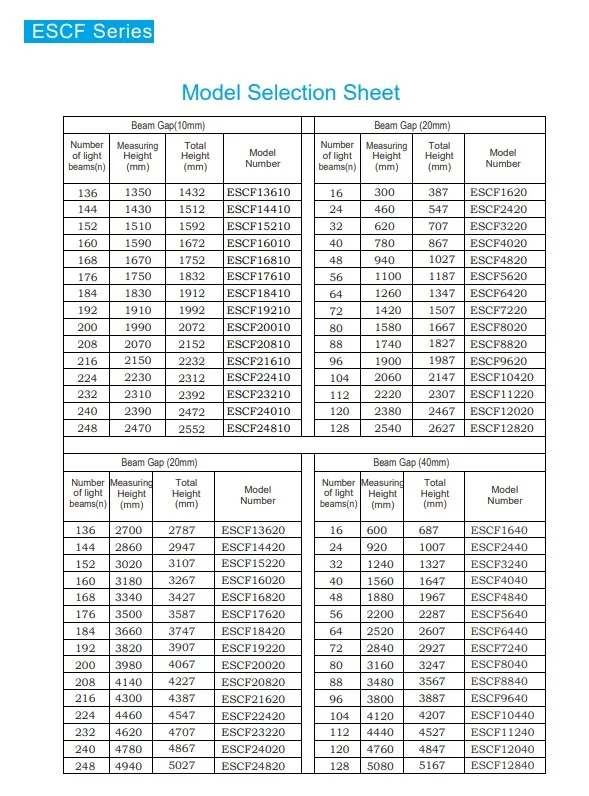

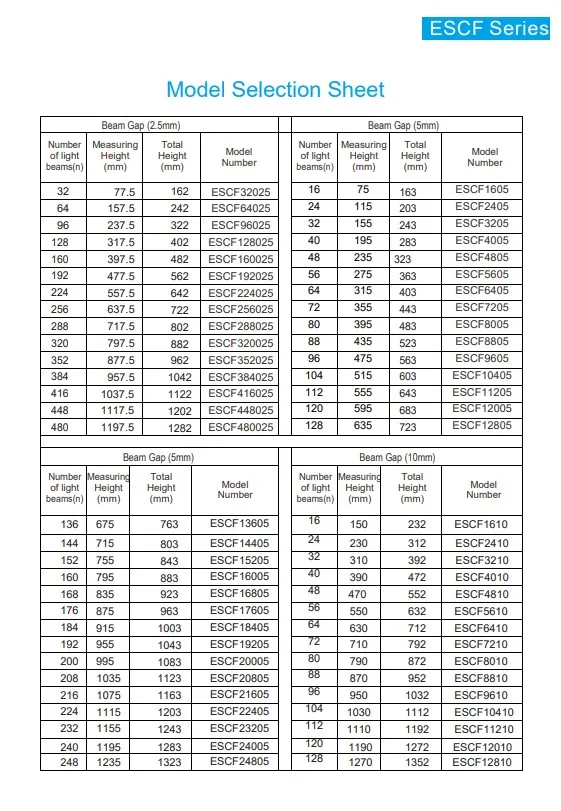

b. To confirm four techical parameters, the beam spacing ,the protective height , the working voltage, and sensing distance. and find the model selection table on above to select the certain model by yourself.
