Pc Platform Full Digital Veterinary Black And White Ultrasound Diagnostic System
- Category: >>>
- Supplier: Dawei Veterinary Medical (Jiangsu) Co. Ltd.
Share on (1600342736488):
Product Overview
Description
Products Description
MU15
Overview:
·15 inch color LCD display
·One-click full screen
·Metal + Nickel plating process probe interface to improve shielding and texture while
bringing longer life cycle
·Built-in lithium battery with 18650 international standard, working for more than 4 hours
·The "soft switch" is enabled, the device start-up loss is almost zero, improve the service
life of the whole machine
·One-click full screen
·Metal + Nickel plating process probe interface to improve shielding and texture while
bringing longer life cycle
·Built-in lithium battery with 18650 international standard, working for more than 4 hours
·The "soft switch" is enabled, the device start-up loss is almost zero, improve the service
life of the whole machine
Performance:
·One-key calls for case information and entry
·Pulsed Wave Doppler (PW)
·THI (Tissue Harmonic Imaging) technology
·Super speckle noise, brighten image and improve the image quality, 2 levels harmonic wave,
with independent buttons, invisible and adjustable cyclically
·Stable and efficient Windows operation platform
·Adopt industrial platform, hard disk 128G, fast data storage without loss
·Connect the hospital system and realize real-time data sending and receiving
·Equipped with Ultra ISO, system recovering USB flash disk, take full backup at urgent moment
·Operation control panel, display keys all achieve functional operation which will reduce
adjustment time
·Pulsed Wave Doppler (PW)
·THI (Tissue Harmonic Imaging) technology
·Super speckle noise, brighten image and improve the image quality, 2 levels harmonic wave,
with independent buttons, invisible and adjustable cyclically
·Stable and efficient Windows operation platform
·Adopt industrial platform, hard disk 128G, fast data storage without loss
·Connect the hospital system and realize real-time data sending and receiving
·Equipped with Ultra ISO, system recovering USB flash disk, take full backup at urgent moment
·Operation control panel, display keys all achieve functional operation which will reduce
adjustment time
Probe Options
CONVEX PROBE
Used for abdominal organs and pregnancy examination of pigs, sheep and large dogs.
MICRO-CONVEX PROBE
Used for abdominal organ and pregnancy examination of cats and small and medium-sized dogs.
LINEAR PROBE
Used for abdominal organs, musculoskeletal and subcutaneous tissues of small animals.
RECTAL PROBE
Used for pregnancy check and reproductive system of cattle and horses.
BACK FAT PROBE
Used for back fat and muscles of pigs and cattle.

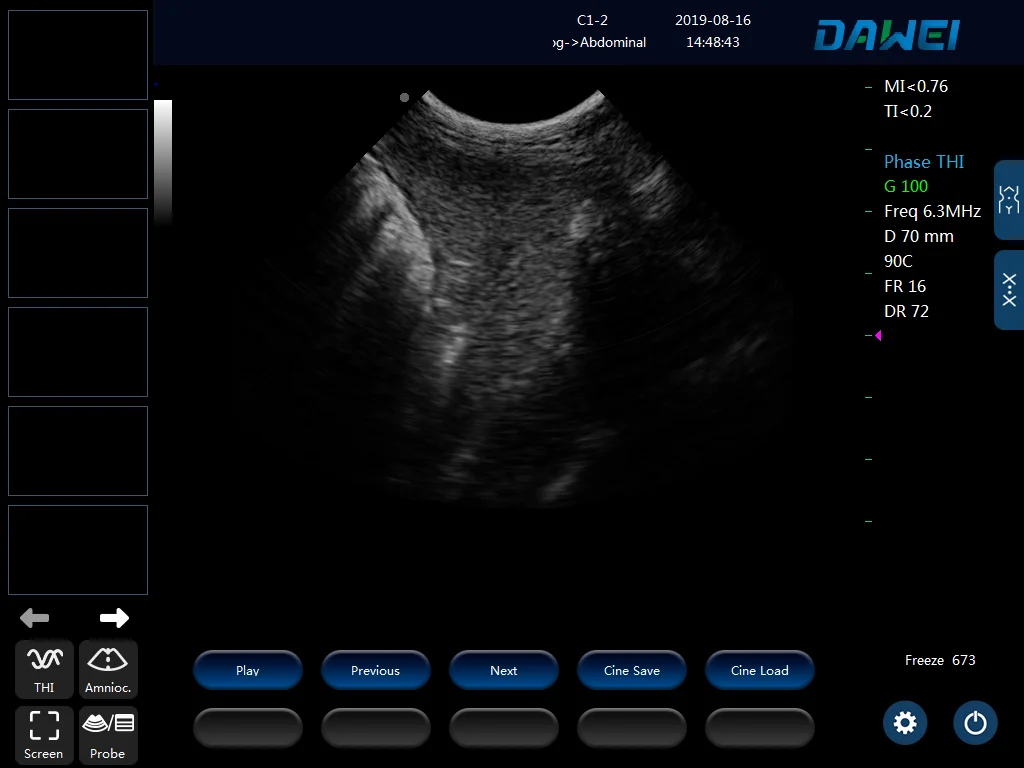

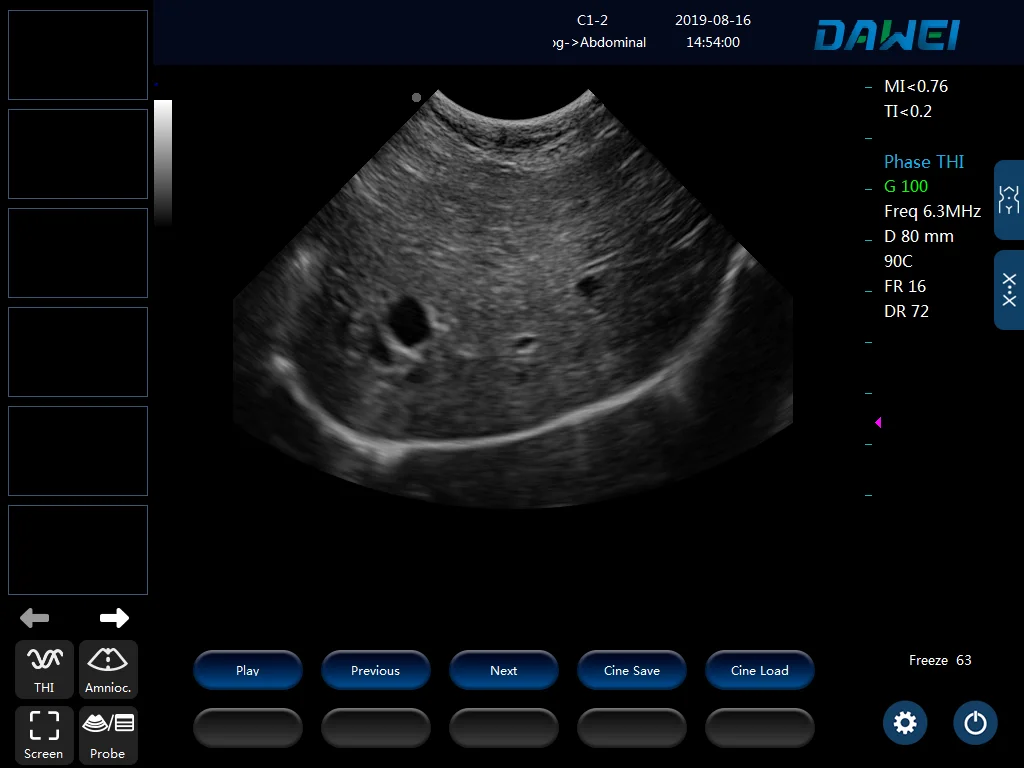

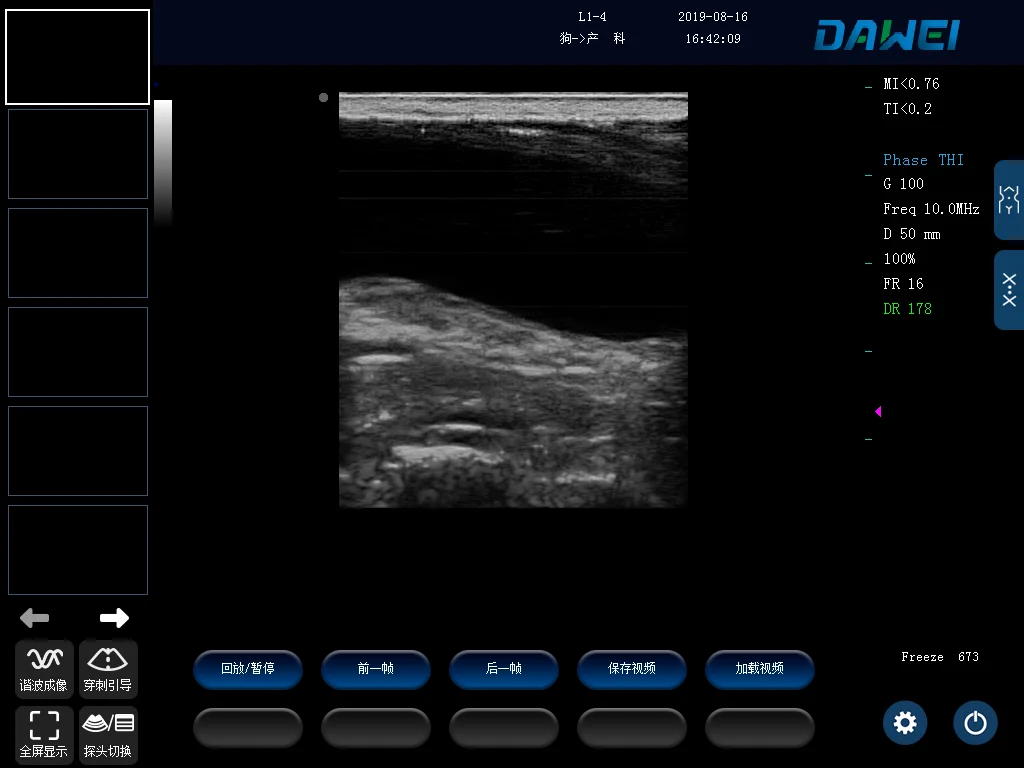

Imaging
Dog's liver
Dog's spleen
Dog's bladder
Weight | 6700g |
Size | 375*360*75mm |
Interface | DICOM, VGA, USB*2 |
Display | 15 inch LED medical display |
Display mode | B, BB, 4B, M, BM, PW |
Battery capacity | 15600(4~6 hours) |
Language | CN, EN |
System | W 1.0 |
Obstetric measurement | Bovine(BTD, BUD), Equine(EGSD、ESD), Swine(HLA、SLA), Ovine(SCRL), Canine(HD、BD、GSD、CRL), Feline(HD、BD) |
Packing & Delivery
Standard configuration
machine (including one lithium battery);
one probe;
one operation manual;
one adapter;
one aluminum suitcase.
Company Profile
After more than 10 years, Dawei has developed into a leading domestic manufacturer of High-tech Ultrasound Equipment. Now our products are sold to more than 30 domestic provinces and exported to over 160 countries and regions."Profession creates more splendidness." Dawei has met the standards of ISO13485, received CE certification, and also gainedvarious of invention patents and software copyrights.
Production Line
Matherboard
Probe Assembly
QC
Warehouse
Certifications
CE
ISO
FAQ
Which organs can be diagnosed by MU15?
Large, middle and small animals' liver, gallbladder, spleen, kidney, bladder, uterus, ovary and other tissues and organs
inspection and diagnosis of lesions.
How long can it be used for a full charge？
It can be used for 4~6 hours when fully charged.
What is the waterproof rating of probe?
IP7(soaking-proof)
What is the warranty？
Two-year free warranty, lifetime paid warranty.
What kind of technical support is provided？
We provide online technical support, all your problems are solved satisfactorily.
inspection and diagnosis of lesions.
How long can it be used for a full charge？
It can be used for 4~6 hours when fully charged.
What is the waterproof rating of probe?
IP7(soaking-proof)
What is the warranty？
Two-year free warranty, lifetime paid warranty.
What kind of technical support is provided？
We provide online technical support, all your problems are solved satisfactorily.
