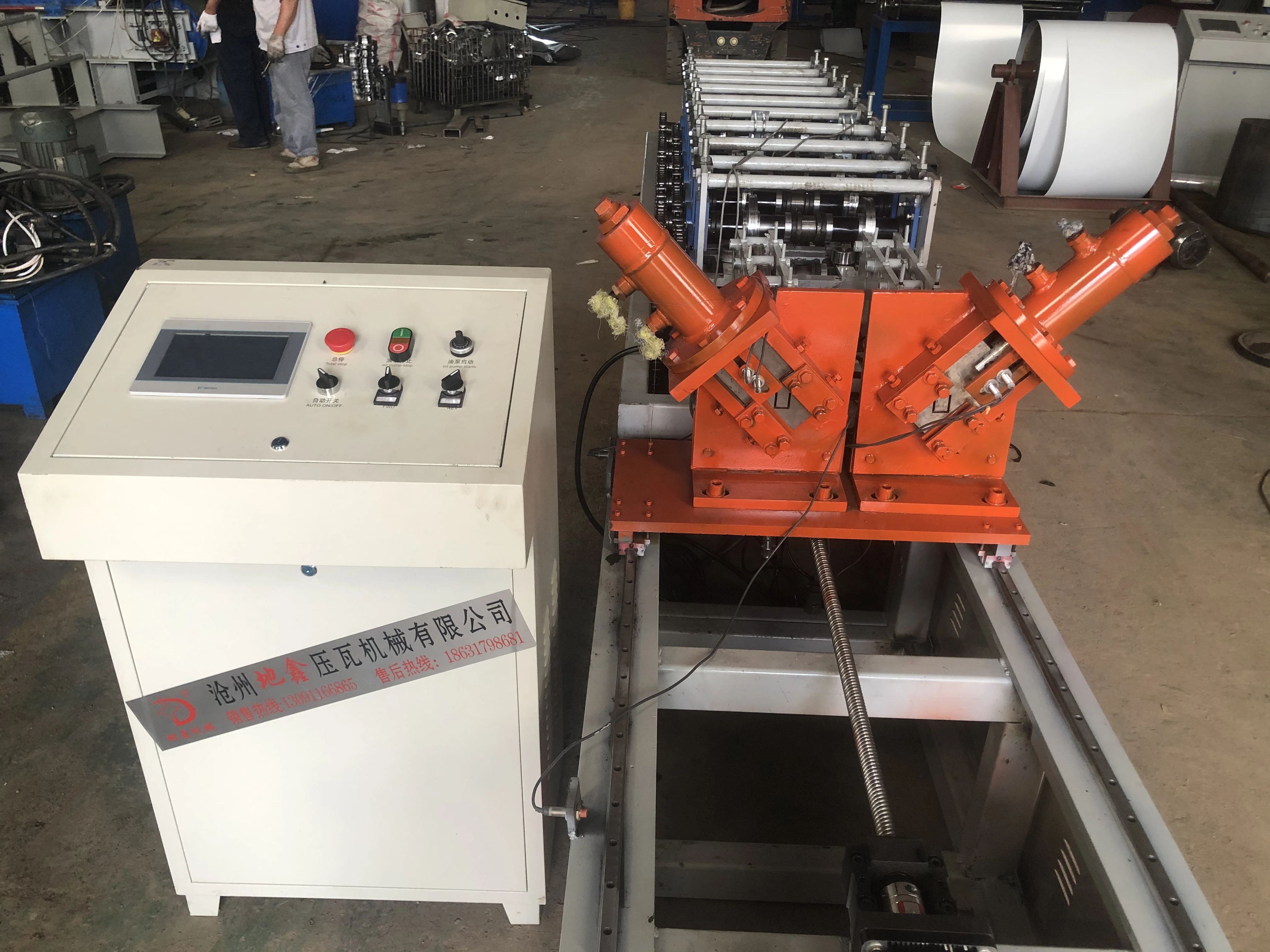

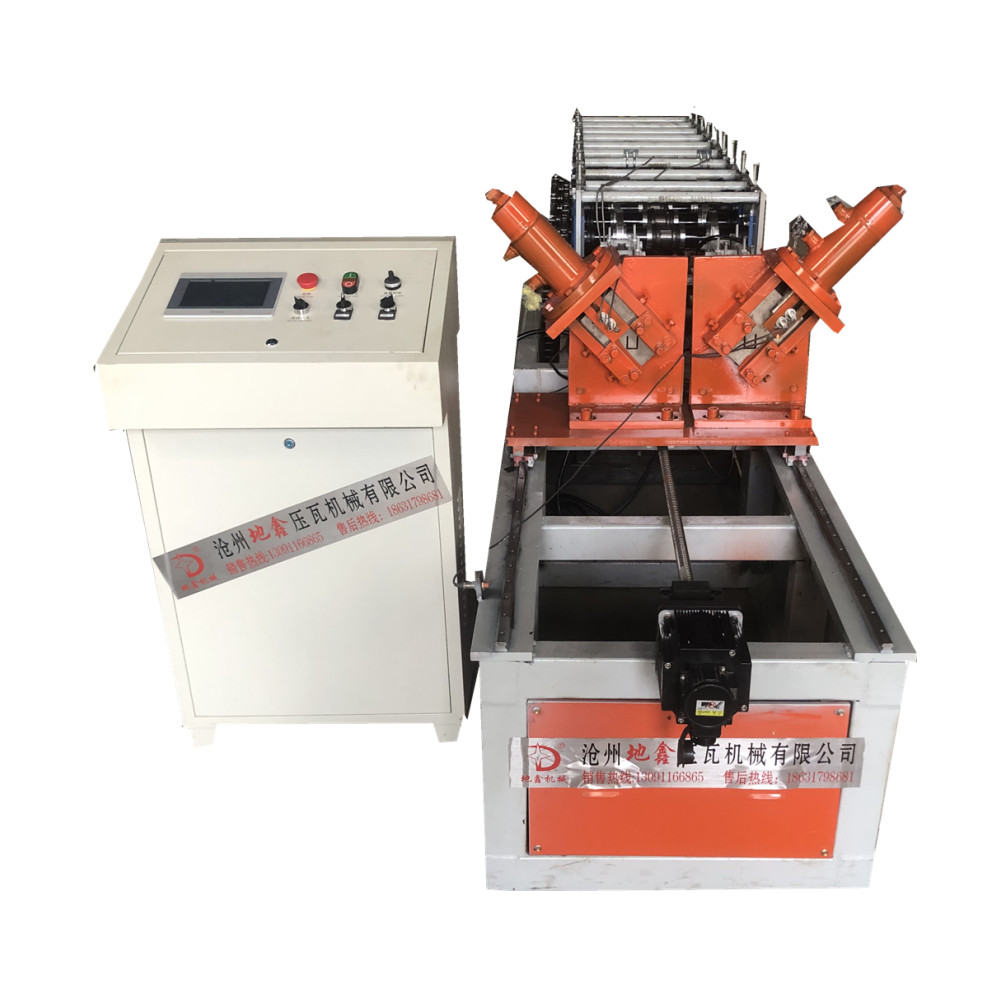

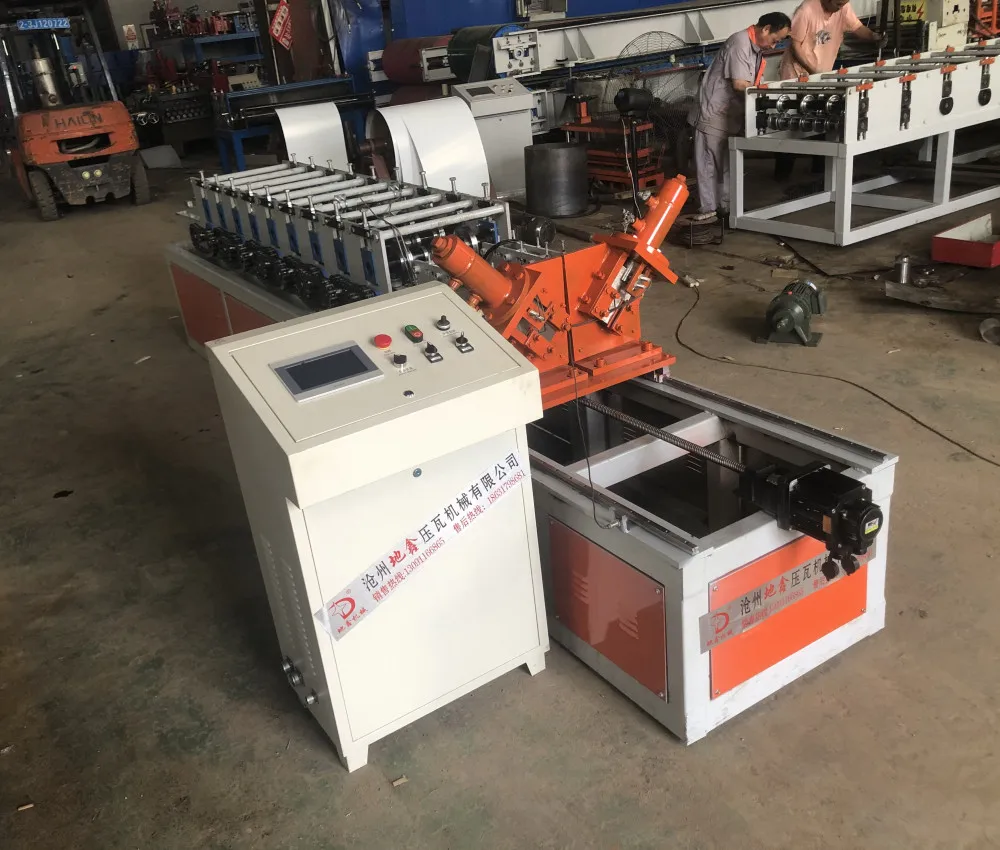

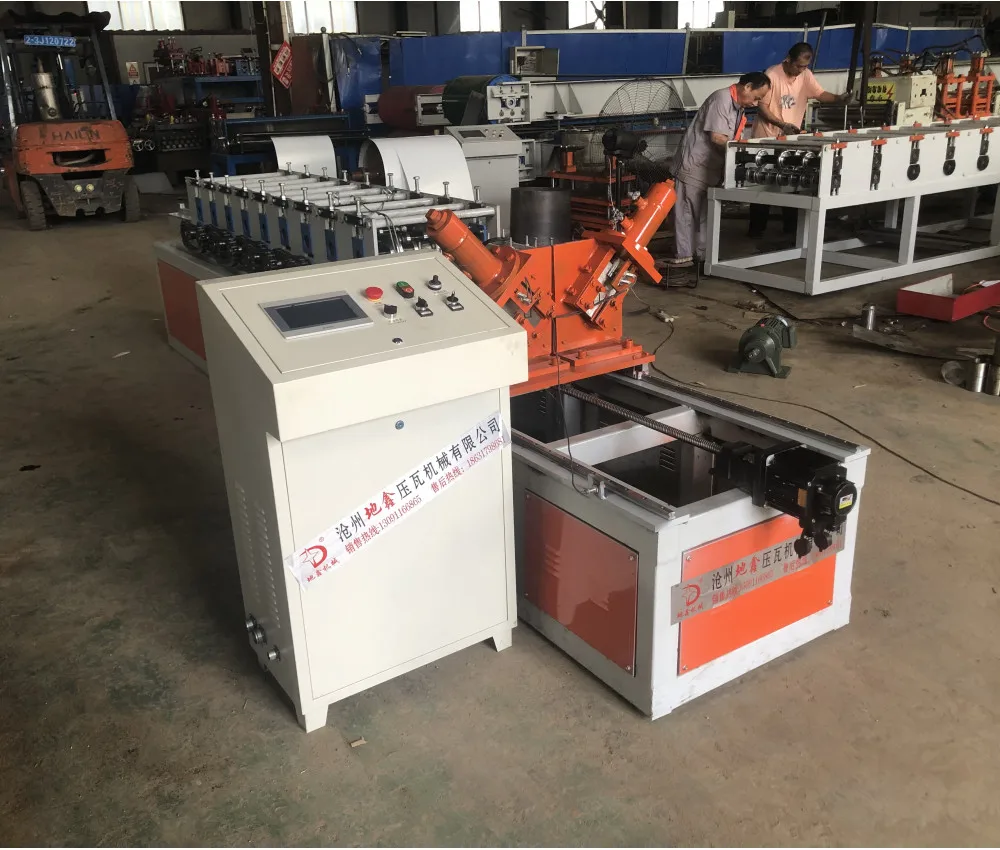

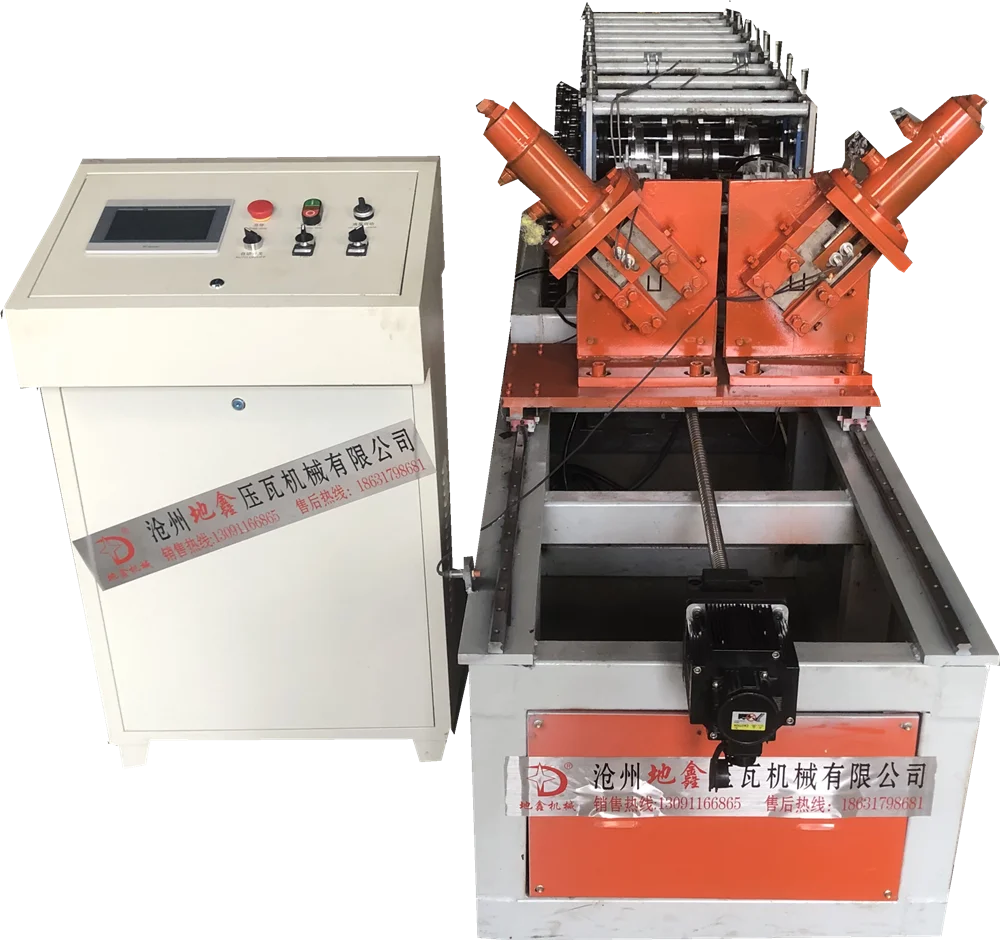

used c u purlin roll forming machine channel light keel steel product line

Company profile

We know well the requirements for the customers from different countries and have an outstanding export teams who will take care of your requests. Our experts and skilled workers complete the work with great precision.

 We provide an extensive line of products, including roof and wall panel machine, tile roof machine, purlin forming machine, shutter door machine, floor decking machine and other associated equipment.

 Our products have been sold worldwide over 90 countries including America, the UK, Australia, India, Sri Lanka South Africa, Tanzania, Nigeria etc.

                      Light keel is a new type of building material.

With the development of the modernization of the dragon, a wide range of steel-frame hotels, terminal buildings, train stations, stations, steel light, shopping malls, factories, office buildings, old building renovation, indoor Decoration settings, ceilings and other places.
The light (paint-baked) keel ceiling has the advantages of light weight, high strength, waterproof, shockproof, industrial injury, sound absorption, internal power, etc., and also has the advantages of short period and bright construction.
The keel is a high-quality continuous hot and cold bending plate and strip as the raw material, and the value of the building metal that is rolled by the process.
It is used for the decoration of non-load-bearing bodies and roofs with light board walls such as paper-faced gypsum board and decorative gypsum board. It is suitable for the modeling decoration of a variety of roofs, circular inner walls and basic materials for shed ceilings.

C/Z quick rotation machine adopts structure multi-rotation machine, which is replaced by electric/manual. Different sizes of production strips for each special roller. The injection molding machine adopts touch screen PLC automatic control.

The C/Z purlin type cold rolling forming machine is in the field of strip construction. It is most widely used for supporting and securing roofing and cladding machines. Design and develop a new C-type purlin cold rolling forming machine with better performance. The length and height can be adjusted automatically by PLC control system. The thickness, richness and depth of the active material can be easily adjusted.

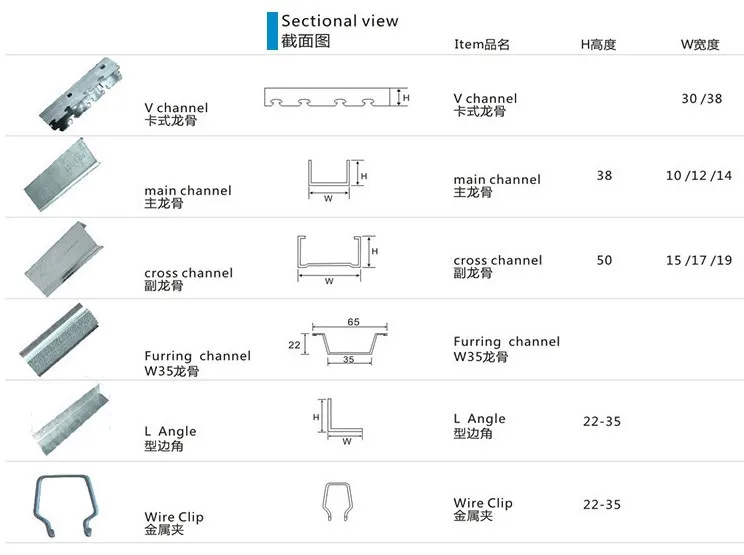

The light steel keel includes ceiling keel and partition keel according to the purpose, and V-shaped, C-shaped, T-shaped, L-shaped and U-shaped keels according to the cross-sectional form.

1. Work flow:
manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system-- post cut-- output table

2.Cold Roll Forming Machine Product Feature:

The metalic profile produced by roll forming machine look beautiful, elegant and noble. They are widely used for garden, factory,hotel, exhibition center and villa, etc.

Cold Roll Forming Machine Components:
Roll forming machine consists of Uncoiler, Coil sheet guiding device, Main roll forming system, Post cutting device, Hydraulic station, PLC control system and Support table.
Optional with Hydraulic Decoiler, Auto Stacker, Safe Cover, Pre-Cutting, Film Covering Device, and so on.

3.Cold Roll Forming Machine Working Flow:
Decoiling→Feeding & Guiding→Flattening(If needed)→Pre- Punching/Cutting(If needed)→Roll Forming→Post Step pressing/Punching(If needed)→Post Cutting→Finished Products To Support Table

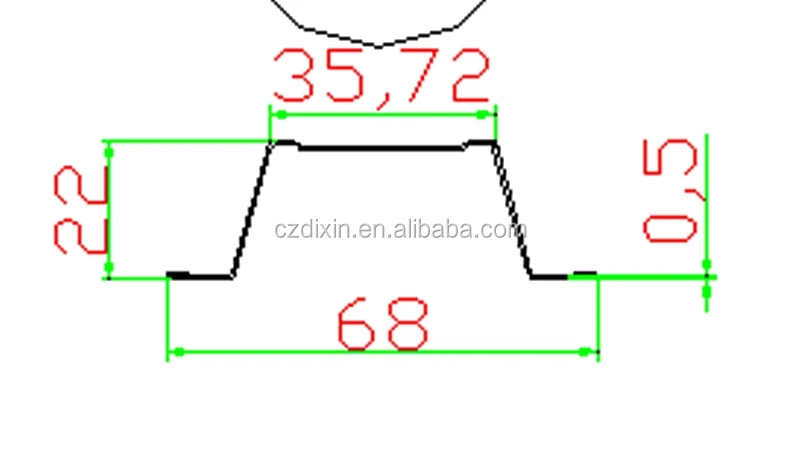

4drawing panel

All these roof panels are very popular all over the word. It looks very beautiful.you can provide your own profile, coils width ,then we produce the machine according to your request.

We can produce too many types roofing panels roll forming machine ,especially according to your request to produce.you need provide panel drawing,feeding width,effective width,and materials thickness,then we can send you more machine details.please feel free contact me.

30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 30-45 days for delivery.

1. You can apply for a letter of credit
2. You can apply for Alibaba credit insurance order payment, and the platform will guarantee your legal rights
